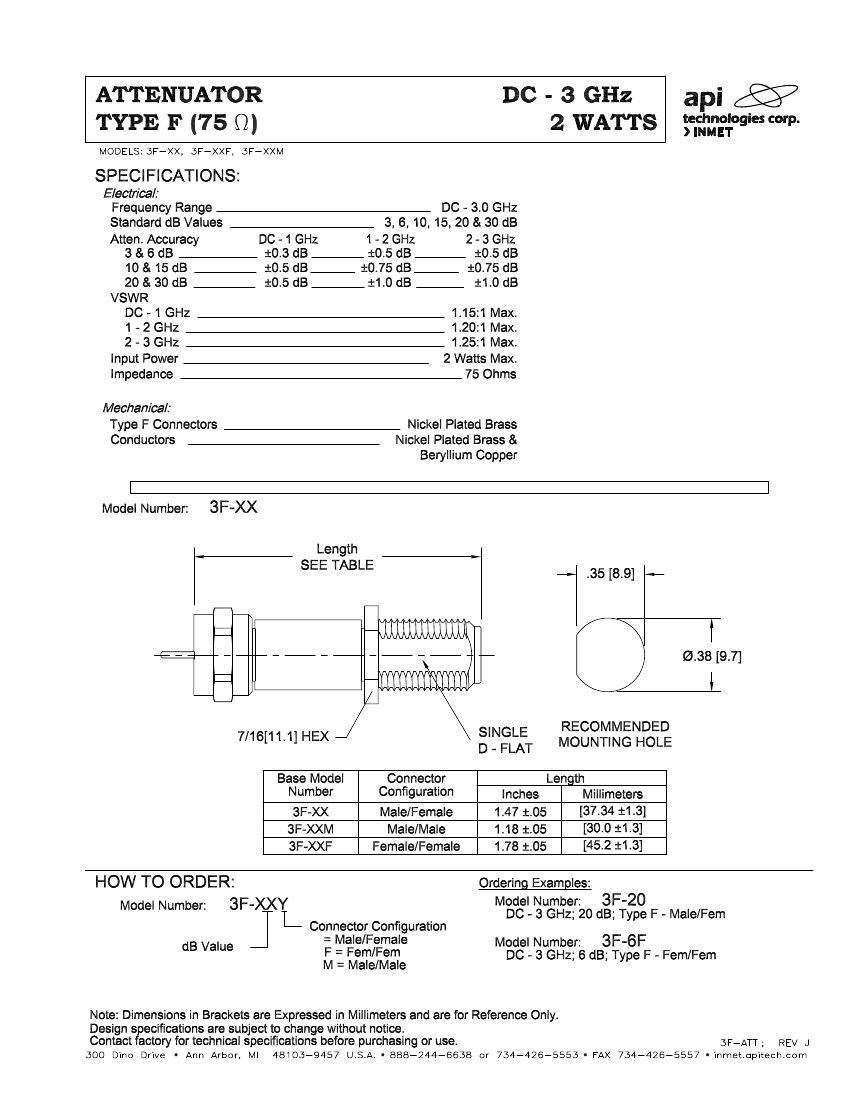

3F-15F datasheet, PDF - EEWORLD Datasheet

3F-15F: DescriptionFixed Attenuator, 0MHz Min, 3000MHz Max, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size780KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

3F-15F Overview

Fixed Attenuator, 0MHz Min, 3000MHz Max, ROHS COMPLIANT PACKAGE

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compliant
Other features	F-F
Nominal attenuation	15 dB
Characteristic impedance	75 Ω
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
Maximum operating frequency	3000 MHz
Minimum operating frequency
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	NICKEL
Maximum voltage standing wave ratio	1.25
Base Number Matches	1

	3F-15F	3F-20F	3F-15M	3F-20M	3F-30F	3F-30M	3F-30	3F-20
Description	Fixed Attenuator, 0MHz Min, 3000MHz Max, ROHS COMPLIANT PACKAGE	Fixed Attenuator, 0MHz Min, 3000MHz Max, ROHS COMPLIANT PACKAGE	Fixed Attenuator, 0MHz Min, 3000MHz Max, ROHS COMPLIANT PACKAGE	Fixed Attenuator, 0MHz Min, 3000MHz Max, ROHS COMPLIANT PACKAGE	Fixed Attenuator, 0MHz Min, 3000MHz Max, ROHS COMPLIANT PACKAGE	Fixed Attenuator, 0MHz Min, 3000MHz Max, ROHS COMPLIANT PACKAGE	Fixed Attenuator, 0MHz Min, 12400MHz Max	Fixed Attenuator, 0MHz Min, 12400MHz Max
Maker	API Technologies	API Technologies	API Technologies	API Technologies	API Technologies	API Technologies	API Technologies	API Technologies
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Characteristic impedance	75 Ω	75 Ω	75 Ω	75 Ω	75 Ω	75 Ω	50 Ω	50 Ω
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Maximum input power (CW)	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm
Maximum operating frequency	3000 MHz	3000 MHz	3000 MHz	3000 MHz	3000 MHz	3000 MHz	12400 MHz	12400 MHz
RF/Microwave Device Types	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR
Terminal surface	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	GOLD	GOLD
Maximum voltage standing wave ratio	1.25	1.25	1.25	1.25	1.25	1.25	1.25	1.25
Other features	F-F	F-F	F-M	F-M	F-F	F-M	-	-
Nominal attenuation	15 dB	20 dB	15 dB	20 dB	30 dB	30 dB	-	-
Base Number Matches	1	1	1	1	1	1	1	-
