IRFSL59N10DPbF

Description
59 A, 100 V, 0.025 ohm, N-CHANNEL, Si, POWER, MOSFET
CategoryDiscrete semiconductor    The transistor
File Size225KB,11 Pages
ManufacturerInternational Rectifier ( Infineon )
Websitehttp://www.irf.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

IRFSL59N10DPbF Overview

59 A, 100 V, 0.025 ohm, N-CHANNEL, Si, POWER, MOSFET

IRFSL59N10DPbF Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerInternational Rectifier ( Infineon )
Parts packaging codeTO-262AA
package instructionLEAD FREE, PLASTIC, TO-262, 3 PIN
Contacts3
Reach Compliance Codenot_compliant
ECCN codeEAR99
Avalanche Energy Efficiency Rating (Eas)510 mJ
Shell connectionDRAIN
ConfigurationSINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage100 V
Maximum drain current (Abs) (ID)59 A
Maximum drain current (ID)59 A
Maximum drain-source on-resistance0.025 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR
JEDEC-95 codeTO-262AA
JESD-30 codeR-PSIP-T3
JESD-609 codee3
Humidity sensitivity level1
Number of components1
Number of terminals3
Operating modeENHANCEMENT MODE
Maximum operating temperature175 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)260
Polarity/channel typeN-CHANNEL
Maximum power dissipation(Abs)200 W
Maximum pulsed drain current (IDM)236 A
Certification statusNot Qualified
surface mountNO
Terminal surfaceMatte Tin (Sn) - with Nickel (Ni) barrier
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Maximum time at peak reflow temperature30
transistor applicationsSWITCHING
Transistor component materialsSILICON
Base Number Matches1

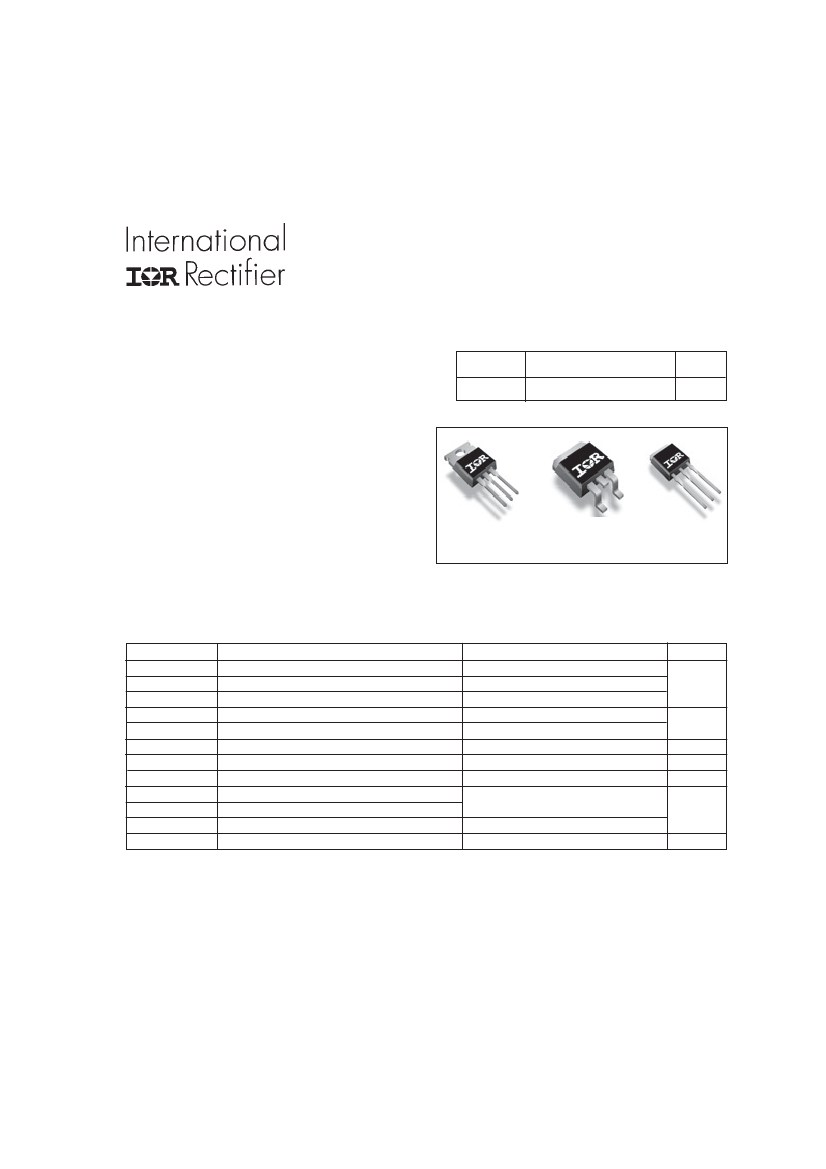

PD - 95378
SMPS MOSFET
Applications
l
High frequency DC-DC converters
l
UPS / Motor Control Inverters
l
Lead-Free
IRFB59N10DPbF
IRFS59N10DPbF
IRFSL59N10DPbF
HEXFET
®
Power MOSFET
V
DSS
100V
R
DS(on)
max
0.025Ω
I
D
59A
Benefits
l
Low Gate-to-Drain Charge to Reduce
Switching Losses
l
Fully Characterized Capacitance Including
Effective C
OSS
to Simplify Design, (See
App. Note AN1001)
TO-220AB
l
Fully Characterized Avalanche Voltage
IRFB59N10D
and Current
D
2
Pak
IRFS59N10D
TO-262
IRFSL59N10D
Absolute Maximum Ratings
Parameter
I
D
@ T
C
= 25°C
I
D
@ T
C
= 100°C
I
DM
P
D
@T
A
= 25°C
P
D
@T
C
= 25°C
V
GS
dv/dt
T
J
T
STG
Continuous Drain Current, V
GS
@ 10V
Continuous Drain Current, V
GS
@ 10V
Pulsed Drain Current

Power Dissipation
‡
Power Dissipation
Linear Derating Factor
Gate-to-Source Voltage
Peak Diode Recovery dv/dt
ƒ
Operating Junction and
Storage Temperature Range
Soldering Temperature, for 10 seconds
Mounting torqe, 6-32 or M3 screw†
Max.
59
42
236
3.8
200
1.3
± 30
3.3
-55 to + 175
300 (1.6mm from case )
10 lbf•in (1.1N•m)
Units
A
W
W/°C
V
V/ns
°C
Typical SMPS Topologies
l
l
Half-bridge and Full-bridge DC-DC Converters
Full-bridge Inverters
Notes

through
‡
are on page 11
www.irf.com
1
06/07/04

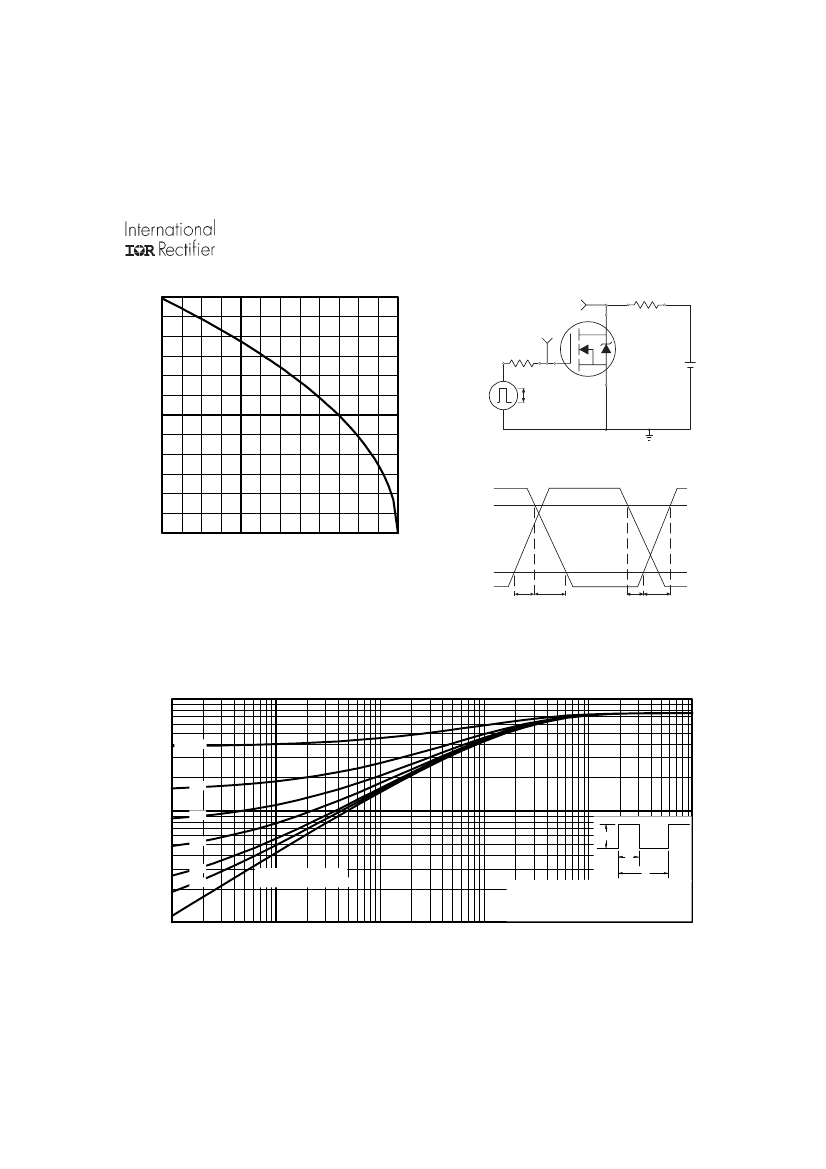

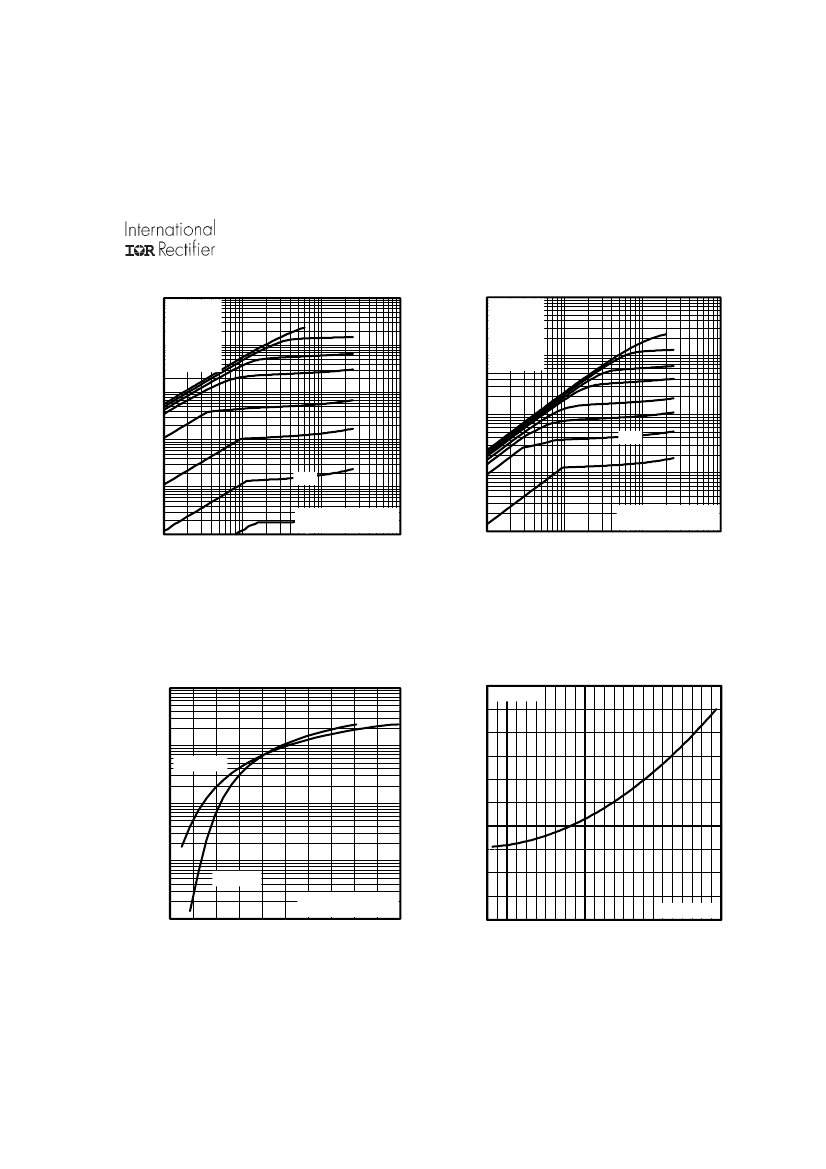

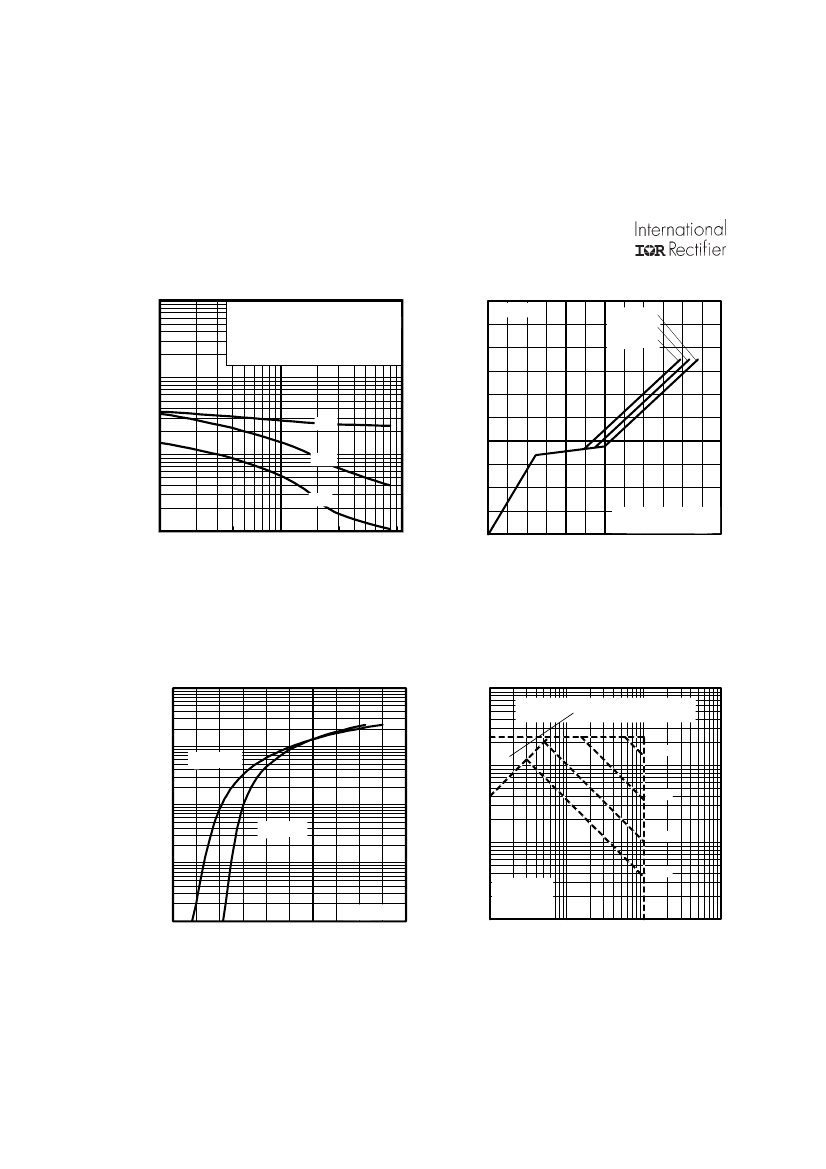

IRFSL59N10DPbF Related Products

IRFSL59N10DPbF IRFB59N10DPBF IRFS59N10DPbF
Description 59 A, 100 V, 0.025 ohm, N-CHANNEL, Si, POWER, MOSFET 59 A, 100 V, 0.025 ohm, N-CHANNEL, Si, POWER, MOSFET 59 A, 100 V, 0.025 ohm, N-CHANNEL, Si, POWER, MOSFET
Is it Rohs certified? conform to conform to conform to
Maker International Rectifier ( Infineon ) International Rectifier ( Infineon ) International Rectifier ( Infineon )
package instruction LEAD FREE, PLASTIC, TO-262, 3 PIN LEAD FREE PACKAGE-3 LEAD FREE, PLASTIC, D2PAK-3
Contacts 3 3 3
Reach Compliance Code not_compliant unknown not_compliant
ECCN code EAR99 EAR99 EAR99
Avalanche Energy Efficiency Rating (Eas) 510 mJ 510 mJ 510 mJ
Shell connection DRAIN DRAIN DRAIN
Configuration SINGLE WITH BUILT-IN DIODE SINGLE WITH BUILT-IN DIODE SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage 100 V 100 V 100 V
Maximum drain current (Abs) (ID) 59 A 59 A 59 A
Maximum drain current (ID) 59 A 59 A 59 A
Maximum drain-source on-resistance 0.025 Ω 0.025 Ω 0.025 Ω
FET technology METAL-OXIDE SEMICONDUCTOR METAL-OXIDE SEMICONDUCTOR METAL-OXIDE SEMICONDUCTOR
JESD-30 code R-PSIP-T3 R-PSFM-T3 R-PSSO-G2
JESD-609 code e3 e3 e3
Number of components 1 1 1
Number of terminals 3 3 2
Operating mode ENHANCEMENT MODE ENHANCEMENT MODE ENHANCEMENT MODE
Maximum operating temperature 175 °C 175 °C 175 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR
Package form IN-LINE FLANGE MOUNT SMALL OUTLINE
Peak Reflow Temperature (Celsius) 260 250 260
Polarity/channel type N-CHANNEL N-CHANNEL N-CHANNEL
Maximum power dissipation(Abs) 200 W 200 W 200 W
Maximum pulsed drain current (IDM) 236 A 236 A 236 A
Certification status Not Qualified Not Qualified Not Qualified
surface mount NO NO YES
Terminal surface Matte Tin (Sn) - with Nickel (Ni) barrier Matte Tin (Sn) - with Nickel (Ni) barrier Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal form THROUGH-HOLE THROUGH-HOLE GULL WING
Terminal location SINGLE SINGLE SINGLE
Maximum time at peak reflow temperature 30 30 30
transistor applications SWITCHING SWITCHING SWITCHING
Transistor component materials SILICON SILICON SILICON
Base Number Matches 1 1 1
Parts packaging code TO-262AA TO-220AB -
JEDEC-95 code TO-262AA TO-220AB -
Humidity sensitivity level 1 - 1
Is it lead-free? - Lead free Lead free
