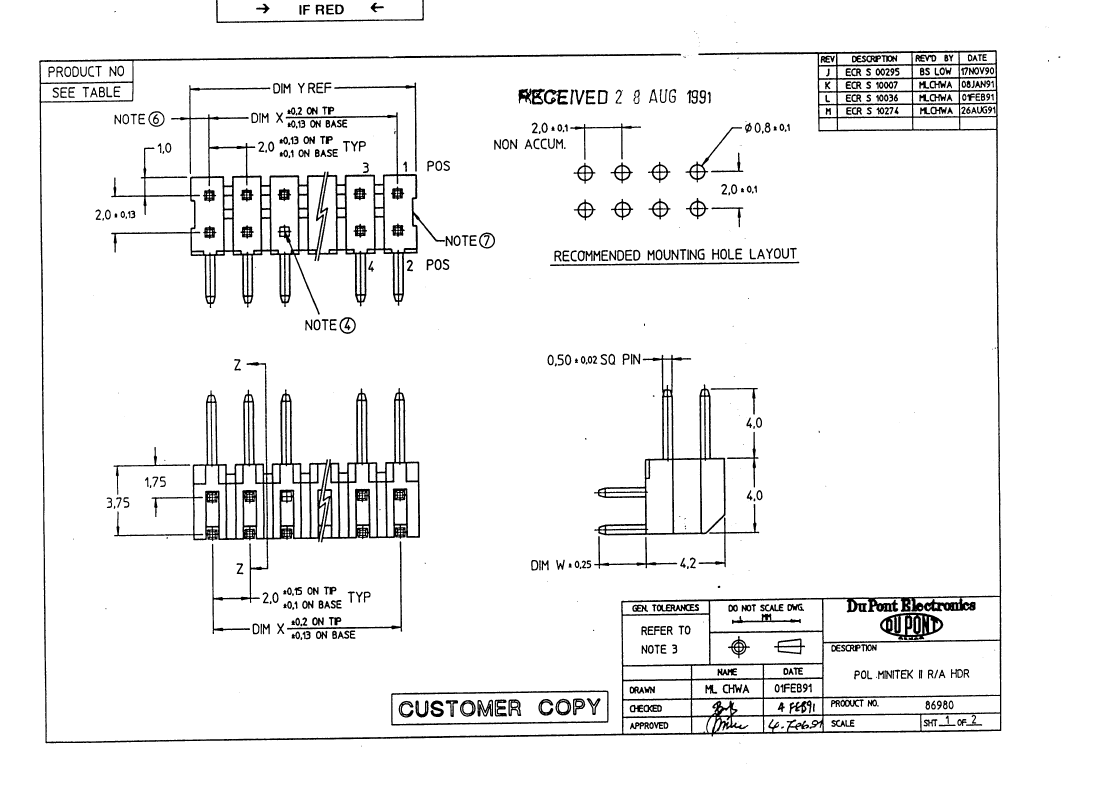

Preview

86980-007: DescriptionBoard Connector, 51 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size228KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

86980-007 Overview

Board Connector, 51 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal

86980-007 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Other features	POLARIZED
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	86980
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	51
UL Flammability Code	94V-0

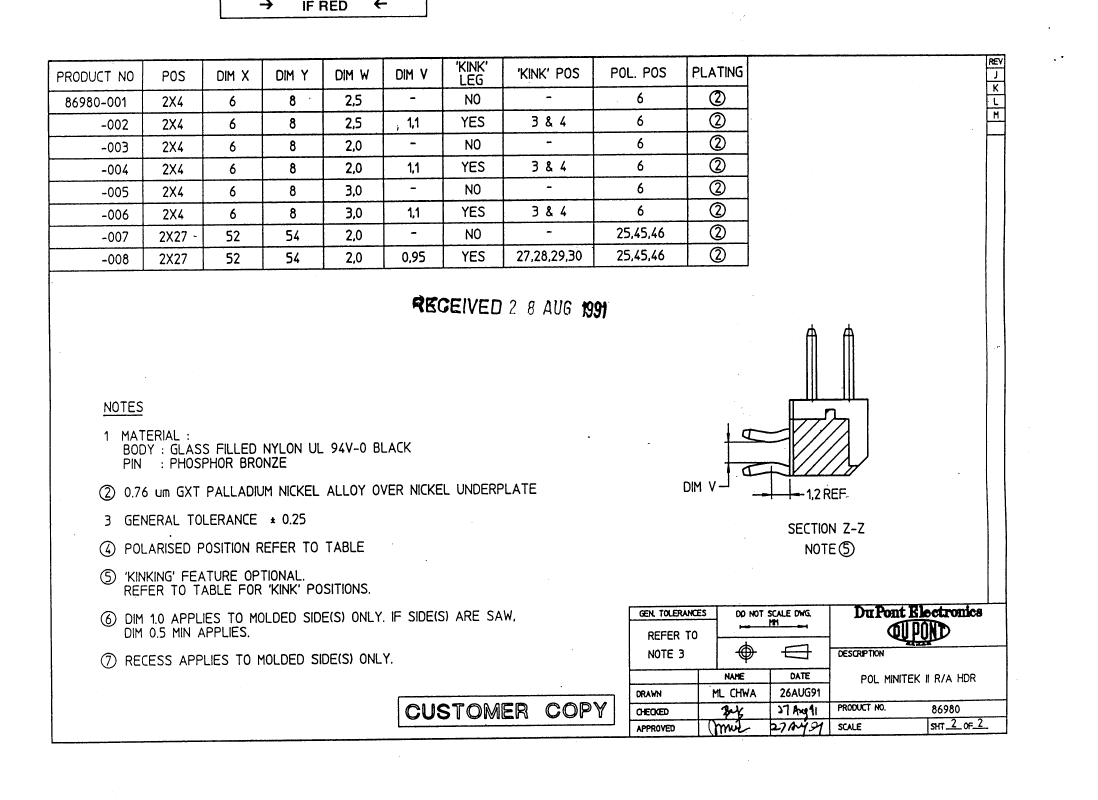

Preview

Download Datasheet

View All

PDM: Rev:M

STATUS:

Released

Printed: Nov 27, 2010

.

86980-007 Related Products

	86980-007	86980-001	86980-002	86980-003	86980-004	86980-005	86980-006	86980-008
Description	Board Connector, 51 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 7 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 7 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 7 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 7 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 7 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 7 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 51 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	86980	86980	86980	86980	86980	86980	86980	86980
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	51	7	7	7	7	7	7	51
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
