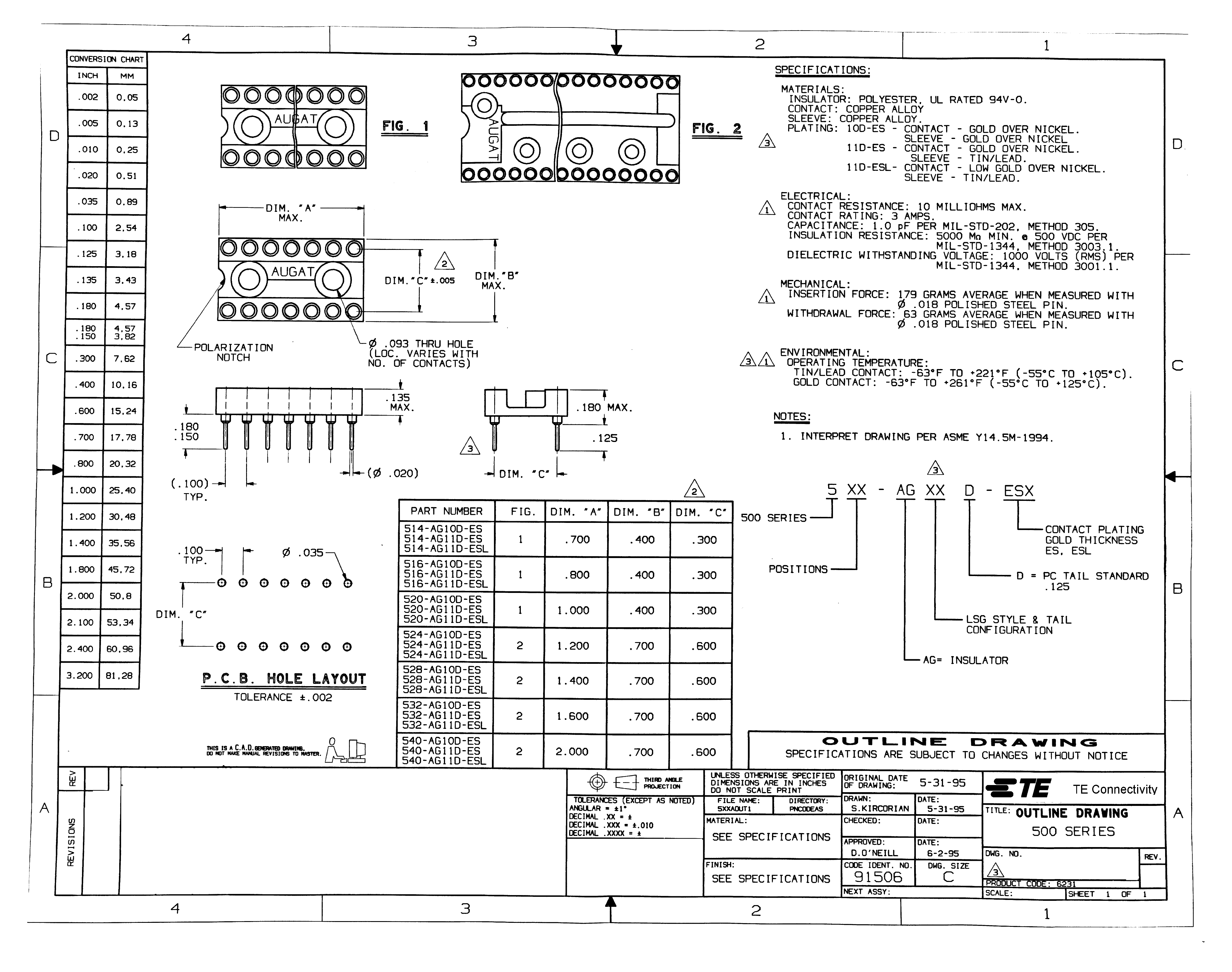

DIP14, IC SOCKET
| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | TE Connectivity |
| Reach Compliance Code | not_compliant |
| ECCN code | EAR99 |
| Other features | STANDARD: UL 94V-0 |
| body width | 0.4 inch |
| subject depth | 0.18 inch |
| body length | 0.7 inch |
| Contact to complete cooperation | GOLD OVER NICKEL |
| Contact completed and terminated | Tin/Lead (Sn/Pb) |
| Contact material | BERYLLIUM COPPER |
| Contact style | RND PIN-SKT |
| current rating | 3 A |
| Device slot type | IC SOCKET |
| Type of equipment used | DIP14 |
| Dielectric withstand voltage | 1400VAC V |
| Shell material | POLYESTER |
| Insulation resistance | 5000000000 Ω |
| JESD-609 code | e0 |
| Plug contact pitch | 0.1 inch |
| Installation method | STRAIGHT |
| Number of contacts | 14 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 0.3 mm |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Base Number Matches | 1 |
| 514-AG11D-ES | 7-1437536-2 | 524-AG11D | 532-AG11D-ESL | 506-AG11D | |
|---|---|---|---|---|---|
| Description | DIP14, IC SOCKET | DIP36, IC SOCKET | DIP24, IC SOCKET | DIP32, IC SOCKET | DIP6, IC SOCKET |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible |
| Reach Compliance Code | not_compliant | unknow | not_compliant | compliant | not_compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Other features | STANDARD: UL 94V-0 | STANDARD PROFILE, VERTICAL MOUNT, DIP SOCKET | STANDARD: UL 94V-0 | STANDARD: UL 94V-0 | STANDARD: UL 94V-0 |
| Contact to complete cooperation | GOLD OVER NICKEL | NOT SPECIFIED | NOT SPECIFIED | GOLD OVER NICKEL | GOLD (25) |
| Contact material | BERYLLIUM COPPER | BERYLLIUM COPPER | NOT SPECIFIED | BERYLLIUM COPPER | BERYLLIUM COPPER |
| Device slot type | IC SOCKET | IC SOCKET | IC SOCKET | IC SOCKET | IC SOCKET |
| Type of equipment used | DIP14 | DIP36 | DIP24 | DIP32 | DIP6 |
| Number of contacts | 14 | 36 | 24 | 32 | 6 |
| Is it lead-free? | Contains lead | - | - | Contains lead | Contains lead |
| Maker | TE Connectivity | - | - | TE Connectivity | TE Connectivity |
| body width | 0.4 inch | - | 0.7 inch | 0.7 inch | 0.4 inch |
| subject depth | 0.18 inch | - | 0.18 inch | 0.18 inch | 0.18 inch |
| body length | 0.7 inch | - | 1.2 inch | 1.6 inch | 0.3 inch |
| Contact completed and terminated | Tin/Lead (Sn/Pb) | TIN LEAD | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Contact style | RND PIN-SKT | - | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT |
| Shell material | POLYESTER | - | POLYETHYLENE POLYESTER | POLYETHYLENE POLYESTER | POLYETHYLENE POLYESTER |
| JESD-609 code | e0 | e0 | - | e0 | e0 |
| Plug contact pitch | 0.1 inch | - | 0.1 inch | 0.1 inch | 0.1 inch |
| Installation method | STRAIGHT | - | STRAIGHT | STRAIGHT | STRAIGHT |
| Maximum operating temperature | 105 °C | - | 125 °C | 105 °C | - |
| Minimum operating temperature | -55 °C | - | -55 °C | -55 °C | - |
| PCB contact pattern | RECTANGULAR | - | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 0.3 mm | - | 0.6 mm | 0.6 mm | 0.3 mm |
| Terminal pitch | 2.54 mm | - | 2.54 mm | 2.54 mm | 2.54 mm |
| Termination type | SOLDER | - | SOLDER | SOLDER | SOLDER |
| Base Number Matches | 1 | 1 | 1 | 1 | - |
