550T007NF5R4B0-05-18 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> Connector bracket> 550T007NF5R4B0-05-18

Preview

550T007NF5R4B0-05-18: DescriptionConnector Accessory, Backshell,; CategoryThe connector Connector bracket; File Size160KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric Compare View All

550T007NF5R4B0-05-18 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	550T007NF5R4B0-05-18	-	-	View	Buy Now

550T007NF5R4B0-05-18 Overview

Connector Accessory, Backshell,

550T007NF5R4B0-05-18 Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	not_compliant
Factory Lead Time	10 weeks
Other features	CABLE ENTRY TOP STYLE, SHIELDED
Assembly name	BACKSHELL
Connector bracket type	CONNECTOR ACCESSORY
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	550T007NF5R4B0-05-18
Installation option 1	LOCKING
Installation option 2	FILLISTER HEAD
Base Number Matches	1

Preview

Download Datasheet

View All

MIL-DTL-24308

D-Subminiature

550-007

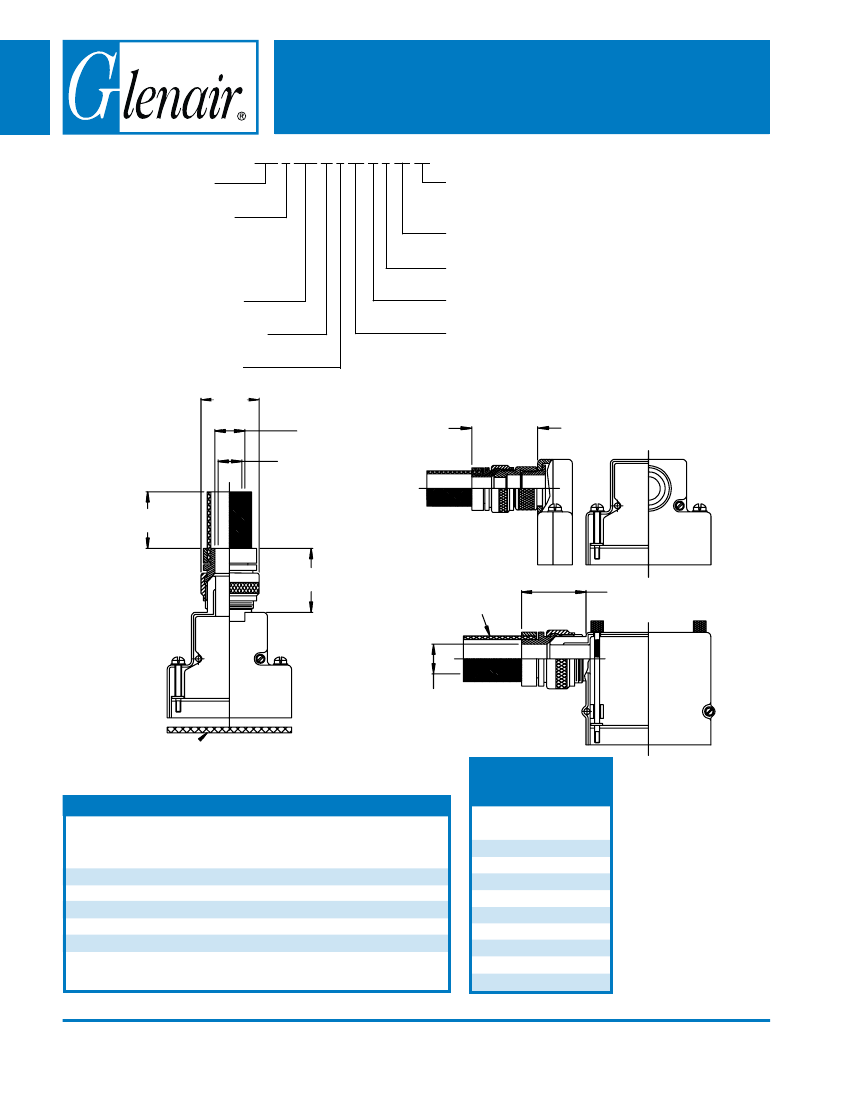

EMI/RFI D-Subminiature Split Backshell

with Pre-Terminated overall Shield Sock

550 T 007 M 2 F0 B 1-02-24

Basic Part No.

Cable Entry Style

T = Top

S = Side

E = End

Basic Part Number

Finish Symbol (Page 3)

Shell Size (Table I)

H

Cable Range

Shell I.D.

Shield Sock Length (In Inches)

6 inch Minimum Order Length

Cable Entry Dash No. (Table II)

0 = Without EMI Gasket, 1 = With EMI Gas-

ket

Jackscrew Type (Page A-4)

Receptacle Mounting (Right Page)

CC = Cable-to-Cable Mounting

F0 = Front Mounting

R1-R9 = Rear Mounting

1.300

(33.3) Max

Length

Shield Sock:

Single Layer

Tinned Copper

Braid

S

SIDE

ENTR

Y

1.300 (33.3) Max

T

ToP

ENTR

Y

EMI Gasket (Optional)

Shell I.D.

E

END

ENTR

Y

Com’l

Entry Style Entry Style

Shell Shell Size

T (Ref)

E

Size

Ref

Shell I.D.

1

E/09

.250 (6.4) .375 (9.5)

2

A/15

.375 (9.5) .375 (9.5)

3

B/25

.475 (12.1) .475 (12.1)

4

C/37

.475 (12.1) .475 (12.1)

5

D/50

.575 (14.6) .575 (14.6)

6*

F/104 1.000 (25.4)

n/a

* Shell Size 6 Available in Top Entry Only.

TABLE I: SHELL SIZE & ENTRY STYLE

H

Ref

.940 (23.9)

1.060 (26.9)

1.195 (30.4)

1.594 (40.5)

CAGE Code 06324

TABLE II:

CABLE ENTRY

Dash

Cable

No.

Entry

02

.250 (6.4)

03

.375 (9.5)

04

.500 (12.7)

05

.625 (15.9)

06

.750 (19.1)

07

.812 (20.6)

08

.875 (22.2)

09

.938 (23.8)

10 1.000 (25.4)

1. Metric dimensions

(mm) are indicated in

parentheses.

2.

Do NoT uSE

CoNNECToRS

WITH FLoAT

MouNTINGS.

3. Overall Shield Sock

Material: Tinned

Copper Braid per

QQ-B-575.

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

A-22

550T007NF5R4B0-05-18 Related Products

	550T007NF5R4B0-05-18	550S007M1R5B1-03-12	550E007NF5R2J1-06-10	550T007NF2F0B1-06-6	550T007NF4F0B1-06-6	550T007NF5R7B1-05-12	5745174-2
Description	Connector Accessory, Backshell,	Connector Accessory, Backshell,	Connector Accessory, Backshell,	Connector Accessory, Backshell,	Connector Accessory, Backshell,	Connector Accessory, Backshell,	CONNECTOR ACCESSORY, BACKSHELL-UNSHIELDED, D-SUB, 0.35 in MIN CABLE DIA, 0.65 in MAX CABLE DIA
Maker	Glenair	Glenair	Glenair	Glenair	Glenair	Glenair	Glenair
Reach Compliance Code	not_compliant	unknown	not_compliant	not_compliant	not_compliant	compliant	unknown
Base Number Matches	1	1	1	1	1	1	1
Factory Lead Time	10 weeks	8 weeks	8 weeks	8 weeks	8 weeks	17 weeks 1 day	-
Other features	CABLE ENTRY TOP STYLE, SHIELDED	CABLE ENTRY SIDE STYLE, SHIELDED	CABLE ENTRY END STYLE, SHIELDED	CABLE ENTRY TOP STYLE, SHIELDED	CABLE ENTRY TOP STYLE, SHIELDED	CABLE ENTRY TOP STYLE, SHIELDED	-
Assembly name	BACKSHELL	BACKSHELL	BACKSHELL	BACKSHELL	BACKSHELL	BACKSHELL	-
Connector bracket type	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	-
DIN compliance	NO	NO	NO	NO	NO	NO	-
IEC compliance	NO	NO	NO	NO	NO	NO	-
MIL compliance	NO	NO	NO	NO	NO	NO	-
Manufacturer's serial number	550T007NF5R4B0-05-18	550S007M1R5B1-03-12	550E007NF5R2J1-06-10	550T007NF2F0B1-06-6	550T007NF4F0B1-06-6	550T007NF5R7B1-05-12	-
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	-
Installation option 2	FILLISTER HEAD	FILLISTER HEAD	JACKSCREW	FILLISTER HEAD	FILLISTER HEAD	FILLISTER HEAD	-
