TECHNICAL DATA SHEET
N 50
Ω
STRAIGHT JACK
(3/8”S)
53K115-C02N1

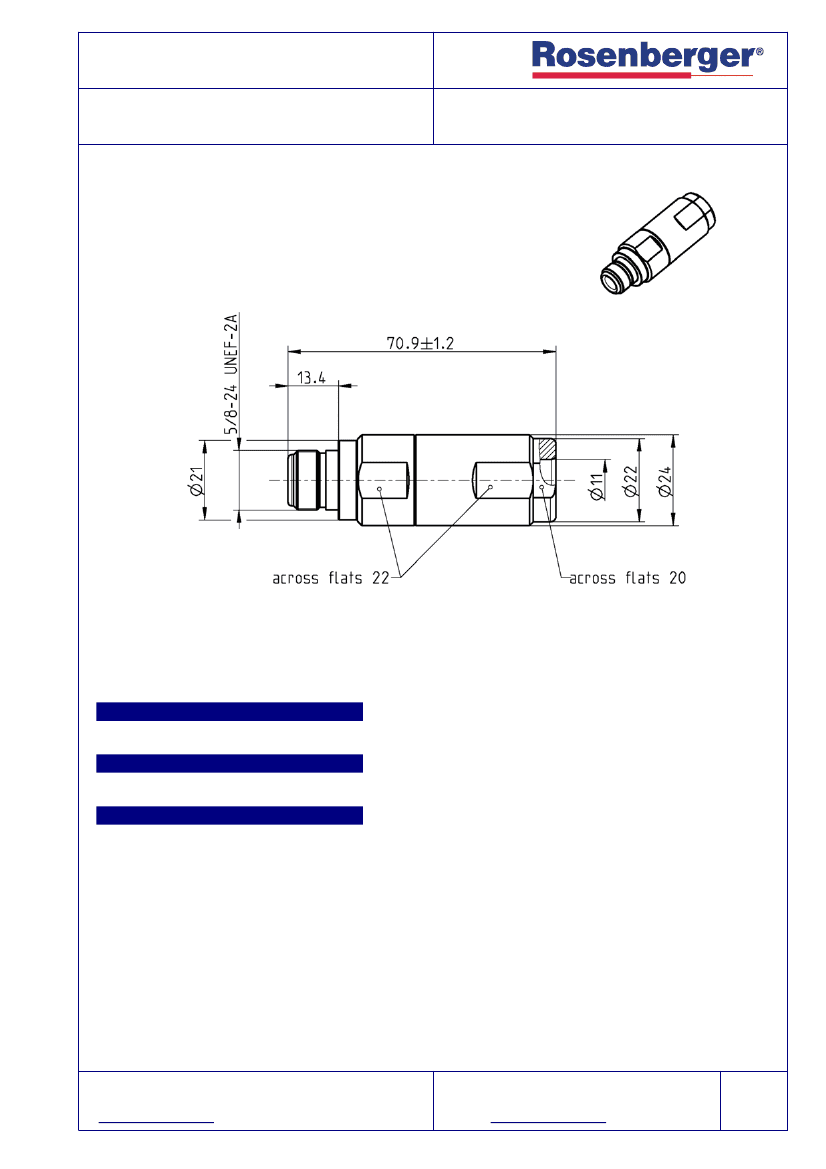

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-16, MIL-PRF-39012, CECC 22210
Documents
Assembly instruction
60 I28
Material and plating
Connector parts
Center contact
Outer contact
Body
Dielectric
Gasket
Material
Spring bronze
Brass
Brass
PTFE
Silicone
Plating
Silver, 3-6 µm
Flash white bronze over silver(e.g. Optargen®)
Flash white bronze over silver(e.g. Optargen®)
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
N 50
Ω
STRAIGHT JACK
(3/8”S)
53K115-C02N1
50
Ω
DC to 11 GHz
≥
35 dB, DC to 1 GHz
≥
30 dB, 1 to 2.7 GHz
≤
0.05 dB, DC to 2.7 GHz
≥
5 x10
3
MΩ
≤
1 mΩ
≤
0.25 mΩ
2500 V rms
1400 V rms
1000 W @ 1 GHz
700 W @ 2 GHz
≥
128 dB up to 1 GHz
≤
-117 dBm @ 2 x 20 W
Electrical data
Impedance
Frequency
Return loss
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
Power handling
(at 20 °C, sea level, VSWR 1.0)
RF-leakage
Intermodulation
(3
rd
order)
- Limitations are possible due to the used cable type -
Mechanical data
Mating cycles
Center contact captivation: axial
radial
Coupling test torque
Recommended torque
min. 500
≥
28 N
≥
3 Ncm
max. 1.7 Nm
0.7 Nm to 1.1 Nm
Environmental data
Temperature range
Thermal shock
Corrosion
Vibration
Shock
Moisture resistance
Degree of protection (mated pair)
2002/95/EC (RoHS)
-45°C to +85°C
MIL-STD-202, Meth. 107,
MIL-STD-202, Meth. 101,
MIL-STD-202, Meth. 204,
MIL-STD-202, Meth. 213,
MIL-STD-202, Meth. 106
IEC 60529, IP68 2.5 bar
compliant
Cond.
Cond.
Cond.
Cond.
B
B
B
I
Tooling
N/A
Suitable cables
Leoni Flexline 3/8” S (recommended)
Andrew FSJ 2-50
RFS SCF 38-50
Packing
Standard
Weight
1 pce in bag
176 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/12.04/3.0
Draft
Inge Mühlauer
Date
22/06/04
Approved
Schwangler
Date
15.02.07
Rev.
c00
Engineering change number
07-0046
Name
B. Dandl
Date
22.01.07
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
2/2
