594159: DescriptionBoard Euro Connector, 44 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Receptacle; CategoryThe connector The connector; File Size170KB，3 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

594159 Overview

Board Euro Connector, 44 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Receptacle

594159 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARDS: DIN 41612; IEC 60603-2
body width	0.437 inch
subject depth	0.698 inch
body length	3.7 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact arrangement	S44C4
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	YES
Insulation resistance	1000000000000 Ω
Insulator color	GRAY
insulator material	PBTP 30% FIBRE ENHANCED
MIL compliance	NO
Manufacturer's serial number	594159
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,C
PCB row number	3
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	HOUSING SIDE
Rated current (signal)	4 A
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	44
UL Flammability Code	94V-0
Evacuation force-minimum value	1.4734 N
Base Number Matches	1

Preview

Download Datasheet

View All

DIN 41612 / IEC 60603-2 Connectors

Type M Male

The Type M mixed connector series based on a 100" (2.54mm)

pitch in accordance with the DIN41612/IEC 60603-2

specification. This series of connectors is designed to

accommodate a variety of coaxial and high current contacts

which are also used in other popular connector systems such

as the 2mm Hard Metric Type M connectors.

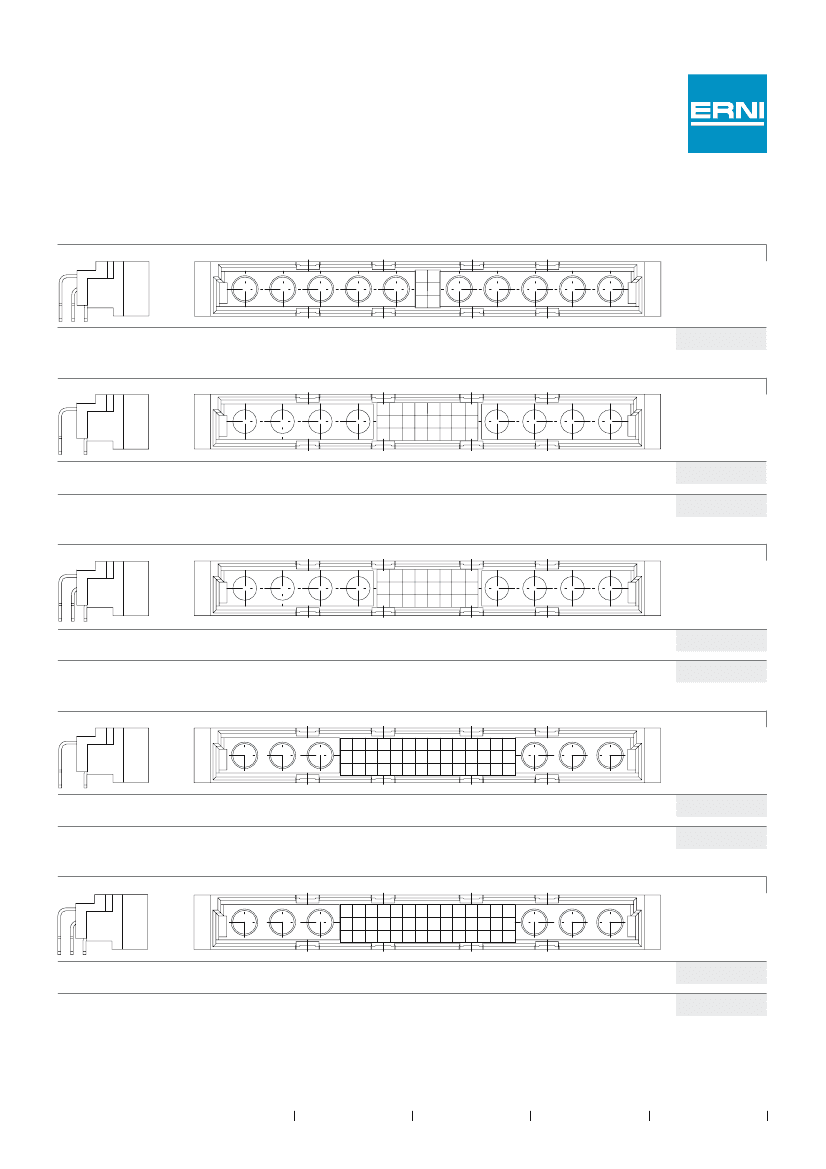

The male and female connectors have 2, 4, 6, 8 or 10 empty

"cavities" to accommodate the special contacts.

The versatility of mixing both signal and either high current

or coax contacts increases the usage of this connector in

telecommunication and data processing applications.

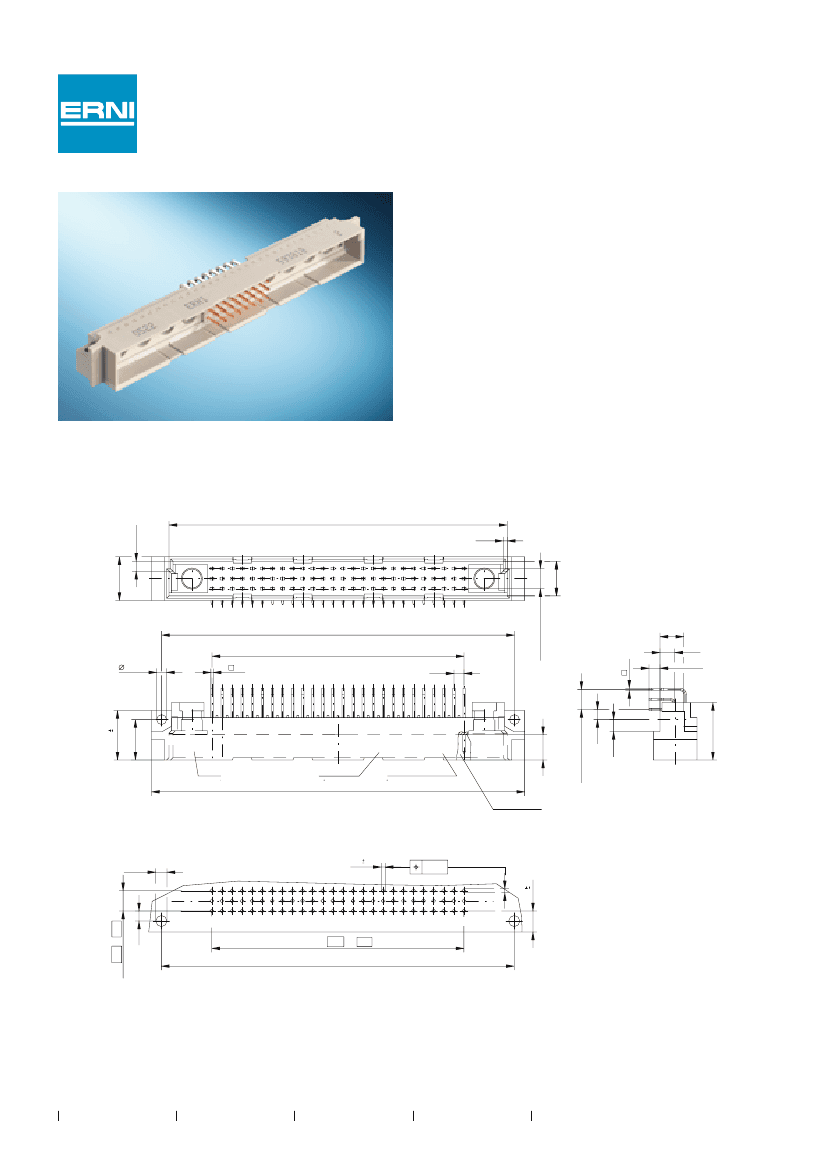

Dimensional Drawing Solder

+0,2

85,2

-0,2

11,1 max.

2,5

1

-0,1

2 x 2,54 =

88,9

25 x 2,54 = 63,5

+0,1

5,08

8,7

+0,1

6

3,85

0,6

2,5

0,6

2,54

3

-0,4

2 x 2,54 = 5,08

10,2

-0,2

12,5

-0,1

2,54

6,4

XXXX

Datum

date

ERNI

XXXXXX

X

+0,1

a

b

c

Idnet-Nr.

94 max.

Anforderungsstufe

class

Stecklänge

mating length

Leiterplatten-Lochbild /

+0,1

PCB drillhole pattern

1.0

0,1

alle Löcher/

0,05

all holes

c

b

a

0,1

2,8

2 x 2,54 = 5,08

29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9

8

7

6

5

4

2,54

25 x 2,54 = 63,5

88,9

Catalog E 074558

03/06

Edition 1

www.erni.com

5,3

3

14,5

-0,3

0,1

153
