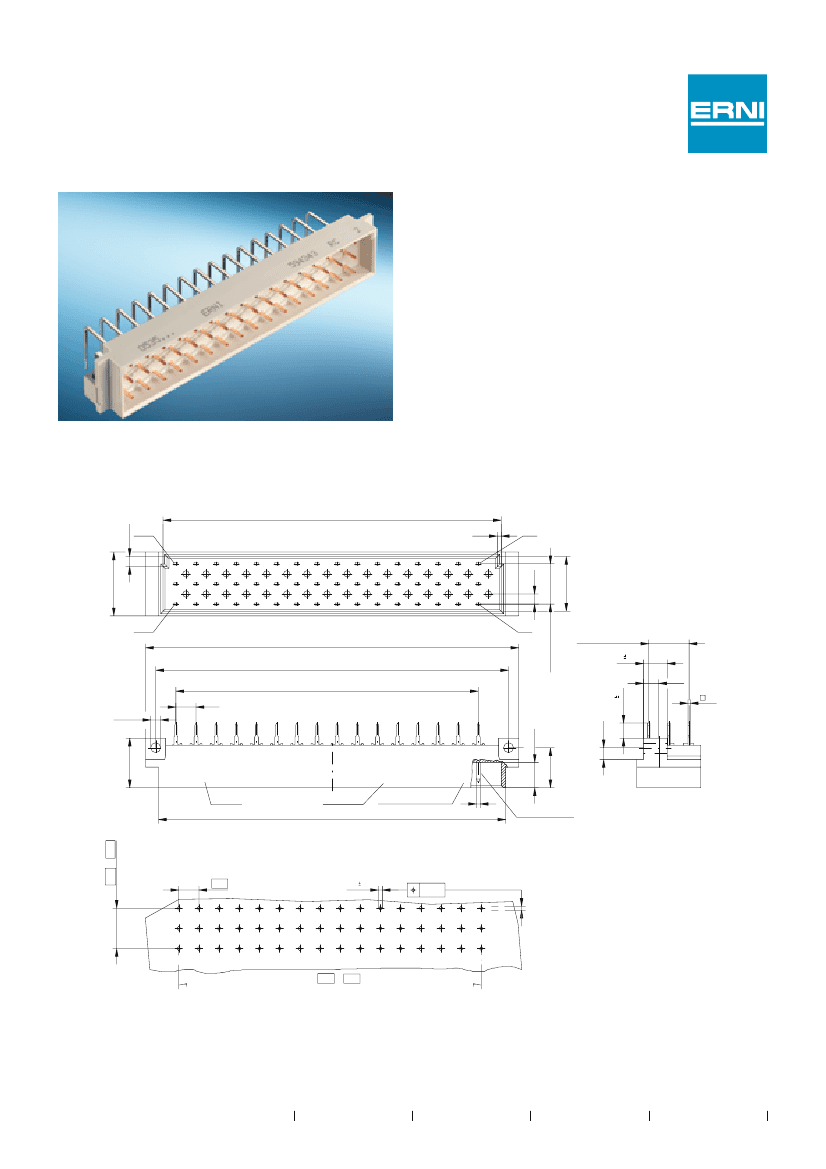

Board Euro Connector, 48 Contact(s), 3 Row(s), Male, Right Angle, 0.2 inch Pitch, Solder Terminal, Locking, Receptacle
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Maker | ERNI |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | STANDARDS: DIN 41612; IEC 60603-2 |
| body width | 0.634 inch |
| subject depth | 0.904 inch |
| body length | 3.7 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD EURO CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | MALE |
| Contact material | NOT SPECIFIED |
| Contact resistance | 15 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | YES |
| Dielectric withstand voltage | 2200VAC V |
| Durability | 400 Cycles |
| Filter function | NO |
| IEC compliance | YES |
| Insulation resistance | 10000000000 Ω |
| insulator material | GLASS FILLED POLYBUTYLENE TEREPHTHALATE |
| MIL compliance | NO |
| Manufacturer's serial number | 594802 |
| Plug contact pitch | 0.2 inch |
| Match contact row spacing | 0.2 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Loaded row name | A,C,E |
| PCB row number | 3 |
| Number of rows loaded | 3 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 5.08 mm |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 5.5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.118 inch |
| Terminal pitch | 5.08 mm |
| Termination type | SOLDER |
| Total number of contacts | 48 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
| 594802 | 013414 | 063300 | |
|---|---|---|---|
| Description | Board Euro Connector, 48 Contact(s), 3 Row(s), Male, Right Angle, 0.2 inch Pitch, Solder Terminal, Locking, Receptacle | Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, | Board Euro Connector, 48 Contact(s), 3 Row(s), Male, Straight, Solder Terminal |
| Is it Rohs certified? | conform to | conform to | conform to |
| Maker | ERNI | ERNI | ERNI |
| Reach Compliance Code | compliant | compliant | unknown |
| Other features | STANDARDS: DIN 41612; IEC 60603-2 | STANDARDS: DIN 41612; IEC 60603-2 | STANDARDS: DIN 41612; IEC 60603-2 |
| Connector type | BOARD EURO CONNECTOR | BOARD EURO CONNECTOR | BOARD EURO CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Contact point gender | MALE | MALE | MALE |
| Contact material | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| DIN compliance | YES | YES | YES |
| Filter function | NO | NO | NO |
| IEC compliance | YES | YES | YES |
| MIL compliance | NO | NO | NO |
| Mixed contacts | NO | NO | NO |
| Installation method | RIGHT ANGLE | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD |
| Number of rows loaded | 3 | 2 | 3 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Terminal pitch | 5.08 mm | 5.08 mm | 5.08 mm |
| Termination type | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 48 | 32 | 48 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 |
| Manufacturer's serial number | 594802 | - | 063300 |
