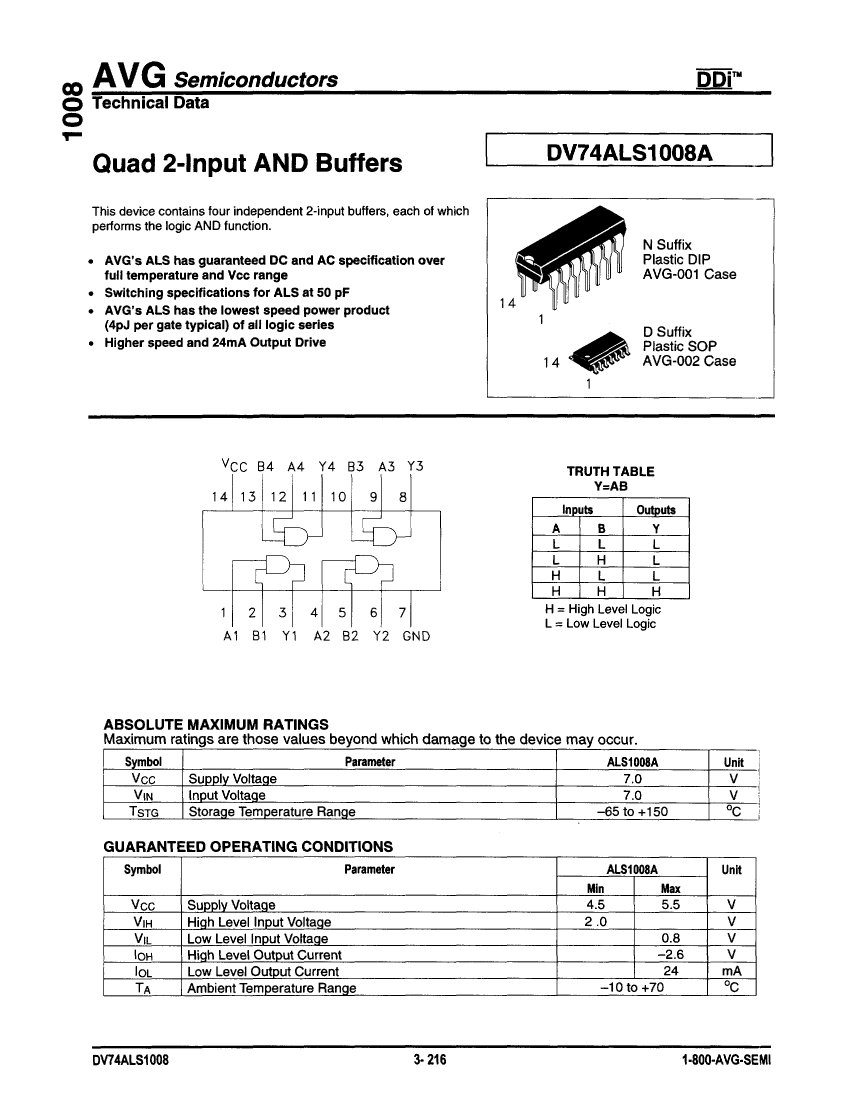

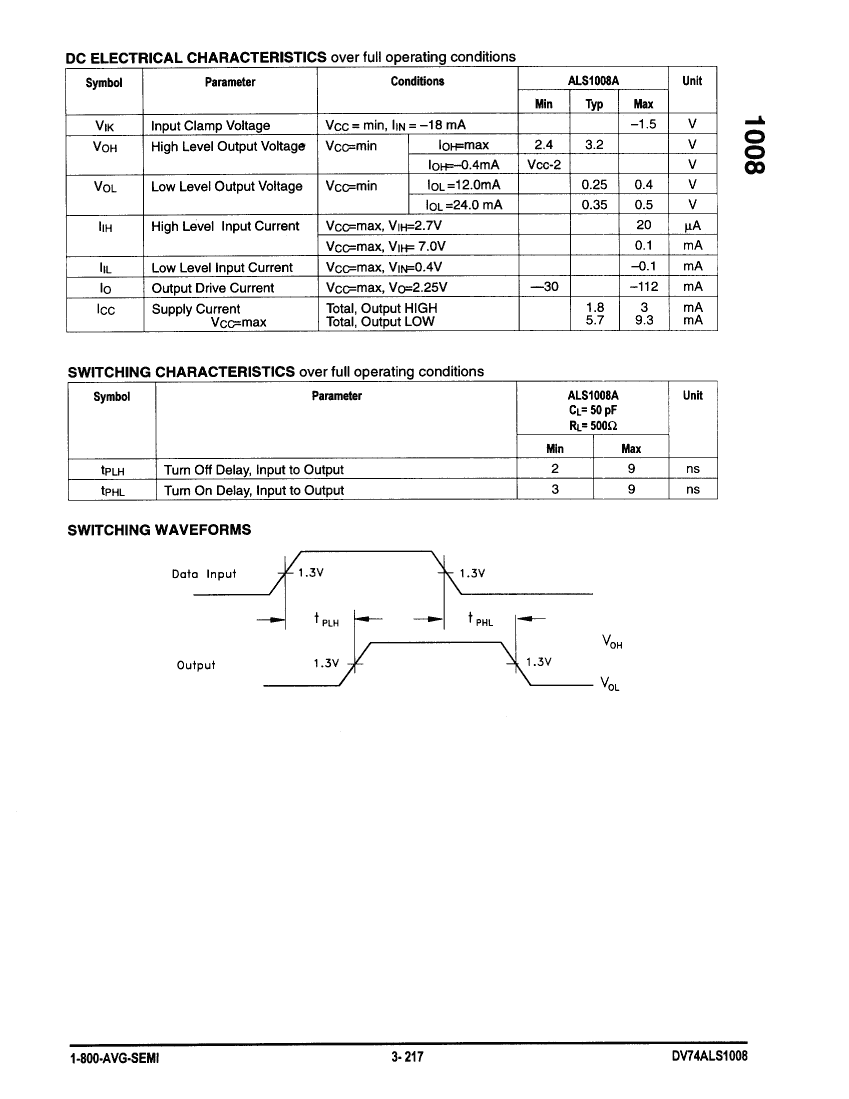

DV74ALS1008AD: DescriptionAND Gate, ALS Series, 4-Func, 2-Input, TTL, PDSO14, PLASTIC, SOP-14; Categorylogic logic; File Size79KB，2 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

DV74ALS1008AD Overview

AND Gate, ALS Series, 4-Func, 2-Input, TTL, PDSO14, PLASTIC, SOP-14

Parameter Name	Attribute value
Maker	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	SOIC
package instruction	SOP,
Contacts	14
Reach Compliance Code	unknown
series	ALS
JESD-30 code	R-PDSO-G14
length	8.65 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	AND GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum supply current (ICC)	9.3 mA
propagation delay (tpd)	9 ns
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm
Base Number Matches	1

	DV74ALS1008AD	DV74ALS1008AN
Description	AND Gate, ALS Series, 4-Func, 2-Input, TTL, PDSO14, PLASTIC, SOP-14	AND Gate, ALS Series, 4-Func, 2-Input, TTL, PDIP14, PLASTIC, DIP-14
Maker	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	SOIC	DIP
package instruction	SOP,	DIP,
Contacts	14	14
Reach Compliance Code	unknown	unknown
series	ALS	ALS
JESD-30 code	R-PDSO-G14	R-PDIP-T14
length	8.65 mm	18.86 mm
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	AND GATE	AND GATE
Number of functions	4	4
Number of entries	2	2
Number of terminals	14	14
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
Maximum supply current (ICC)	9.3 mA	9.3 mA
propagation delay (tpd)	9 ns	9 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	4.69 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	NO
technology	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
width	3.9 mm	7.62 mm
Base Number Matches	1	1
