K570A Series
5V Voltage Controlled Crystal Oscillators
!
Applications:
Phase-Locked Loops (PLL’s); Clock
Recovery; Reference Signal Tracking;
Synthesizers; Frequency Modulation/Demodulation
!
!
!
!
!
8-pin Half DIL Package
1.0 to 52.0 MHz Frequency Range
0.5V to 4.5V Control Voltage
±25ppm Stability
-40°C to 85°C Operating Temperature
in
7m .
12, Max
ax.
in M
7m
12,
Z
0A
K576.000 MH
ODE
C
4
TI DATE
C
x.
Ma
in
m
5,5
PIN 1
E L E C T R I C A L S P E C I F I C AT I O N S
Model
Frequency Range (MHz)
Input Current (mA)
Frequency Control Function
Deviation (ppm)
Minimum
Maximum
Linearity (%)
Modulation Bandwidth (±3dB)
Nominal Control Voltage (V)
Control Voltage Range (V)
Transfer Function
Input Impedance
Frequency Stability (ppm)
Overall
0oC to +70oC
-40oC to +85oC
Temperature Range (oC)
Operating
Storage
Supply Voltage (V)
Symmetry (%) CMOS/TTL
Start Up Time (ms)
Typical SSB Phase Noise (dBC/Hz)
Offset from Carrier
10Hz
100Hz
1KHz
10KHz
100KHz
-40oC to +85oC
-55oC to +125oC
+5.0V ±5%
40/60
<10
-65
-95
-120
-140
-150
Inclusive of Calibration, Temperature, Voltage, Load and Aging
±25
±50
±100
±150
< 10
> 20KHz
2.5
0.5 to 4.5
Positive
> 50KΩ @ 10KHz
K570A
1 to 52
< 26
(For Custom Deviation Range, Vc Range, etc. - Consult Factory)
PA R T N U M B E R I N G G U I D E
K570A XX -
Specify Frequency
“Blank” = 0°C to 70°C Operating Temp.
“M” = -40°C to +85°C Operating Temp.
“A” = ±25ppm (0oC to 70oC Op. Temp. Only
“B” = ±50ppm
2553 N. Edgington Street, Franklin Park, IL 60131
"
Phone: 847.451.1000
"
Fax: 847.451.7585
800-888-1499 or www.champtech.com
1
K570A Series
5V Voltage Controlled Crystal Oscillators

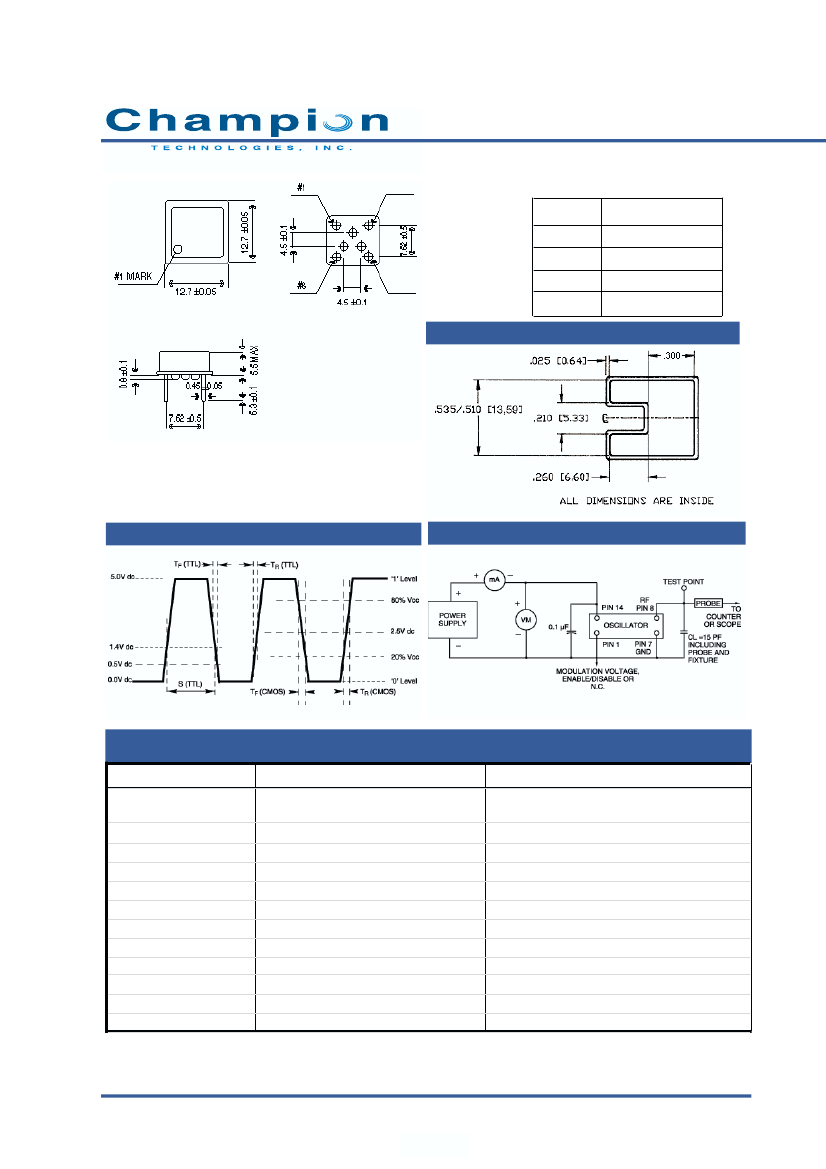

PIN
1
4
5
8
FUNCTION
Voltage Control
Gnd/ & Case Gnd
Output
+ VCC
SHIPPING TUBE CROSS SECTION
OUTPUT WAVEFORM
TEST CIRCUIT DIAGRAM
MECHANICAL AND ENVIRONMENTAL SPECIFICATIONS
TEST METHODS
Temperature Cycle
Mechanical Shock
Vibration
Humidity Steady State
Thermal Shock
Electrostatic Discharge
Solderability
Hermeticity
Resistance to Soldering
Lead Integrity
Marking Permanence
Life Test
REFERENCE PROCEDURES
MIL-STD-833, Mtd 1010, Cond. B
MIL-STD-883, Mtd 2002, Cond. B
MIL-STD 883, Mtd 2007, Cond. B
MIL-STD-202, Mtd 103
MIL-STD-883, Mtd 1011.7 Cond. B
MIL-STD-883, Mtd 3015 Class II
MIL-STD-883, Mtd 2022.2
MIL-STD-883, Mtd 1014.8, Cond. A1
DESCRIPTION
-55°C to +125°C; Air-to-Air; 100 cycles; 10
min. dwell
1500 g’s
20-2000 Hz; 0.06 inch; 15g’s; 3 planes
40°C; 90%-95% R.H.; 56 days
100°C to 0°C; Water-to-Water; 15 cycles
2 KV to 4 KV Threshold
Solder dip; Meniscograph Criteria
Mass spectro. 2 x 10-8 atmos. CC/sec He
MIL-STD-202, Mtd 210D, Cond. C
260°C; 10 seconds: 1 inch/sec.
MIL-STD-883, Mtd 2004.5, Cond. A, B1 Lead tension & bend stress
MIL-STD-883, Mtd 2015.8
MIL-STD-883, Mtd 1005.6
Resistance to solvents
125
°C, powered, 1000 hours minimum
2553 N. Edgington Street, Franklin Park, IL 60131
"
Phone: 847.451.1000
"
Fax: 847.451.7585
800-888-1499 or www.champtech.com
