64AT22-514L datasheet, PDF - EEWORLD Datasheet

64AT22-514L: DescriptionToggle Switch, 4PDT, Momentary, 7A, 28VDC, Quick Connect Terminal, Lever Actuator, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size109KB，1 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Parametric View All

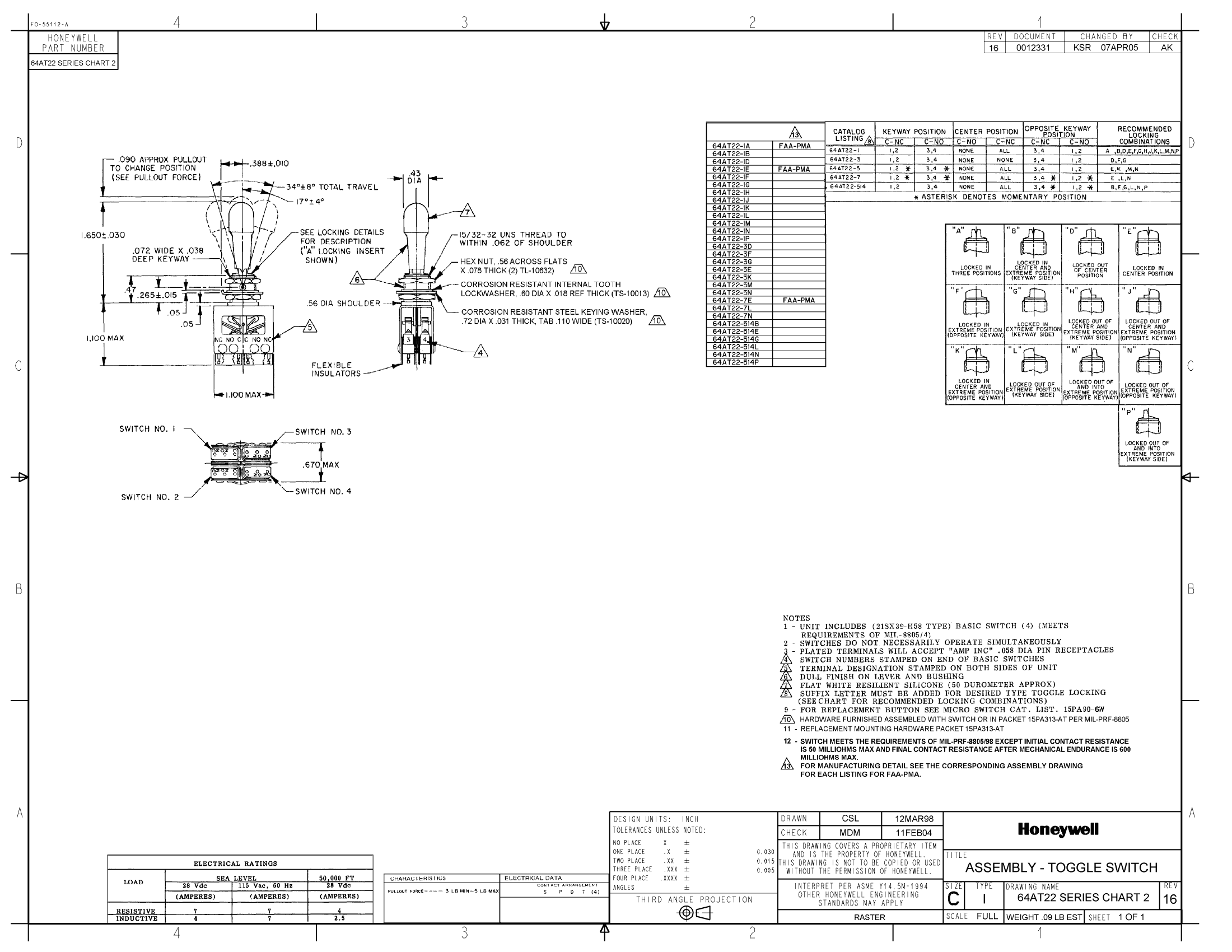

64AT22-514L Overview

Toggle Switch, 4PDT, Momentary, 7A, 28VDC, Quick Connect Terminal, Lever Actuator, Panel Mount-threaded

Parameter Name	Attribute value
Maker	Honeywell
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator type	LEVER
body width	27.94 mm
body height	17.02 mm
Body length or diameter	27.94 mm
Contact (AC) maximum rated R load	7A@115VAC
Maximum contact current (AC)	7 A
Maximum contact current (DC)	7 A
Contact (DC) maximum rated R load	7A@28VDC
Maximum contact voltage (AC)	115 V
Maximum contact voltage (DC)	28 V
Manufacturer's serial number	64AT22
Installation features	PANEL MOUNT-THREADED
Maximum operating force	22.24 N
seal	CORROSION PROOF
surface mount	NO
Switch action	MOMENTARY
switch function	4PDT
Switch type	TOGGLE SWITCH
Termination type	QUICK CONNECT
Base Number Matches	1
