L174 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > L174

Preview

L174: Description3.2mm ROUND SOLID STATE LED LAMPS; File Size162KB，5 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com

Download Datasheet Compare View All

L174 Overview

3.2mm ROUND SOLID STATE LED LAMPS

Preview

Download Datasheet

View All

3.2mm ROUND SOLID STATE LED LAMPS

L174XHT BRIGHT RED

L174XIT HIGH EFFICIENCY RED

L174XSRT SUPER BRIGHT RED

L174XGT GREEN

L174XYT YELLOW

Features

LOW

WIDE

Description

The Bright Red source color devices are made with Gallium

Phosphide Red Light Emitting Diode.

The High Efficiency Red source color devices are made with

Gallium Arsenide Phosphide on Gallium Phosphide Orange

Light Emitting Diode.

The Green source color devices are made with Gallium

Phosphide Green Light Emitting Diode.

The Yellow source color devices are made with Gallium

Arsenide Phosphide on Gallium Phosphide Yellow Light

Emitting Diode.

The Super Bright Red source color devices are made with

Gallium Aluminum Arsenide Red Light Emitting Diode.

POWER CONSUMPTION.

VIEWING ANGLE.

TAPE FOR AUTOMATIC

AVAILABLE ON

MOUNTING MACHINE.

LONG

LIFE-SOLID STATE RELIABILITY.

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.25(0.01")

unless otherwise noted.

3. Lead spacing is measured where the lead emerge package.

4. Specifications are subject to change without notice.

SPEC NO: CDA0700

APPROVED : J. Lu

REV NO: V.1

CHECKED :

DATE: NOV/11/2001

DRAWN: Z.W.Yan

PAGE: 1 OF 5

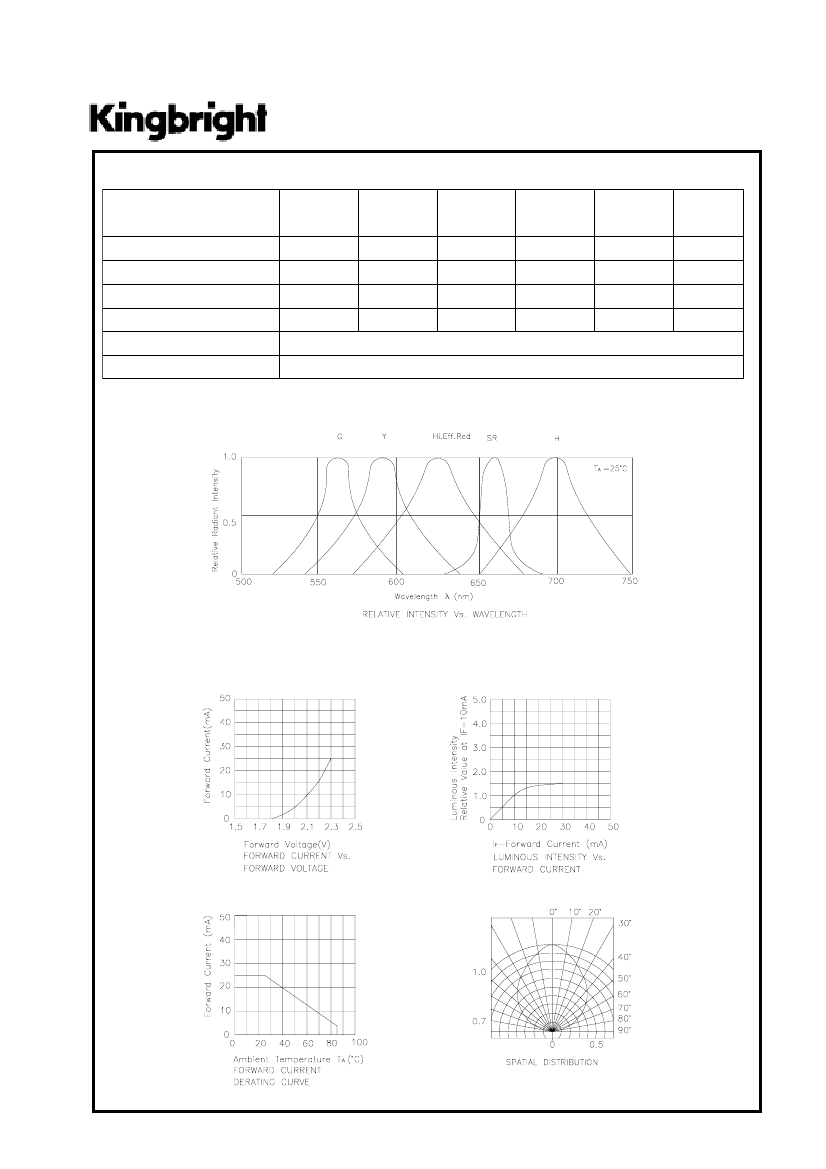

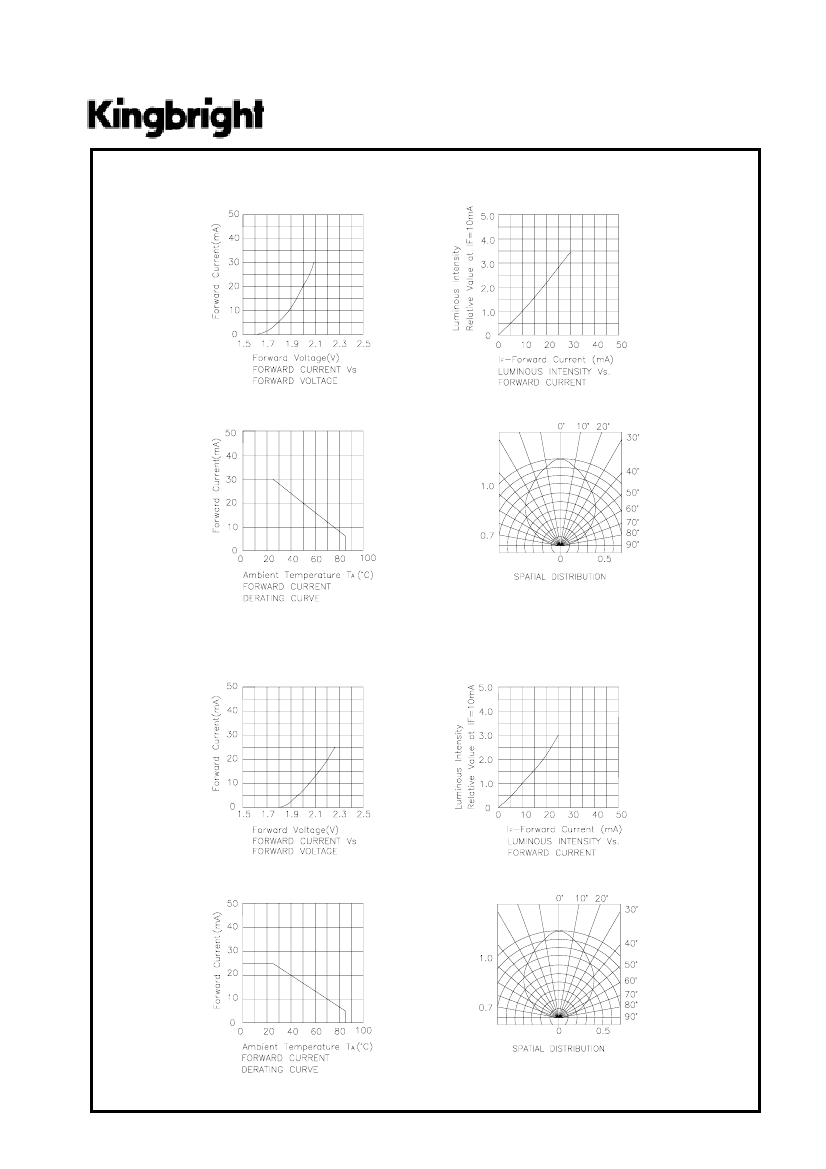

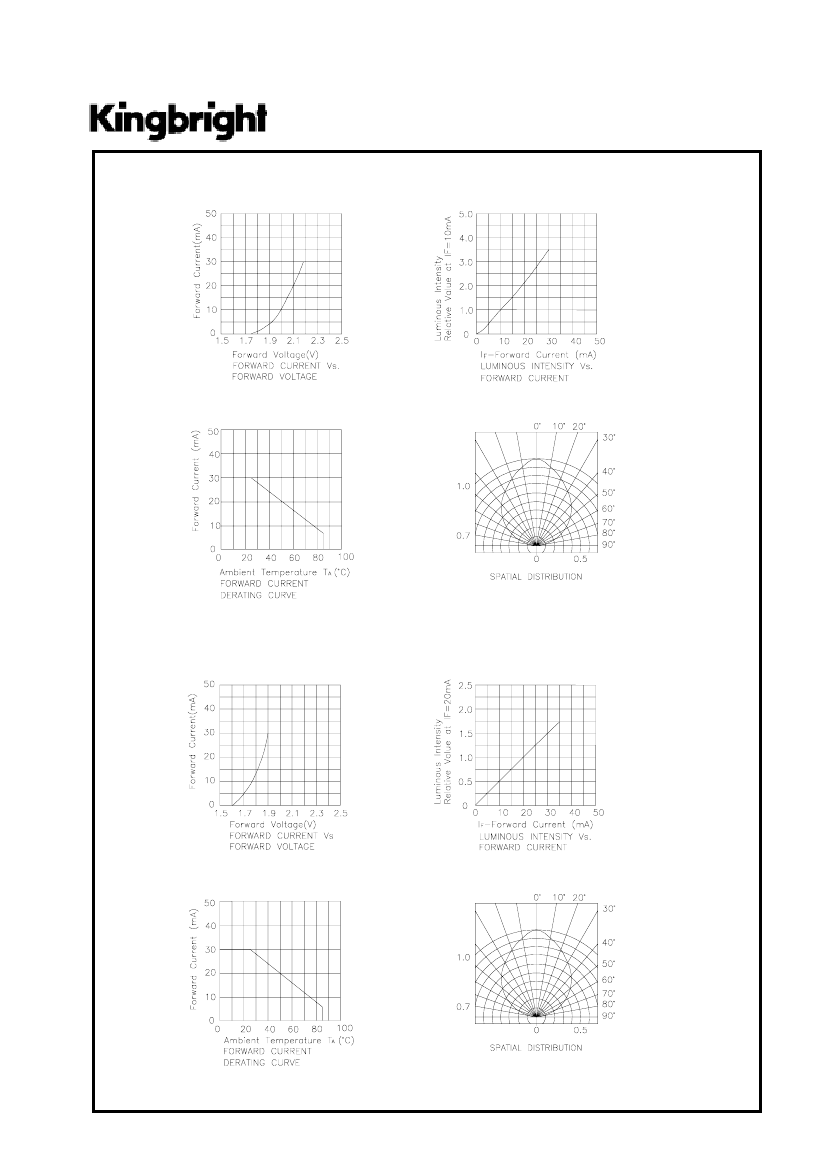

L174 Related Products

	L174	L174XHT	L174XGT	L174XIT	L174XSRT	L174XYT
Description	3.2mm ROUND SOLID STATE LED LAMPS	3.2mm ROUND SOLID STATE LED LAMPS	3.2mm ROUND SOLID STATE LED LAMPS	3.2mm ROUND SOLID STATE LED LAMPS	3.2mm ROUND SOLID STATE LED LAMPS	3.2mm ROUND SOLID STATE LED LAMPS
Is it lead-free?	-	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	-	conform to	conform to	conform to	conform to	conform to
Maker	-	Kingbright	Kingbright	-	Kingbright	Kingbright
package instruction	-	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	-	unknow	unknow	unknow	unknow	unknow
Other features	-	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
color	-	BRIGHT RED	GREEN	HIGH EFFICIENCY RED	SUPER BRIGHT RED	YELLOW
Configuration	-	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	-	0.025 A	0.025 A	0.03 A	0.03 A	0.03 A
Lens type	-	RED TRANSPARENT	TRANSPARENT	RED TRANSPARENT	RED TRANSPARENT	TRANSPARENT
Nominal luminous intensity	-	5.0 mcd	30.0 mcd	30.0 mcd	400.0 mcd	30.0 mcd
Installation features	-	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	-	1	1	1	1	1
Number of terminals	-	2	2	2	2	2
Maximum operating temperature	-	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	-	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	-	5.5 mm	5.5 mm	5.5 mm	5.5 mm	5.5 mm
method of packing	-	TAPE	BULK	BULK	TAPE	BULK
peak wavelength	-	700 nm	565 nm	627 nm	660 nm	590 nm
shape	-	ROUND	ROUND	ROUND	ROUND	ROUND
size	-	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm
surface mount	-	NO	NO	NO	NO	NO
T code	-	T-1	T-1	T-1	T-1	T-1
Terminal surface	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Terminal pitch	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	-	100 deg	100 deg	100 deg	100 deg	100 deg
