ZLLS2000_07

Description
2.2 A, SILICON, RECTIFIER DIODE
Categorysemiconductor    Discrete semiconductor
File Size157KB,7 Pages
ManufacturerZetex Semiconductors
Websitehttp://www.zetex.com/
Download Datasheet Parametric Compare View All

ZLLS2000_07 Overview

2.2 A, SILICON, RECTIFIER DIODE

ZLLS2000_07 Parametric

Parameter NameAttribute value
Number of terminals6
Number of components1
Processing package descriptionSOT-23, 6 PIN
Lead-freeYes
EU RoHS regulationsYes
stateTRANSFERRED
packaging shapeRECTANGULAR
Package SizeSMALL OUTLINE
surface mountYes
Terminal formGULL WING
terminal coatingMATTE TIN
Terminal locationDUAL
Packaging MaterialsPLASTIC/EPOXY
CraftsmanshipSCHOTTKY
structureSINGLE
Diode component materialsSILICON
Maximum power consumption limit1.1 W
Diode typeRECTIFIER DIODE
applicationEFFICIENCY
Phase1
Maximum reverse recovery time0.0060 us
Maximum average forward current2.2 A
Maximum non-repetitive peak forward current36 A

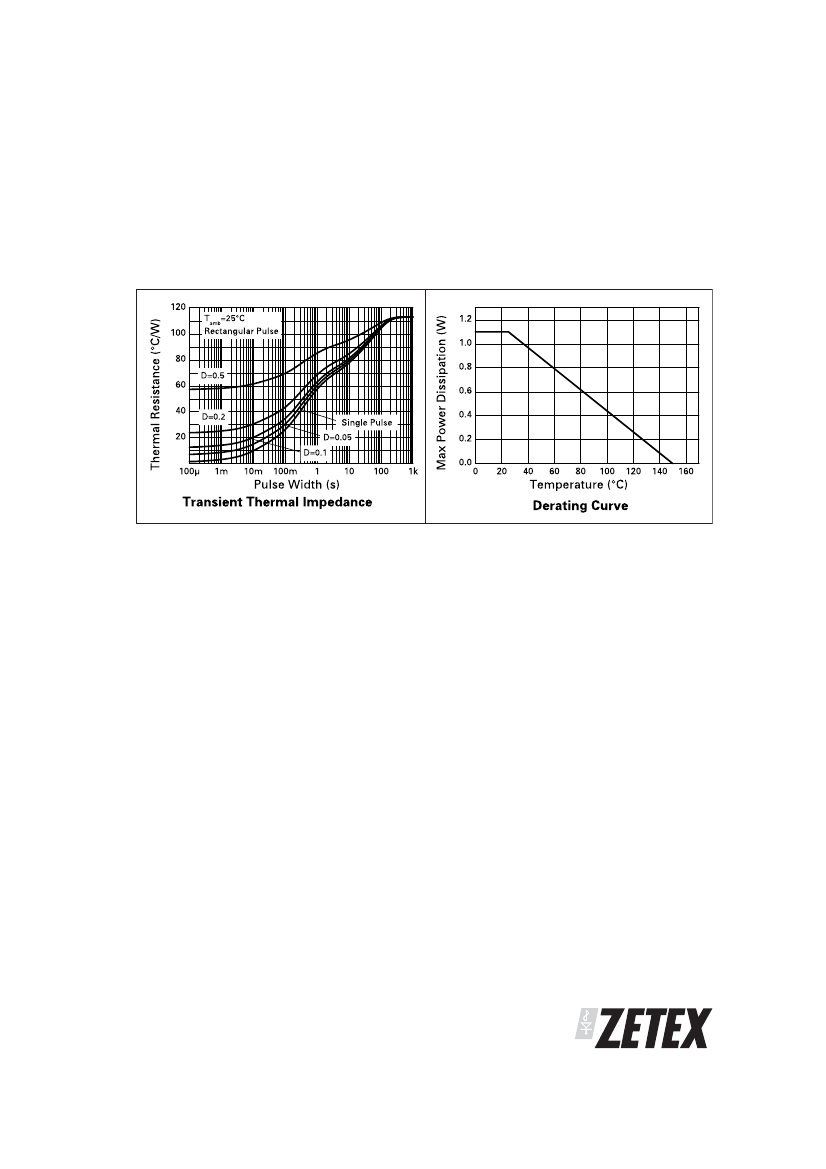

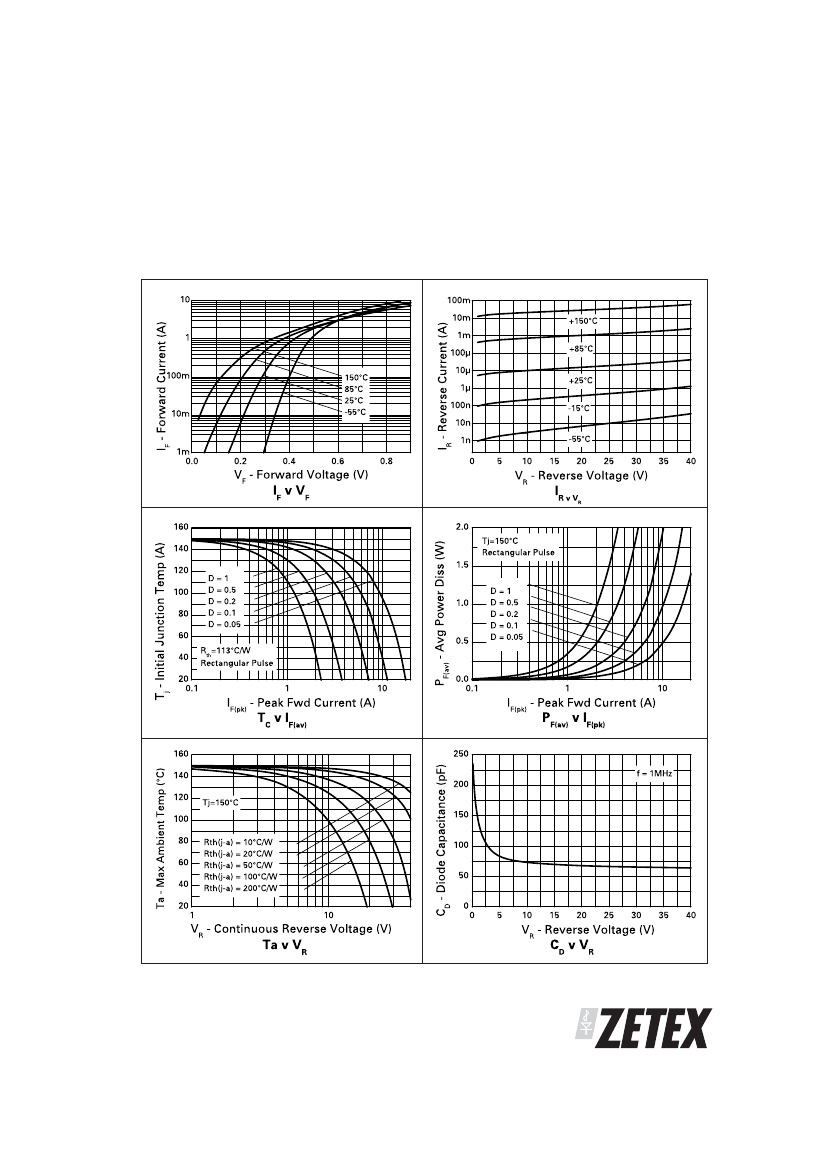

ZLLS2000
40V SILICON HIGH CURRENT LOW LEAKAGE SCHOTTKY DIODE
SUMMARY
Schottky Diode V
R
= 40V; I
F
= 2.2A; I
R
= 40 A
DESCRIPTION
This compact SOT23-6 packaged Schottky diode offers users an excellent
performance combination comprising high current operation, extremely low leakage
and low forward voltage ensuring suitability for applications requiring efficient
operation at higher temperatures ( above 85 C) see Operational Efficiency chart on
page 4.
Key benefits:
Performance capability equivalent to much larger packages
Improved circuit efficiency & power levels
PCB area savings
FEATURES
Low equivalent on resistance
Extremely low leakage (40 A @30V)
High current capability (I
F
= 2.2A)
Low V
F
, fast switching Schottky
SOT23-6 package
ZLLS2000 complements low temperature equivalent ZHCS2000
Package thermally rated to 150 C
APPLICATIONS
DC - DC converters
Strobes
Mobile phones
Charging circuits
Motor control
ORDERING INFORMATION
DEVICE
REEL
TAPE WIDTH
(inches) (mm)
8mm embossed
8mm embossed
QUANTITY
PER REEL
3000 units
10000 units
ZLLS2000TA 7
ZLLS2000TC 13
Top view
DEVICE MARKING
LL20
ISSUE 4 - APRIL 2007
1
SEMICONDUCTORS
