68830315 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 68830315

68830315: DescriptionElectric Fuse, 315A, 690VAC, 80000A (IR), Inline/holder; CategoryCircuit protection Circuit protection; File Size409KB，10 Pages; ManufacturerSocomec

Download Datasheet Parametric Compare View All

68830315 Overview

Electric Fuse, 315A, 690VAC, 80000A (IR), Inline/holder

68830315 Parametric

Parameter Name	Attribute value
Maker	Socomec
Reach Compliance Code	unknown
body width	75 mm
body height	75 mm
Body length or diameter	76 mm
Circuit protection type	ELECTRIC FUSE
Manufacturer's serial number	68830315
Installation features	INLINE/HOLDER
physical size	76mm x 75mm x 75mm
Rated breaking capacity	80000 A
Rated current	315 A
Rated voltage (AC)	690 V
Guideline	DIN; IEC; NFC
surface mount	NO
Terminal shape	TAB/BLADE
Base Number Matches	1

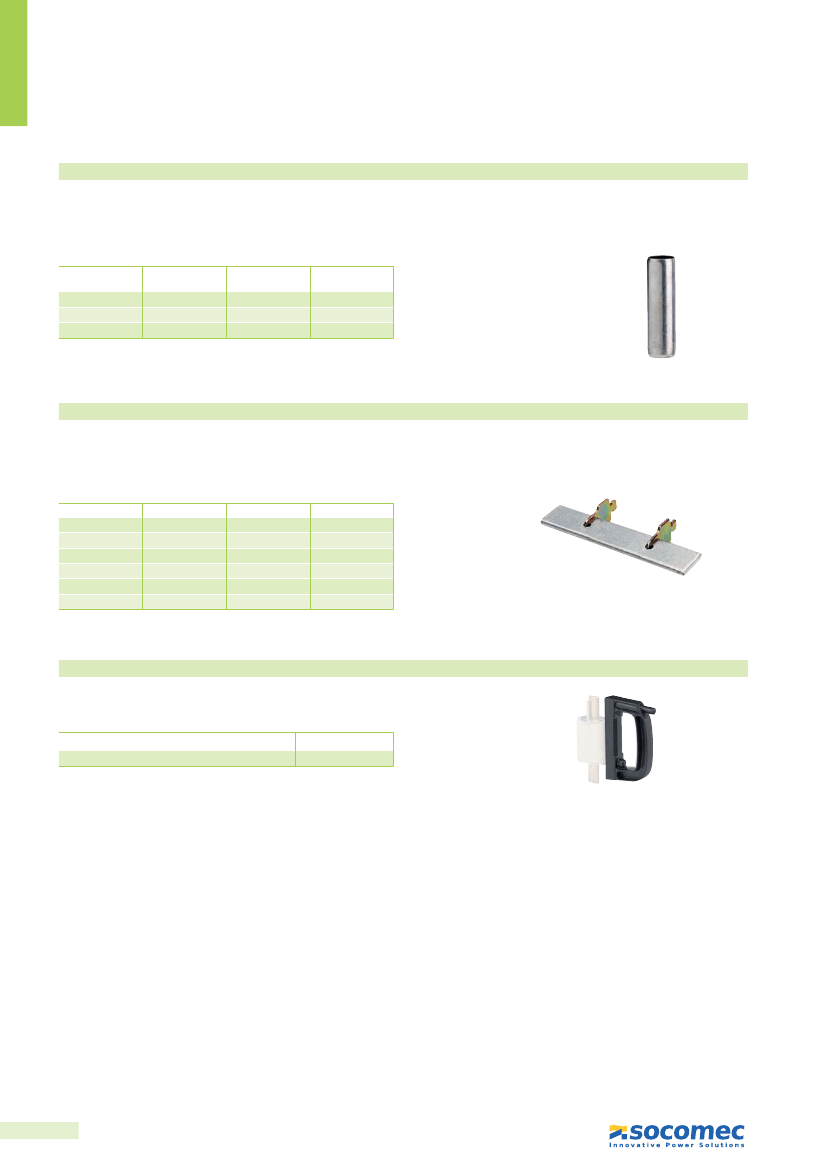

Preview

Download Datasheet

View All

Industrial fuses

NFC-DIN industrial fuselinks gG and aM curves

from 0.16 to 1250 A

Fuse protection

The solution for

Motor protection.

Cable and device protection.

fusib_114_b_1_cat

fusib_116_a_1_cat

fusib_103_c_1_cat

Strong points

gG fuse

from 0.5 to 125 A

High level performances.

High reliability.

Improved safety.

aM type fuse

from 6 to 1250 A

gG fuse

from 6 to 315 A

Conformity to standards

IEC 60269-1

DIN EN 60269-1

NF EN 60269-1

IEC 60269-2

NF EN 60269-2

Function

SOCOMEC industrial fuses

protect installations and people from overcurrents for any low

voltage electrical circuit.

Advantages

High level performances

High breaking capacity - 120 kA at

High short-circuit

limitation capacity.

Simple and reliable discrimination.

High reliability

Absolute protection over time guaranteed

by the simplicity of manufacture and

function (Joule effect).

No downgrading of fuse characteristics over

time.

Improved safety

The energy released whilst eliminating the fault

(fuse blowing) is contained within the cartridge

(no degassing).

278

General Catalogue 2013-2014

68830315 Related Products

	68830315	60520032	60530025	68630160
Description	Electric Fuse, 315A, 690VAC, 80000A (IR), Inline/holder	Electric Fuse, 32A, 500VAC, 120000A (IR), Inline/holder	Electric Fuse, 25A, 500VAC, 120000A (IR), Inline/holder	Electric Fuse, 160A, 690VAC, 80000A (IR), Inline/holder
Maker	Socomec	Socomec	Socomec	Socomec
Reach Compliance Code	unknown	unknown	unknown	unknown
body height	75 mm	51 mm	51 mm	75 mm
Body length or diameter	76 mm	14.3 mm	14.3 mm	53 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE
Manufacturer's serial number	68830315	60520032	60530025	68630160
Installation features	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER
physical size	76mm x 75mm x 75mm	14.3mm x 51mm	14.3mm x 51mm	53mm x 52mm x 75mm
Rated breaking capacity	80000 A	120000 A	120000 A	80000 A
Rated current	315 A	32 A	25 A	160 A
Rated voltage (AC)	690 V	500 V	500 V	690 V
Guideline	DIN; IEC; NFC	DIN; IEC; NFC	DIN; IEC; NFC	DIN; IEC; NFC
surface mount	NO	NO	NO	NO
Terminal shape	TAB/BLADE	END CAP	END CAP	TAB/BLADE
Base Number Matches	1	1	1	-
