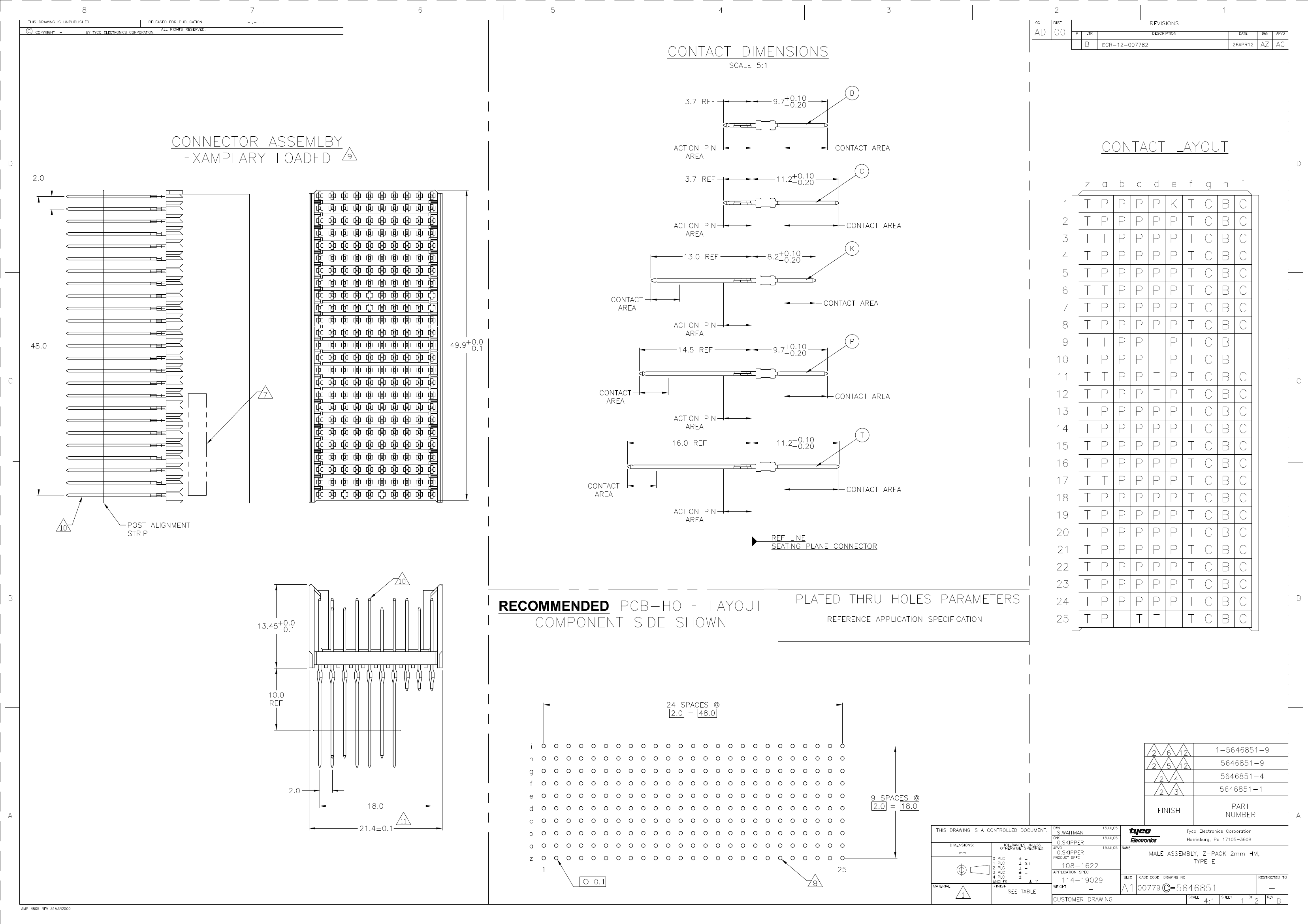

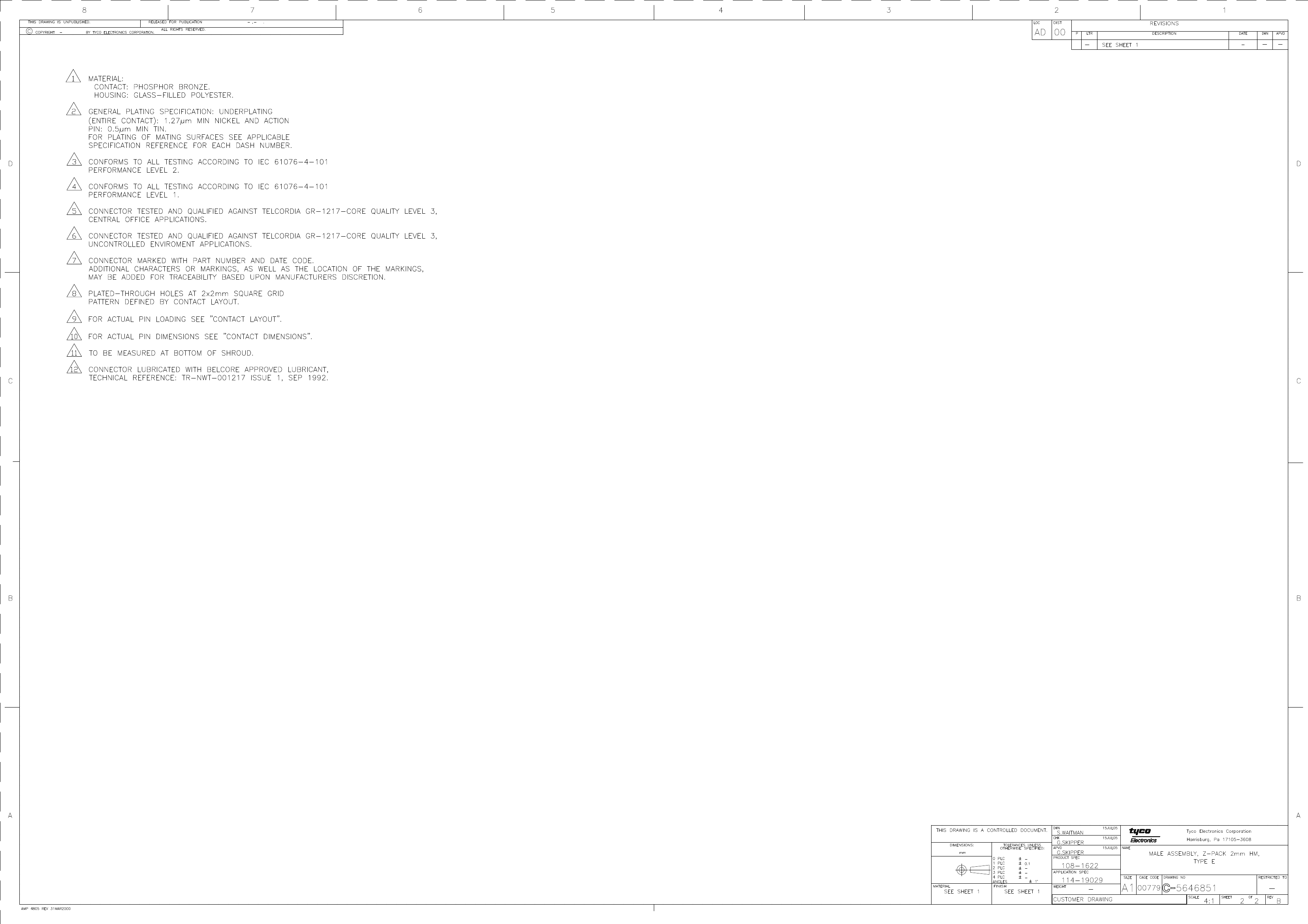

HEADER CONNECTOR,PCB MNT,244 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,LOCKING
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Maker | TE Connectivity |
| Reach Compliance Code | compliant |
| body width | 0.843 inch |
| subject depth | 0.53 inch |
| body length | 1.965 inch |
| Connector type | BOARD CONNECTOR |
| Contact completed and terminated | TIN OVER NICKEL |
| Contact point gender | MALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact style | SQ PIN-SKT |
| Dielectric withstand voltage | 750VAC V |
| Durability | 250 Cycles |
| maximum insertion force | .7506 N |
| Insulation resistance | 1000000000 Ω |
| insulator material | GLASS FILLED POLYESTER |
| Manufacturer's serial number | 5646851 |
| Plug contact pitch | 0.079 inch |
| Match contact row spacing | 0.079 inch |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 10 |
| Number of rows loaded | 10 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm |
| polarization key | POLAR PIN POSITION |
| Rated current (signal) | 1.5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.145 inch |
| Terminal pitch | 2.0066 mm |
| Termination type | SOLDER |
| Total number of contacts | 244 |
| Evacuation force-minimum value | .139 N |
| Base Number Matches | 1 |
| 5646851-9 | 5646851-1 | |
|---|---|---|
| Description | HEADER CONNECTOR,PCB MNT,244 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,LOCKING | HEADER CONNECTOR,PCB MNT,244 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,LOCKING |
| Is it Rohs certified? | conform to | conform to |
| Maker | TE Connectivity | TE Connectivity |
| Reach Compliance Code | compliant | compliant |
| body width | 0.843 inch | 0.843 inch |
| subject depth | 0.53 inch | 0.53 inch |
| body length | 1.965 inch | 1.965 inch |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact completed and terminated | TIN OVER NICKEL | TIN OVER NICKEL |
| Contact point gender | MALE | MALE |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR | RECTANGULAR |
| Contact style | SQ PIN-SKT | SQ PIN-SKT |
| Dielectric withstand voltage | 750VAC V | 750VAC V |
| Durability | 250 Cycles | 250 Cycles |
| maximum insertion force | .7506 N | .7506 N |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω |
| insulator material | GLASS FILLED POLYESTER | GLASS FILLED POLYESTER |
| Manufacturer's serial number | 5646851 | 5646851 |
| Plug contact pitch | 0.079 inch | 0.079 inch |
| Match contact row spacing | 0.079 inch | 0.079 inch |
| Installation option 1 | LOCKING | LOCKING |
| Installation method | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD |
| Number of connectors | ONE | ONE |
| PCB row number | 10 | 10 |
| Number of rows loaded | 10 | 10 |
| Maximum operating temperature | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C |
| PCB contact pattern | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm | 2.0066 mm |
| polarization key | POLAR PIN POSITION | POLAR PIN POSITION |
| Rated current (signal) | 1.5 A | 1.5 A |
| Guideline | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.145 inch | 0.145 inch |
| Terminal pitch | 2.0066 mm | 2.0066 mm |
| Termination type | SOLDER | SOLDER |
| Total number of contacts | 244 | 244 |
| Evacuation force-minimum value | .139 N | .139 N |
| Base Number Matches | 1 | 1 |
