84320AK-01: DescriptionClock Generator, 780MHz, 5 X 5 MM, 0.95 MM HEIGHT, MO-220, VFQFN-32; CategoryThe embedded processor and controller Microcontrollers and processors; File Size370KB，22 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

84320AK-01 Overview

Clock Generator, 780MHz, 5 X 5 MM, 0.95 MM HEIGHT, MO-220, VFQFN-32

84320AK-01 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	QFN
package instruction	5 X 5 MM, 0.95 MM HEIGHT, MO-220, VFQFN-32
Contacts	32
Reach Compliance Code	not_compliant
ECCN code	EAR99
JESD-30 code	S-XQCC-N32
JESD-609 code	e0
length	5 mm
Humidity sensitivity level	3
Number of terminals	32
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output clock frequency	780 MHz
Package body material	UNSPECIFIED
encapsulated code	HVQCCN
Package shape	SQUARE
Package form	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Celsius)	240
Master clock/crystal nominal frequency	40 MHz
Certification status	Not Qualified
Maximum seat height	1 mm
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn85Pb15)
Terminal form	NO LEAD
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	20
width	5 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, OTHER
Base Number Matches	1

Preview

Download Datasheet

View All

780MHZ, Crystal-to-3.3V Differential

LVPECL Frequency Synthesizer

PRODUCT DISCONTINUATION NOTICE - LAST TIME BUY EXPIRES MAY 6, 2017

84320-01

DATASHEET

ENERAL

ESCRIPTION

The 84320-01 is a general purpose, dual output Crystal-

to-3.3V Differential LVPECL High Frequency Synthesiz-

er. The 84320-01 has a selectable TEST_CLK or crystal

inputs. The VCO operates at a frequency range of 620MHz

to 780MHz. The VCO frequency is programmed in steps

equal to the value of the input reference or crystal frequency.

The VCO and output frequencycan be programmed using

the serial or parallel interfaces tothe configuration logic.

The low phase noise characteristicsof the 84320-01 make it

an ideal clock source for 10 Gigabit Ethernet, SONET, and

Serial Attached SCSI applications.

EATURES

•

Dual differential 3.3V LVPECL outputs

•

Selectable crystal oscillator interface

or LVCMOS/LVTTL TEST_CLK

•

Output frequency range: 77.5MHz to 780MHz

•

Crystal input frequency range: 14MHz to 40MHz

•

VCO range: 620MHz to 780MHz

•

Parallel or serial interface for programming counter

and output dividers

•

Duty cycle: 49% - 51% (N > 1)

•

RMS period jitter: 2ps (typical)

•

RMS phase jitter at 155.52MHz, using a 38.88MHz crystal

(12kHz to 20MHz): 2.5ps (typical)

Offset

Noise Power

100Hz ..................-90.5 dBc/Hz

1kHz ................-114.2 dBc/Hz

10kHz ................-123.6 dBc/Hz

100kHz ................-128.1 dBc/Hz

•

3.3V supply voltage

•

0°C to 70°C ambient operating temperature

•

Available in RoHS (6) package

•

For functional replacement part use 8T49N242

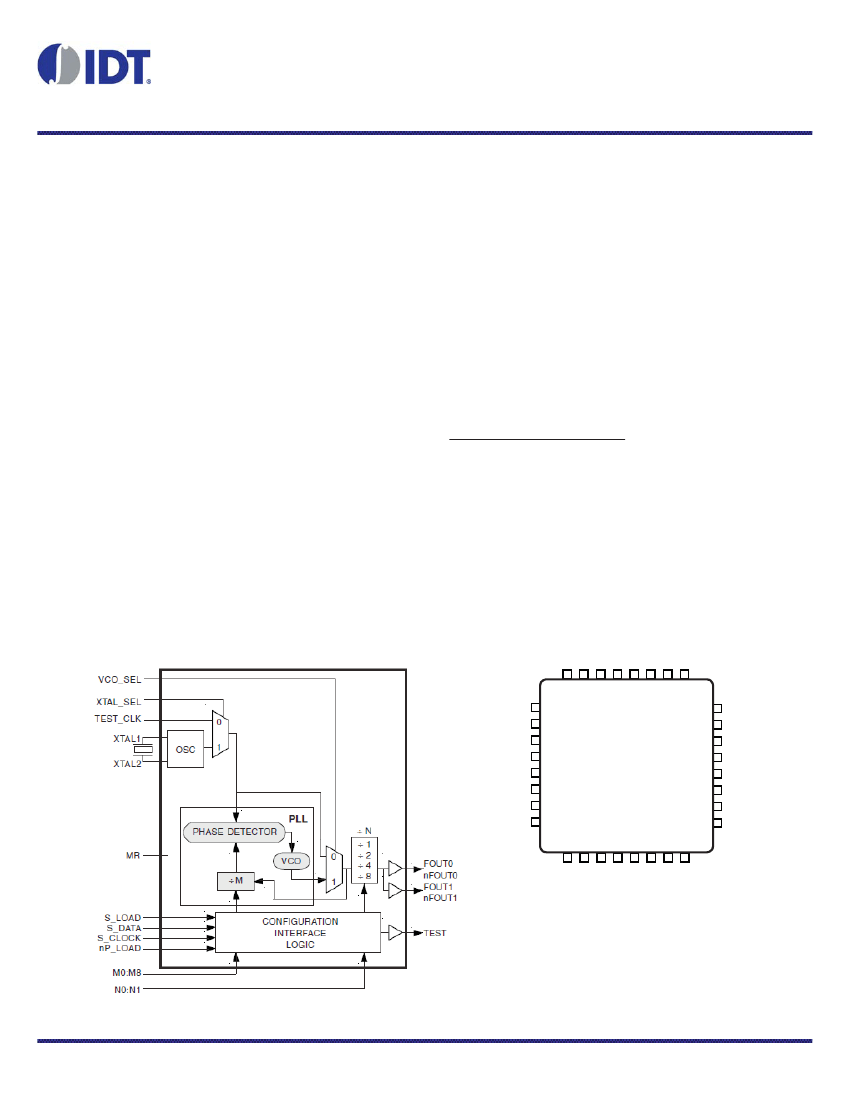

LOCK

IAGRAM

SSIGNMENT

32 31 30 29 28 27 26 25

9 10 11 12 13 14 15 16

TEST

FOUT1

nFOUT1

CCO

FOUT0

nFOUT0

XTAL2

TEST_CLK

XTAL_SEL

CCA

S_LOAD

S_DATA

S_CLOCK

84320-01

32-Lead LQFP

7mm x 7mm x 1.4mm package body

Y Package

Top View

VCO_SEL

nP_LOAD

XTAL1

84320-01 REVISION D 5/26/16
