SERIES 76
SERIES 76
BEAU Terminal Blocks
BEAU
.375" Double Row Barrier Terminal Strip
Description
The series 76, double row high barrier
terminal strip is ideal for making up to 30
wire to wire terminations. The extensive
offering of screw, quick connect and
solder hardware options can solve
virtually any connection scheme and the
high barriers provide superior circuit
isolation.
Made in the USA, all Beau terminal
blocks embody the highest quality
standards in the industry-using the finest
materials and world class manufacturing
processes. They meet or exceed all
applicable industry standards.
Features
•
Closed or feed-thru
design allows
the series 76 to be mounted directly
on a sheet metal panel or placed over
a panel cutout.
Molded to exact length,
with no
ugly saw cuts, Beau terminal strips
make your products look more
professional. The terminal block is
the one component that your
customer is sure to see.
Wide variety of options.
Our broad
range of screw, terminal, hardware
and mounting options allows us to
save you assembly costs and improve
interconnect performance.
•
•
PRODUCT RATINGS
#6-32 BINDING HEAD SCREW
UL
Class B
15 Amps @ 300 V 14 AWG
Class C
15 Amps @ 150 V 14 AWG
CSA
Class B
Class C
20 Amps @ 300 V 14 AWG
20 Amps @ 300 V 14 AWG
TECHNICAL SPECIFICATIONS
ELECTRICAL
DWV
IR
MECHANICAL
Tightening torque
Maximum torque
Wire strip length
Wire range
ENVIRONMENTAL
Continuous Use Temp
RTI electrical
110
o
C
110
o
C
RTI mechanical w/o impact
OPTIONS
-45
-45-56
-47
-49
-50
-58
-59
-60
-61
-C
-M
-V
Slotted screw
Stainless steel screws, slotted
Screws up, wire ready
Brass, phillips/slotted screw
Clamp washer, phillips/slotted screw
No screws, barrier only
Screws supplied unassembled
One row screws unassembled
One row screws not supplied
No mounting ends
3.5 M screw, slotted
130°C insulator
10500 VDC
>5000 Megohms
8 in-lbs.
13 in-lbs.
5/16"
12 to 24 AWG
#6-32 WIRE CLAMP SCREW
UL
Class B
20 Amps @ 300 V 12 AWG
Class C
20 Amps @ 150 V 12 AWG
CSA
Class B
20 Amps @ 300 V 12 AWG
Class C
20 Amps @ 300 V 12 AWG
NOTE: 3.5M screws carry #6-32 screw
ratings.
AGENCY LISTINGS
UL
CSA
File No. E48521
Guide No. XCFR2
File No. 025562
MATERIALS
Insulator
Terminal
Screws
Thermoplastic,
UL94V0, black
Brass, nickel plate
#6-32, phillips/slotted, steel,
zinc chromate plate

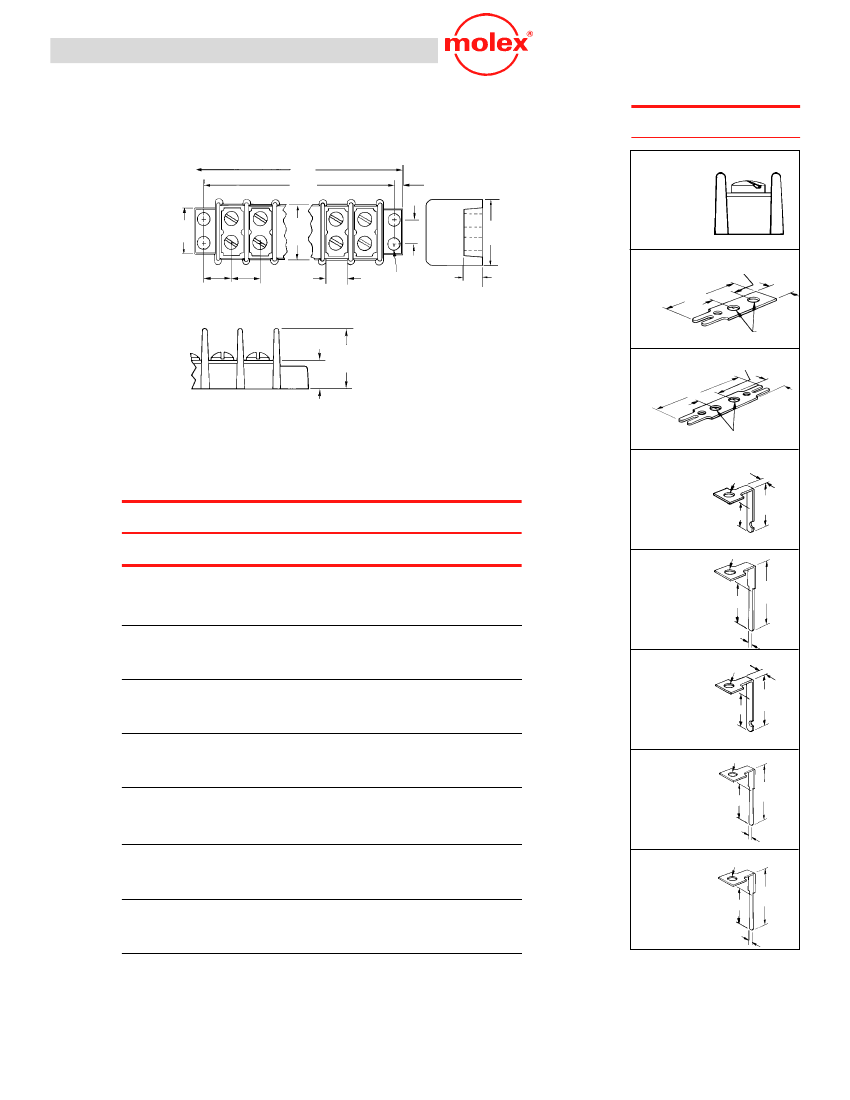

HOW TO ORDER
7 6
SERIES
X
TERMINAL
STYLE
012
345
67
X X - X X
NO. OF
POLES
2 to 30
(Dash #s above
and
opposite page)
OPTIONS
*Consult factory for combinations of screw options.
Molex Industrial Division
New England Operations
Gilford, NH 03246-6600
Phone
(603) 524-5101
Fax
(603) 524-1627
Internet www.beauint.com
