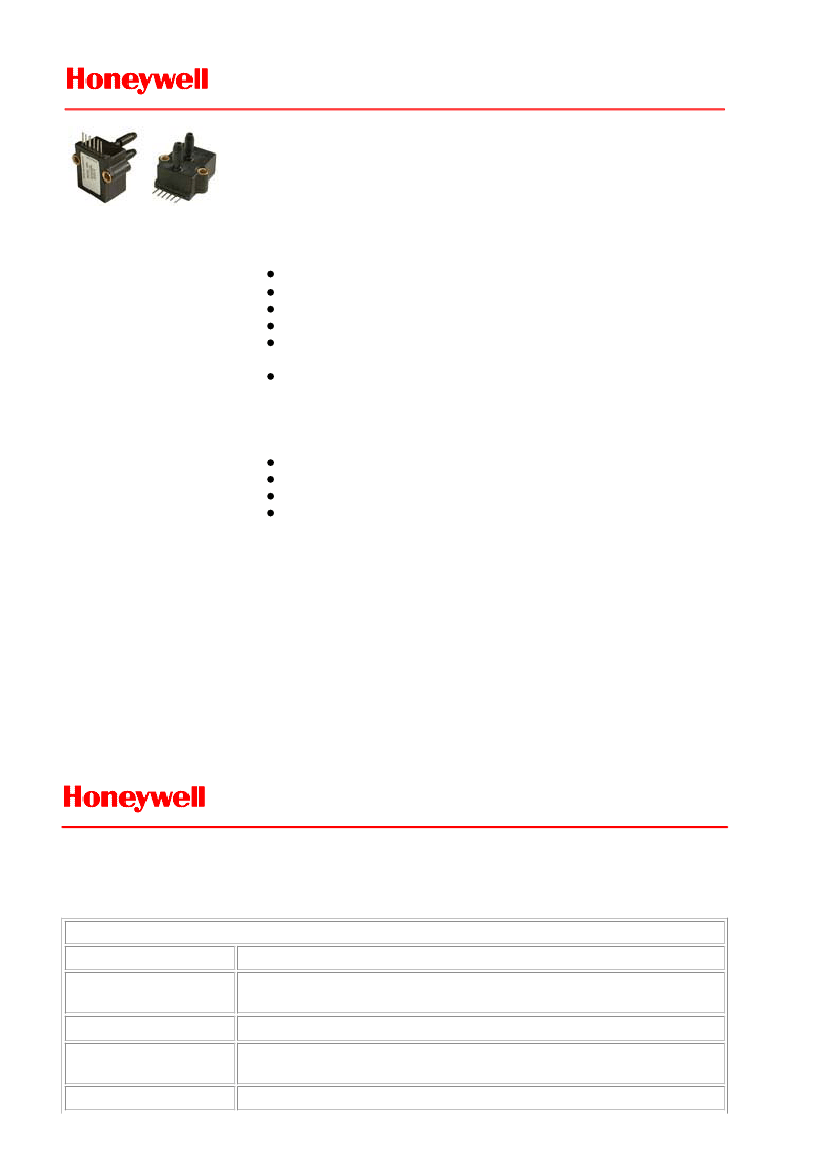

DC001NDR5
Representative
photograph, actual
product appearance may
vary.
Due to regional agency
approval requirements,
some products may not
be available in your
area. Please contact
your regional Honeywell
office regarding your
product of choice.
Pressure Sensors: Measurement Type: Bidirectional
Gage, Differential; Signal Conditioning: Amplified;
Pressure Range: ± 1.0 in H
2
O; Port Style: Barbed
Features
Ultra Low Pressure Sensing, down to 1" H
2
0
ASIC Enhanced
Available in Gage and Differential Pressure Ranges
Available in Ratiometric and Regulated
Temperature Compensated over 0 °C to 50 °C [32 °F to
122 °F]
Combined Linearity and Hysteresis error <±0.25% Span
Typical Applications
Medical Instrumentation
HVAC
Environmental Controls
Portable Monitors
Description
The DC pressure sensor combines our SURSENSE
TM
precision
high sensitivity silicon sensing capabilities with the latest in ASIC
technology to produce one of the most precise, reliable pressure
sensors in the market. The SURSENSE technology provides
Dynamic Self Compensation which substantially reduces offset
errors due to changes in temperature, stability to warmup, long
term instability and position sensitivity. When operated with a
fixed 5.0 Vdc supply the DC sensors provides a ratiometric 0.25
Vdc to 4.25 Vdc output (4.0 Vdc span). Regulated voltage units
are also available for applications involving variable supply
voltages (see electrical specifications).
DC001NDR5
Pressure Sensors: Measurement Type: Bidirectional Gage, Differential; Signal
Conditioning: Amplified; Pressure Range: ± 1.0 in H
2
O; Port Style: Barbed
Product Specifications
Measurement Type
Signal
Conditioning
Pressure Range
Maximum
Overpressure
Supply Voltage
Differential, Bidirectional Gage
Amplified
± 1.0 in H
2
O
100 in H
2
O
7.0 Vdc to 30.0 Vdc
1 of 4
10/31/2005 10:56 AM
Datasheet -- DC001NDR5
http://catalog.sensing.honeywell.com/printfriendly.asp?FAM=pressu...
Compensated
Output Calibration
Termination
Port Style
Package Style
Typical Sensitivity
Full Scale Span
Null Offset
Offset Position
Sensitivity
Total Error
(% Full Scale)
Yes
Yes
PCB
Barbed
Honeywell DI-DC
5 V/in H
2
O
± 2.0 V typ.
3.5 Vdc typ.
± 10 mV
± 2.0 % typ., ± 3.0 % max.
(See Note 1)
Accuracy
± 0.25 %
(% Best Fit Straight
(See Note 2)
Line)
Operating
Temperature Range
Compensated
Temperature Range
Storage
Temperature Range
Media
Compatibility
UNSPSC Code
UNSPSC
Commodity
Note 1
Note 2
Availability
Series Name
-25 °C to 85 °C [-13 °F to 185 °F]
0 °C to 50 °C [32 °F to 122 °F]
-40 °C to 125 °C [-40 °F to 257 °F]
P2 port: DRY GASES ONLY: Media must be compatible with
epoxy based adhesive. P1 port: Wetted materials; Media must
be compatible with nylon housing, epoxy adhesive and silicon.
411121
411121 Transducers
Percentage of Full Scale includes: zero calibration, temperature
effect on zero and span, nonlinearity, hysteresis, repeatability,
and stability over the compensated temperature range.
Percentage of Best Fit Straight Line includes: nonlinearity,
hysteresis, and repeatability
Global
DC Series
DC001NDR5
Pressure Sensors: Measurement Type: Bidirectional Gage, Differential; Signal
Conditioning: Amplified; Pressure Range: ± 1.0 in H
2
O; Port Style: Barbed
2 of 4
10/31/2005 10:56 AM
Datasheet -- DC001NDR5
http://catalog.sensing.honeywell.com/printfriendly.asp?FAM=pressu...

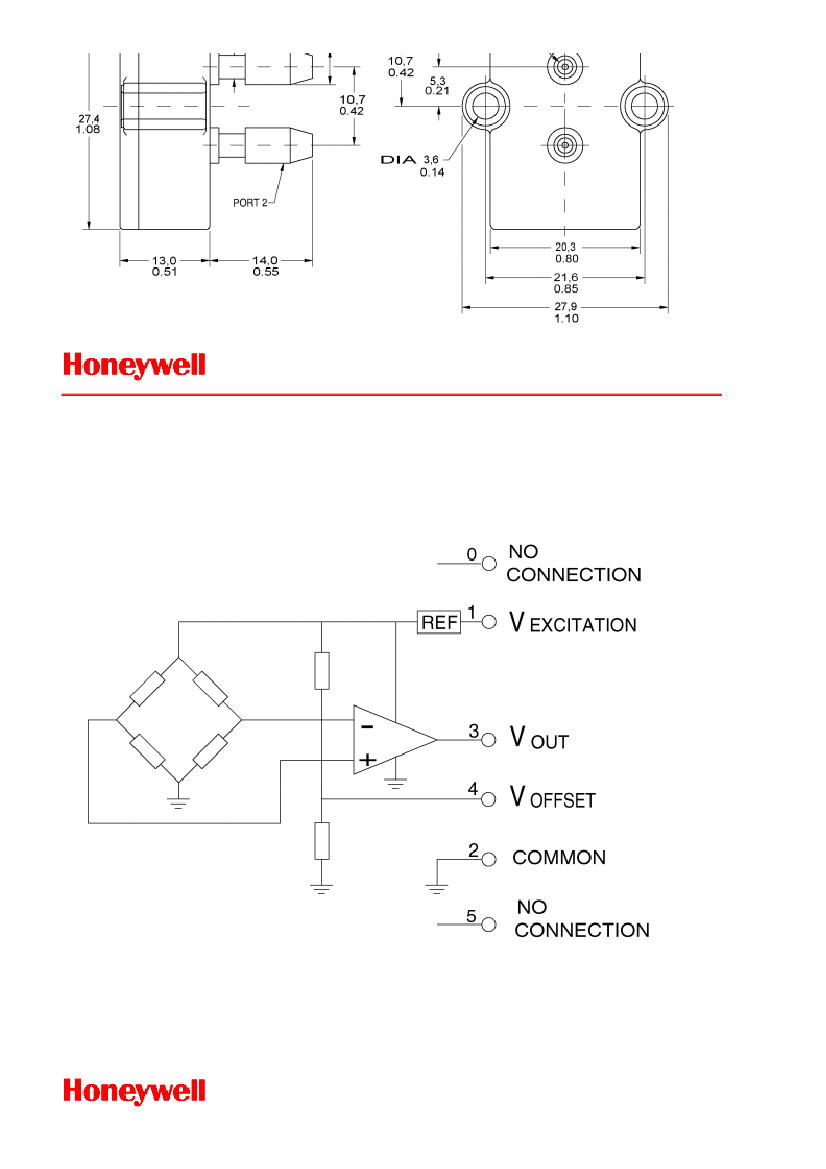

DC001NDR5
Pressure Sensors: Measurement Type: Bidirectional Gage, Differential; Signal
Conditioning: Amplified; Pressure Range: ± 1.0 in H
2
O; Port Style: Barbed
3 of 4
10/31/2005 10:56 AM
Datasheet -- DC001NDR5
http://catalog.sensing.honeywell.com/printfriendly.asp?FAM=pressu...
DC001NDR5
Pressure Sensors: Measurement Type: Bidirectional Gage, Differential; Signal
Conditioning: Amplified; Pressure Range: ± 1.0 in H
2
O; Port Style: Barbed
