5962F9862501VXC datasheet, PDF

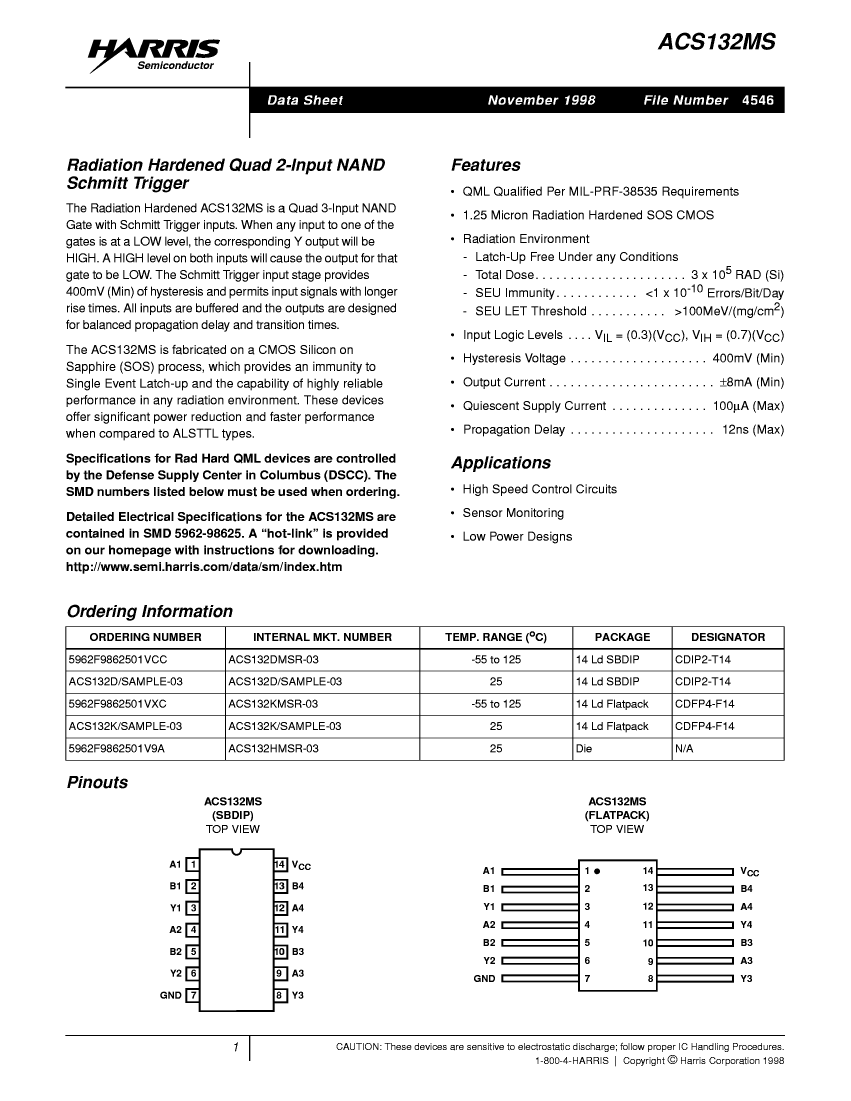

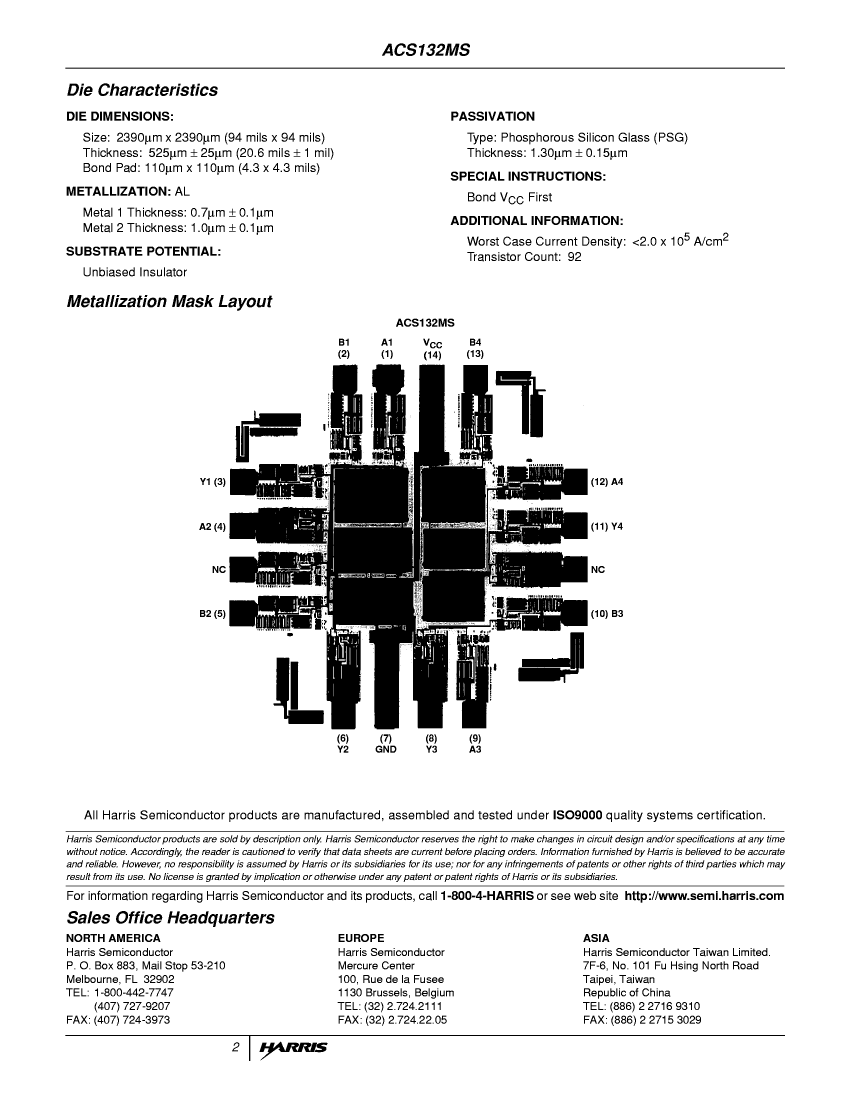

5962F9862501VXC: DescriptionNAND Gate, AC Series, 4-Func, 2-Input, CMOS, CDFP14, CERAMIC, DFP-14; Categorylogic logic; File Size93KB，2 Pages; ManufacturerDefense Logistics Agency

Download Datasheet Parametric View All

5962F9862501VXC Overview

NAND Gate, AC Series, 4-Func, 2-Input, CMOS, CDFP14, CERAMIC, DFP-14

Parameter Name	Attribute value
Maker	Defense Logistics Agency
Parts packaging code	DFP
package instruction	DFP,
Contacts	14
Reach Compliance Code	unknown
series	AC
JESD-30 code	R-CDFP-F14
JESD-609 code	e4
length	9.525 mm
Logic integrated circuit type	NAND GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
propagation delay (tpd)	12 ns
Certification status	Not Qualified
Maximum seat height	2.92 mm
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
total dose	300k Rad(Si) V
width	6.285 mm
Base Number Matches	1
