Cascadable Amplifier
10 to 1500 MHz
Features
•
•
•
•
LOW NOISE: 3.5 dB (TYP.)
HIGH EFFICIENCY: 27 mA (TYP.) @ +5 Vdc
GOOD DYNAMIC RANGE: 105 dB (TYP.)
LOW VSWR: <1.4:1 (TYP.)
A28-2/ SMA28-2
V3

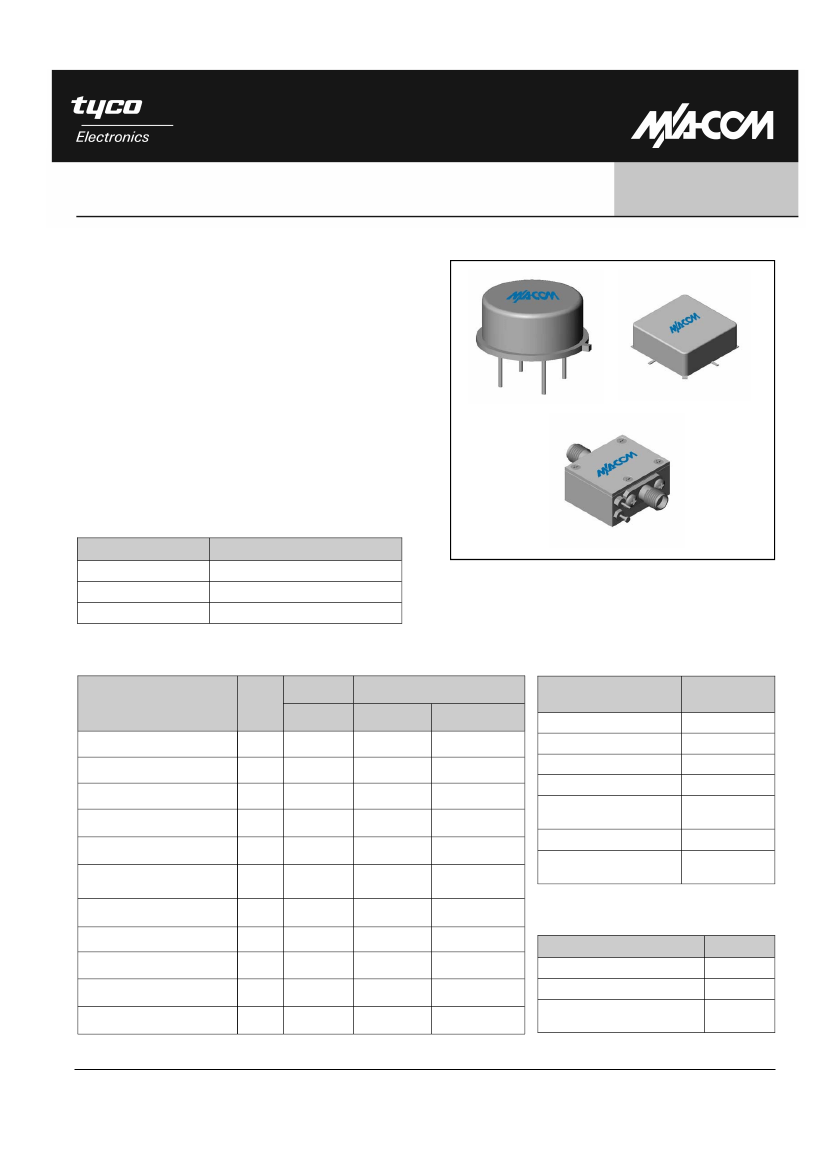

Product Image
Description
The A28-2 RF amplifier is a discrete thin film hybrid design, which
incorporates the use of thin film manufacturing processes for
accurate performance and high reliability.
This single stage bipolar transistor feedback amplifier design
displays impressive performance over a broadband frequency
range. An active DC biasing network is used for temperature-
stable performance, in addition to an RF Choke, used for power
supply decoupling.
Both TO-8 and Surface Mount packages are hermetically sealed,
and MIL-STD-883 environmental screening is available
.
Ordering Information
Part Number
A28-2
SMA28-2
CA28-2
Package
TO-8
Surface Mount
SMA Connectorized
Electrical Specifications: Z
0
= 50Ω, V
CC
= +5 V
DC
Ω
Typical
Parameter
Frequency
Small Signal Gain (min)
Gain Flatness (max)
Reverse Isolation
Noise Figure (max)
Power Output
@ 1 dB comp. (min)
IP3
IP2
Second Order Harmonic IP
VSWR Input / Output (max)
DC Current @ 5 Volts (max)
mA
Absolute Maximum Ratings
Parameter
Storage Temperature
Case Temperature
DC Voltage
Continuous Input Power
Guaranteed
0º to 50ºC
10-1500
13.0
±0.5
Units
25ºC
MHz
dB
dB
dB
dB
dBm
dBm
dBm
dBm
5-1600
14.0
±0.3
16
3.5
10.5
+24
+34
+40
1.3:1 / 1.5:1
27
1.8:1 / 1.9:1
30
1.9:1 / 2.0:1
32
4.5
9.5
5.0
8.5
Absolute
Maximum
-62ºC to +125ºC
+125ºC
+8 V
+13 dBm
50 mW
0.5 W
+125ºC
-54º to +85ºC*
10-1500
12.5
±1.0
Short Term Input power
(1 minute max.)
Peak Power (3 sec max.)
“S” Series Burn-In
Temperature (case)
Thermal Data: V
CC
= +5 V
DC
Parameter
Thermal Resistance θ
jc
Transistor Power Dissipation P
d
Junction Temperature Rise
Above Case T
jc
Rating
160ºC/W
0.098 W
+16ºC
* Over temperature performance limits for part number CA28-2, guaranteed from 0
o
C to +50
o
C only.
1
M/A-COM Inc. and its affiliates reserve the right to make changes to the
product(s) or information contained herein without notice. M/A-COM makes
no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does M/A-COM assume any liability
whatsoever arising out of the use or application of any product(s) or
information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Visit www.macom.com for additional data sheets and product information.
Cascadable Amplifier
10 to 1500 MHz

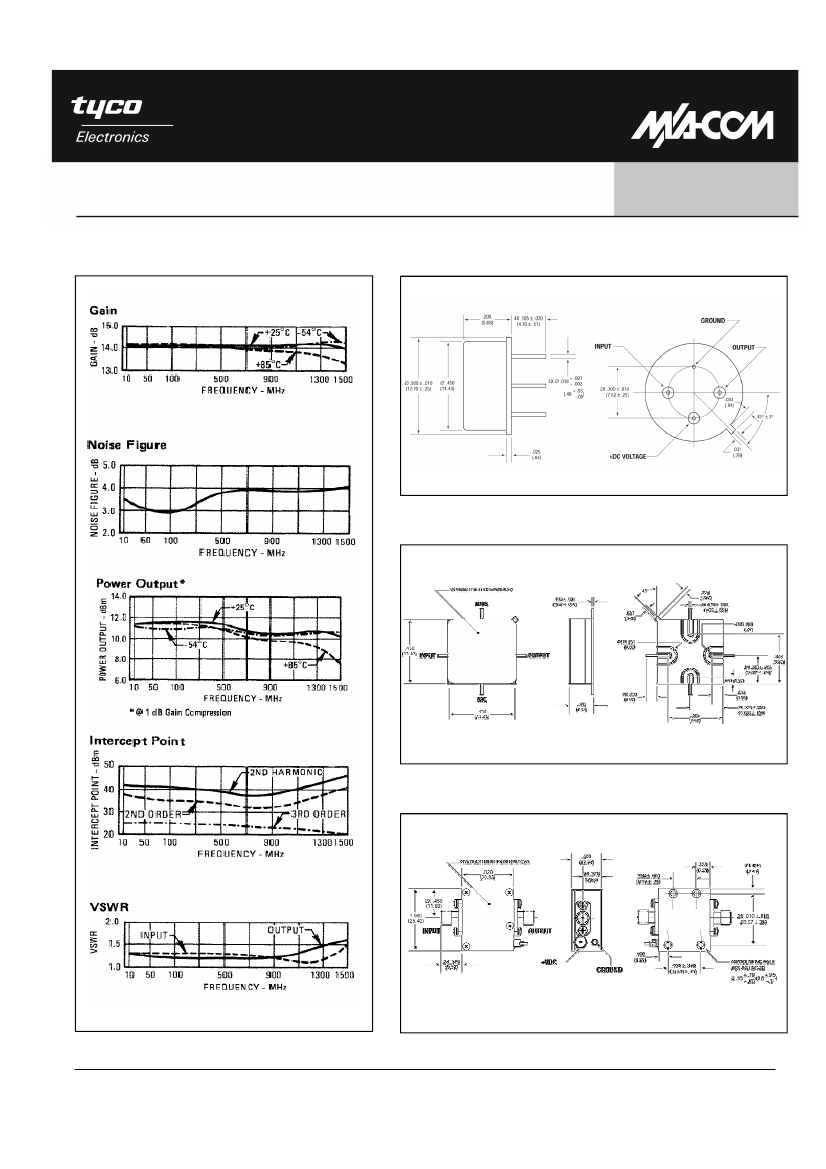

Typical Performance Curves at +25°C
Outline Drawing: TO-8
*
A28-2/ SMA28-2
V3
WEIGHT: 1 gram (0.04 oz.) max
Outline Drawing: Surface Mount
*
WEIGHT: 1 gram (0.04 oz.) max
Outline Drawing: SMA Connectorized
*
WEIGHT: 19 grams (0.67 oz.) max
2
∗
Dimensions are inches (millimeters) ±0.015 (0.38) unless otherwise specified.
