NOTE: (1) Stresses above those listed above may cause permanent damage to
the device. This is a stress rating only and functional operation of the device at
these or any other condition above those indicated in the operational sections of
this specification is not implied. Exposure to absolute maximum rating conditions
for extended periods may affect device reliability.
PIN CONNECTIONS
Top View
DIP/SOIC
I
OUT 1
I
OUT 2
GND
Bit 1 (MSB)
Bit 2
Bit 3
Bit 4
Bit 5
Bit 6
1
2
3
4
DAC7541A
5
6
7
8
9
18 R
FB
17 V
REF
16 +V
DD
15 Bit 12 (LSB)
14 Bit 11
13 Bit 10
12 Bit 9
11 Bit 8
10 Bit 7
ELECTROSTATIC
DISCHARGE SENSITIVITY
The DAC7541A is an ESD (electrostatic discharge) sensi-
tive device. The digital control inputs have a special FET
structure, which turns on when the input exceeds the supply
by 18V, to minimize ESD damage. However, permanent
damage may occur on unconnected devices subject to high
energy electrostatic fields. When not in use, devices must be
stored in conductive foam or shunts. The protective foam
should be discharged to the destination socket before
devices are removed.
BURN-IN SCREENING
Burn-in screening is an option available for the models in the
Ordering Information table. Burn-in duration is 160 hours at
the indicated temperature (or equivalent combination of time
and temperature).
All units are tested after burn-in to ensure that grade speci-
fications are met. To order burn-in, add “-BI” to the base
model number.
ORDERING INFORMATION
MODEL
DAC7541AJP
DAC7541AKP
DAC7541AJU
DAC7541AKU
PACKAGE
Plastic DIP
Plastic DIP
Plastic SOIC
Plastic SOIC
TEMPERATURE
RANGE
0°C to +70°C
0°C to +70°C
0°C to +70°C
0°C to +70°C
PACKAGE INFORMATION
MODEL
DAC7541JP
DAC7541KP
DAC7541JU
DAC7541KU
DAC7541JP-BI
DAC7541KP-BI
PACKAGE
Plastic DIP
Plastic DIP
Plastic SOIC
Plastic SOIC
Plastic DIP
Plastic DIP
PACKAGE DRAWING
NUMBER
(1)
218
218
219
219
218
218
NOTE: (1) For detailed drawing and dimension table, please see end of data
sheet, or Appendix D of Burr-Brown IC Data Book.
RELATIVE
ACCURACY (LSB)
±1
±1/2
±1
±1/2
GAIN ERROR (LSB)
±6
±1
±6
±1
BURN-IN SCREENING OPTION
See text for details.
MODEL
DAC7541AJP-BI
DAC7541AKP-BI
PACKAGE
Plastic DIP
Plastic DIP
TEMPERATURE
RANGE
0°C to +70°C
0°C to +70°C
RELATIVE
ACCURACY (LSB)
±1
±1/2
BURN-IN TEMP.
(160 Hours)
(1)
+85°C
+85°C
The information provided herein is believed to be reliable; however, BURR-BROWN assumes no responsibility for inaccuracies or omissions. BURR-BROWN
assumes no responsibility for the use of this information, and all use of such information shall be entirely at the user’s own risk. Prices and specifications are subject
to change without notice. No patent rights or licenses to any of the circuits described herein are implied or granted to any third party. BURR-BROWN does not
authorize or warrant any BURR-BROWN product for use in life support devices and/or systems.
®
3
DAC7541A
PAD
1
2
3
4
5
6
7
8
9
FUNCTION
I
OUT1
I
OUT2
GND
Bit 1 (MSB)
Bit 2
Bit 3
Bit 4
Bit 5
Bit 6
PAD
10
11
12
13
14
15
16
17
18
FUNCTION
Bit 7
Bit 8
Bit 9
Bit 10
Bit 11
Bit 12 (LSB)
+V
DD
V
REF
R
FEEDBACK
Substrate Bias:
Isolated.
NC: No Connection.
MECHANICAL INFORMATION
MILS (0.001")
Die Size
Die Thickness
Min. Pad Size
Metalization
104 x 105
±5
20
±3
4x4
MILLIMETERS
2.64 x 2.67
±0.13
0.51
±0.08
0.10 x 0.10
Aluminum

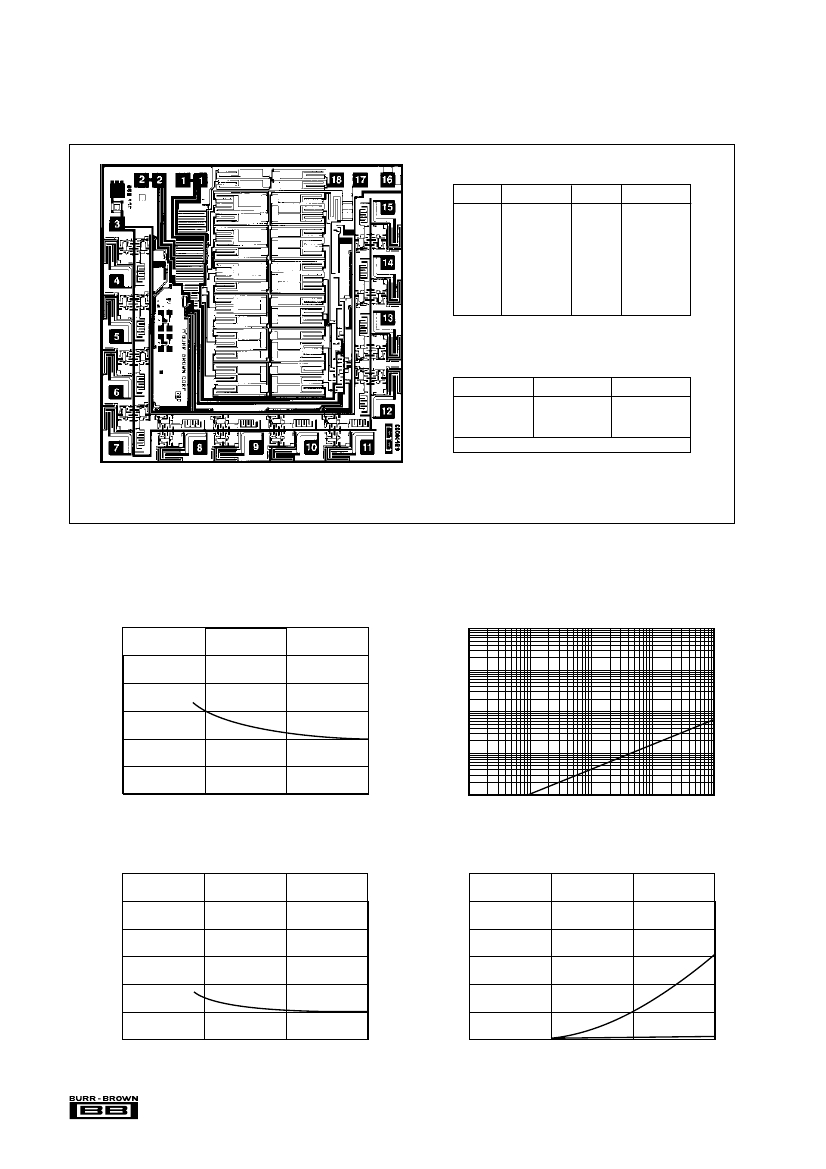

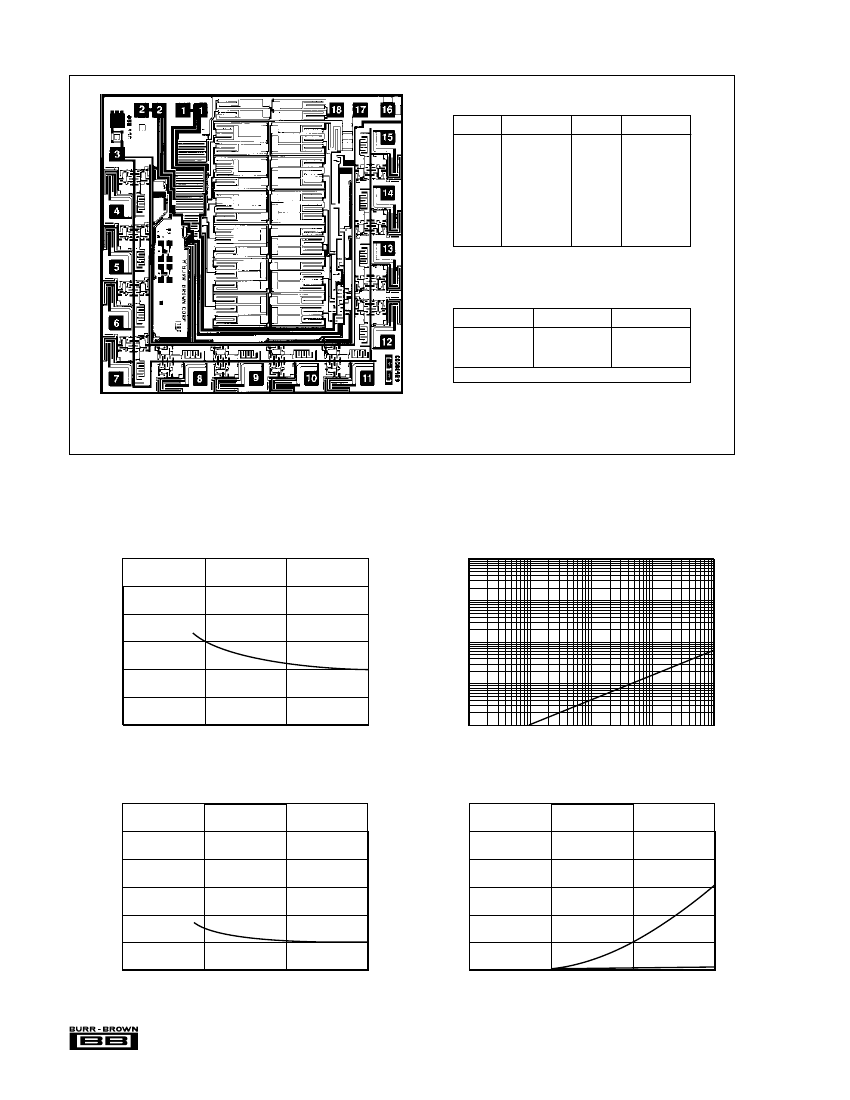

DIE TOPOLOGY DAC7541A
TYPICAL PERFORMANCE CURVES
T
A
= +25°C, V
DD
= +15V, unless otherwise noted.
GAIN ERROR vs SUPPLY VOLTAGE
3
5/2
Feedthrough (% FSR)
FEEDTHROUGH ERROR vs FREQUENCY
10
1
Gain Error (LSB)
2
3/2
1
1/2
0
0
5
10
15
Supply Voltage (V)
0.10
0.010
0.001
100
1k
10k
Frequency (Hz)
100k
1M
LINEARITY vs SUPPLY VOLTAGE
3/2
5/4
SUPPLY CURRENT vs SUPPLY VOLTAGE
3/2
5/4
Linearity Error (LSB)
Supply Current (µA)
1
3/4
1/2
1/4
0
0
5
10
15
Supply Voltage (V)
1
3/4
V
IH
= +2.4V
1/2
1/4
0
0
5
10
Supply Voltage (V)
V
IH
= V
DD
15
®
DAC7541A
4
DISCUSSION
OF SPECIFICATIONS
RELATIVE ACCURACY
This term (also known as linearity) describes the transfer
function of analog output to digital input code. The linearity
error describes the deviation from a straight line between
zero and full scale.
DIFFERENTIAL NONLINEARITY
Differential nonlinearity is the deviation from an ideal 1LSB
change in the output, from one adjacent output state to the
next. A differential nonlinearity specification of
±1.0LSB
guarantees monotonicity.
GAIN ERROR
Gain error is the difference in measure of full-scale output
versus the ideal DAC output. The ideal output for the
DAC7541A is –(4095/4096)
X
(V
REF
). Gain error may be
adjusted to zero using external trims.
OUTPUT LEAKAGE CURRENT
The measure of current which appears at Out
1
with the DAC
loaded with all zeros, or at Out
2
with the DAC loaded with
all ones.
MULTIPLYING FEEDTHROUGH ERROR
This is the AC error output due to capacitive feedthrough
from V
REF
to Out
1
with the DAC loaded with all zeros. This
test is performed at 10kHz.
OUTPUT CURRENT SETTLING TIME
This is the time required for the output to settle to a tolerance
of
±0.5LSB
of final value from a change in code of all zeros
to all ones, or all ones to all zeros.
PROPAGATION DELAY
This is the measure of the delay of the internal circuitry and
is measured as the time from a digital code change to the
point at which the output reaches 90% of final value.
DIGITAL-TO-ANALOG GLITCH IMPULSE
This is the measure of the area of the glitch energy measured
in nV-seconds. Key contributions to glitch energy are digital
