2712-L-2511-A-002500 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 2712-L-2511-A-002500

2712-L-2511-A-002500: DescriptionMains Power Connector, 2.5A, 250VAC, Female, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size351KB，3 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric View All

2712-L-2511-A-002500 Overview

Mains Power Connector, 2.5A, 250VAC, Female, Plug, ROHS COMPLIANT

2712-L-2511-A-002500 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Other features	STANDARDS: IEC/EN 60320-2-2/C7, UL 498, CSA C22.2
Body/casing type	PLUG
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
MIL compliance	NO
Power Connector Ratings	2.5A, 250VAC
Manufacturer's serial number	2511
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	POLYVINYLCHLORIDE
Total number of contacts	2
Base Number Matches	1

Preview

Download Datasheet

View All

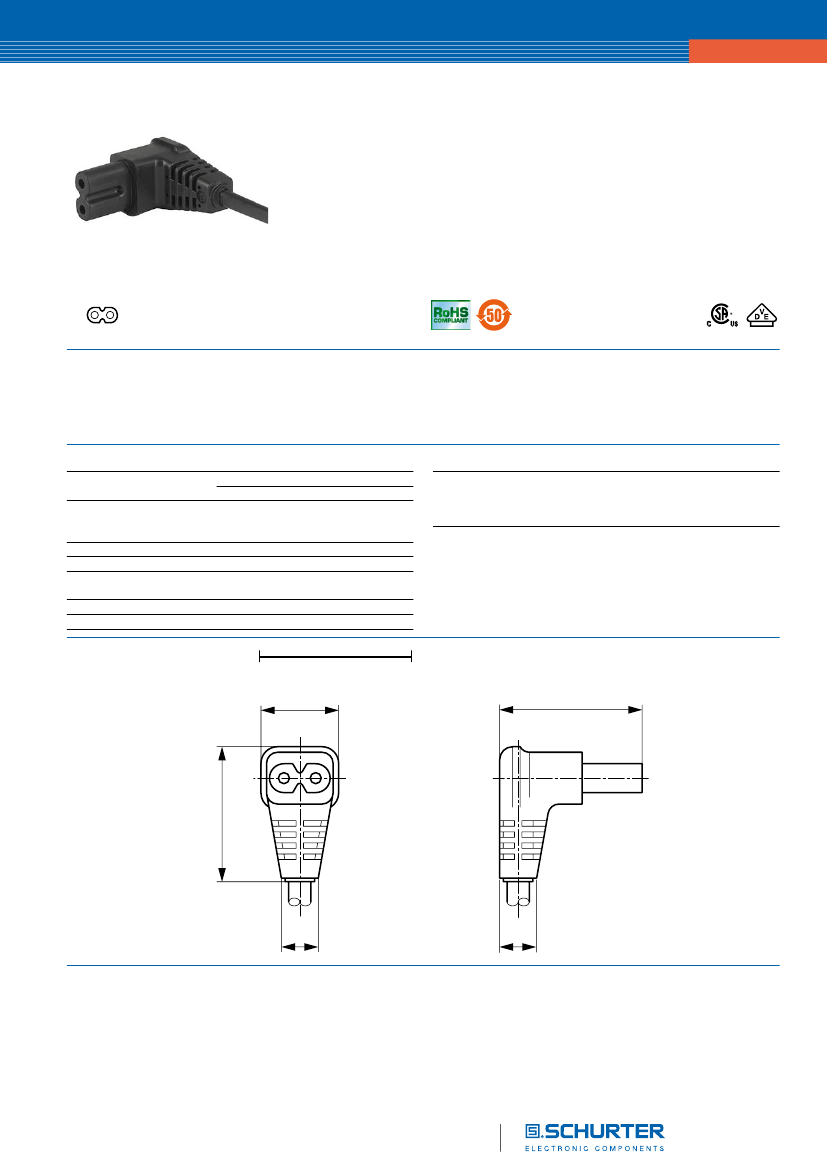

Cord Sets

www.schurter.com/pg07_2

Power Cord with IEC Connector C7, Angled

70°C

Description

Approvals

Power Supply Cord / Interconnection Cord, Protection class II, Pin tem-

perature 70 °C, Cable

- VDE Certificate Number: 40005800

- CSA File Number: 1020530

Technical Data

Ratings IEC

Ratings UL/CSA

Dielectric Strength

Terminal

Material: Housing

Dimensions

38.5 mm

Allowable Operation Temp.

Degree of Protection

Protection Class

2.5 A / 250 VAC; 50 Hz

2.5 A / 250 VAC; 60 Hz

> 3 kVDC between L-N

> 1.5 kVAC between L/N-PE

(1 min/50 Hz)

-25 °C to 70 °C

from front side IP 20 acc. to IEC 60529

Suitable for appliances with protection

class 2 acc. to IEC 61140

moulded

PVC, black or grey

36.5

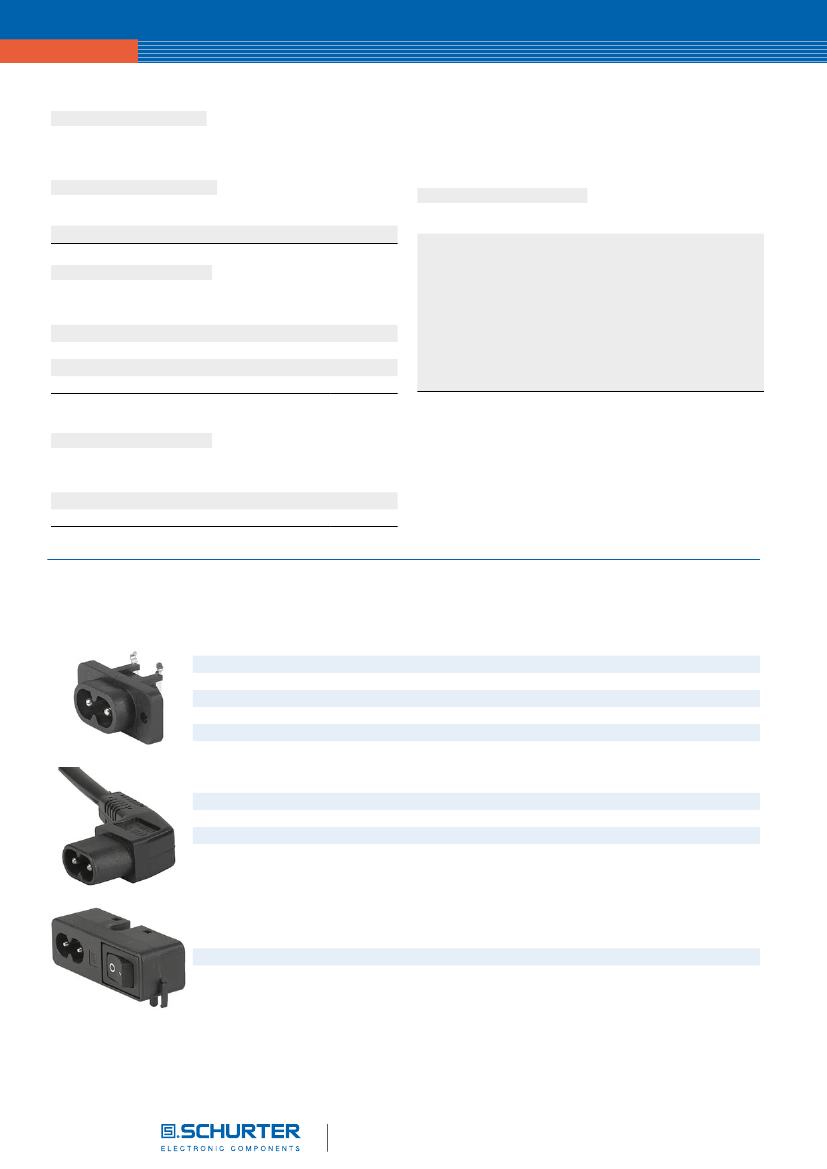

Connectors

-O

Weblinks

Connector

C7 acc. to IEC/EN 60320-1

UL 498, CSA C22.2 no. 42 (for cold

conditions) pin-temperature 70 °C,

2.5 A, Protection Class 2

pdf, html, General Product Information, Approvals, RoHS, CHINA-RoHS,

Mating Connectors, e-Shop, SCHURTER-Stock-Check, Distributor-

Stock-Check, Accessories, Detailed request for product

38.5
