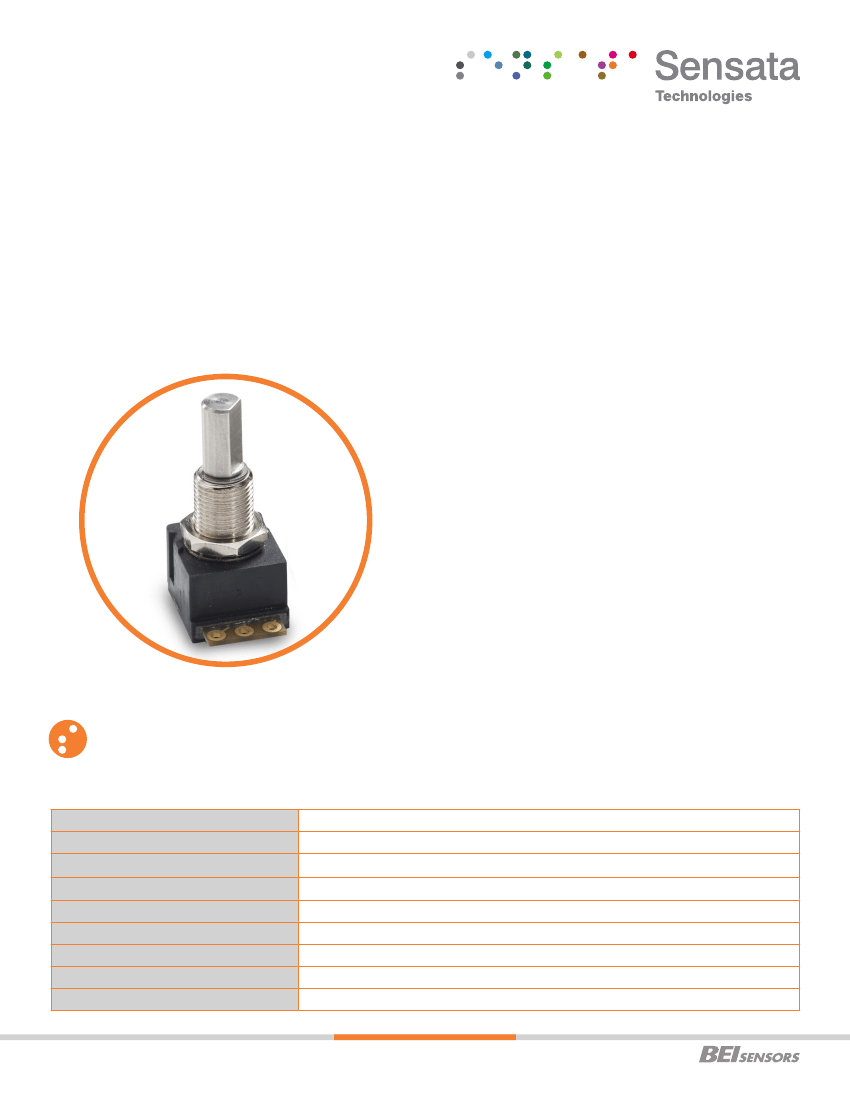

5320 SERIES
|
PANEL POT
Introduction
Rotary Precision Position Sensor Single Turn, Compact, Sealed, Extended Life
The 5320 Series offers a highly reliable rotary potentiometer sensor that can be easily integrated or re-packaged into a wide variety of existing and
new applications. The 5320 Series is ideally suited for tight packaging constraints while providing superior durability, long service life and repeatable
accuracy.
The sensor is fully sealed and impervious to contamination and moisture. A wide variety of standard and non-standard options are available including
detent functions, electrical/mechanical angles, shaft/bushing sizes, lengths and configurations, resistance values, etc.
The 5320 Series standard termination offers gold plated through holes for direct soldering. Options are also available for custom termination methods
The 5320 series sensors offer all of the advantages of a cost effective, traditional potentiometer while providing a rugged, compact, low-profile design
to survive the harshest conditions.
Features
• Extended Operating Life
1 million plus operational cycles
• Fully Sealed Construction
Meets or exceeds IP66/IP67 standards
• Extended Temperature Range
Operating: -40º to +125ºC
Storage: -55º to +150ºC
• High Quality, Rugged Construction
Stainless Steel Shaft, Nickel Plated Brass Bushing
• Wide Range of Configurations (see ordering info)
Shaft and Bushing Lengths
Linearity (accuracy) Tolerance Limits
With or Without Detent Function
Total Resistance
Custom Options Available
SPECIFICATIONS
Mechanical
Total Travel (stop to stop)
Stop Strength
Shaft Pull Out Strength
Shaft Operating Torque
Shaft Starting Torque
Cycle Life
Detent Life
Detent Torque
Detent Release Position
250 degrees
1350 Nmm (190 in-oz)
200N (45lbs)
5-25 Nmm (0.7-3.5 in-oz)
35 Nmm (5 in-oz) Max.
1 Million cycles
10,000 cycles
35-120 Nmm (5-17 in-oz)
20 degrees Max.
Page 1
Copyright © 2018 Sensata Technologies, Inc.
www.sensata.com
Electrical
Electrical Travel
Active Electrical Travel
PowerRating at 70C
Resistance Tolerance
Linearity, Independent
RGV
(Output Smoothness)
240 degrees
216 degrees (5%-95%)
0.25W (derating to 0 at 125C)
±20%
±2% (Active)
100% Max.
(0.2%) Max.
Environmental
Moisure & Dust Resistant
Vibration
Temperature
Shock
Salt Spray
Resistance to Solder Heat
Sealed, IP66/IP67
15g, 10 to 2000 Hz
-40°C to +125ºC operating, -55º to +150ºC storage
30g
96 hours
350ºC (660ºF) for 5 sec. (at termination points)
Materials
Shaft
Bushing
Housing (Package)
PCB
Stainless Steel
Nickel Plated Brass
Nylon 6 (Akulon)
4101/21 (FR-4)
ORDERING OPTIONS
Example : 5321 R5K L2.0
No Detent Function, Standard +/-2.0% Linearity, 5K Total Resistance
Family
532X:
5321
5322
5323
Basic Configurations: Shaft & Bushing Lengths
5321
5322
5323
Total Resistance
Standard:
1K
5K
10K
LX.X:
+/-2.0%
Independent Linearity
Detent
Blank:
None
D:
Included
Page 2
Copyright © 2018 Sensata Technologies, Inc.
www.sensata.com

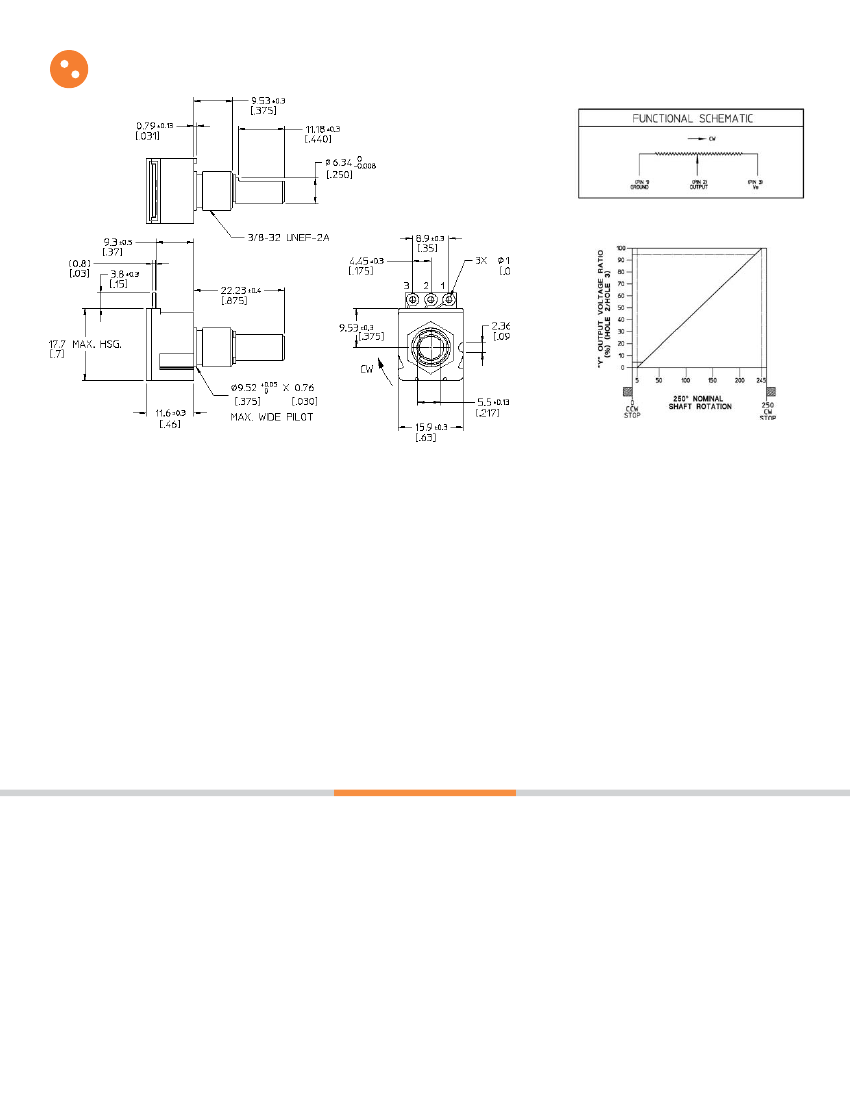

DIMENSIONS
Dimensions are shown in millimeters (in)
SHAFT FLAT SHOWN IN THE
FULLY CCW POSITION
Page 3
