5962R9581801VXC datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> 5962R9581801VXC

5962R9581801VXC: Description8 I/O, PIA-GENERAL PURPOSE, CDFP24, DFP-24; CategoryThe embedded processor and controller Microcontrollers and processors; File Size64KB，6 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962R9581801VXC Overview

8 I/O, PIA-GENERAL PURPOSE, CDFP24, DFP-24

5962R9581801VXC Parametric

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
Parts packaging code	DFP
package instruction	DFP, FL24,.4
Contacts	24
Reach Compliance Code	unknown
ECCN code	EAR99
JESD-30 code	R-CDFP-F24
JESD-609 code	e4
Number of digits	8
Number of I/O lines	8
Number of ports	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Encapsulate equivalent code	FL24,.4
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class V
Maximum seat height	2.92 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
total dose	100k Rad(Si) V
width	9.905 mm
uPs/uCs/peripheral integrated circuit type	PARALLEL IO PORT, GENERAL PURPOSE
Base Number Matches	1

Preview

Download Datasheet

View All

HS-82C12RH

Data Sheet

August 2000

File Number

3041.3

Radiation Hardened 8-Bit Input/Output

Port

The Intersil HS-82C12RH is a radiation hardened 8-bit

input/output port designed for use with the HS-80C85RH

radiation hardened microprocessor. It is manufactured using

a self-aligned, junction-isolated EPI-CMOS process and

features three-state output buffers and device selection and

control logic. A service request ﬂip-ﬂop is included for the

generation and control of interrupts to the microprocessor.

The device can be used in implement many of the peripheral

and input/output functions of a microcomputer system. The

HS-82C12RH is pinout- and function- compatible with

industry-standard 8212 devices.

Speciﬁcations for Rad Hard QML devices are controlled

by the Defense Supply Center in Columbus (DSCC). The

SMD numbers listed here must be used when ordering.

Detailed Electrical Speciﬁcations for these devices are

contained in SMD 5962-95818. A “hot-link” is provided

on our homepage for downloading.

www.intersil.com/spacedefense/space.asp

Features

• Electrically Screened to SMD # 5962-95818

• QML Qualiﬁed per MIL-PRF-38535 Requirements

• Radiation Performance

- Hardened EPI-CMOS Process

- Total Dose. . . . . . . . . . . . . . . . . . . . . 100 krad(Si) (Max)

- Transient Upset . . . . . . . . . . . . . . . . . > 1 x 10

rad(Si)/s

- Latch-Up Immune

• Low Power Dissipation

• High Noise Immunity

• Single Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . +5V

• Low Input Load Current

• 8-Bit Data Register and Buffer

• Asynchronous Register Clear

• Service Request Flip-Flop for Interrupt Generation

• Three-State Outputs

• Bus-Compatible with HS-80C85RH CPU

Ordering Information

ORDERING NUMBER

5962R9581801QJC

5962R9581801QXC

5962R9581801V9A

5962R9581801VJC

5962R9581801VXC

INTERNAL

MKT. NUMBER

HS1-82C12RH-8

HS9-82C12RH-8

HS0-82C12RH-Q

HS1-82C12RH-Q

HS9-82C12RH-Q

TEMP. RANGE

(

-55 to 125

• Electrically Equivalent to Sandia SA3026

• Military Temperature Range . . . . . . . . . . . -55

C to 125

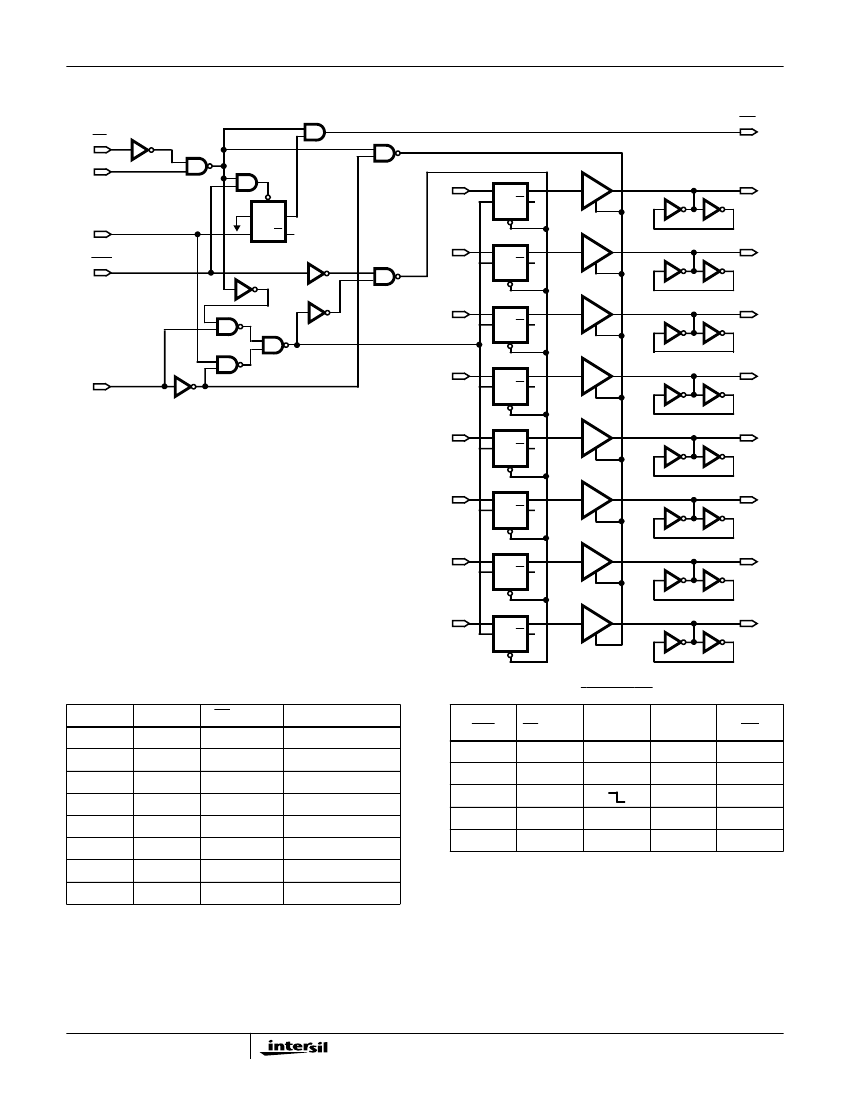

Functional Diagram

DS1

DS2

STB

CLR

DATA

LATCH

AND

BUFFER

(8)

CONTROL

AND

DEVICE

SELECT

LOGIC

SERVICE

REQUEST

F.F.

INT

DI0-7

DO0-7

Pin Description

DI0-DI7

DO0-DO7

DS1, DS2

STB

INT

CLR

Data In

Data Out

Device Select

Mode

Strobe

Interrupt

Clear

DESCRIPTION

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 321-724-7143

Intersil and Design is a trademark of Intersil Corporation.

5962R9581801VXC Related Products

	5962R9581801VXC	5962R9581801V9A	5962R9581801QXC
Description	8 I/O, PIA-GENERAL PURPOSE, CDFP24, DFP-24	8 I/O, PIA-GENERAL PURPOSE, UUC24	8 I/O, PIA-GENERAL PURPOSE, CDFP24, DFP-24
Parts packaging code	DFP	DIE	DFP
package instruction	DFP, FL24,.4	DIE,	DFP, FL24,.4
Contacts	24	24	24
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
JESD-30 code	R-CDFP-F24	R-XUUC-N24	R-CDFP-F24
JESD-609 code	e4	e0	e4
Number of I/O lines	8	8	8
Number of ports	1	1	1
Number of terminals	24	24	24
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DIE	DFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	UNCASED CHIP	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-PRF-38535 Class V	MIL-PRF-38535 Class V	MIL-PRF-38535 Class Q
Maximum supply voltage	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	GOLD	TIN LEAD	GOLD
Terminal form	FLAT	NO LEAD	FLAT
Terminal location	DUAL	UPPER	DUAL
total dose	100k Rad(Si) V	100k Rad(Si) V	100k Rad(Si) V
uPs/uCs/peripheral integrated circuit type	PARALLEL IO PORT, GENERAL PURPOSE	PARALLEL IO PORT, GENERAL PURPOSE	PARALLEL IO PORT, GENERAL PURPOSE
Base Number Matches	1	1	1
Maker	Renesas Electronics Corporation	-	Renesas Electronics Corporation
Number of digits	8	-	8
Encapsulate equivalent code	FL24,.4	-	FL24,.4
power supply	5 V	-	5 V
Maximum seat height	2.92 mm	-	2.92 mm
Terminal pitch	1.27 mm	-	1.27 mm
width	9.905 mm	-	9.905 mm
