52758-1200: DescriptionTelecom and Datacom Connector, 120 Contact(s), Male, Right Angle, Solder Terminal, Plug; CategoryThe connector The connector; File Size87KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

52758-1200 Overview

Telecom and Datacom Connector, 120 Contact(s), Male, Right Angle, Solder Terminal, Plug

52758-1200 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SHIELDED, FIRST MATE LAST BREAK
Board mount options	SPLIT BOARD LOCK
body width	0.303 inch
body length	2.213 inch
Body/casing type	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	70 mΩ
Contact style	LEAF
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	5000 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	.3892 N
Insulation resistance	500000000 Ω
Insulator color	WHITE
insulator material	LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	52758
Plug contact pitch	0.039 inch
Plug information	MULTIPLE MATING PARTS AVAILBLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
PCB row number	8
Number of rows loaded	4
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.27 mm
Rated current (signal)	0.4 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	GLASS FILLED LIQUID CRYSTAL POLYMER
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	120
UL Flammability Code	94V-0
Evacuation force-minimum value	.0834 N
Base Number Matches	1

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

s

Sizes 120, 176 and 240 circuits

s

Unique "elevator" base plate protects pins and rises up into

position during PCB insertion

s

Metal fork boardlocks for PCB hold-down and plastic pegs

for placement guidance

s

First-mate/last-break contacts for electrical

grounding purposes

s

Leaf-style contacts prevent stubbing

s

Optional guide pins allow blind mating

Reference Information

Packaging: Tray

Mates With:

52940

and

52755

Designed In: Millimeters

Electrical

Voltage: 125V

Current: 0.4A

Contact Resistance: 70m

Ω

max.

Dielectric Withstanding Voltage: 500V AC/1 min.

Insulation Resistance: 500 M

Ω

min.

Physical

Housing/Guide Plate: White glass-ﬁlled LCP, UL 94V-0

Shield Cover: Steel, Nickel plating

Metal Peg: Steel, Tin/Lead plating

Contact: Phosphor Bronze

Plating: Gold over Nickel in contact area;

Tin/Lead over Nickel in solder tail area

Operating Temperature: -55 to +85

˚

C

1.00mm (.039") Pitch

Docking Station

Board-to-Board

Shielded Plug

52758

Right Angle

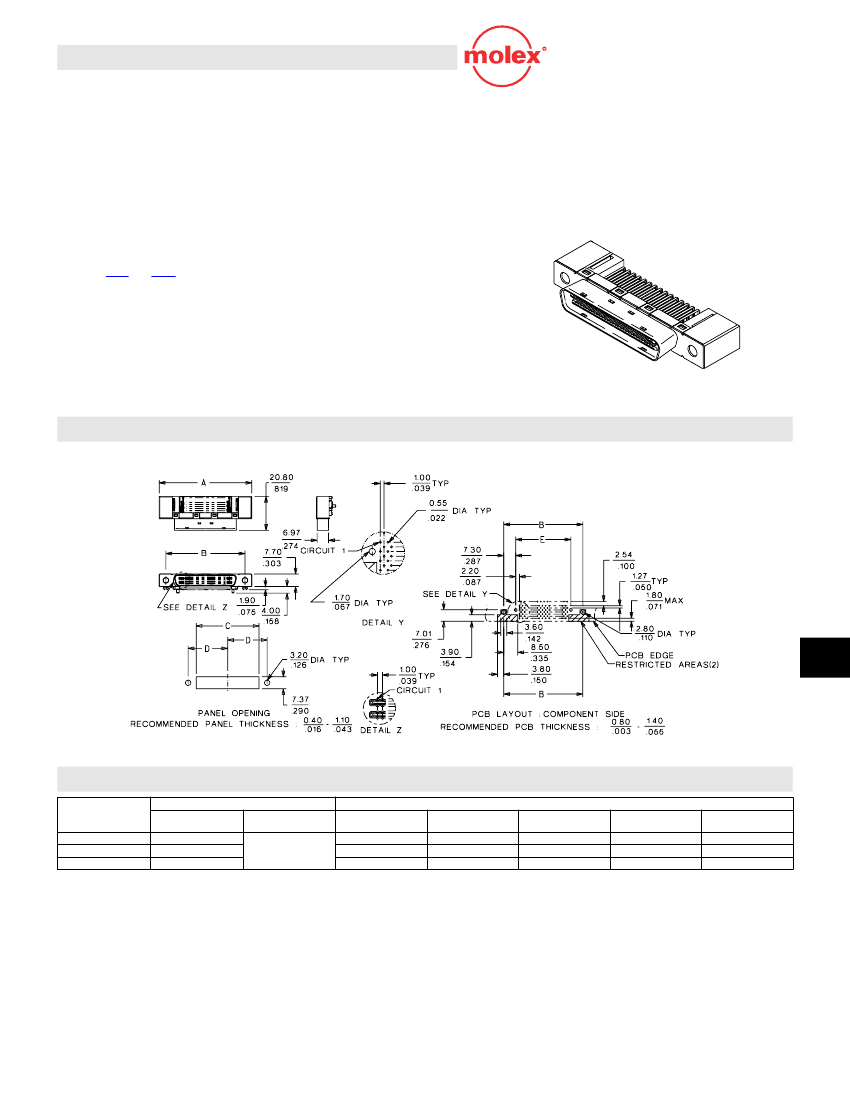

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION AND DIMENSIONS

Circuits

120

176

240

Order No.

Without Loose-Piece

Loose-Piece

Guide Pin

52758-1200

52758-1760

58003-0000

52758-2400

Dimension

A

56.20 (2.213)

70.20 (2.764)

86.20 (3.394)

B

48.00 (1.890)

62.00 (2.441)

78.00 (3.071)

C

38.17 (1.503)

52.17 (2.054)

68.17 (2.684)

D

24.00 (.945)

31.00 (1.220)

39.00 (1.535)

E

33.40 (1.315)

47.40 (1.866)

63.40 (2.496)

MX01

N-135

I/O Connectors

N

52758-1200 Related Products

	52758-1200	52758-1760	52758-2400
Description	Telecom and Datacom Connector, 120 Contact(s), Male, Right Angle, Solder Terminal, Plug	Telecom and Datacom Connector, 176 Contact(s), Male, Right Angle, Solder Terminal, Plug	240 CONTACT(S), MALE, TELECOM AND DATACOM CONNECTOR, SOLDER, PLUG
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknow
Other features	SHIELDED, FIRST MATE LAST BREAK	SHIELDED, FIRST MATE LAST BREAK	SHIELDED, FIRST MATE LAST BREAK
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK
body width	0.303 inch	0.303 inch	0.303 inch
body length	2.213 inch	2.764 inch	3.394 inch
Body/casing type	PLUG	PLUG	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	70 mΩ	70 mΩ	70 mΩ
Contact style	LEAF	LEAF	LEAF
DIN compliance	NO	NO	NO
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V
Durability	5000 Cycles	5000 Cycles	5000 Cycles
empty shell	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
maximum insertion force	.3892 N	.3892 N	.3892 N
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω
Insulator color	WHITE	WHITE	WHITE
insulator material	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER
MIL compliance	NO	NO	NO
Manufacturer's serial number	52758	52758	52758
Plug contact pitch	0.039 inch	0.039 inch	0.039 inch
Plug information	MULTIPLE MATING PARTS AVAILBLE	MULTIPLE MATING PARTS AVAILBLE	MULTIPLE MATING PARTS AVAILBLE
Mixed contacts	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL
PCB row number	8	8	8
Number of rows loaded	4	4	4
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	1.27 mm	1.27 mm	1.27 mm
Rated current (signal)	0.4 A	0.4 A	0.4 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	NICKEL	NICKEL	NICKEL
Shell material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
Terminal pitch	2.0066 mm	2.0066 mm	2.0066 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	120	176	240
UL Flammability Code	94V-0	94V-0	94V-0
Evacuation force-minimum value	.0834 N	.0834 N	.0834 N
ECCN code	EAR99	EAR99	-
Base Number Matches	1	1	-
