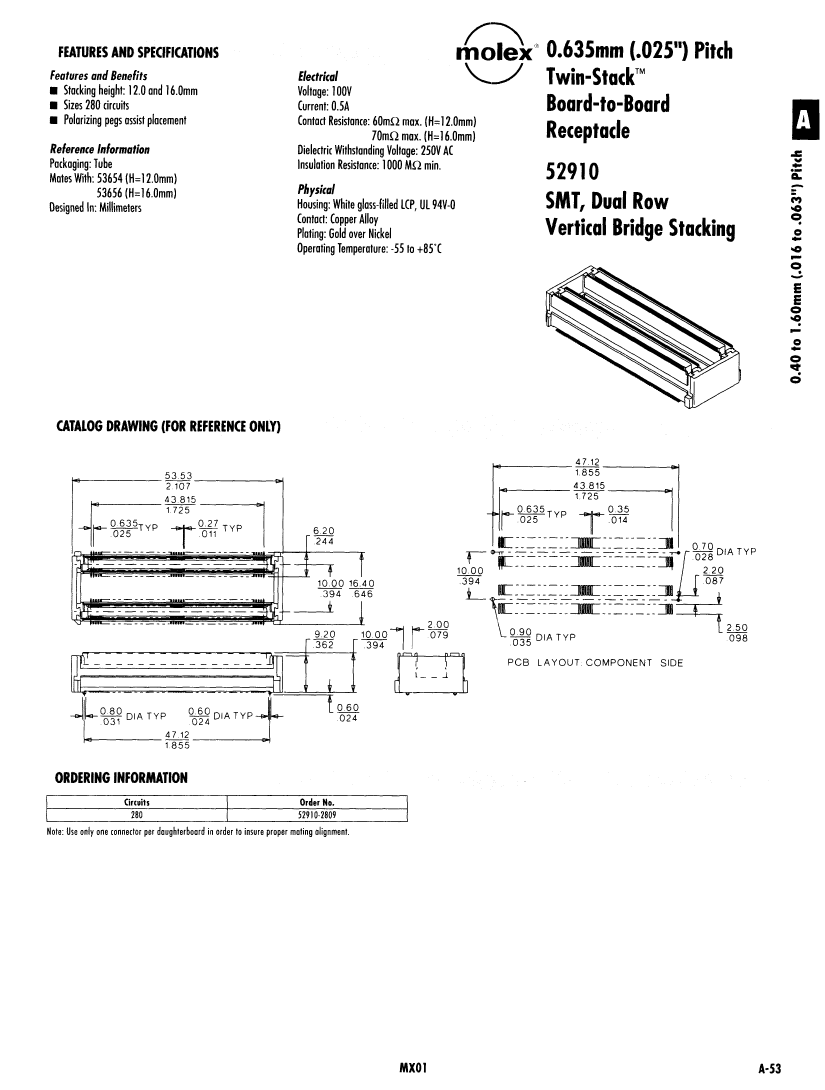

52910-2809: DescriptionBoard Stacking Connector, 280 Contact(s), 2 Row(s), Female, Straight, 0.025 inch Pitch, Surface Mount Terminal, White Insulator, Receptacle; CategoryThe connector The connector; File Size52KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

52910-2809 Overview

Board Stacking Connector, 280 Contact(s), 2 Row(s), Female, Straight, 0.025 inch Pitch, Surface Mount Terminal, White Insulator, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TWIN-STACK, POLARIZATION AVAILABLE
Board mount options	POLARIZATION POST
body width	0.646 inch
subject depth	0.394 inch
body length	2.107 inch
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	60 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.695 N
Insulation resistance	1000000000 Ω
Insulator color	WHITE
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	52910
Plug contact pitch	0.025 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	TWO
PCB row number	2+2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.3086 mm
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.635 mm
Termination type	SURFACE MOUNT
Total number of contacts	280
UL Flammability Code	94V-0
Evacuation force-minimum value	.1112 N
Base Number Matches	1
