73S8010C-IM/F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> 73S8010C-IM/F

73S8010C-IM/F: DescriptionAnalog Circuit, 1 Func, 5 X 5 MM, LEAD FREE, QFN-32; CategoryAnalog mixed-signal IC The signal circuit; File Size357KB，27 Pages; ManufacturerTeridian Semiconductor Corporation; Websitehttp://www.teridian.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

73S8010C-IM/F Overview

Analog Circuit, 1 Func, 5 X 5 MM, LEAD FREE, QFN-32

73S8010C-IM/F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Teridian Semiconductor Corporation
package instruction	5 X 5 MM, LEAD FREE, QFN-32
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT
JESD-30 code	S-XQCC-N32
length	5 mm
Number of functions	1
Number of terminals	32
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	UNSPECIFIED
encapsulated code	HVQCCN
Package shape	SQUARE
Package form	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Certification status	Not Qualified
Maximum seat height	0.9 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.7 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal form	NO LEAD
Terminal pitch	0.5 mm
Terminal location	QUAD
width	5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

73S8010C

Smart Card Interface

Simplifying System Integration™

DATA SHEET

April 2009

DESCRIPTION

The Teridian 73S8010C is a single smart card

interface IC. It provides full electrical compliance

with ISO-7816-3 and EMV 4.0 specifications.

Interfacing with the host is done through the two-wire

I2C bus. Data exchange with the card is managed

from the system controller using the I/O line (and

eventually the auxiliary I/O lines).

An on-chip oscillator using an external crystal, or

connection to a clock signal coming from the

system controller can generate the card clock

signal.

The 73S8010C IC incorporates an ISO-7816-3

activation/deactivation sequencer that controls the

card signals. Level shifters drive the card signals

with the selected card voltage (3 V or 5 V), coming

from an internal DC-DC converter.

With its high-efficiency DC-DC converter, the

Teridian 73S8010C is a cost-effective solution for

any smart card reader application to be powered

from a single 2.7 V to 3.6 V power supply.

Hardware support for auxiliary I/O lines, C4 / C8

contacts, is provided.

Emergency card deactivation is initiated upon card

extraction or upon any fault generated by the

protection circuitry. The fault can be a VDD (digital

power supply), a VCC (card power supply), a card

over-current, or an over-heating fault.

ADVANTAGES



Single smart card interface

The inductor-based DC-DC converter provides

higher current and efficiency than the usual

charge-pump capacitor-based converters



Ideal for battery-powered applications



Suitable for high current cards and

SAMs: (100 mA max)

Power down mode: 2

A

typical

Small Format (5x5mm) 32-QFN package option

FEATURES



Card Interface:



Complies with ISO-7816-3 and EMV 4.0



A DC-DC Converter provides 3V / 5V to the

card from an external power supply input



High-efficiency converter: > 80% @ V

= 3.3 V,

= 5 V and I

= 65 mA



Up to 100 mA supplied to the card



ISO-7816-3 Activation / Deactivation sequencer

with emergency automated deactivation on

card removal or fault detected by the protection

circuitry



Protection include 2 voltage supervisors that

detect voltage drops on card V

and V

power supplies



The V

voltage supervisor threshold value

can be externally adjusted



True over-current detection (150 mA max.)



1 card detection input



Auxiliary I/O lines, for C4 / C8 contact signals

Host Interface:



Fast mode, 400 kbps I

C slave bus



8 possible devices in parallel



One control register and one status register



Interrupt output to the host for fault

detection



Crystal oscillator or host clock, up to 27 MHz

Power Supply:



: 2.7 V to 3.6 V

6 kV ESD Protection on the card interface

Package: SO28 or 32QFN



APPLICATIONS



Set-Top-Boxes, DVD / HDD Recorders:

Conditional Access and Pay-per-View slots

Point of Sales and Transaction Terminals

EMV slots in cell phones and PDAs



Rev. 1.5

DS_8010C_024

73S8010C Data Sheet

Table of Contents

Pin Description .................................................................................................................................... 5

1.1

Card Interface ............................................................................................................................... 5

1.2

Miscellaneous Inputs and Outputs................................................................................................ 5

1.3

Power Supply and Ground............................................................................................................ 5

1.4

Microcontroller Interface ............................................................................................................... 6

Host Interface (I

C Bus) ...................................................................................................................... 7

2.1

Host Interface Control ................................................................................................................... 7

2.2

Host Interface Status .................................................................................................................... 8

2.3

C-bus Timing .............................................................................................................................. 9

Oscillator............................................................................................................................................ 10

DC-DC Converter – Card Power Supply ......................................................................................... 10

Voltage Supervision ......................................................................................................................... 11

Power Down....................................................................................................................................... 11

Over-temperature Monitor................................................................................................................ 12

Activation Sequence ......................................................................................................................... 12

Deactivation Sequence..................................................................................................................... 13

Interrupt ............................................................................................................................................. 13

Warm Reset ....................................................................................................................................... 14

I/O Timing........................................................................................................................................... 14

Typical Application Schematic ........................................................................................................ 15

Electrical Specification..................................................................................................................... 16

14.1

Absolute Maximum Ratings ........................................................................................................ 16

14.2

Recommended Operating Conditions......................................................................................... 16

14.3

DC Characteristics: Card Interface ............................................................................................. 17

14.4

DC Characteristics: Digital Signals ............................................................................................. 20

14.5

DC Characteristics: Supply ......................................................................................................... 20

14.6

DC Characteristics: I

C Interface ................................................................................................ 21

14.7

Voltage / Temperature Fault Detection Circuits.......................................................................... 21

Mechanical Drawings ....................................................................................................................... 22

15.1

32-pin QFN ................................................................................................................................. 22

15.2

28-pin SO .................................................................................................................................... 23

Package Pin Designation ................................................................................................................. 24

16.1

32-pin QFN ................................................................................................................................. 24

16.2

28-pin SO .................................................................................................................................... 25

Ordering Information ........................................................................................................................ 26

Related Documentation .................................................................................................................... 26

Contact Information .......................................................................................................................... 26

Revision History ........................................................................................................................................ 27

Rev. 1.5

73S8010C Data Sheet

DS_8010C_024

Figures

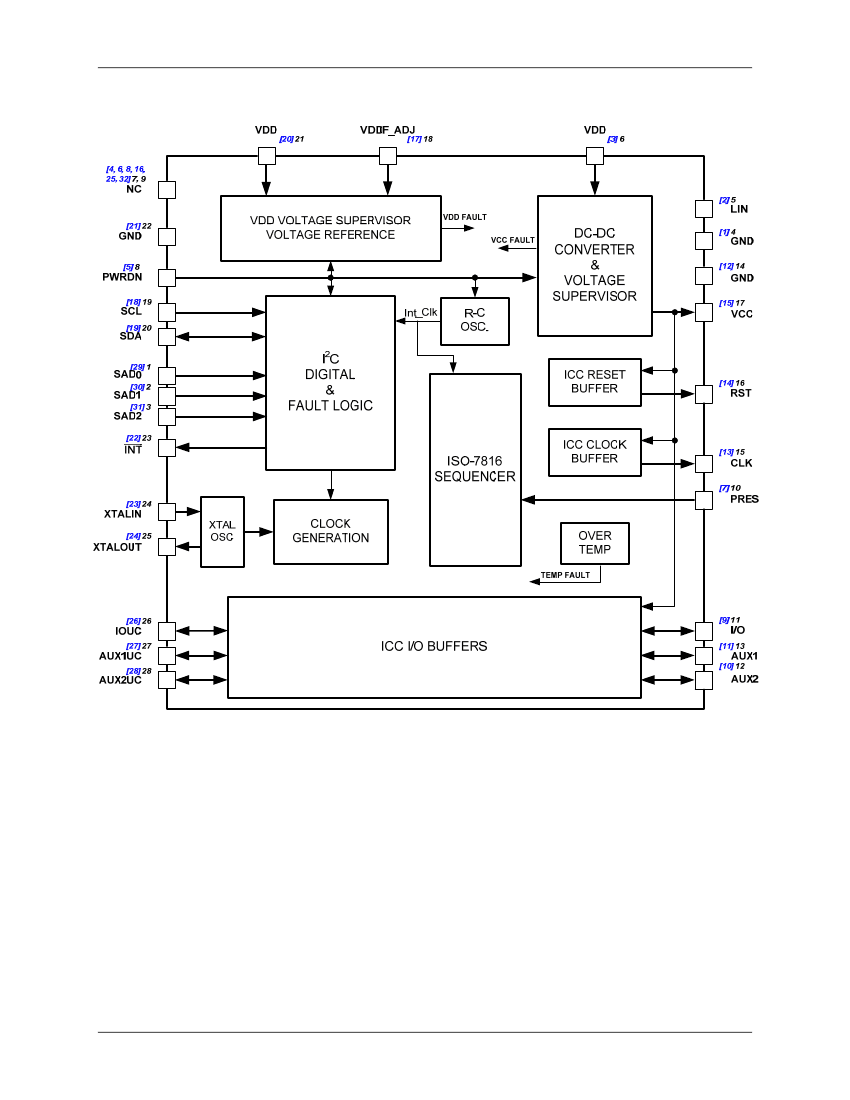

Figure 1: 73S8010C Block Diagram ............................................................................................................. 2

Figure 2: I

C Bus Write Protocol ................................................................................................................... 8

Figure 3: I

C Bus Read Protocol ................................................................................................................... 9

Figure 4: I

C Bus Timing Diagram ................................................................................................................ 9

Figure 5: Power Down Mode Operation...................................................................................................... 12

Figure 6: Activation Sequence .................................................................................................................... 12

Figure 7: Deactivation Sequence ................................................................................................................ 13

Figure 8: FAULT Functions,

INT

operation ................................................................................................. 13

Figure 9: Warm Reset operation ................................................................................................................. 14

Figure 10: I/O Timing .................................................................................................................................. 14

Figure 11: 73S8010C – Typical Application Schematic .............................................................................. 15

Figure 12: DC – DC Converter Efficiency (V

= 5 V) ................................................................................ 18

Figure 13: DC – DC Converter Efficiency (V

= 3 V) ................................................................................ 18

Figure 14: 32-pin QFN Package Drawing ................................................................................................... 22

Figure 15: 28-pin SO Package Drawing ..................................................................................................... 23

Tables

Table 1: Device Address Selections ............................................................................................................. 7

Table 2: Host Control Register ...................................................................................................................... 7

Table 3: Host Status Register ....................................................................................................................... 8

Table 4: Choice of Vcc Capacitor ............................................................................................................... 10
