829550-2 datasheet, PDF - EEWORLD Datasheet

829550-2: DescriptionCONNECTOR, CABLE TERMINATED, MALE, MCX CONNECTOR, CRIMP SOLDER, PLUG; CategoryThe connector The connector; File Size235KB，7 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

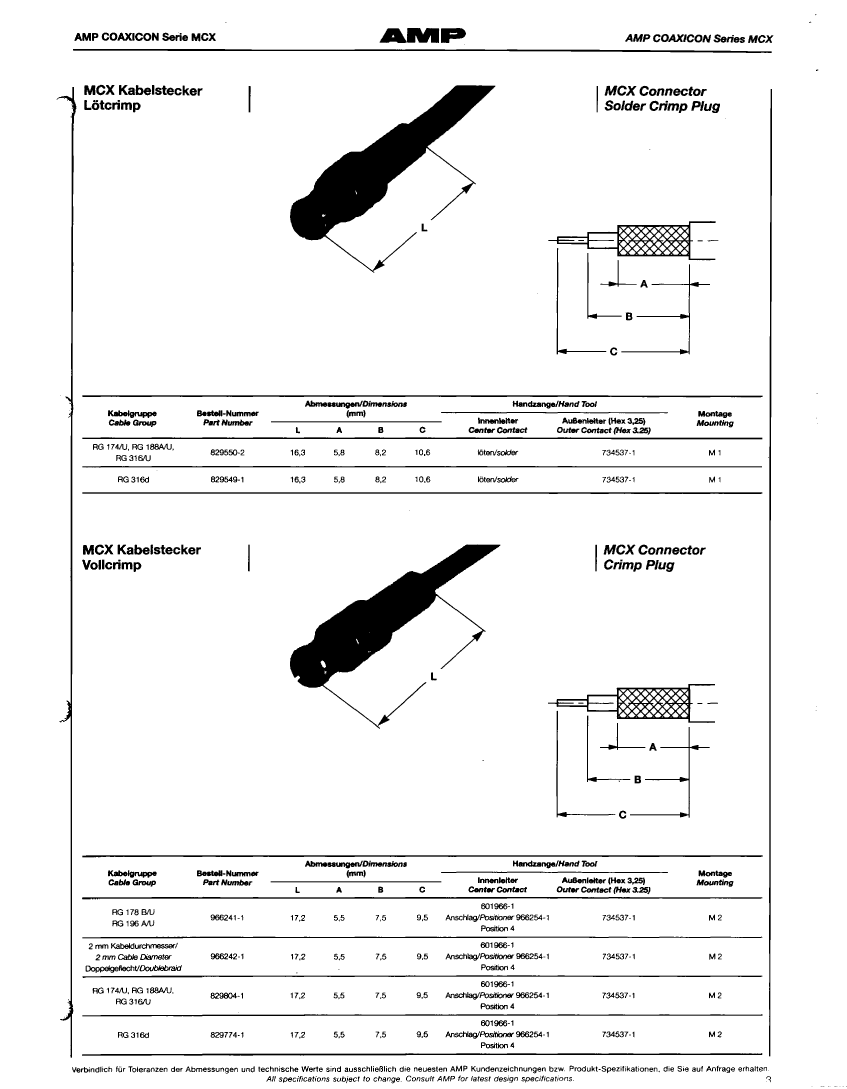

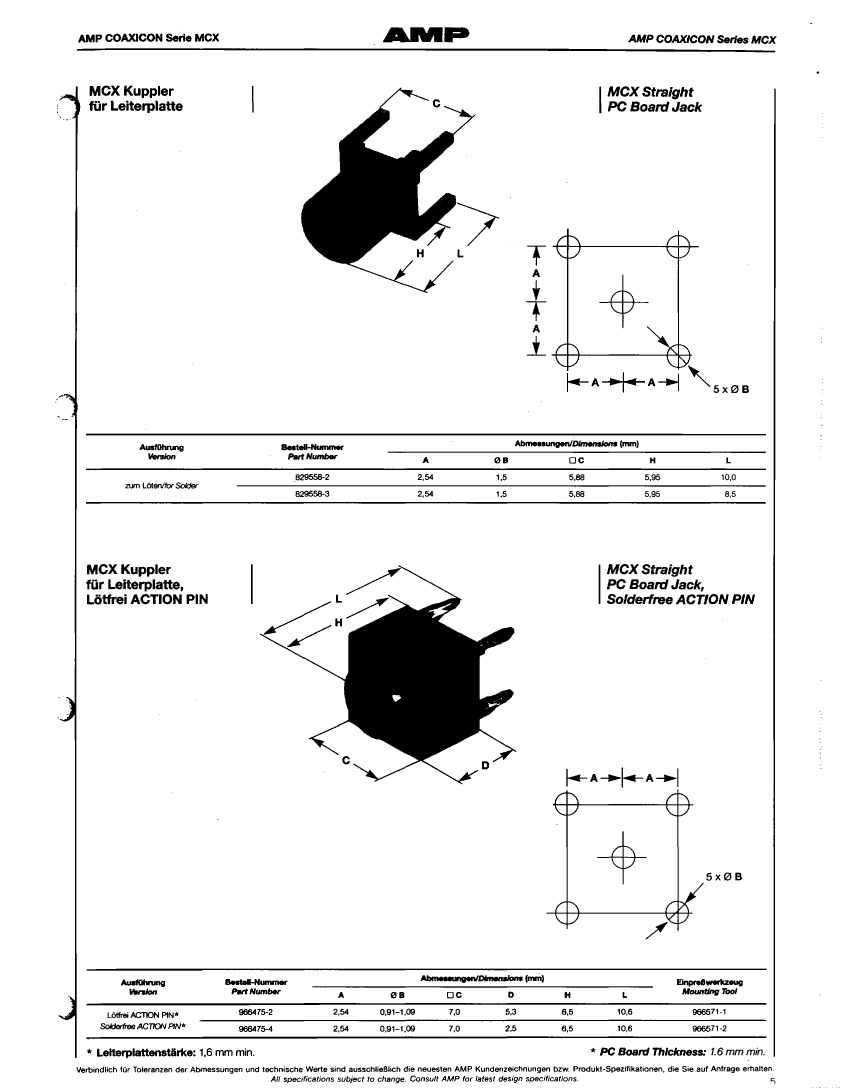

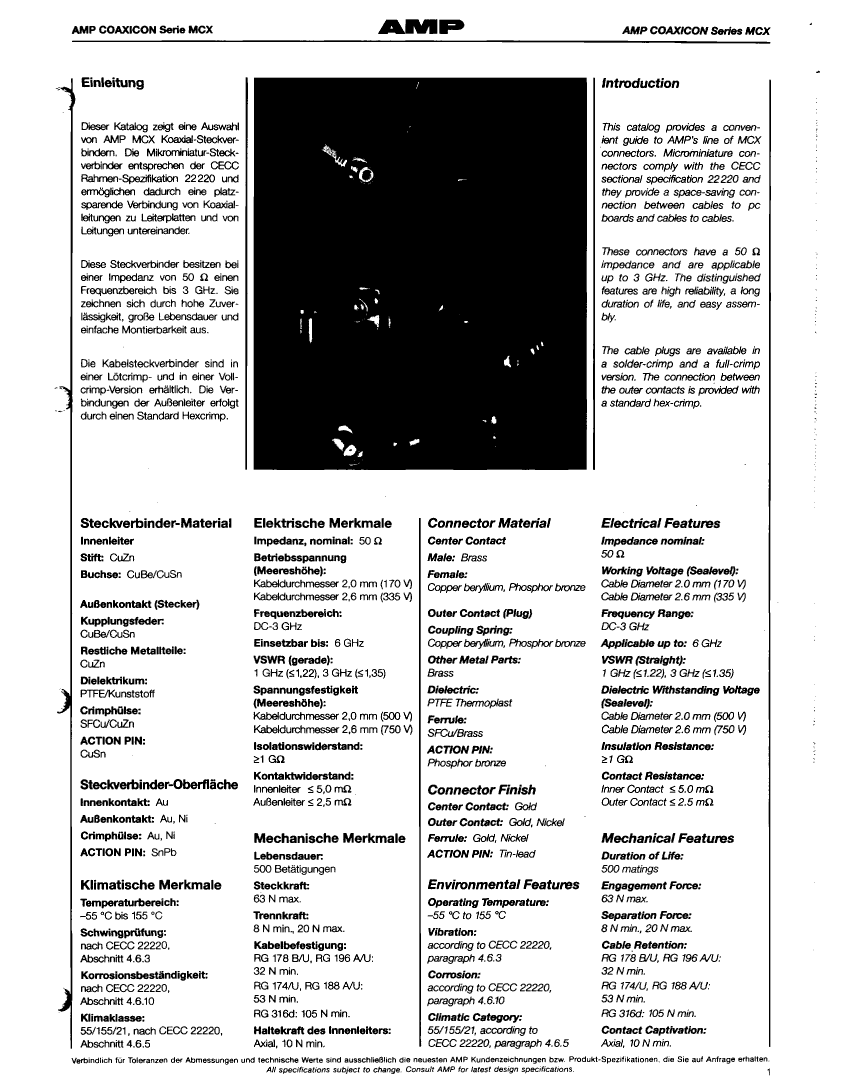

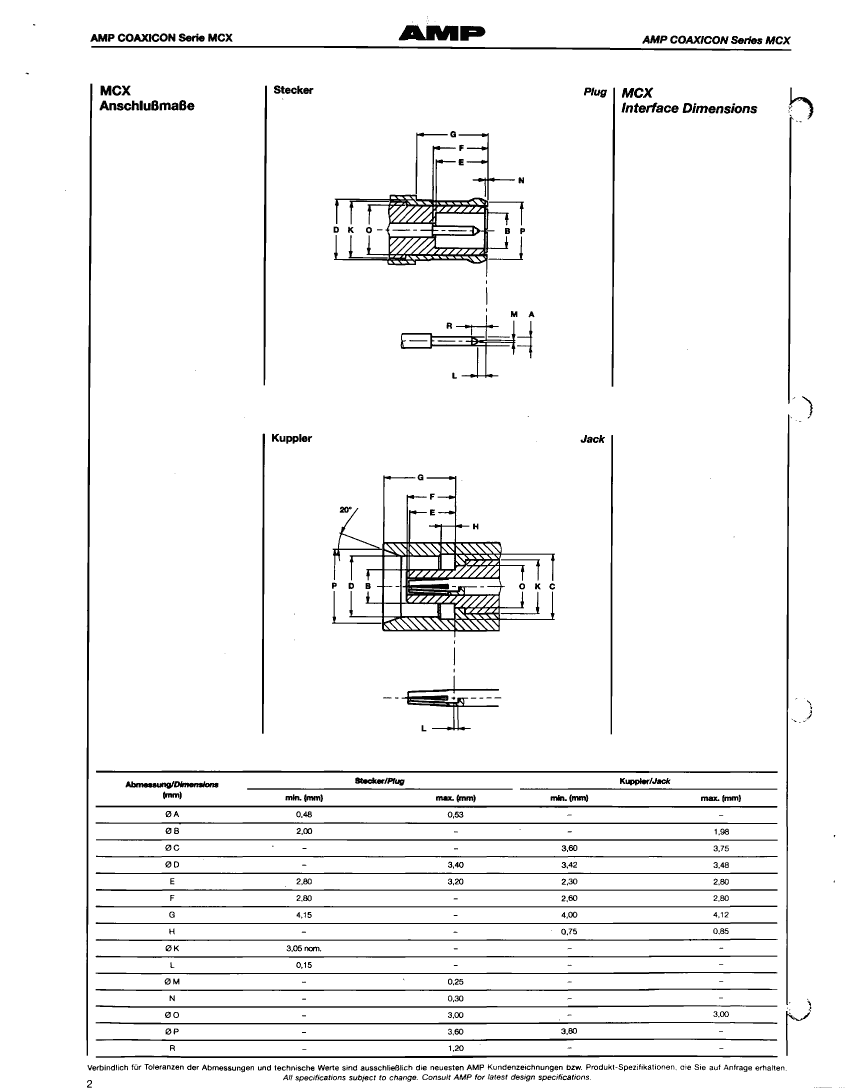

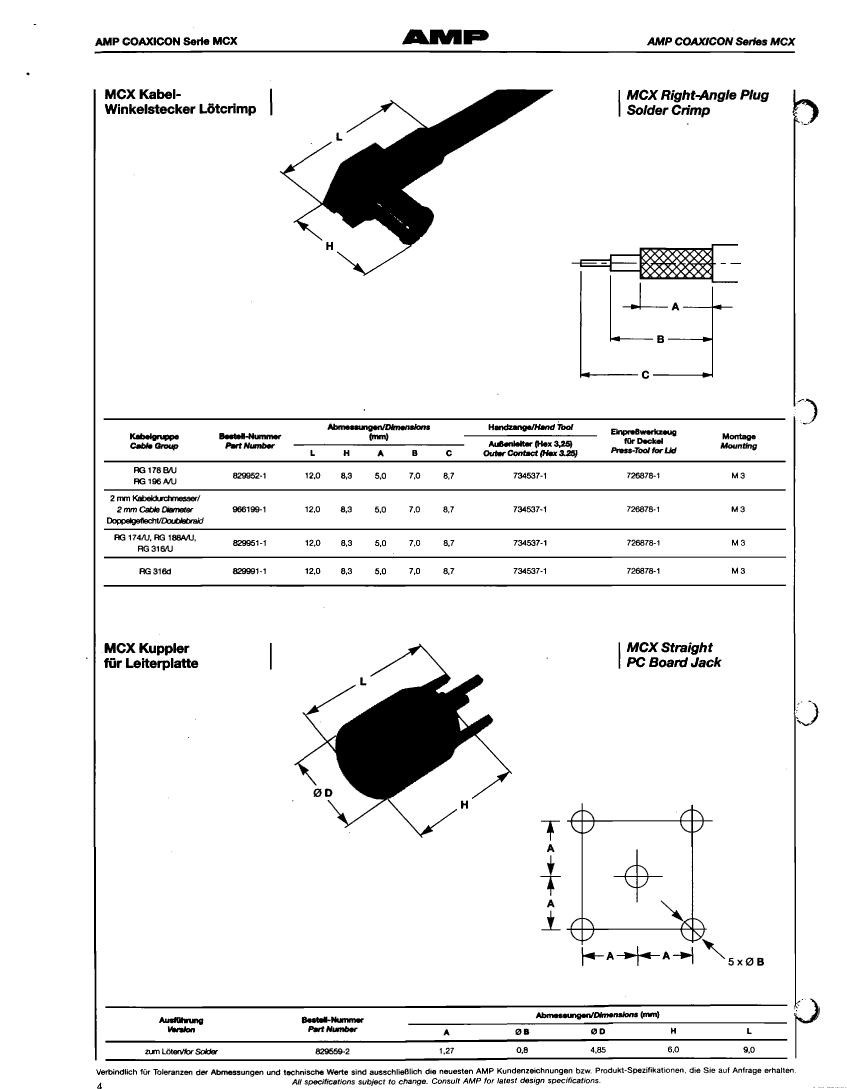

829550-2 Overview

CONNECTOR, CABLE TERMINATED, MALE, MCX CONNECTOR, CRIMP SOLDER, PLUG

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF MCX CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	TEFLON
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	829550
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	3 GHz
Panel mounting	NO
Termination type	CRIMP SOLDER
voltage standing wave ratio	1.35
Base Number Matches	1

	829550-2	829549-1	966087-1
Description	CONNECTOR, CABLE TERMINATED, MALE, MCX CONNECTOR, CRIMP SOLDER, PLUG	CABLE TERMINATED, MALE, MCX CONNECTOR, CRIMP SOLDER, PLUG	CONNECTOR, CABLE TERMINATED, FEMALE, MCX CONNECTOR, SOLDER, JACK
Reach Compliance Code	unknown	unknown	unknown
Body/casing type	PLUG	PLUG	JACK
Characteristic impedance	50 Ω	50 Ω	50 Ω
Connector type	RF MCX CONNECTOR	RF MCX CONNECTOR	RF MCX CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD
Contact completed and terminated	GOLD	GOLD	GOLD
Contact point gender	MALE	MALE	FEMALE
Coupling type	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
insulator material	TEFLON	TEFLON	TEFLON
JESD-609 code	e4	e4	e4
MIL compliance	NO	NO	NO
Manufacturer's serial number	829550	829549	966087
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE
Maximum operating frequency	3 GHz	3 GHz	3 GHz
Panel mounting	NO	NO	NO
Termination type	CRIMP SOLDER	CRIMP SOLDER	SOLDER
voltage standing wave ratio	1.35	1.35	1.35
Maker	TE Connectivity	-	TE Connectivity
Base Number Matches	1	-	1
