20mm BIG LAMP
Part Number: DLA/6SRD
Super Bright Red
Features
12 PINS.
HIGH LUMINOUS INTENSITY.
LOW POWER CONSUMPTION.
WIDE VIEWING ANGLE.
CATEGORIZED FOR LUMINOUS INTENSITY.
EXCELLENT ON/OFF CONTRAST.
EASY MOUNTING ON P.C. BOARD OR SOCKETS.
SOLID STATE RELIABILITY.
RoHS COMPLIANT.
Description
The Super Bright Red source color devices are made with
Gallium Aluminum Arsenide Red Light Emitting Diode.

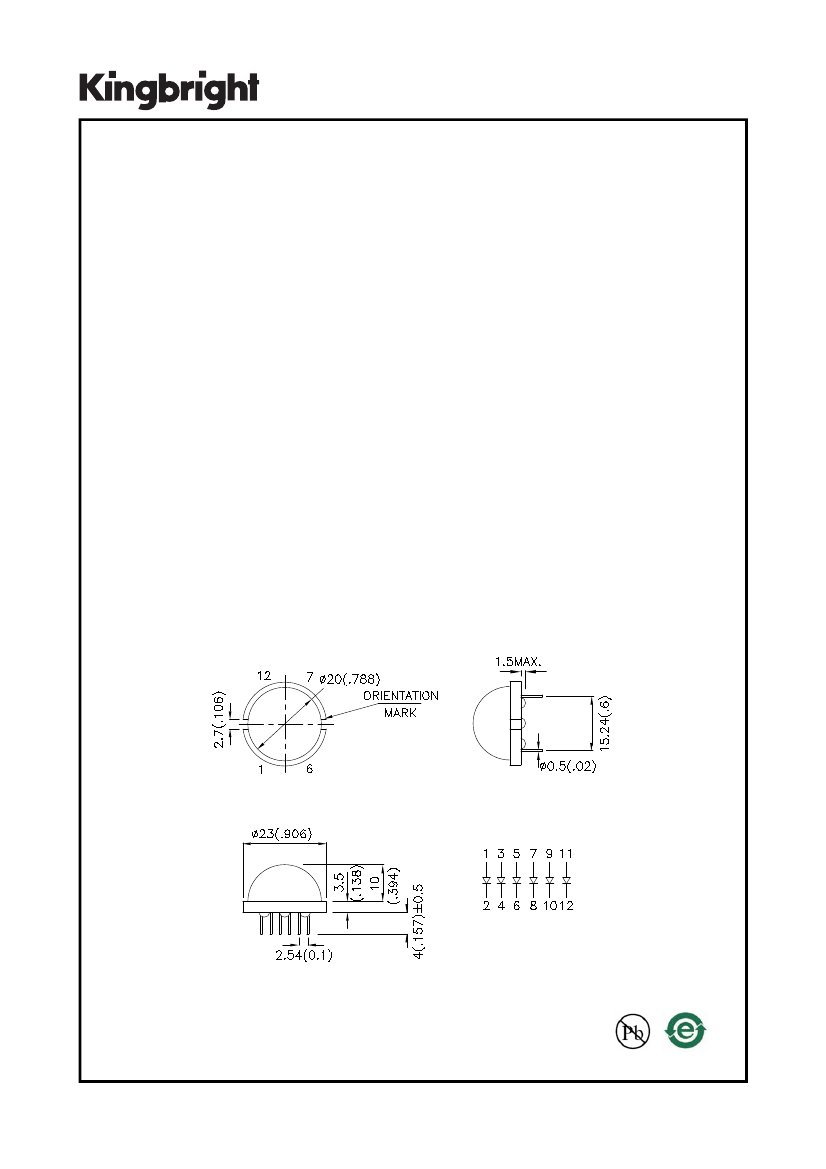

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25(0.01") unless otherwise noted.
3. Lead spacing is measured where the leads emerge from the package.
4. Specifications are subject to change without notice.
SPEC NO: DSAA8162
APPROVED: WYNEC
REV NO: V.9
CHECKED: Allen Liu
DATE: MAY/22/2007
DRAWN: Y.H.CHEN
PAGE: 1 OF 4
ERP: 1338000012
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd) [2]
@ 20mA
Min.
DLA/6SRD
Super Bright Red (GaAlAs)
RED DIFFUSED
110
Typ.
400
Viewing
Angle [1]
2θ1/2
120
°
Notes:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
2. Luminous intensity/ luminous Flux: +/-15%.

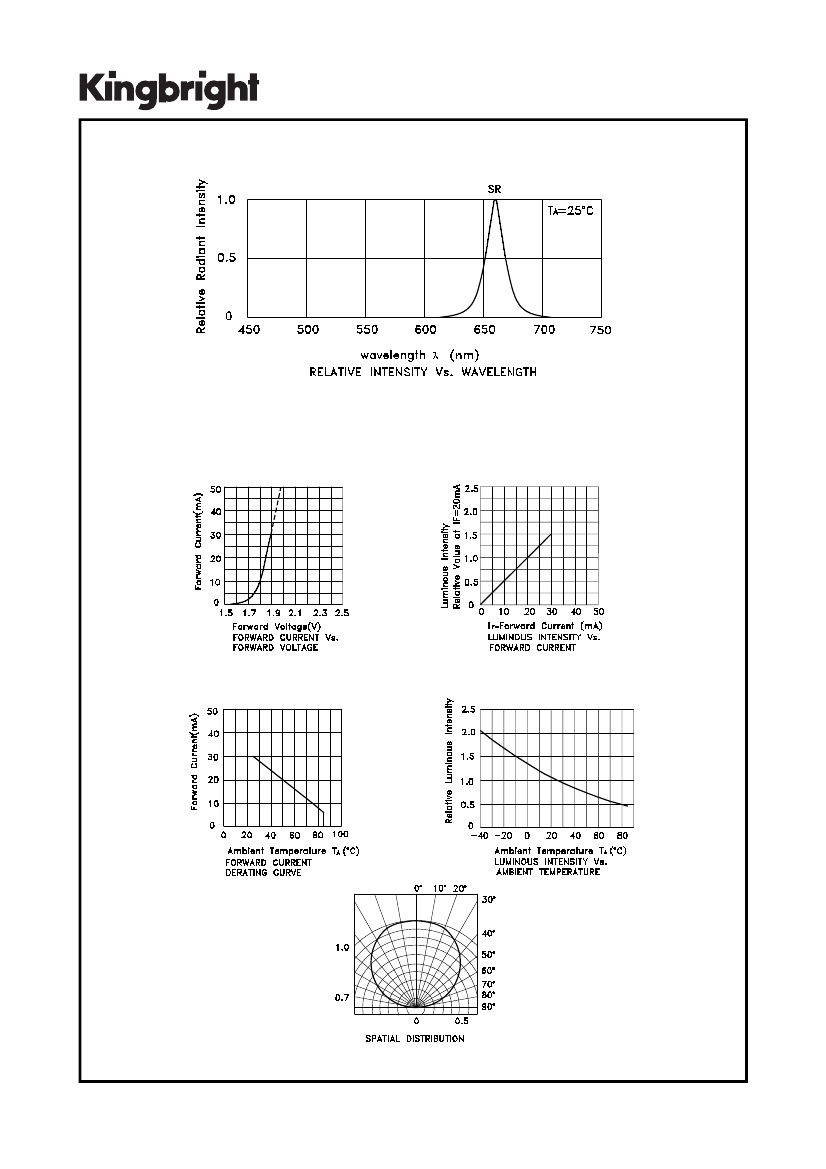

Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Super Bright Red
Super Bright Red
Super Bright Red
Super Bright Red
Super Bright Red
Super Bright Red
Typ.
660
640
20
45
1.85
2.5
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Notes:
1.Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Lead Solder Temperature [2]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
Super Bright Red
75
30
155
5
-40°C To +85°C
260°C For 3-5 Seconds
Units
mW
mA
mA
V
SPEC NO: DSAA8162
APPROVED: WYNEC
REV NO: V.9
CHECKED: Allen Liu
DATE: MAY/22/2007
DRAWN: Y.H.CHEN
PAGE: 2 OF 4
ERP: 1338000012
