8000301UX datasheet, PDF - EEWORLD Datasheet

8000301UX: DescriptionMicroprocessor, 16-Bit, 4MHz, CMOS, CQCC52, CERAMIC, QCC-52; CategoryThe embedded processor and controller Microcontrollers and processors; File Size918KB，27 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

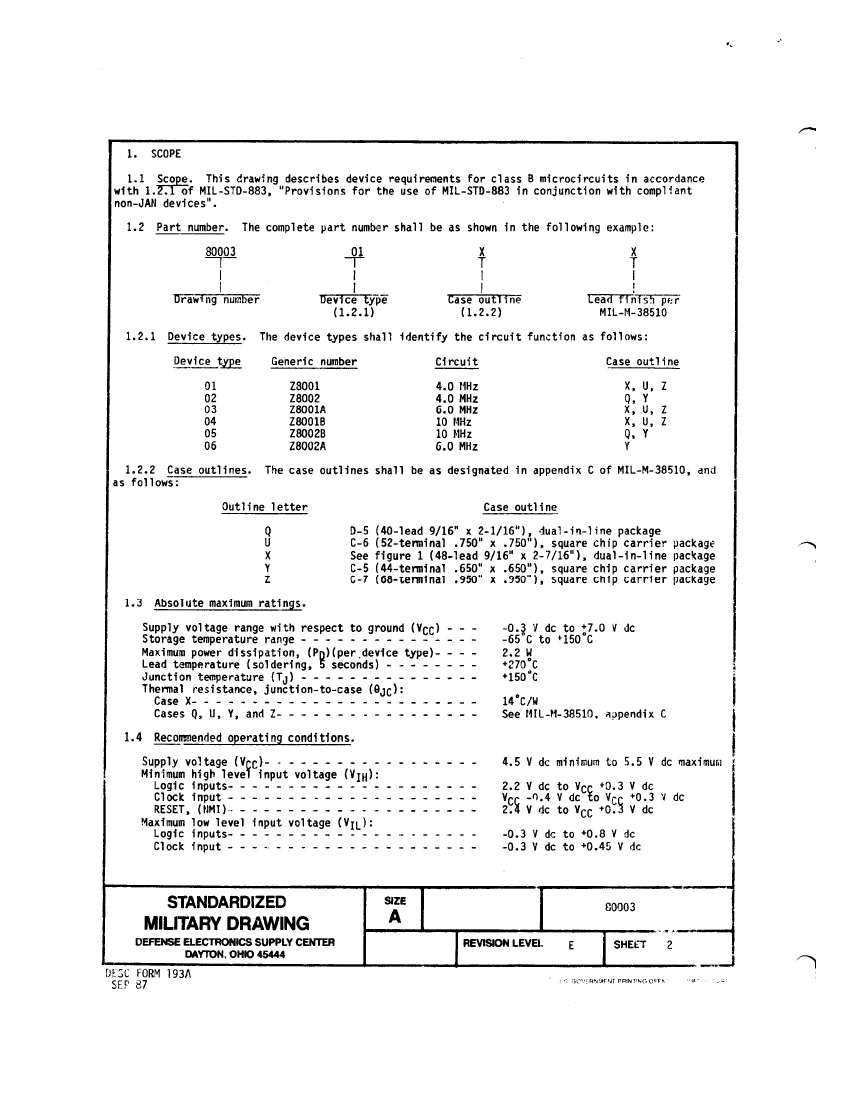

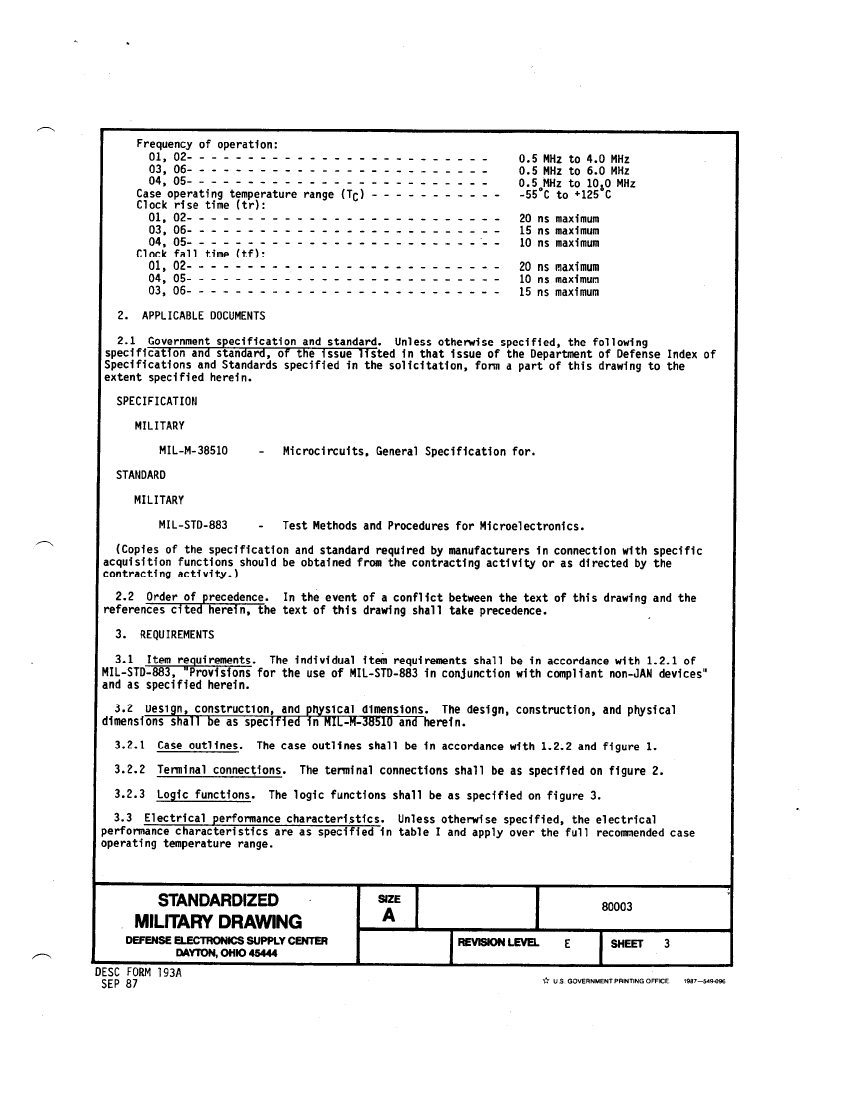

8000301UX Overview

Microprocessor, 16-Bit, 4MHz, CMOS, CQCC52, CERAMIC, QCC-52

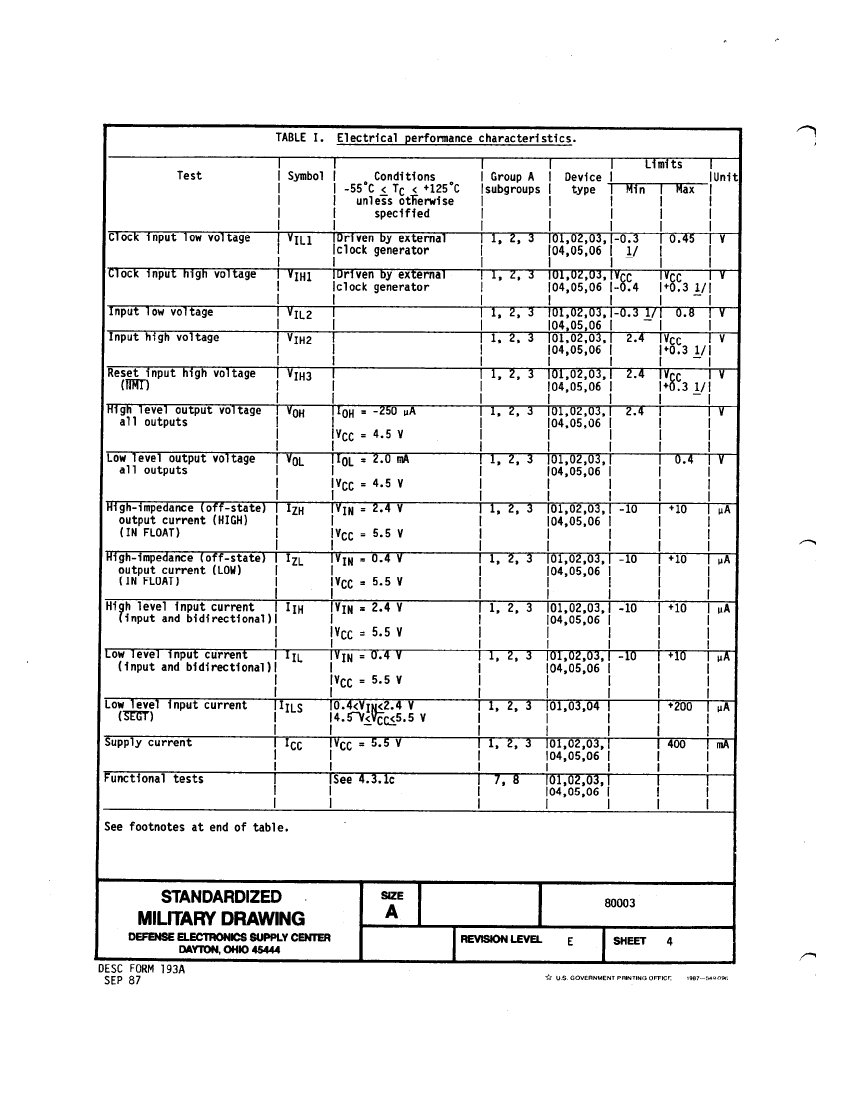

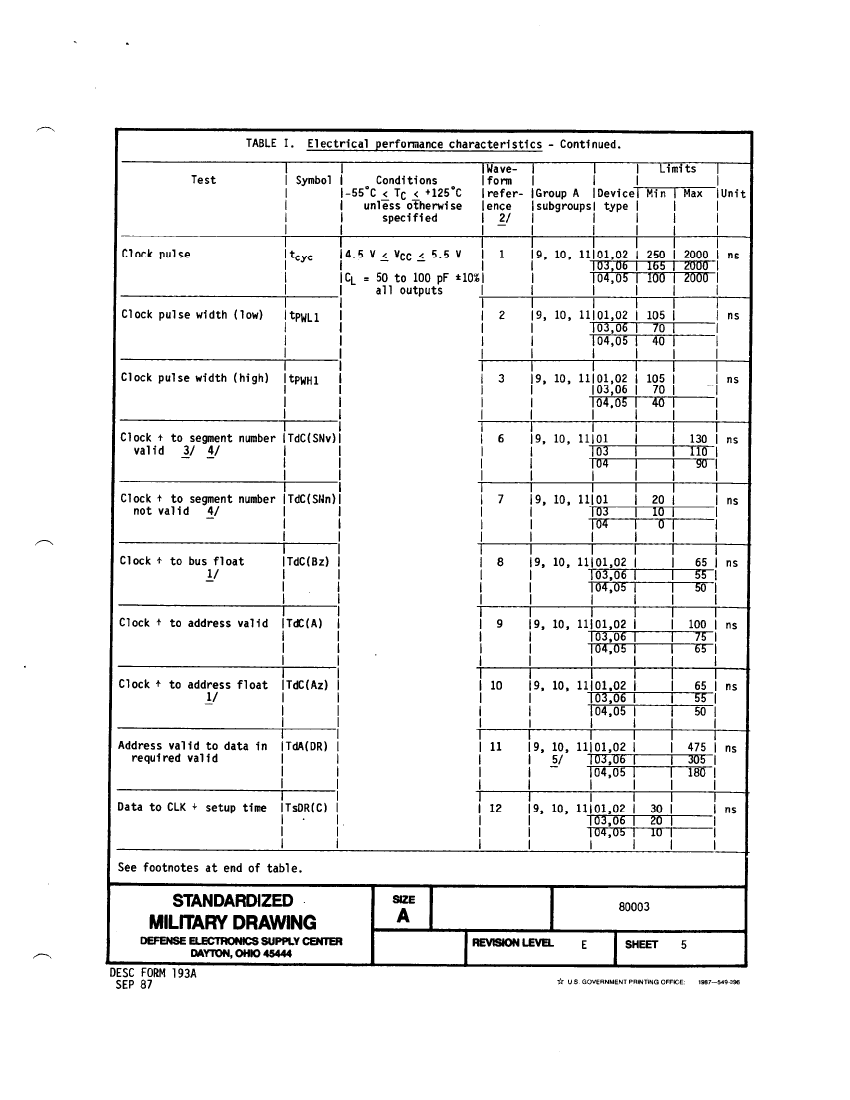

Parameter Name	Attribute value
Maker	Zilog, Inc.
Parts packaging code	LCC
package instruction	QCCN, LCC52,.75SQ
Contacts	52
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Address bus width	16
bit size	16
maximum clock frequency	4 MHz
External data bus width	16
JESD-30 code	S-CQCC-N52
Number of terminals	52
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC52,.75SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
speed	4 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR
Base Number Matches	1

	8000301UX	8000303UX
Description	Microprocessor, 16-Bit, 4MHz, CMOS, CQCC52, CERAMIC, QCC-52	Microprocessor, 16-Bit, 6MHz, CMOS, CQCC52, CERAMIC, QCC-52
Maker	Zilog, Inc.	Zilog, Inc.
Parts packaging code	LCC	LCC
package instruction	QCCN, LCC52,.75SQ	QCCN, LCC52,.75SQ
Contacts	52	52
Reach Compliance Code	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C
Address bus width	16	16
bit size	16	16
maximum clock frequency	4 MHz	6 MHz
External data bus width	16	16
JESD-30 code	S-CQCC-N52	S-CQCC-N52
Number of terminals	52	52
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	QCCN
Encapsulate equivalent code	LCC52,.75SQ	LCC52,.75SQ
Package shape	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER
Certification status	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B
speed	4 MHz	6 MHz
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal form	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR	MICROPROCESSOR
Base Number Matches	1	1
