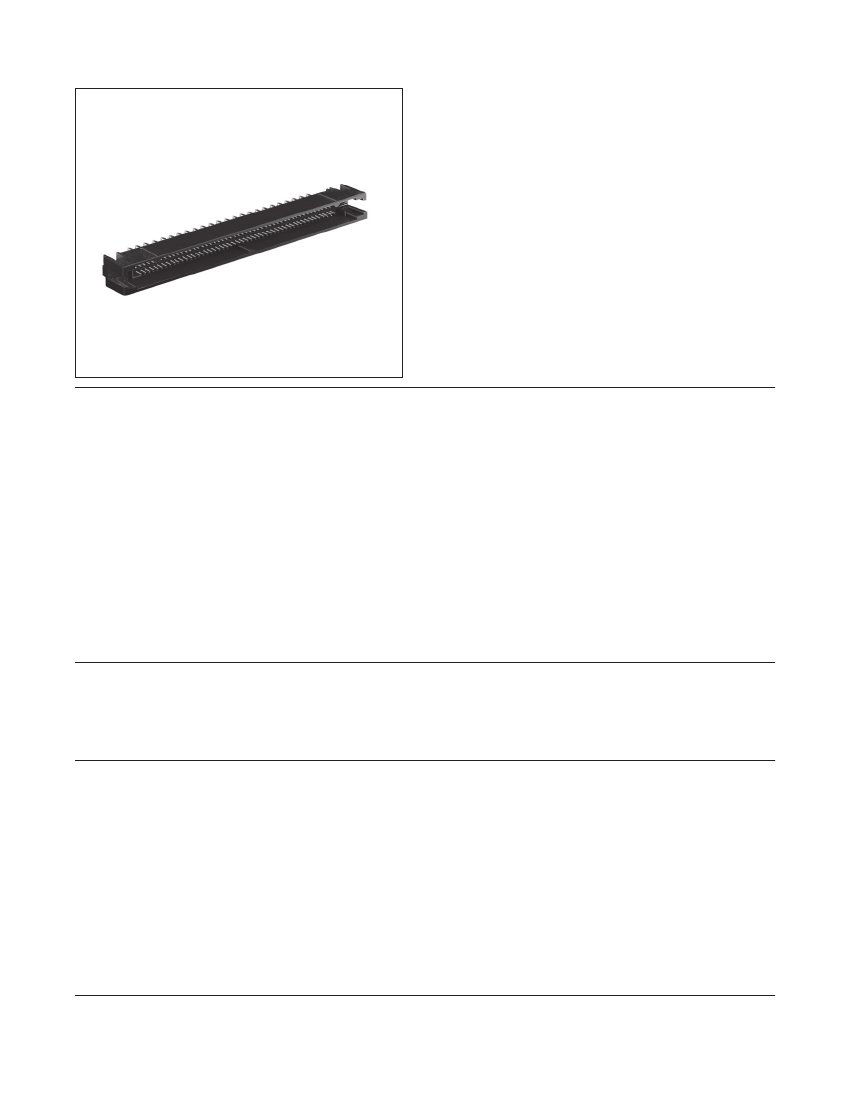

.050″ × .100″ Latch/Ejector, Right Angle, 4 Rows of Solder Tails
810 Series
Tripolarization to mating socket
50 mil × 100 mil halves the connector length
Latch and eject for rugged high performance applications
4 row tail design
High temperature plastic
Four-wall shroud provides contact protection
Contacts: 20, 26, 36, 40, 50, 60, 68, 80 and 100
See the Regulatory Information Appendix (RIA) in the
“RoHS compliance” section of www.3Mconnector.com
for compliance information
Date Modified: June 15, 2012
TS-0334-B
Sheet 1 of 3
Insulator:
Material: High Temperature Plastic (LCP)
Contact:
Plating:
Environmental
Operating Temperature Rating:
-55°C to +105°C
Process Rating:
Maximum 260°C (Profile per J-STD-020C)
Moisture Sensitivity Level:
1 (per J-STD-020C)
UL File No.: E68080
D
Current Rating:
0.5 A
Insulation Resistance:
> 1 × 10
9
Ω at 500 V
DC
Withstanding Voltage:
500 V
RMS
at Sea Level
IS
Electrical
C
O
Underplating:
Wiping Area:
Solder Tails:
Terminal Finish Indicator:
100 µ" [2.54 mm] Nickel
30 µ" [0.76 mm] Gold
See Ordering Information
e3 (ref JESD97)
Marking:
3M Logo, Part Number and Orientation Triangle
N
T
Material: Copper Alloy
IN
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Flammability: UL 94V-0
Color: Black (RB Plating only) or Natural
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
U
E
Physical
D
3M
™
4-Wall, Tripolarized Header
C
A
B
C
.050″ × .100″ Latch/Ejector, Right Angle, 4 Rows of Solder Tails
Table 1
A
B
C
.015
.015 X ..015
X ..015
[0.38] X
[0.38] X [0.38]
[0.38]
810 Series

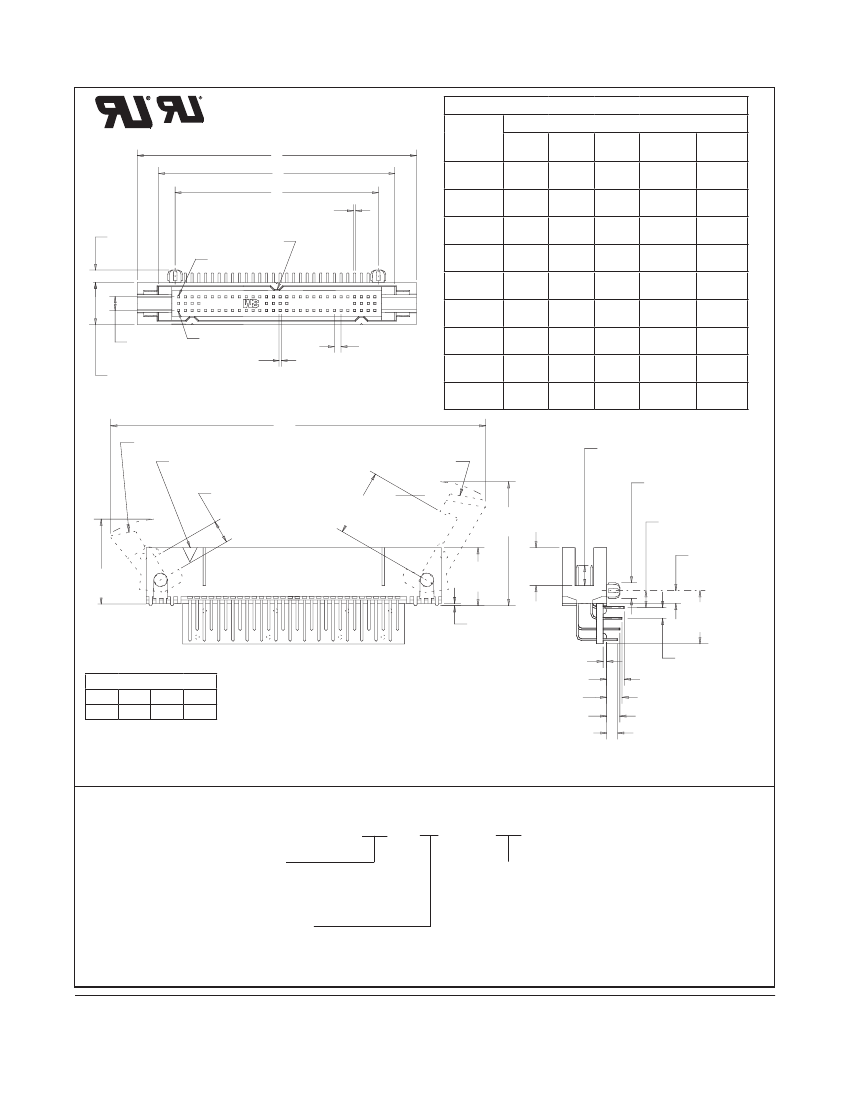

Dimensions
C
0.500
[12.70]
0.650
[16.51]
0.900
[22.86]
1.000
[25.40]
1.250
[31.75]
1.500
[38.10]
1.700
[43.18]
2.000
[50.80]
2.500
[63.50]
Contact
Quantity
020
026
036
040
050
060
A
1.060
[26.92]
1.210
[30.73]
1.460
[37.08]
1.560
[39.62]
1.810
[45.97]
2.060
[52.32]
2.260
[57.40]
2.560
[65.02]
3.060
[77.72]
B
0.722
[18.34]
0.872
[22.15]
1.122
[28.50]
1.222
[31.04]
1.472
[37.39]
1.722
[43.74]
1.922
[48.82]
2.222
[56.44]
2.722
[69.14]
D Short
(Ref.)
1.671
[42.44]
1.821
[46.25]
2.071
[52.60]
2.171
[55.14]
2.421
[61.49]
2.671
[67.84]
2.871
[72.92]
3.171
[80.54]
3.671
[93.24]
D Long
(Ref.)
1.842
[46.79]
1.992
[50.60]
2.242
[56.95]
2.342
[59.49]
2.592
[65.84]
2.842
[72.19]
3.042
[77.27]
3.342
[84.89]
3.842
[97.59]
.092
.092
[2.34]
[2.34]
See
See Note 1
Note 1
Position 2
2
Position
.100 Ref
.100 Ref
[2.54]
Position 1
Position 1
[0.38] X [0.38]
[2.54]
[7.87]
D
Short Latch
100
D
Long Latch
Short Latch
[4.19]
.440
±
.010
[11.18]
.440
±
.010
IN
Position 1
Orientation
1
Position
Triangle
Orientation
Triangle
±
.010
.165
[4.19]
±
.010
.165
U
E
.828 Ref
[21.03]
.828 Ref
Long Latch
D
.265
[6.73]
.122
±
.010
[2.49]
.310
.310
[7.87]
.015 X ..015
.015 X ..015
[0.38] X [0.38]
.050 Typ
.050 Typ
[1.27]
068
080
[1.27]
.140
±
.010
[3.56]
.140
±
.010
[3.56]
2 X Ø .116
[2.95]
X Ø .116
2
.120 Ref
[3.05]
[2.95]
[11.18]
[21.03]
T
.620 Ref
[15.75]
N
.620 Ref
[15.75]
.405
[10.29]
.265
[6.73]
.105
[2.67]
.120 Ref
[3.05]
.105
[2.67]
.405
[10.29]
C
O
.015
[0.38]
.378
[9.60]
.075
[1.90]
.107
±
.010
[2.72]
.015
[0.38]
.378
[9.60]
.075
[1.90]
.020 [0.51]
.122
±
.010
[0.51]
.020
[3.10]
Tolerance Unless Noted
.0
Inch
±.1
.00
±.01
.000
±.005
IS
Inch
[Imm]
[3.10]
.098
±
.010
[2.49]
[ ] Dimensions for Reference Only
D
[2.72]
.083
±
.010
.098
±
.010
[2.11]
.107
±
.010
Notes:
1. This polarization bump does not exist on the 20 position header.
2. Recommended to be mated to the .050" X .100" Wiremount Socket 820 Series.
.083
±
.010
[2.11]
Ordering Information
Contact Quantity
(See Table 1)
PTH Right Angle Header, 4 Rows of Solder Tails
81XXX - MX0203 - XX
Ejector/Latch System:
0 = None
5 = With Short Ejectors Installe
6 = With Long Ejector Latches Installed
Plating suffix:
blank = Tin lead tails
(RIA E3 & C2 apply)
RB = Matte tin tails
(RIA E1 & C1 apply)
Ejector Latch
Long
3505-28 (natural)
3505-28B (black)
Short
3505-29 (natural)
3505-29B (black)
TS-0334-B
Sheet 2 of 3
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
4-Wall, Tripolarized Header
.050″ × .100″ Latch/Ejector, Right Angle, 4 Rows of Solder Tails
Table 2
Ejector Latches
None
Long
Short
810 Series
Dimension E Min
.575 [14.61]
1.010 [25.65]
.885 [22.48]

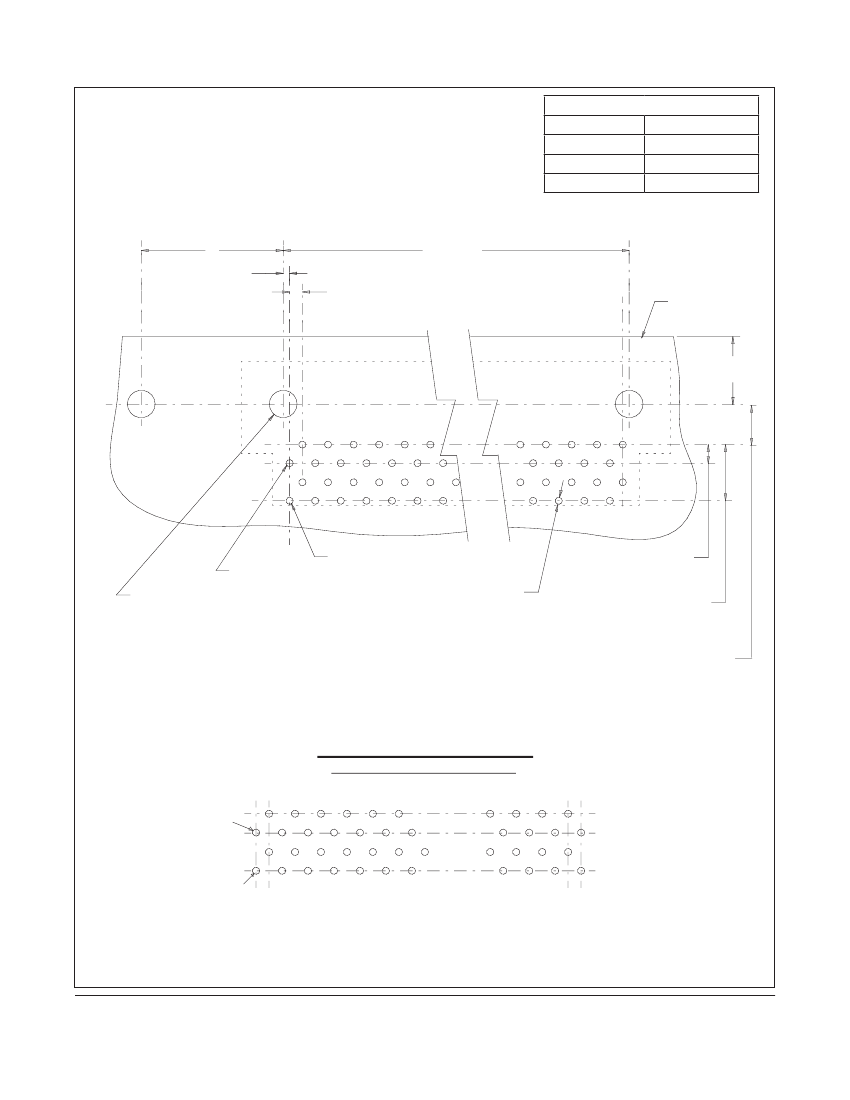

Recommended Mounting Hole Pattern
for Even Number of Contacts/Rows
(shown for mounting side of PC Baord)
E
.025
±
.003 Typ
[0.64]
C
±
.002
.050
±
.002 Typ
[1.27]
Tolerance Noncumulative
Edge of Board
Position 1
Position 2
2X Ø .109
±
.002
[2.77]
(See Note 3)
T
IN
U
E
N
.075
±
.003 Typ
[1.90]
.225
±
.003
[5.72]
C
O
Ø .025
±
.003 Typ
[0.64]
D
D
IS
Recommended Mounting Hole Pattern
for Odd Number of Contacts/Row
(Shown for mounting side of PC Board)
Position 2
Position 1
.305 to .355
[7.75] [9.02]
.120
±
.003
[3.05]
Notes:
1. In order to facilitate flow soldering, it is recommended that ejector latches be installed after the soldering process.
TS-0334-B
Sheet 3 of 3
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
This product will be free from defects in material and manufacture for a period of ninety (90) days from the time of purchase.
3M MAKES NO OTHER WARRANTIES
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within
the warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product,
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order
shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
