WP7113BR6.35/GD datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> WP7113BR6.35/GD

WP7113BR6.35/GD: DescriptionT-1 3/4 SINGLE COLOR LED, GREEN, 5 mm; CategoryLED optoelectronic/LED photoelectric; File Size241KB，4 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric Compare View All

WP7113BR6.35/GD Overview

T-1 3/4 SINGLE COLOR LED, GREEN, 5 mm

WP7113BR6.35/GD Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compli
ECCN code	EAR99
Other features	UL RECOGNIZED
color	GREEN
Configuration	SINGLE
Maximum forward current	0.025 A
Lens type	DIFFUSED
Nominal luminous intensity	20.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	8.6 mm
method of packing	BULK
peak wavelength	565 nm
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal pitch	2.54 mm
perspective	30 deg

Preview

Download Datasheet

View All

T-1 3/4 (5mm) VARIABLE HEIGHT LED BOARD

INDICATOR

Part Number: WP7113BR6.35/GD

Green

Features

LED FIRMLY HELD BY SPACER-NO ADDITIONAL

FIXTURING OR GLUEING NECESSARY.

SUITABLE FOR BACK PANEL ILLUMINATION,CIRCUIT

Description

The Green source color devices are made with Gallium

Phosphide Green Light Emitting Diode.

BOARD INDICATOR, LED INDICATOR.

RATING:94V-0.

HOUSING MATERIAL:TYPE 66 NYLON.

RoHS COMPLIANT.

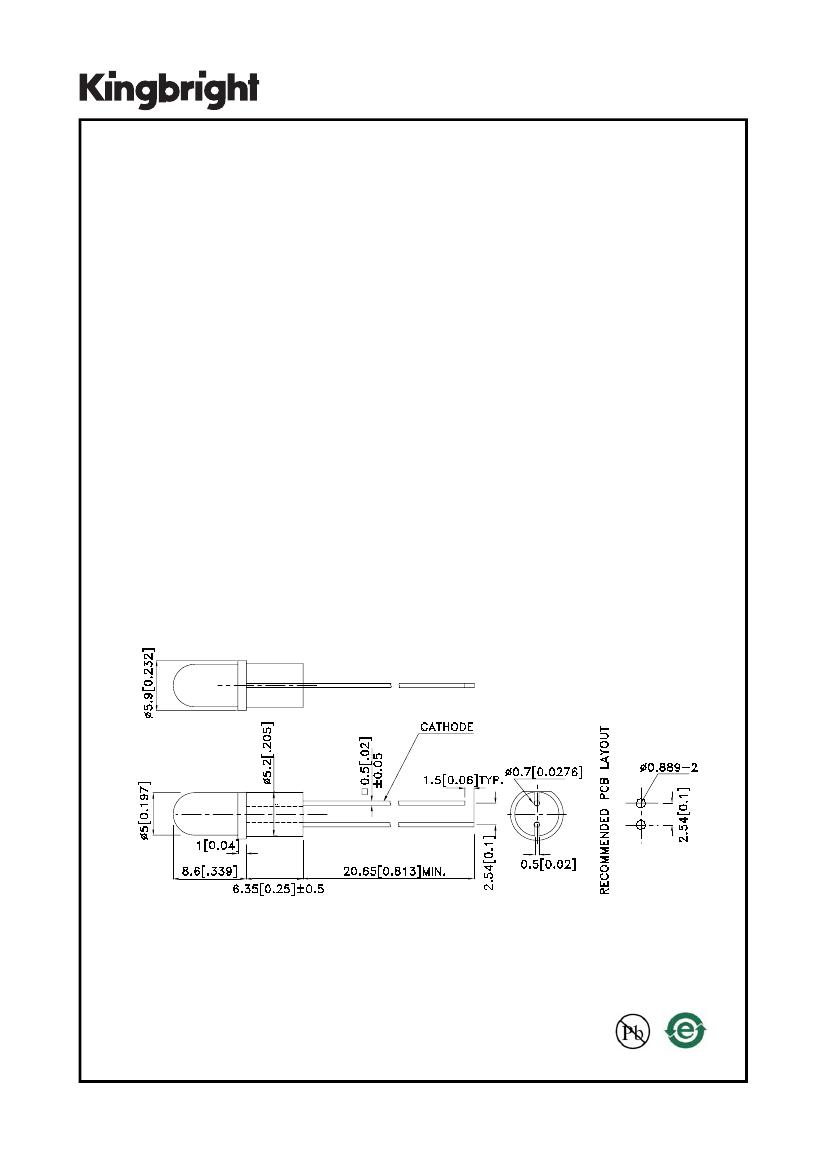

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ±0.25(0.01") unless otherwise noted.

3. Lead spacing is measured where the leads emerge from the package.

4. Specifications are subject to change without notice.

SPEC NO: DSAF2102

APPROVED: WYNEC

REV NO: V.2

CHECKED: Allen Liu

DATE: MAY/23/2007

DRAWN: Y.L.LI

PAGE: 1 OF 4

ERP: 1102001485

WP7113BR6.35/GD Related Products

	WP7113BR6.35/GD	WP7113BR6.35-GD
Description	T-1 3/4 SINGLE COLOR LED, GREEN, 5 mm	T-1 3/4 SINGLE COLOR LED, GREEN, 5 mm
color	GREEN	green
Lens type	DIFFUSED	DIFFUSED
Installation features	RADIAL MOUNT	RADIAL installation
Number of functions	1	1
Number of terminals	2	2
Maximum operating temperature	85 °C	85 Cel
Minimum operating temperature	-40 °C	-40 Cel
peak wavelength	565 nm	565
shape	ROUND	round
size	5 mm	5 mm
T code	T-1 3/4	T-1 3/4
