74LCX04SJX_NL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 74LCX04SJX_NL

74LCX04SJX_NL: DescriptionInverter, LVC/LCX/Z Series, 6-Func, 1-Input, CMOS, PDSO14, 5.30 MM, LEAD FREE, EIAJ TYPE2, SOP-14; Categorylogic logic; File Size738KB，13 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

74LCX04SJX_NL Overview

Inverter, LVC/LCX/Z Series, 6-Func, 1-Input, CMOS, PDSO14, 5.30 MM, LEAD FREE, EIAJ TYPE2, SOP-14

74LCX04SJX_NL Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Fairchild
Parts packaging code	SOIC
package instruction	SOP, SOP14,.3
Contacts	14
Reach Compliance Code	compliant
series	LVC/LCX/Z
JESD-30 code	R-PDSO-G14
JESD-609 code	e3
length	10.2 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	INVERTER
MaximumI(ol)	0.024 A
Humidity sensitivity level	1
Number of functions	6
Number of entries	1
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
method of packing	TAPE AND REEL
Peak Reflow Temperature (Celsius)	260
power supply	3.3 V
Prop。Delay @ Nom-Sup	5.2 ns
propagation delay (tpd)	6.2 ns
Certification status	Not Qualified
Schmitt trigger	NO
Maximum seat height	2.1 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	2.5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	5.3 mm
Base Number Matches	1

Preview

Download Datasheet

View All

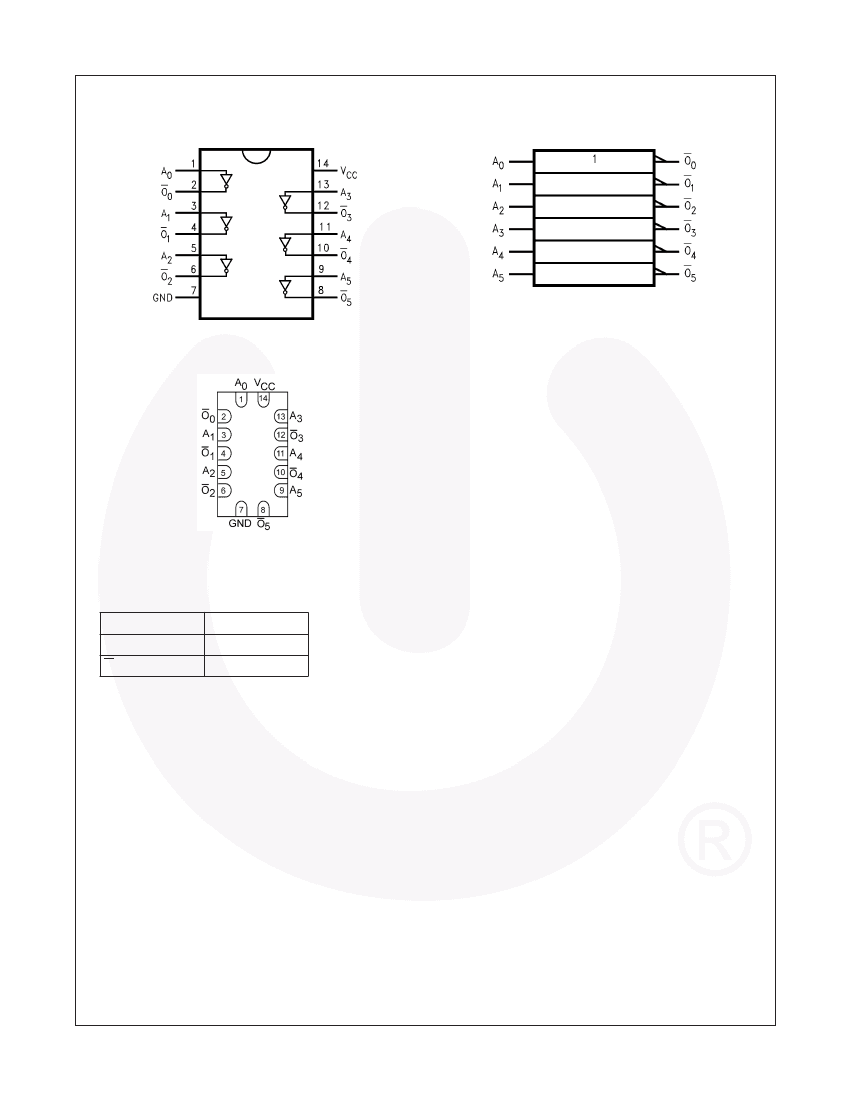

74LCX04 — Low Voltage Hex Inverter with 5V Tolerant Inputs

February 2008

74LCX04

Low Voltage Hex Inverter with 5V Tolerant Inputs

Features

■

5V tolerant inputs

■

2.3V–3.6V V

specifications provided

■

5.2ns t

max. (V

3.3V), 10µA I

max.

■

Power down high impedance inputs and outputs

■

±24mA output drive (V

3.0V)

■

Implements patented noise/EMI reduction circuitry

■

Latch-up performance exceeds JEDEC 78 conditions

■

ESD performance:

General Description

The LCX04 contains six inverters. The inputs tolerate

voltages up to 7V allowing the interface of 5V systems to

3V systems.

The 74LCX04 is fabricated with advanced CMOS tech-

nology to achieve high speed operation while maintain-

ing CMOS low power dissipation.

– Human body model

2000V

– Machine model

200V

■

Leadless DQFN package

Ordering Information

Order Number

74LCX04M

74LCX04SJ

74LCX04BQX

(1)

74LCX04MTC

Package

Number

M14A

M14D

MLP14A

MTC14

Package Description

14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150" Narrow

14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide

14-Terminal Depopulated Quad Very-Thin Flat Pack No Leads (DQFN), JEDEC

MO-241, 2.5 x 3.0mm

14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm

Wide

Note:

1. DQFN package available in Tape and Reel only.

Device also available in Tape and Reel. Specify by appending suffix letter “X” to the ordering number.

All packages are lead free per JEDEC: J-STD-020B standard.

74LCX04 Rev. 1.6.0

www.fairchildsemi.com

74LCX04SJX_NL Related Products

	74LCX04SJX_NL	74LCX04M_NL
Description	Inverter, LVC/LCX/Z Series, 6-Func, 1-Input, CMOS, PDSO14, 5.30 MM, LEAD FREE, EIAJ TYPE2, SOP-14	Inverter, LVC/LCX/Z Series, 6-Func, 1-Input, CMOS, PDSO14, 0.150 INCH, LEAD FREE, MS-012, SOIC-14
Maker	Fairchild	Fairchild
Parts packaging code	SOIC	SOIC
package instruction	SOP, SOP14,.3	SOP,
Contacts	14	14
Reach Compliance Code	compliant	unknown
series	LVC/LCX/Z	LVC/LCX/Z
JESD-30 code	R-PDSO-G14	R-PDSO-G14
JESD-609 code	e3	e3
length	10.2 mm	8.6235 mm
Logic integrated circuit type	INVERTER	INVERTER
Number of functions	6	6
Number of entries	1	1
Number of terminals	14	14
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
propagation delay (tpd)	6.2 ns	6.2 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.1 mm	1.753 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V
Minimum supply voltage (Vsup)	2 V	2 V
Nominal supply voltage (Vsup)	2.5 V	2.5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Matte Tin (Sn)	MATTE TIN
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
width	5.3 mm	3.9 mm
Base Number Matches	1	1
