74S64DC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 74S64DC

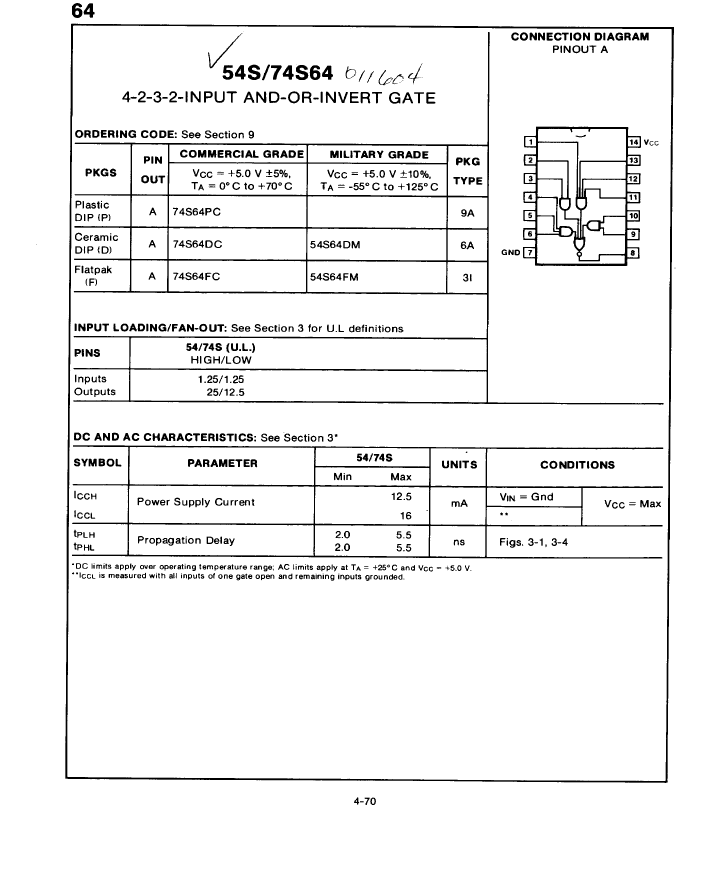

74S64DC: DescriptionAND-OR-Invert Gate, TTL, CDIP14,; Categorylogic logic; File Size22KB，1 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

74S64DC Overview

AND-OR-Invert Gate, TTL, CDIP14,

74S64DC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	DIP, DIP14,.3
Reach Compliance Code	compliant
JESD-30 code	R-XDIP-T14
JESD-609 code	e0
Logic integrated circuit type	AND-OR-INVERT GATE
MaximumI(ol)	0.02 A
Humidity sensitivity level	2A
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	250
power supply	5 V
Maximum supply current (ICC)	16 mA
Prop。Delay @ Nom-Sup	5.5 ns
Certification status	Not Qualified
Schmitt trigger	NO
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Base Number Matches	1

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

74S64DC Related Products

	74S64DC	54S64DMQB	74S64PC	74S64FC	54S64FM
Description	AND-OR-Invert Gate, TTL, CDIP14,	AND-OR-Invert Gate, S Series, 1-Func, 11-Input, TTL, CDIP14, CERAMIC, DIP-14	AND-OR-Invert Gate, TTL, PDIP14,	AND-OR-Invert Gate, TTL, CDFP14,	AND-OR-Invert Gate, TTL/H/L Series, 1-Func, 11-Input, TTL, PDFP14, DFP-14
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	compliant	unknown	compliant	compliant
JESD-30 code	R-XDIP-T14	R-CDIP-T14	R-PDIP-T14	R-XDFP-F14	R-PDFP-F14
JESD-609 code	e0	e0	e0	e0	e0
Logic integrated circuit type	AND-OR-INVERT GATE	AND-OR-INVERT GATE	AND-OR-INVERT GATE	AND-OR-INVERT GATE	AND-OR-INVERT GATE
MaximumI(ol)	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A
Number of terminals	14	14	14	14	14
Maximum operating temperature	70 °C	125 °C	70 °C	70 °C	125 °C
Package body material	CERAMIC	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DFP	DFP
Encapsulate equivalent code	DIP14,.3	DIP14,.3	DIP14,.3	FL14,.3	FL14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	FLATPACK	FLATPACK
power supply	5 V	5 V	5 V	5 V	5 V
Maximum supply current (ICC)	16 mA	16 mA	16 mA	16 mA	16 mA
Prop。Delay @ Nom-Sup	5.5 ns	5.5 ns	5.5 ns	5.5 ns	5.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	NO	NO	NO	NO	NO
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	YES	YES
technology	TTL	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT	FLAT
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	1
Is it lead-free?	Contains lead	-	Contains lead	Contains lead	Contains lead
Maker	Fairchild	-	Fairchild	Fairchild	-
package instruction	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	-	DFP, FL14,.3
Humidity sensitivity level	2A	-	2A	2A	2A
Peak Reflow Temperature (Celsius)	250	-	250	250	250
Maximum time at peak reflow temperature	30	-	30	30	30
