5962-8983908RA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Programmable logic devices> Programmable logic> 5962-8983908RA

5962-8983908RA: DescriptionFlash PLD, CMOS, CDIP20; CategoryProgrammable logic devices Programmable logic; File Size264KB，12 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

5962-8983908RA Overview

Flash PLD, CMOS, CDIP20

5962-8983908RA Parametric

Parameter Name	Attribute value
Maker	Cypress Semiconductor
package instruction	DIP,
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
JESD-30 code	R-GDIP-T20
JESD-609 code	e0
Dedicated input times	8
Number of I/O lines	8
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	8 DEDICATED INPUTS, 8 I/O
Output function	MACROCELL
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Programmable logic type	FLASH PLD
Certification status	Not Qualified
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

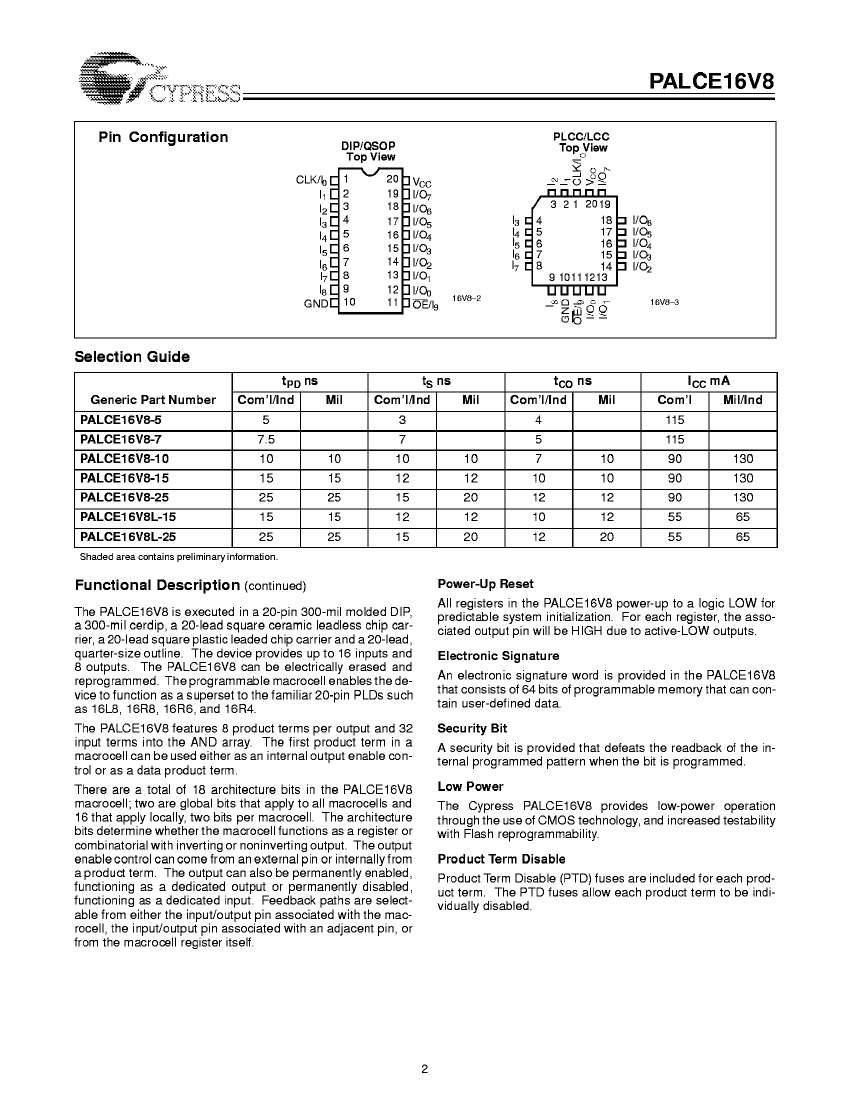

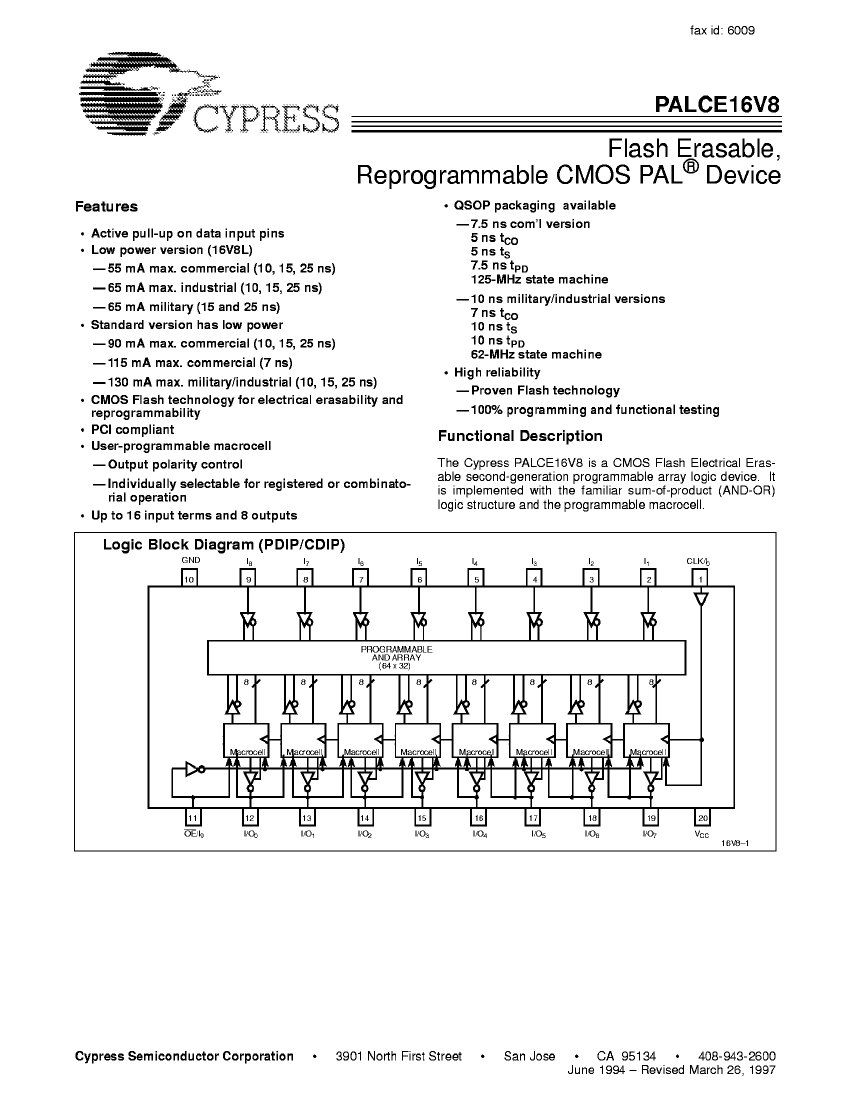

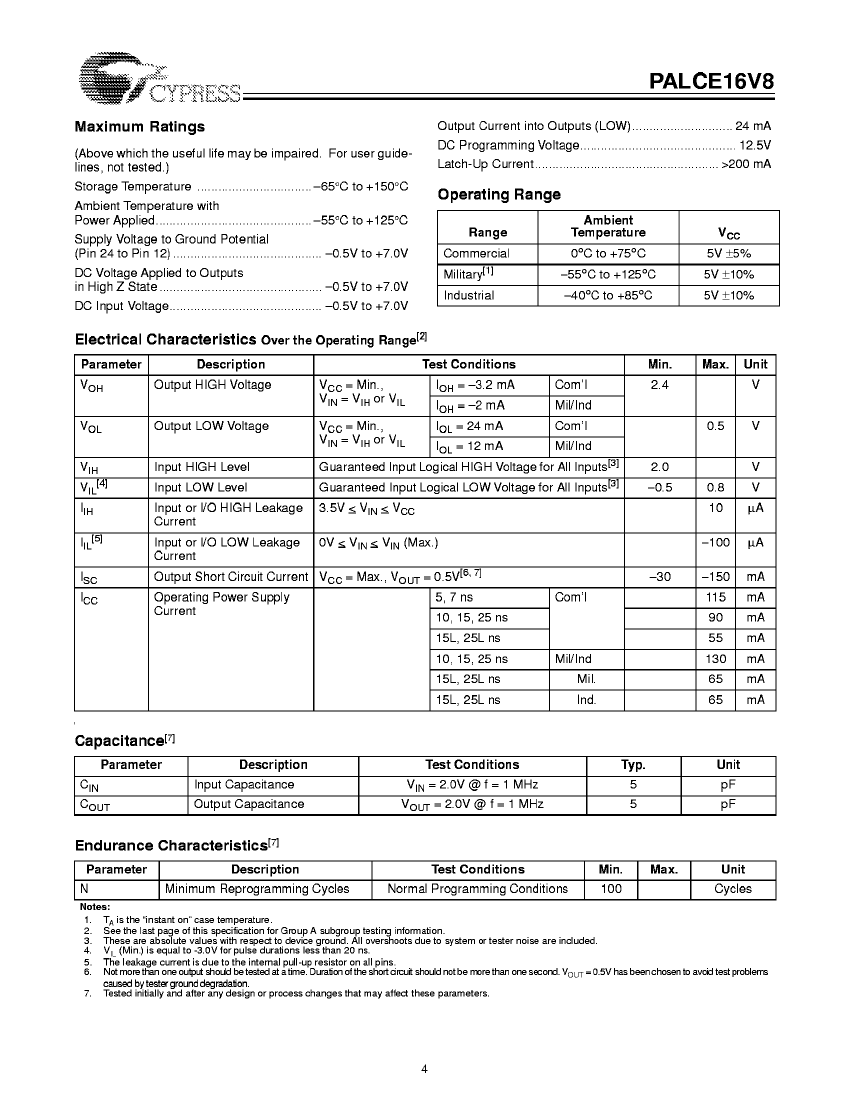

Preview

Download Datasheet

View All

5962-8983908RA Related Products

	5962-8983908RA	5962-89839082A	5962-8983910RA	5962-89839102A
Description	Flash PLD, CMOS, CDIP20	Flash PLD, CMOS, PQCC20	Flash PLD, CMOS, CDIP20	Flash PLD, CMOS, PQCC20
Maker	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor
package instruction	DIP,	QCCN,	DIP,	QCCN,
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
JESD-30 code	R-GDIP-T20	S-PQCC-N20	R-GDIP-T20	S-PQCC-N20
JESD-609 code	e0	e0	e0	e0
Dedicated input times	8	8	8	8
Number of I/O lines	8	8	8	8
Number of terminals	20	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
organize	8 DEDICATED INPUTS, 8 I/O	8 DEDICATED INPUTS, 8 I/O	8 DEDICATED INPUTS, 8 I/O	8 DEDICATED INPUTS, 8 I/O
Output function	MACROCELL	MACROCELL	MACROCELL	MACROCELL
Package body material	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
encapsulated code	DIP	QCCN	DIP	QCCN
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE
Package form	IN-LINE	CHIP CARRIER	IN-LINE	CHIP CARRIER
Programmable logic type	FLASH PLD	FLASH PLD	FLASH PLD	FLASH PLD
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	NO LEAD
Terminal location	DUAL	QUAD	DUAL	QUAD
Base Number Matches	1	1	1	1
