SFF230Z: Description9 AMP 200 Volts 0.40OHM N-Channel POWER MOSFET; CategoryDiscrete semiconductor The transistor; File Size177KB，2 Pages; ManufacturerSSDI; Websitehttp://www.ssdi-power.com/

Download Datasheet Parametric Compare View All

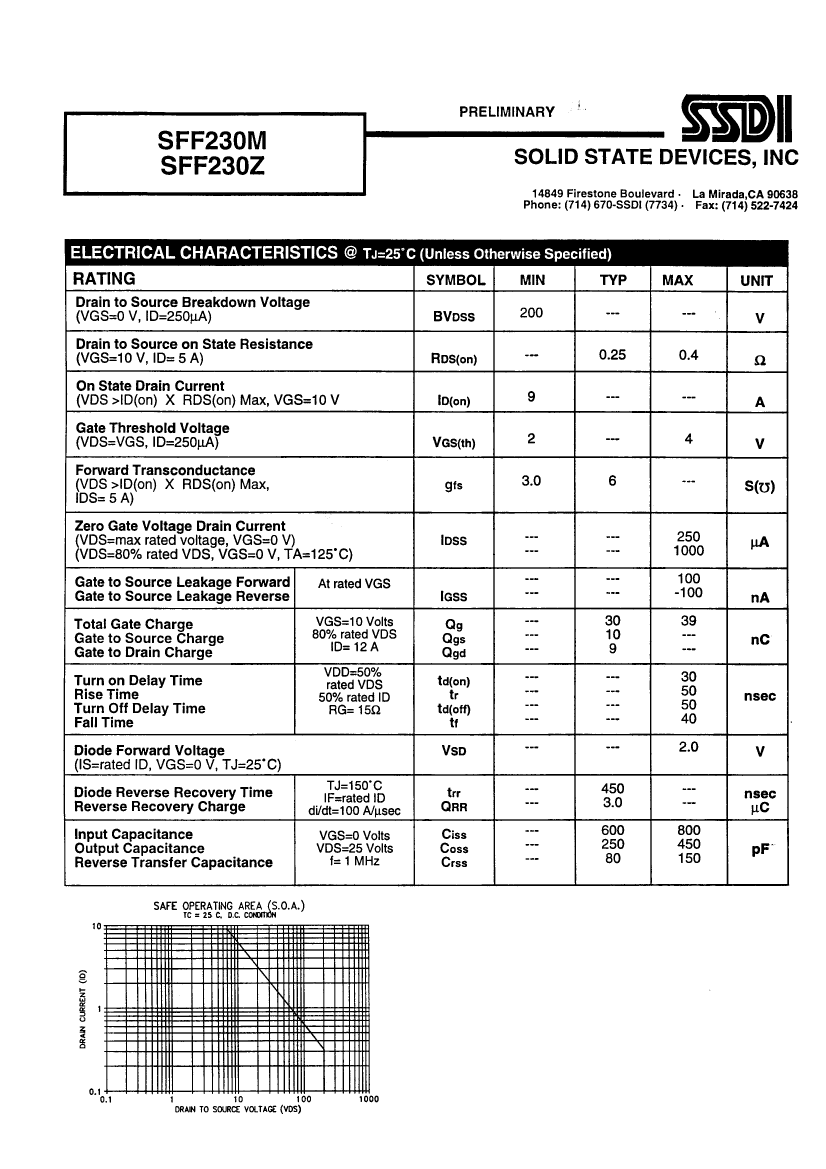

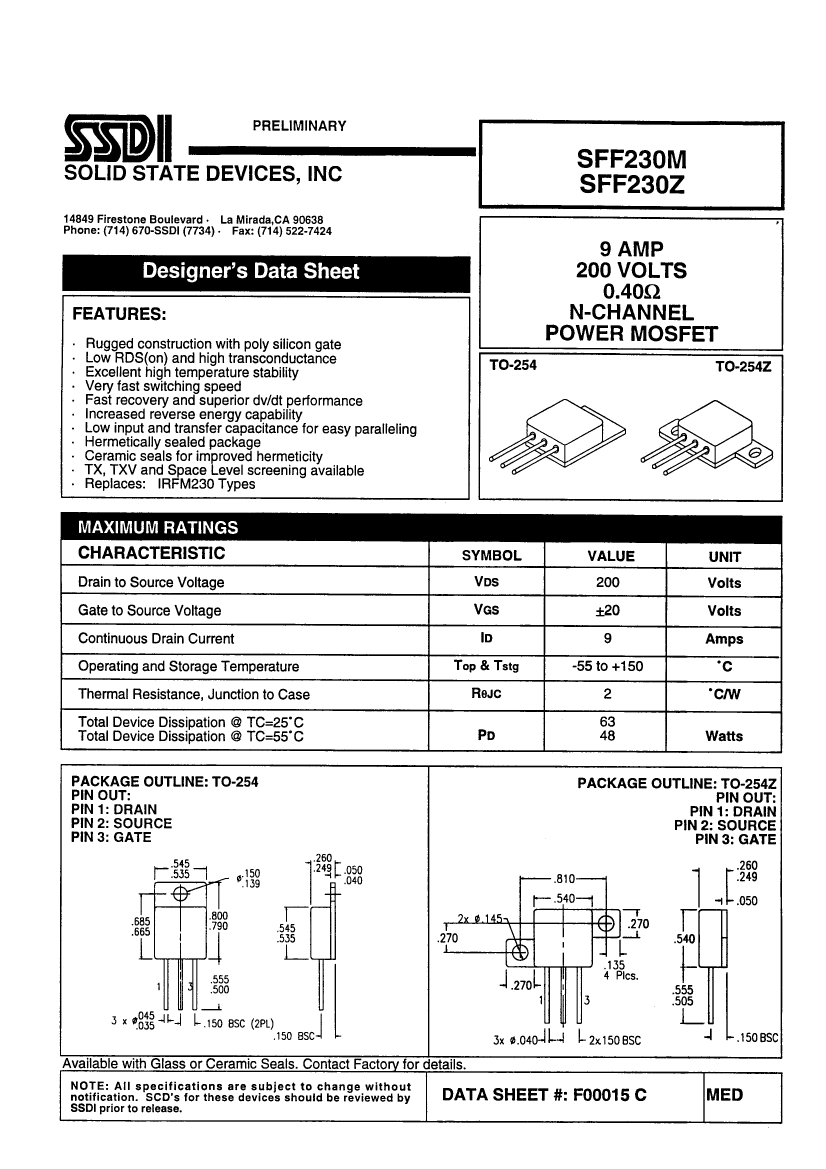

SFF230Z Overview

9 AMP 200 Volts 0.40OHM N-Channel POWER MOSFET

Parameter Name	Attribute value
Maker	SSDI
Parts packaging code	TO-254Z
package instruction	FLANGE MOUNT, S-MSFM-P3
Contacts	3
Reach Compliance Code	compli
ECCN code	EAR99
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	200 V
Maximum drain current (Abs) (ID)	9 A
Maximum drain current (ID)	9 A
Maximum drain-source on-resistance	0.4 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	S-MSFM-P3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	METAL
Package shape	SQUARE
Package form	FLANGE MOUNT
Polarity/channel type	N-CHANNEL
Maximum power dissipation(Abs)	63 W
Certification status	Not Qualified
surface mount	NO
Terminal form	PIN/PEG
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON

	SFF230Z	SFF230M
Description	9 AMP 200 Volts 0.40OHM N-Channel POWER MOSFET	9 AMP 200 Volts 0.40OHM N-Channel POWER MOSFET
Maker	SSDI	SSDI
Parts packaging code	TO-254Z	TO-254
package instruction	FLANGE MOUNT, S-MSFM-P3	FLANGE MOUNT, S-MSFM-P3
Contacts	3	3
Reach Compliance Code	compli	compli
ECCN code	EAR99	EAR99
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	200 V	200 V
Maximum drain current (Abs) (ID)	9 A	9 A
Maximum drain current (ID)	9 A	9 A
Maximum drain-source on-resistance	0.4 Ω	0.4 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	S-MSFM-P3	S-MSFM-P3
Number of components	1	1
Number of terminals	3	3
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE
Maximum operating temperature	150 °C	150 °C
Package body material	METAL	METAL
Package shape	SQUARE	SQUARE
Package form	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	N-CHANNEL	N-CHANNEL
Maximum power dissipation(Abs)	63 W	63 W
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
Terminal form	PIN/PEG	PIN/PEG
Terminal location	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
