SFF24N50N datasheet, PDF - EEWORLD Datasheet

SFF24N50N: Description24 AMP 500 Volts 0.23 OHM N-Channel POWER MOSFET; CategoryDiscrete semiconductor The transistor; File Size167KB，2 Pages; ManufacturerSSDI; Websitehttp://www.ssdi-power.com/

Download Datasheet Parametric Compare View All

SFF24N50N Overview

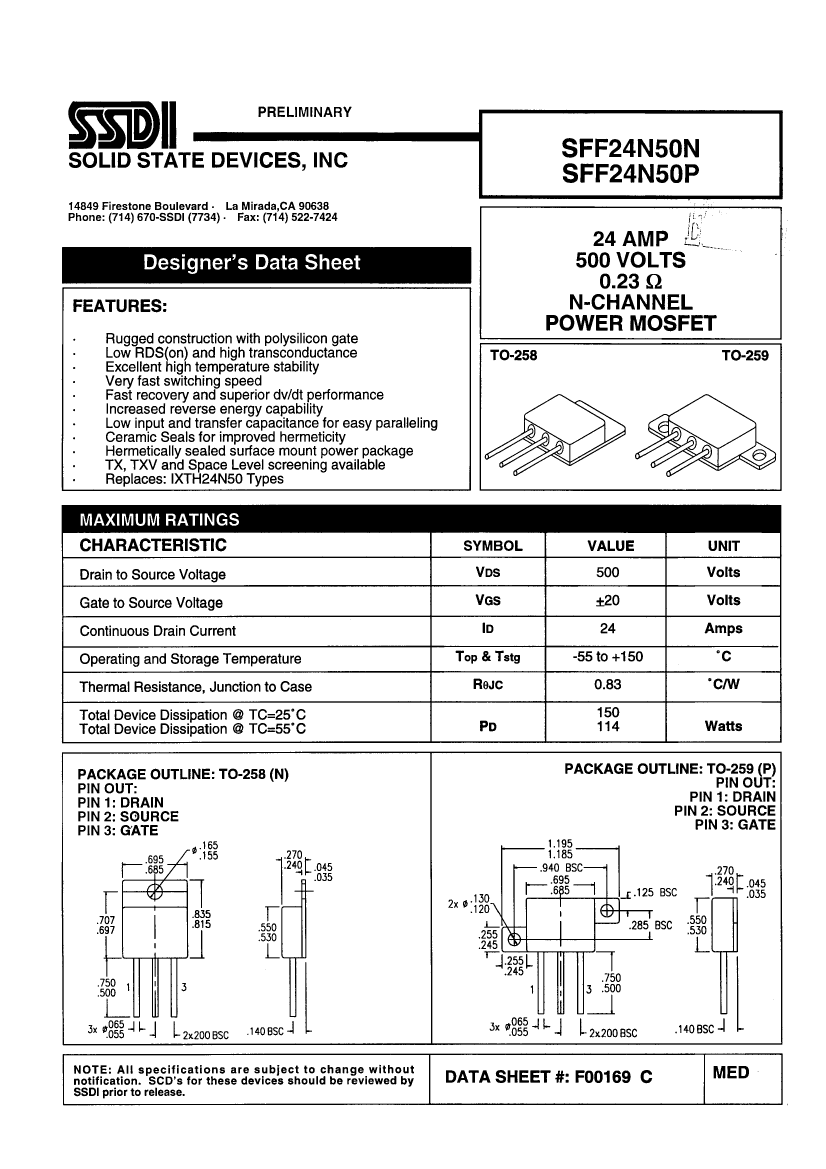

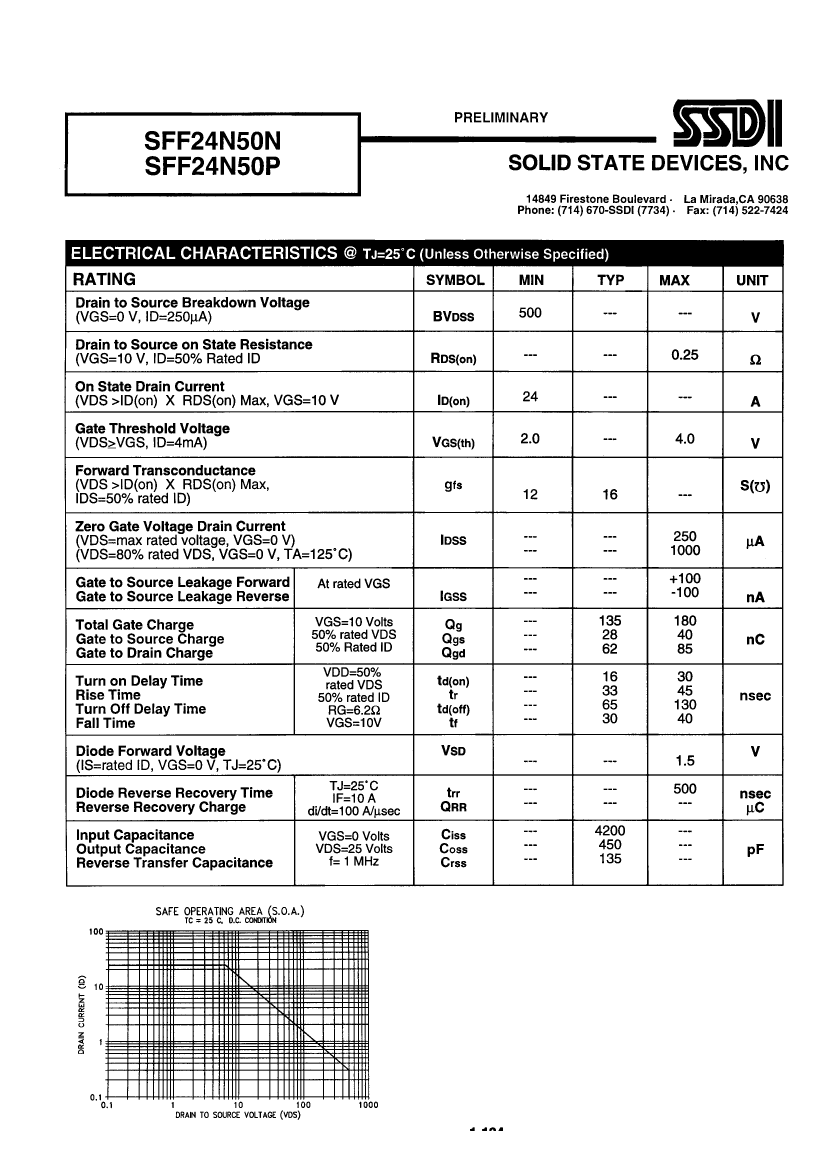

24 AMP 500 Volts 0.23 OHM N-Channel POWER MOSFET

Parameter Name	Attribute value
Maker	SSDI
Parts packaging code	TO-258
package instruction	FLANGE MOUNT, R-XSFM-P3
Contacts	3
Reach Compliance Code	compli
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	500 V
Maximum drain current (ID)	24 A
Maximum drain-source on-resistance	0.25 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-258AA
JESD-30 code	R-XSFM-P3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	N-CHANNEL
Certification status	Not Qualified
surface mount	NO
Terminal form	PIN/PEG
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON

	SFF24N50N	SFF24N50P
Description	24 AMP 500 Volts 0.23 OHM N-Channel POWER MOSFET	24 AMP 500 Volts 0.23 OHM N-Channel POWER MOSFET
Maker	SSDI	SSDI
package instruction	FLANGE MOUNT, R-XSFM-P3	FLANGE MOUNT, R-XSFM-P3
Reach Compliance Code	compli	compli
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	500 V	500 V
Maximum drain current (ID)	24 A	24 A
Maximum drain-source on-resistance	0.25 Ω	0.25 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-258AA	TO-259
JESD-30 code	R-XSFM-P3	R-XSFM-P3
Number of components	1	1
Number of terminals	3	3
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE
Package body material	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	N-CHANNEL	N-CHANNEL
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
Terminal form	PIN/PEG	PIN/PEG
Terminal location	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
