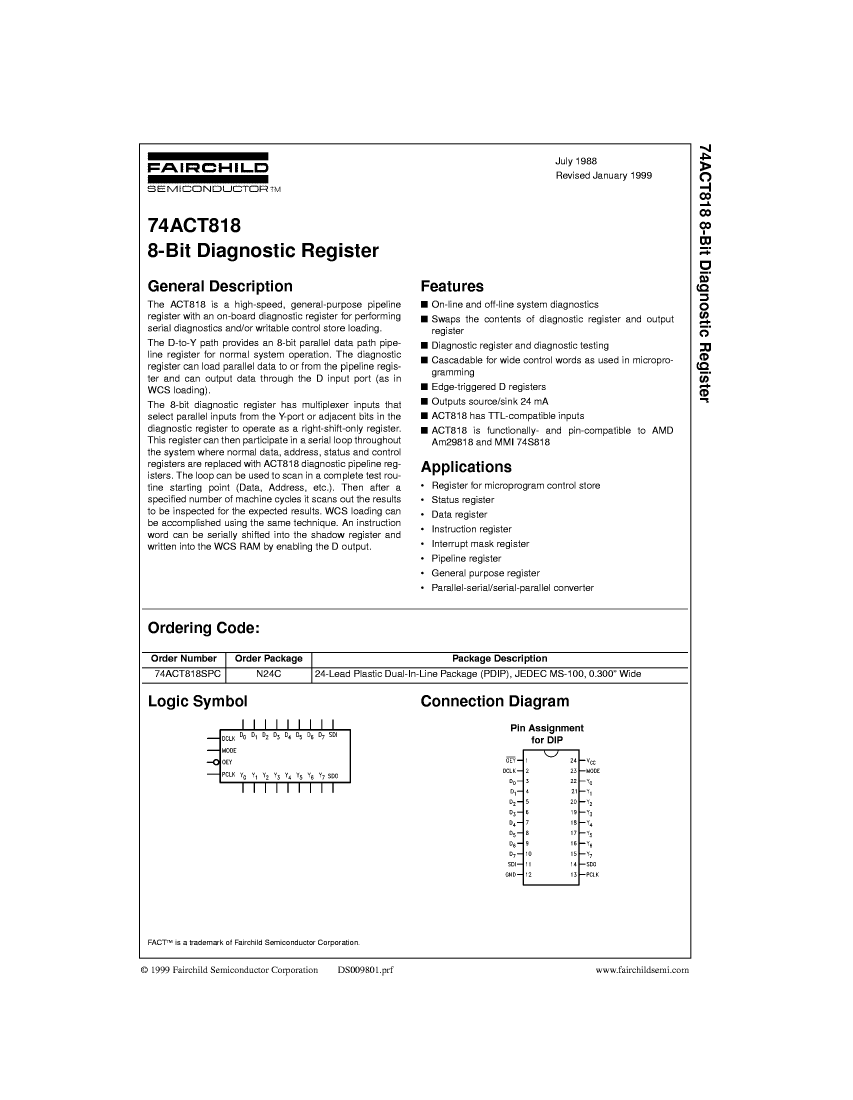

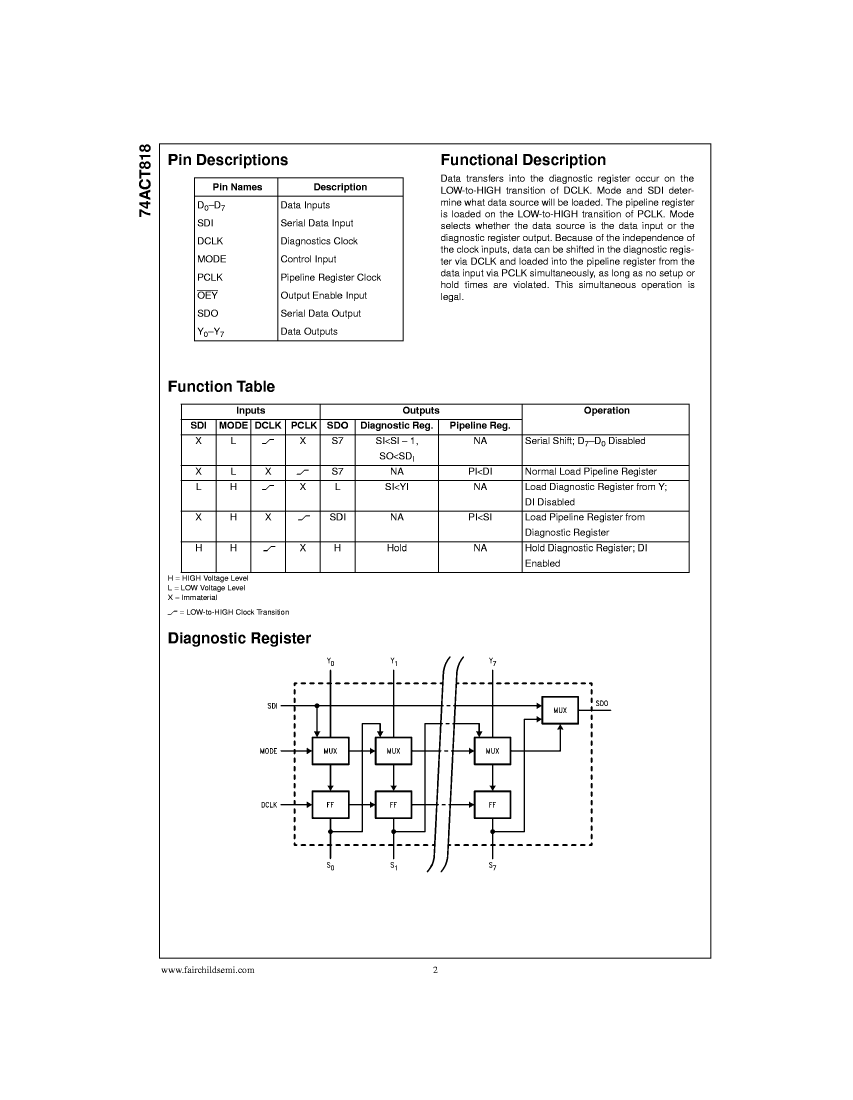

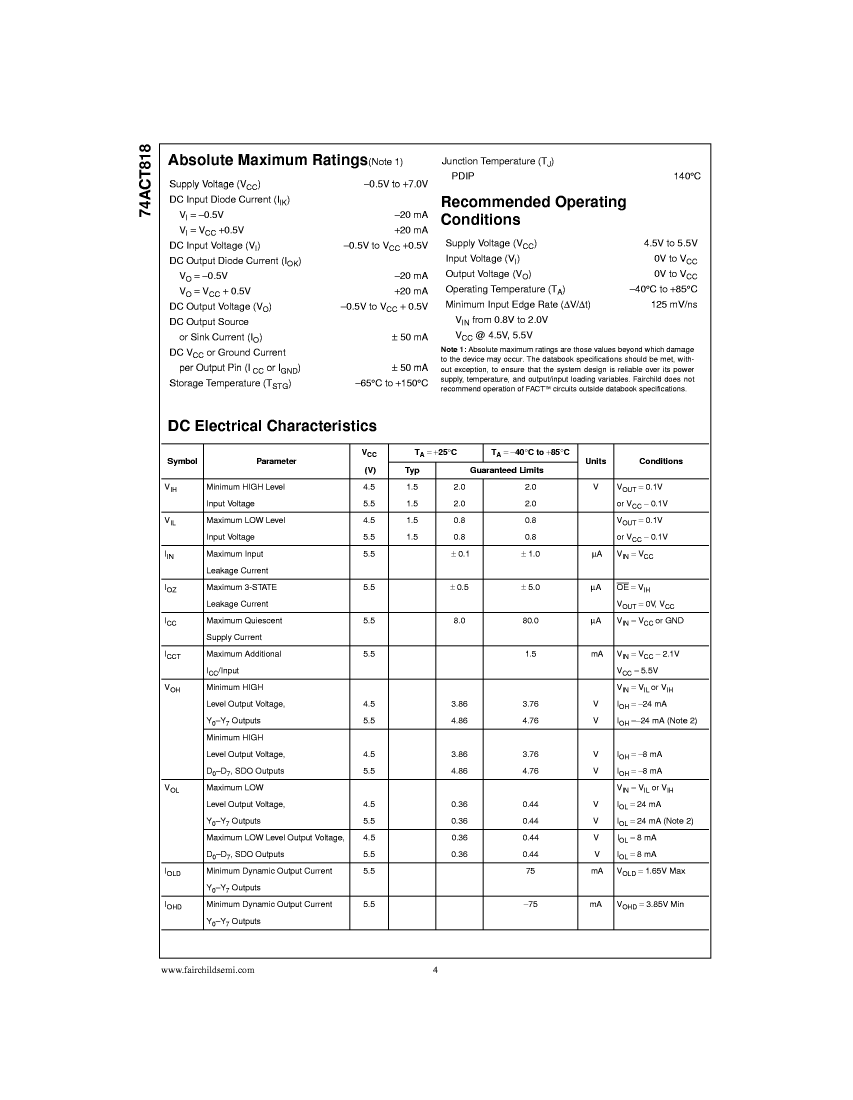

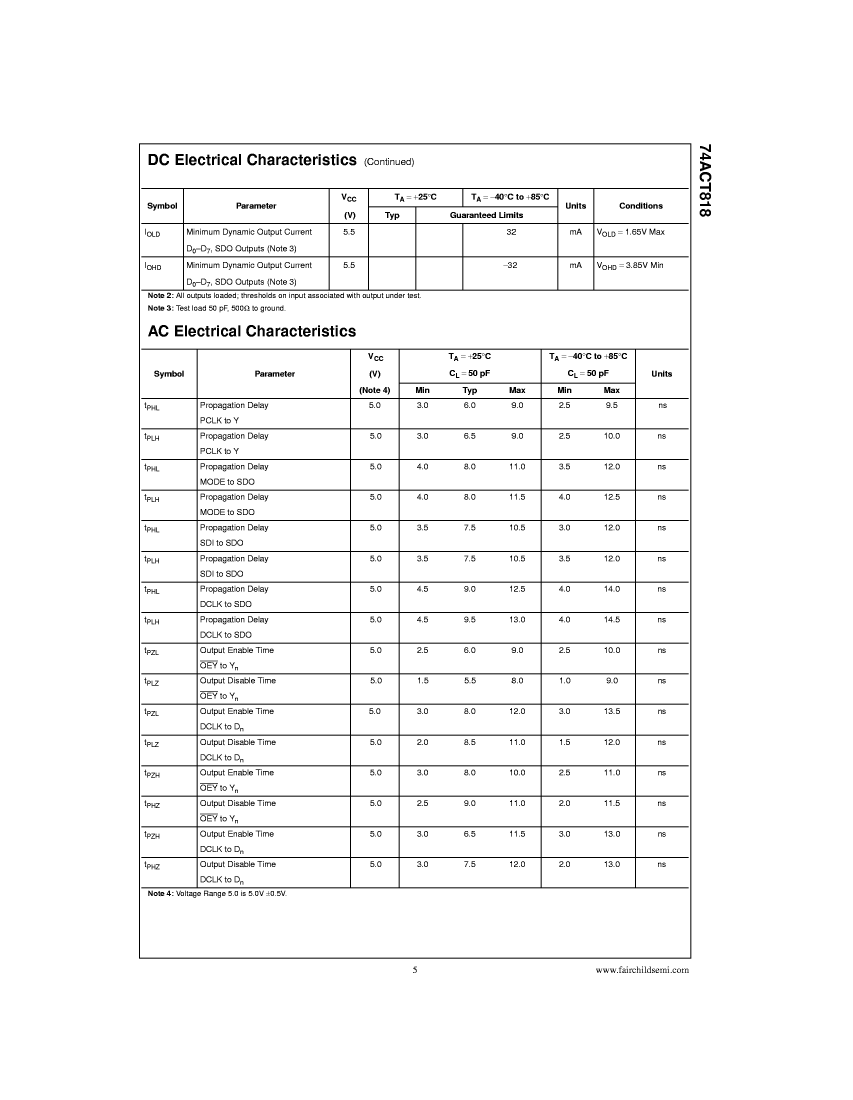

Bus Driver, ACT Series, 1-Func, 8-Bit, True Output, CMOS, PDIP24, PLASTIC, DIP-24
| Parameter Name | Attribute value |
| Maker | Rochester Electronics |
| package instruction | DIP, |
| Reach Compliance Code | unknown |
| Other features | SCANNABLE |
| series | ACT |
| JESD-30 code | R-PDIP-T24 |
| length | 31.75 mm |
| Logic integrated circuit type | BUS DRIVER |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of ports | 2 |
| Number of terminals | 24 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Maximum seat height | 5.08 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| width | 15.24 mm |
| Base Number Matches | 1 |
| 74ACT818PC | 74ACT818PCQR | 74ACT818QCQR | 74ACT818DCQR | 74ACT818DC | |
|---|---|---|---|---|---|
| Description | Bus Driver, ACT Series, 1-Func, 8-Bit, True Output, CMOS, PDIP24, PLASTIC, DIP-24 | Bus Driver, ACT Series, 1-Func, 8-Bit, True Output, CMOS, PDIP24, PLASTIC, DIP-24 | Bus Driver, ACT Series, 1-Func, 8-Bit, True Output, CMOS, PQCC28, PLASTIC, LCC-28 | Bus Driver, ACT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP24, CERAMIC, DIP-24 | Bus Driver, ACT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP24, CERAMIC, DIP-24 |
| Maker | Rochester Electronics | Rochester Electronics | Rochester Electronics | Rochester Electronics | Rochester Electronics |
| package instruction | DIP, | DIP, | QCCJ, | DIP, | DIP, |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown |
| Other features | SCANNABLE | SCANNABLE | SCANNABLE | SCANNABLE | SCANNABLE |
| series | ACT | ACT | ACT | ACT | ACT |
| JESD-30 code | R-PDIP-T24 | R-PDIP-T24 | S-PQCC-J28 | R-GDIP-T24 | R-GDIP-T24 |
| Logic integrated circuit type | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER |
| Number of digits | 8 | 8 | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 | 1 |
| Number of ports | 2 | 2 | 2 | 2 | 2 |
| Number of terminals | 24 | 24 | 28 | 24 | 24 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | TRUE | TRUE | TRUE | TRUE | TRUE |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP | DIP | QCCJ | DIP | DIP |
| Package shape | RECTANGULAR | RECTANGULAR | SQUARE | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | CHIP CARRIER | IN-LINE | IN-LINE |
| Maximum seat height | 5.08 mm | 5.08 mm | 4.57 mm | 5.715 mm | 5.715 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | NO | YES | NO | NO |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | J BEND | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 1.27 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | QUAD | DUAL | DUAL |
| width | 15.24 mm | 15.24 mm | 11.5062 mm | 15.24 mm | 15.24 mm |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 |
| length | 31.75 mm | 31.75 mm | 11.5062 mm | - | - |
| Is Samacsys | - | - | N | N | N |
