74F253D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 74F253D

74F253D: DescriptionMultiplexer, F/FAST Series, 2-Func, 4 Line Input, 1 Line Output, True Output, TTL, PDSO16,; Categorylogic logic; File Size125KB，4 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

74F253D Overview

Multiplexer, F/FAST Series, 2-Func, 4 Line Input, 1 Line Output, True Output, TTL, PDSO16,

74F253D Parametric

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
series	F/FAST
JESD-30 code	R-PDSO-G16
Load capacitance (CL)	50 pF
Logic integrated circuit type	MULTIPLEXER
Number of functions	2
Number of entries	4
Output times	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum supply current (ICC)	23 mA
propagation delay (tpd)	12 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

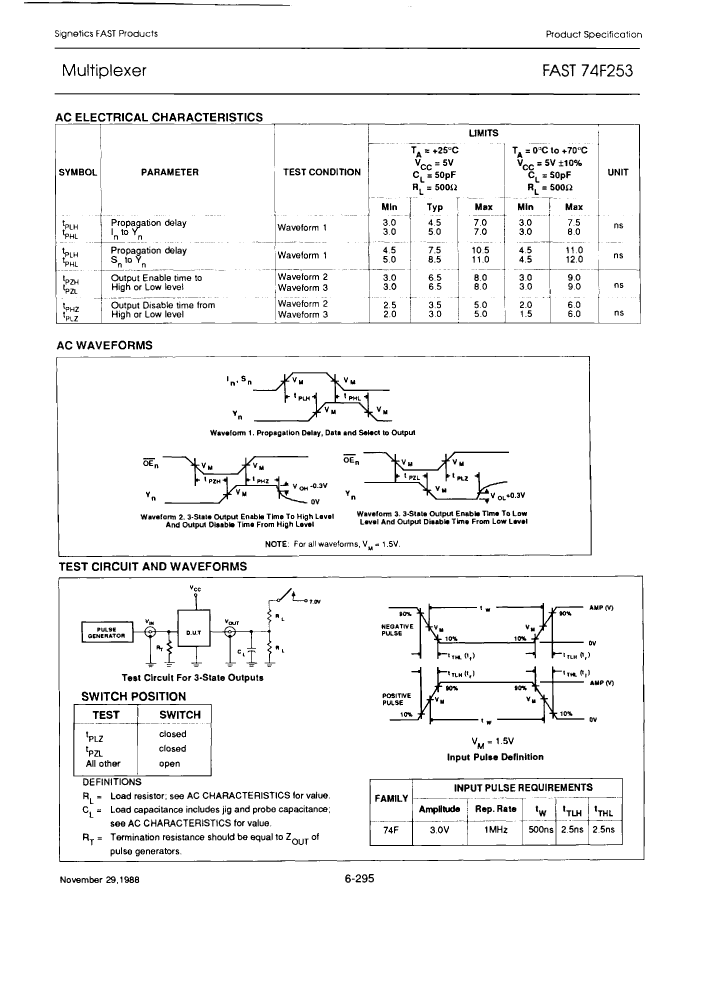

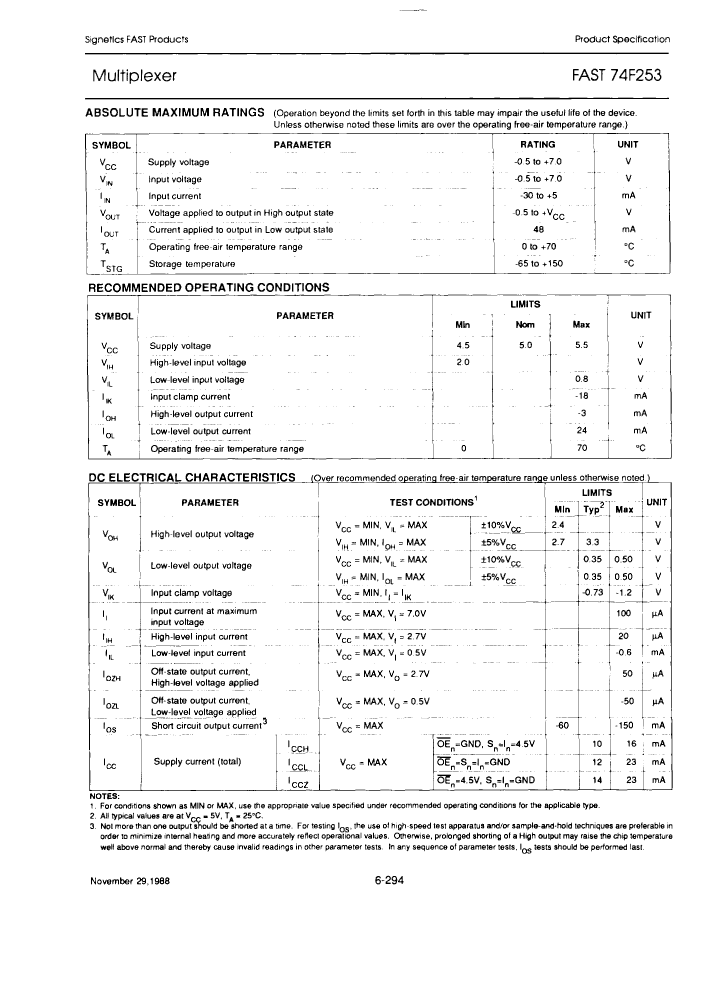

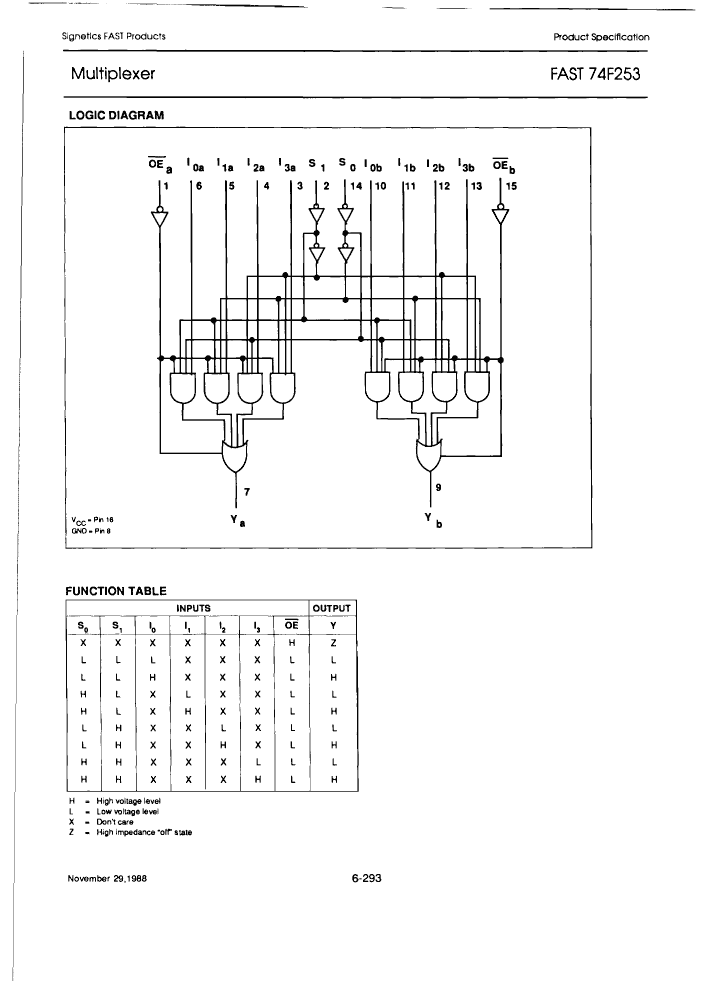

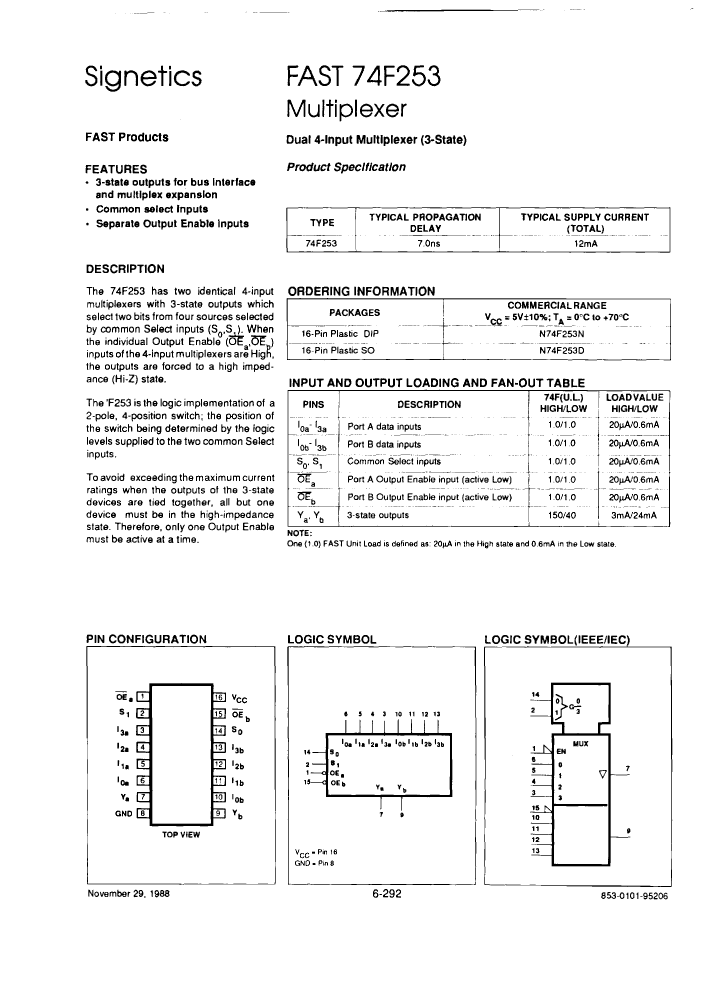

Preview

Download Datasheet

View All

74F253D Related Products

	74F253D	74F253D-T	74F253N	N74F253N	N74F253D-T	N74F253D
Description	Multiplexer, F/FAST Series, 2-Func, 4 Line Input, 1 Line Output, True Output, TTL, PDSO16,	Multiplexer, F/FAST Series, 2-Func, 4 Line Input, 1 Line Output, True Output, TTL, PDSO16,	Multiplexer, F/FAST Series, 2-Func, 4 Line Input, 1 Line Output, True Output, TTL, PDIP16,	Multiplexer, F/FAST Series, 2-Func, 4 Line Input, 1 Line Output, True Output, TTL, PDIP16,	Multiplexer, F/FAST Series, 2-Func, 4 Line Input, 1 Line Output, True Output, TTL, PDSO16,	Multiplexer, F/FAST Series, 2-Func, 4 Line Input, 1 Line Output, True Output, TTL, PDSO16,
Maker	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
series	F/FAST	F/FAST	-	F/FAST	F/FAST	F/FAST
JESD-30 code	R-PDSO-G16	R-PDSO-G16	-	R-PDIP-T16	R-PDSO-G16	R-PDSO-G16
Load capacitance (CL)	50 pF	50 pF	-	50 pF	50 pF	50 pF
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	-	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
Number of functions	2	2	-	2	2	2
Number of entries	4	4	-	4	4	4
Output times	1	1	-	1	1	1
Number of terminals	16	16	-	16	16	16
Maximum operating temperature	70 °C	70 °C	-	70 °C	70 °C	70 °C
Output characteristics	3-STATE	3-STATE	-	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	-	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	-	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
Maximum supply current (ICC)	23 mA	23 mA	-	23 mA	23 mA	23 mA
propagation delay (tpd)	12 ns	12 ns	-	12 ns	12 ns	12 ns
Certification status	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	-	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	-	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	-	5 V	5 V	5 V
surface mount	YES	YES	-	NO	YES	YES
technology	TTL	TTL	-	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	-	THROUGH-HOLE	GULL WING	GULL WING
Terminal location	DUAL	DUAL	-	DUAL	DUAL	DUAL
