74LS109B datasheet, PDF - EEWORLD Datasheet

74LS109B: DescriptionJ-Kbar Flip-Flop, LS Series, 2-Func, Positive Edge Triggered, 2-Bit, Complementary Output, TTL, PDIP16; Categorylogic logic; File Size87KB，3 Pages; ManufacturerSignetics

Download Datasheet Parametric View All

74LS109B Overview

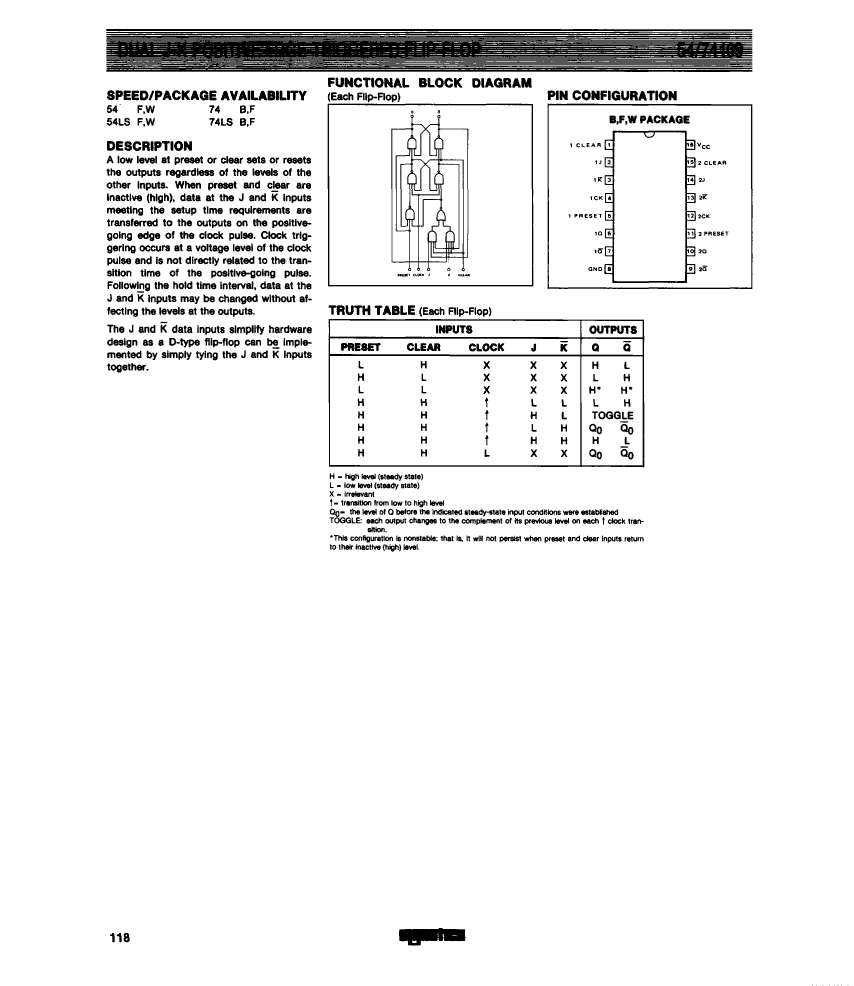

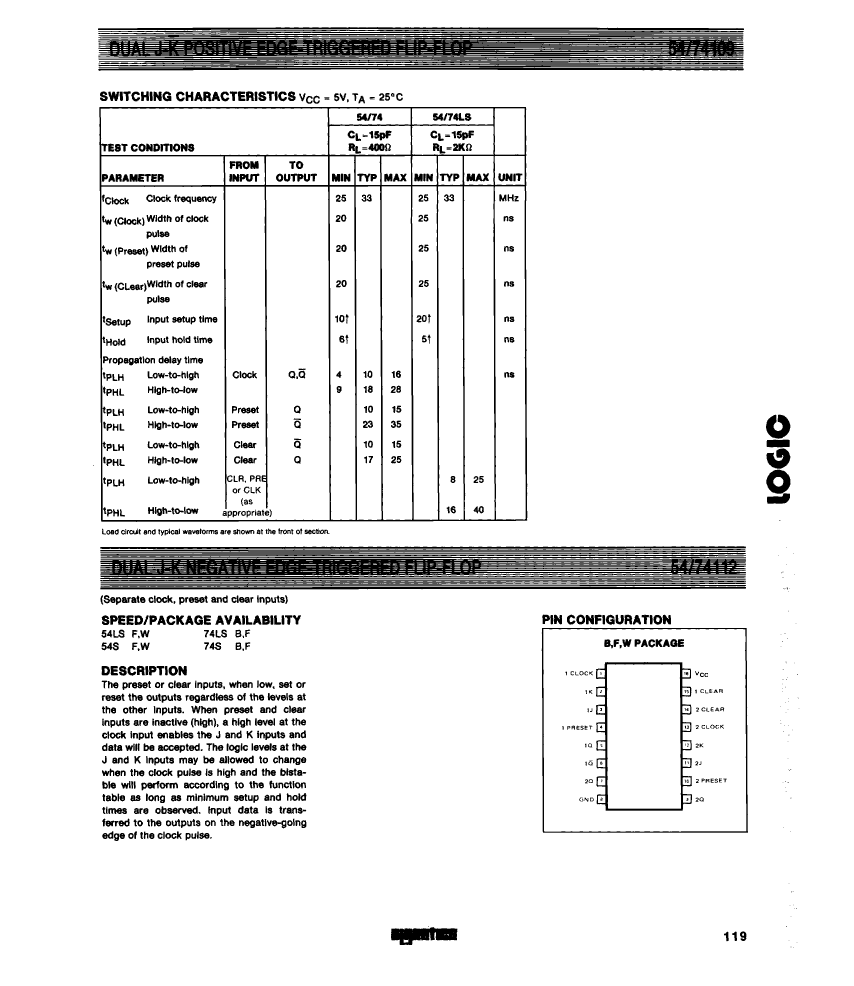

J-Kbar Flip-Flop, LS Series, 2-Func, Positive Edge Triggered, 2-Bit, Complementary Output, TTL, PDIP16

Parameter Name	Attribute value
Maker	Signetics
package instruction	,
Reach Compliance Code	unknown
series	LS
JESD-30 code	R-PDIP-T16
Load capacitance (CL)	15 pF
Logic integrated circuit type	J-KBAR FLIP-FLOP
Number of digits	2
Number of functions	2
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	8 mA
propagation delay (tpd)	40 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Trigger type	POSITIVE EDGE
minfmax	25 MHz
Base Number Matches	1
