599-10-100-05-000429 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> socket> 599-10-100-05-000429

Preview

599-10-100-05-000429: DescriptionIC Socket, BGA100, 100 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size70KB，2 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

599-10-100-05-000429 Overview

IC Socket, BGA100, 100 Contact(s), ROHS COMPLIANT

599-10-100-05-000429 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	BGA ADAPTER
Contact to complete cooperation	GOLD (10) OVER NICKEL (150)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact material	BERYLLIUM COPPER
Device slot type	IC SOCKET
Type of equipment used	BGA100
Shell material	GLASS FILLED EPOXY
JESD-609 code	e4
Number of contacts	100
Base Number Matches	1

Preview

Download Datasheet

View All

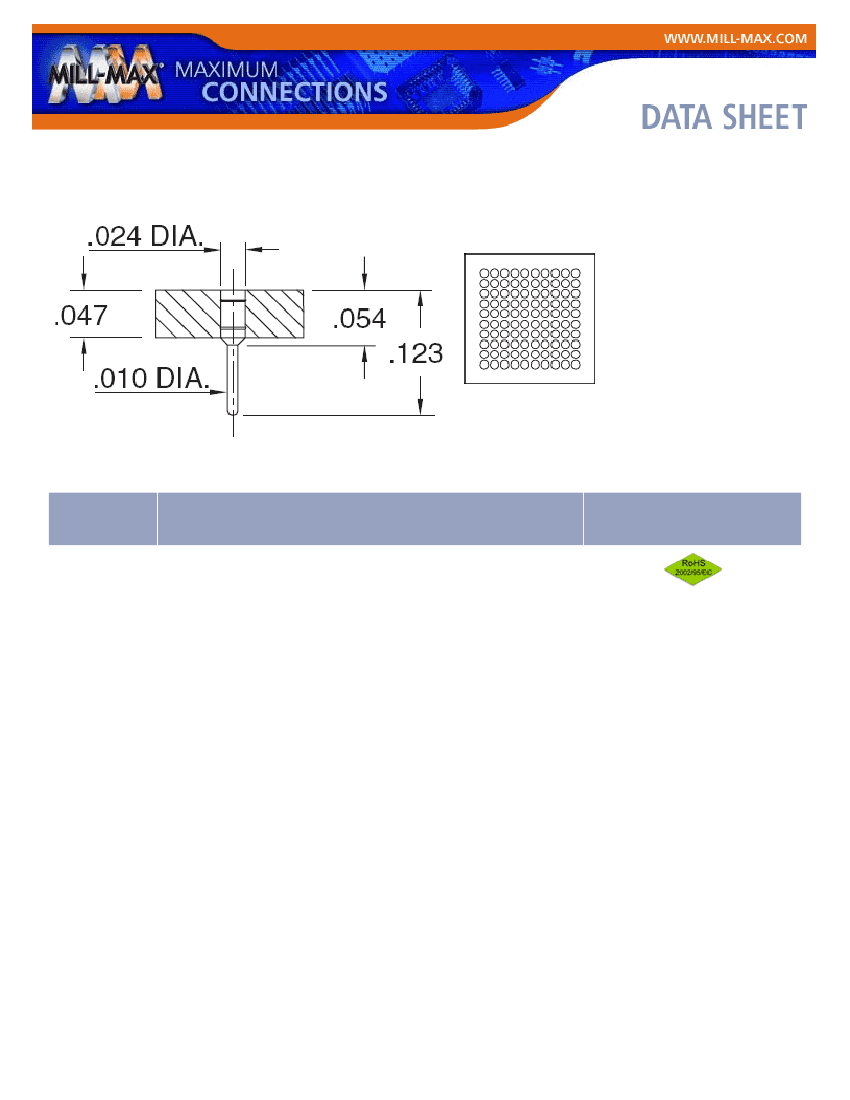

Product Number: 599-10-100-05-000429

Description:

BGA Header

1mm Grid; BGA Header

Plating Code:

10

Shell Plating:

10 " Gold over 100 " Nickel

100-05-000

10 X 10

#

Of

Pins

100

Mill-Max

Part

Number

599-10-100-05-000429

RoHS

Compliant

LOOSE PIN:

Loose Pin Used: 9929

BRASS ALLOY

(UNS C36000) per ASTM B 16

Properties of BRASS ALLOY:

Chemical composition: Cu 61.5%, Zn 35.4%, Pb 3.1%†

Hardness as machined: 80-90 Rockwell B

Density: .307 lbs/in3

Electrical conductivity: 26% IACS*

Melting point: 900°C/885°C (liquidus/solidus)

†(3 to 4% lead is used to permit “free machining” and is permitted by EC Directive 2002/95Annex 6; so all pin materials are

RoHS compliant)

*International Annealed Copper Standard, i.e. as a % of pure copper.

INSULATOR INFORMATION:

FR-4

Laminate

High Temperature

Properties of FR-4 Laminate:

Epoxy/Glass Laminate. Thicknesses available: .010”, .020”, .031”, .047”, .062”, .093”, .125” (natural color, beige)

Mill-Max Mfg. Corp. Datasheet – Last Modified 6/27/2008

Page 1 of 2
