55018-0809 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 55018-0809

55018-0809: DescriptionBoard Stacking Connector, 80 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size417KB，6 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

55018-0809 Overview

Board Stacking Connector, 80 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug

55018-0809 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POLARIZED
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	55018
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	80
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

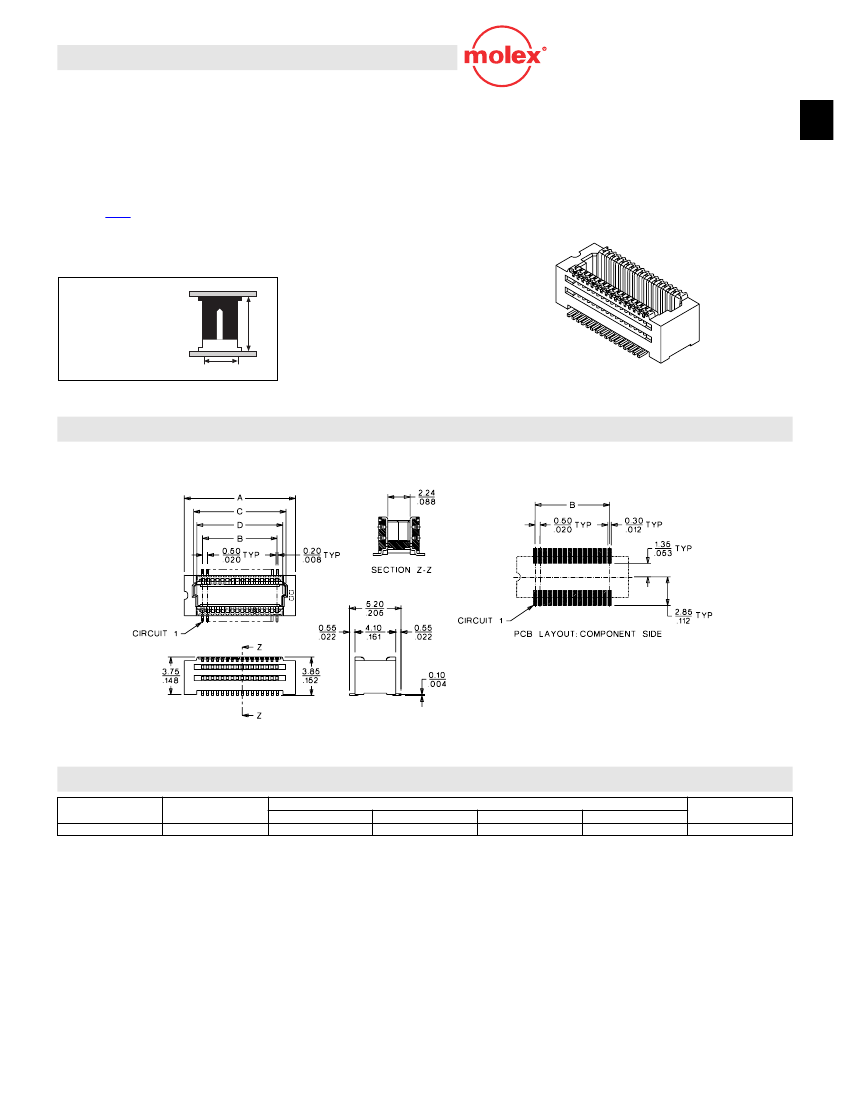

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Stacking height: 5.00mm (.197")

Sizes 60 circuits

Polarized design

Durable blade on beam contact interface

Anti-ﬂux design

Reference Information

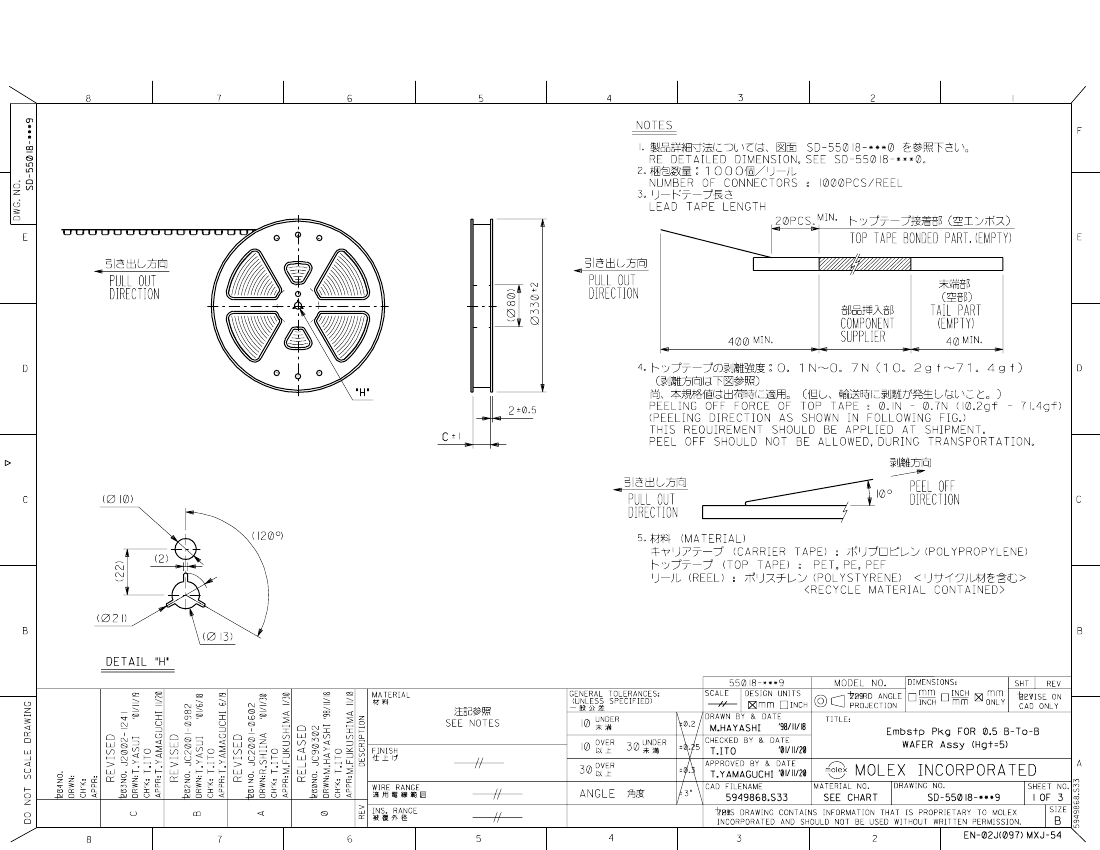

Packaging: Embossed

Mates With:

54206

Designed In: Millimeters

Electrical

Voltage: 50V

Current: 0.4A

Contact Resistance: 80m

Ω

max.

Dielectric Withstanding Voltage: 500V AC/1 min.

Insulation Resistance: 500 M

Ω

min.

Physical

Housing: LCP, UL 94V-0

Contact: Copper Alloy

Plating: Gold over Nickel

Operating Temperature: -40 to +85

0.50mm (.020") Pitch

Board-to-Board

Plug

55018

SMT, Dual Row

Vertical Stacking

0.40 to 1.60mm (.016 to .063") Pitch

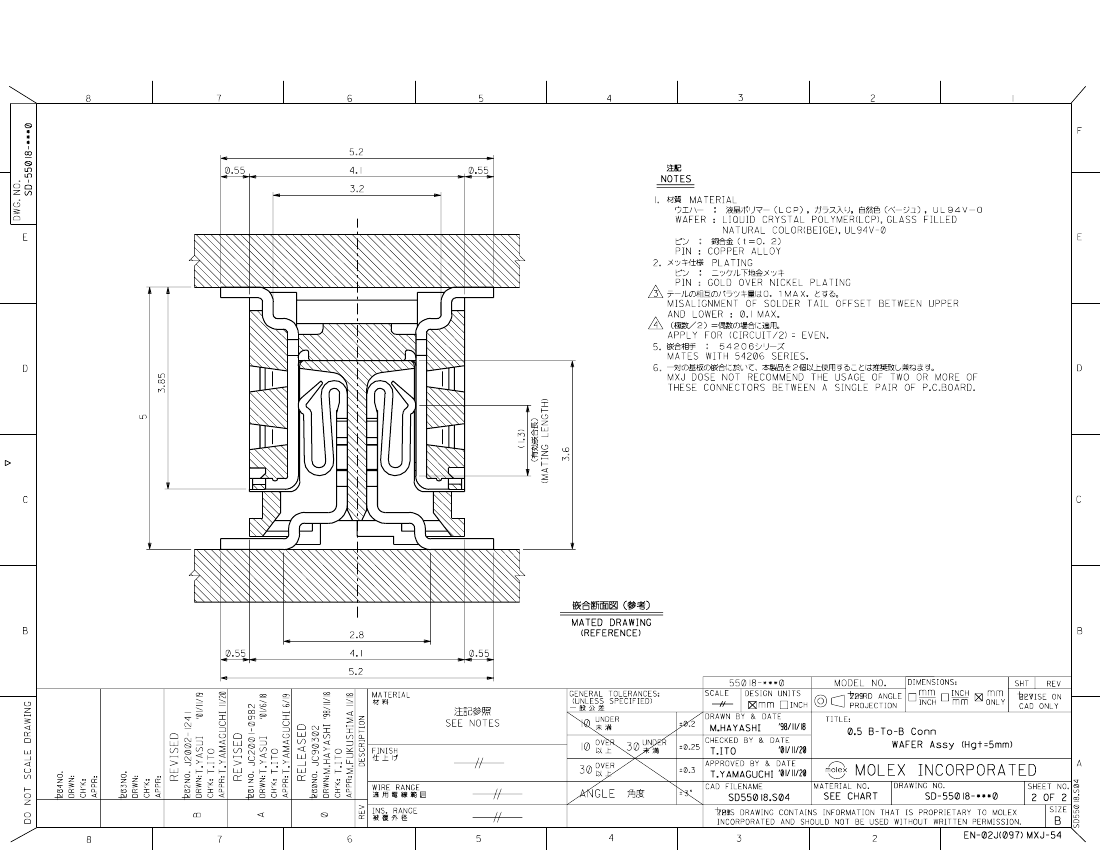

Mating Dimensions

55108/54206

H=5.00mm (.197")

W=4.10mm (.161")

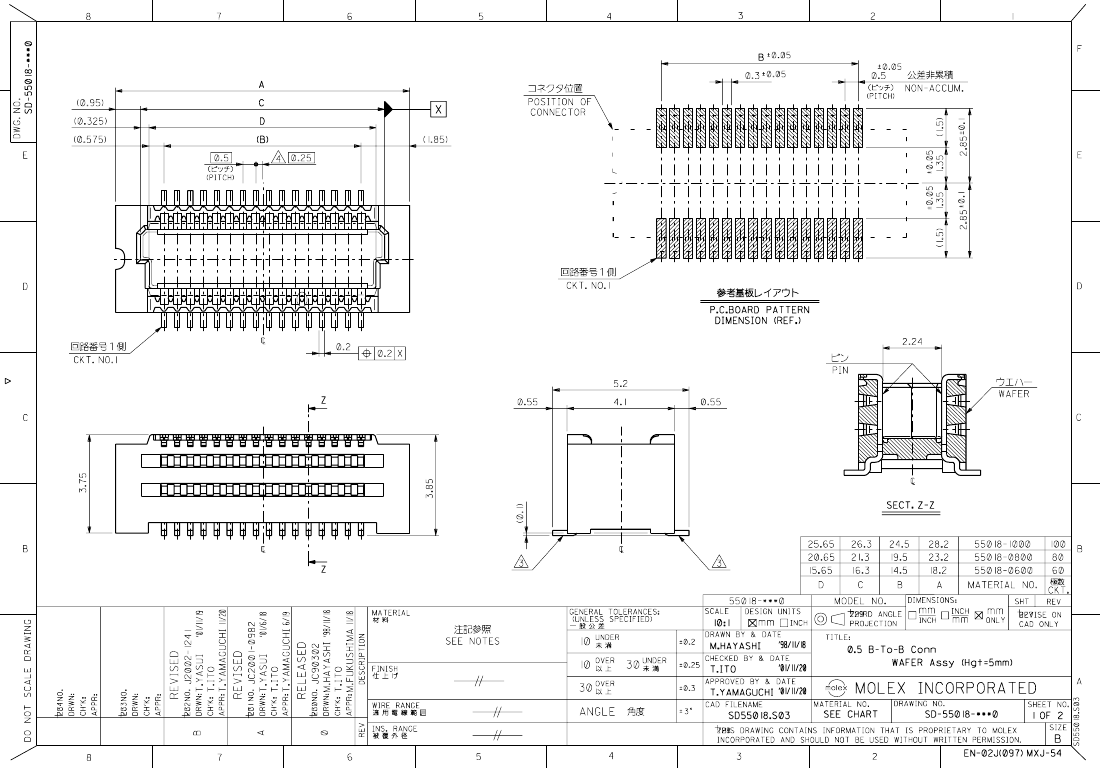

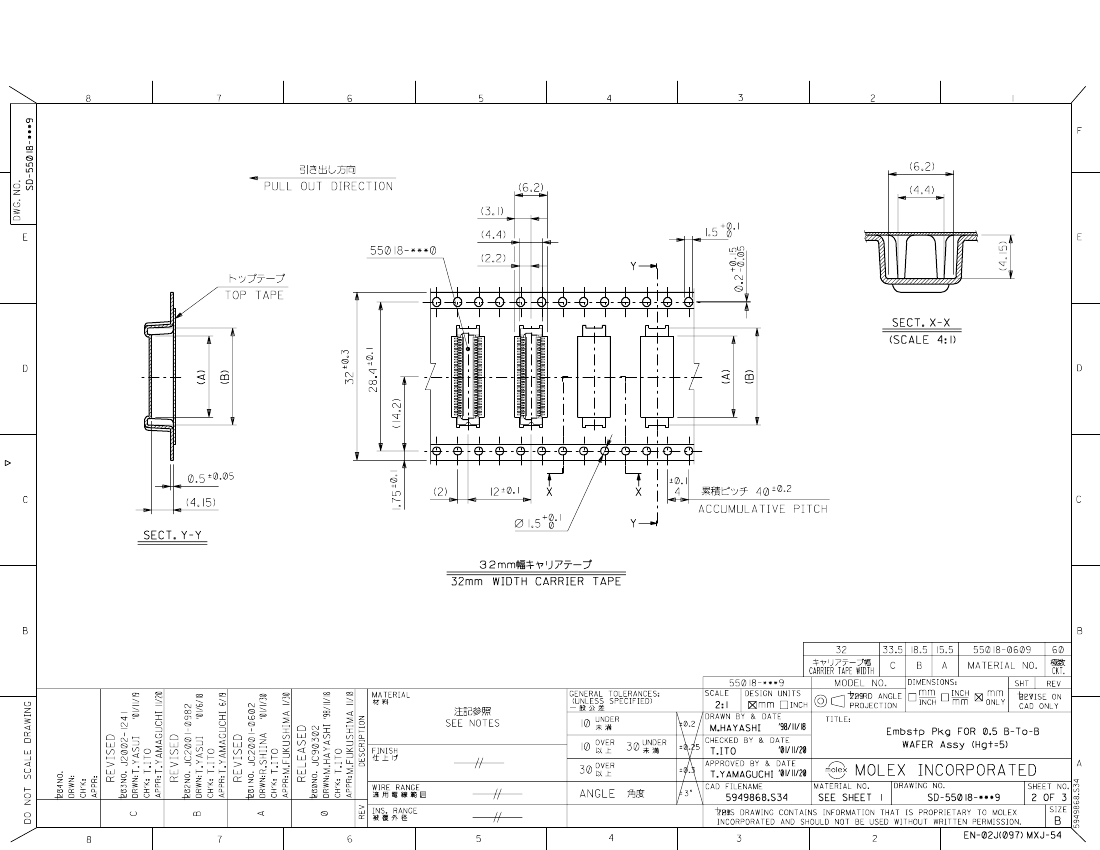

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION AND DIMENSIONS

Circuits

Order No.

55018-0609

Dimension

18.20 (.717)

14.50 (.571)

16.30 (.642)

15.65 (.616)

Tape Width

32.00 (1.260)

MX01

A-27

55018-0809 Related Products

	55018-0809	55018-0609	55018-1009
Description	Board Stacking Connector, 80 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug	Board Stacking Connector, 60 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Beige Insulator, Plug	Board Stacking Connector, 100 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug
Reach Compliance Code	unknown	unknown	unknown
Other features	POLARIZED	POLARIZATION AVAILABLE	POLARIZED
Body/casing type	PLUG	PLUG	PLUG
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR
Contact point gender	MALE	MALE	MALE
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Manufacturer's serial number	55018	55018	55018
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.5 mm	0.5 mm	0.5 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	80	60	100
UL Flammability Code	94V-0	94V-0	94V-0
Base Number Matches	1	1	1
Is it Rohs certified?	conform to	conform to	-
Maker	Molex	Molex	-
ECCN code	EAR99	EAR99	-
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	-
Contact material	NOT SPECIFIED	NOT SPECIFIED	-
