SPA560 Series
22A / 600-1000V
THREE PHASE BRIDGE
RECTIFIER ASSEMBLY
ULTRA FAST – 70 ns
Features:
•
•
•
•
•
•
•
•
Higher Blocking Voltage Available. Contact Factory.
Average Output Current 22 Amps
Low Reverse Leakage Current
Constructed with Void-free, Hermetically Sealed Discretes
Aluminum Case for Maximum Thermal Conductivity
Small Package Size (0.89 x 0.89 x 0.39”)
TX and TXV & S Level Screening Available
Superior Replacement for Sensitron S455DC, S455FC, &
S455GC
•
Standard, Fast, & Hyper Fast Versions Available.
Contact Factory.
DESIGNER’S DATA SHEET
Part Number / Ordering Information
SPA560 __ __ __
1/
│ │ └
Screening
2/
__
= Not Screened
│ │
TX = TX Level
│ │
TXV = TXV Level
│ │
S = S Level
│ │
│ └
Lead Bend __
= Straight Leads
│
UB = Up Bend
│
DB = Down Bend
│
└
Voltage/Family
J = 600 V
K = 800 V
M = 1000 V
Maximum Ratings
3/
Symbol
Value
Units
Peak Inverse Voltage
SPA560J
SPA560K
SPA560M
T
C
= 55
°C
T
C
= 100
°C
PIV
I
O1
I
O2
I
FSM
T
op
& T
stg
R
θJC
600
800
1000
22
15
125
-55 to +150
1.25
Volts
Amps
Amps
ºC
ºC/W
Average Rectified Output Current
(T
C
= Case Temperature)
Peak Surge Current
(8.3 ms Pulse, Half Sine Wave, Superimposed on Rated Load)
Operating & Storage Temperature
Maximum Thermal Resistance, Junction to Case
Notes:
SPA560
1/ For Ordering Information, Price, and Availability Contact Factory.
2/ Screened to MIL-PRF-19500.
3/ Unless Otherwise Specified, All Maximum Ratings/Electrical
Characteristics @25ºC.
NOTE:
All specifications are subject to change without notification.
SCD's for these devices should be reviewed by SSDI prior to release.
DATA SHEET #: RA0091A
DOC
Solid State Devices, Inc.
14701 Firestone Blvd * La Mirada, Ca 90638
Phone: (562) 404-4474 * Fax: (562) 404-1773
ssdi@ssdi-power.com * www.ssdi-power.com
SPA560 Series
Electrical Characteristic
3/
Maximum Forward Voltage Per Leg
(T
A
= 25°C, pulsed)
Reverse Leakage Current
(Rated PIV, T
A
= 25ºC)
Reverse Leakage Current
(Rated PIV, T
A
= 100ºC)
Isolation Resistance
Reverse Recovery Time
(I
F
= 500 mA, I
R
= 1 A, I
RR
= 250 mA T
A
= 25ºC
(Measured on discrete rectifiers prior to assembly)
NOTES:
1/ For Ordering Information, Price, and Availability Contact Factory.
2/ Screened to MIL-PRF-19500.
3/ Unless Otherwise Specified, All Maximum Ratings/Electrical Characteristics @25ºC.
Symbol
I
F
= 3A
I
F
= 9A
Min
Typ
Max
1.40
1.75
10
250
10
70
Units
V
F1
V
F2
I
R1
I
R2
––
––
Volts
––
––
––
––
––
––
––
––
µA
µA
MΩ
ns
1500V
R
ISO
trr

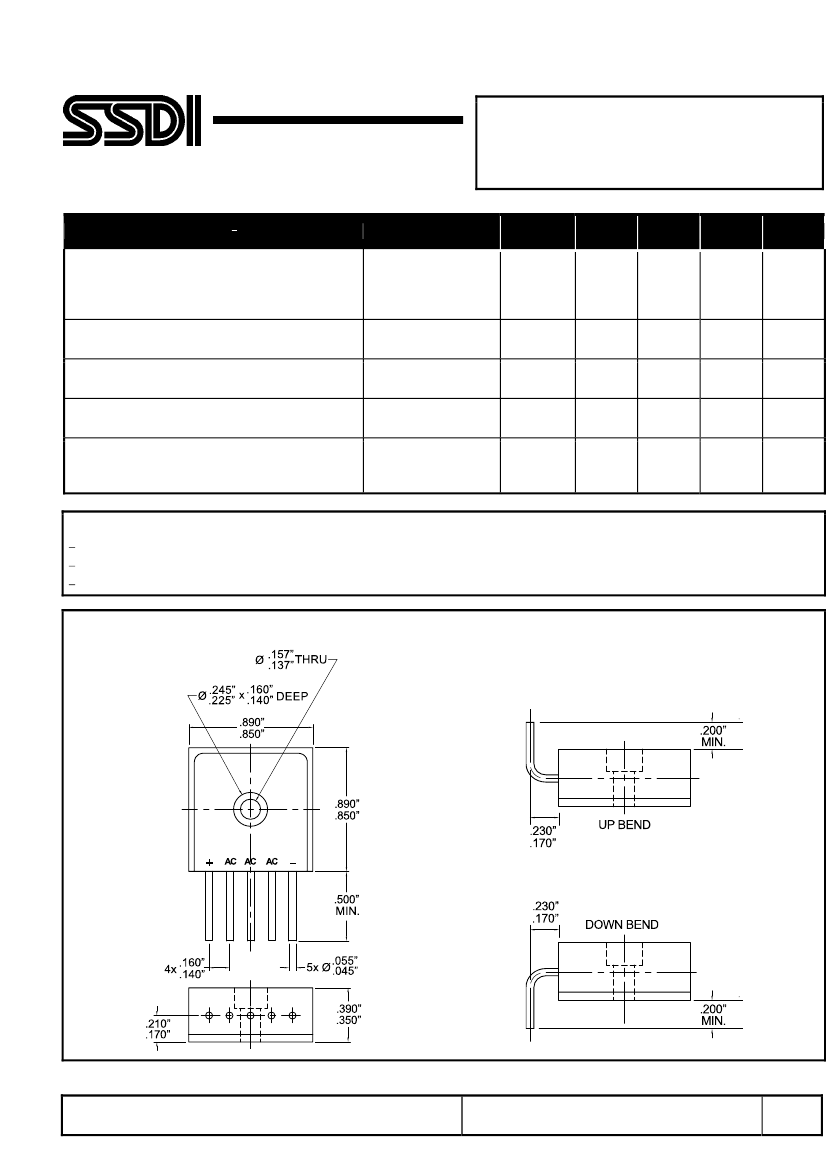

SPA560 Package Outline:
(Shown with Straight Leads)
Lead Bend Options:
NOTE:
All specifications are subject to change without notification.
SCD's for these devices should be reviewed by SSDI prior to release.
DATA SHEET #: RA0091A
DOC
