827KXM063MRW datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 827KXM063MRW

827KXM063MRW: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 820uF, Through Hole Mount, RADIAL LEADED, LEAD FREE; CategoryPassive components capacitor; File Size432KB，3 Pages; ManufacturerIllinois Capacitor; Websitehttp://www.illinoiscapacitor.com/; Environmental Compliance

Download Datasheet Parametric View All

827KXM063MRW Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	827KXM063MRW	-	-	View	Buy Now

827KXM063MRW Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 820uF, Through Hole Mount, RADIAL LEADED, LEAD FREE

827KXM063MRW Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Illinois Capacitor
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	820 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	18 mm
dielectric materials	ALUMINUM (WET)
ESR	1617.4 mΩ
JESD-609 code	e3
leakage current	0.5166 mA
length	33 mm
Manufacturer's serial number	KXM
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	63 V
ripple current	1512 mA
series	KXM
surface mount	NO
Delta tangent	0.08
Terminal surface	Matte Tin (Sn)
Terminal pitch	8 mm
Terminal shape	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

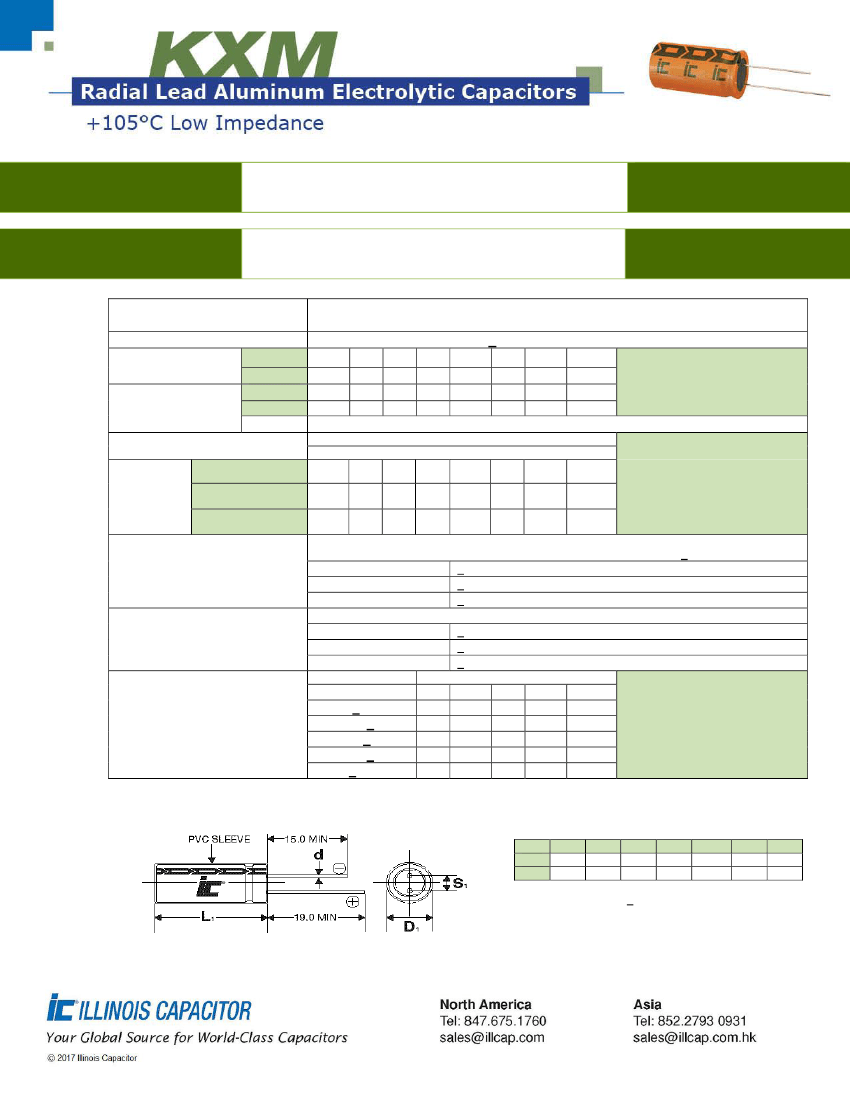

FEATURES

APPLICATIONS

Standardized Case Sizes

High Ripple Current

–

Multiple

Case Sizes

Bypass

–

Coupling

–

Filtering

–

De-coupling

Operating Temperature

Range

Capacitance Tolerance

WVDC

Surge Voltage

SVDC

WVDC

Dissipation

Tan δ

Factor

Leakage Current

Low

Temperature

Stability

Impedance

Ratio

(120 Hz)

-55°C to +105°C

+20% at 120 Hz, 20°C

6.3

7.9

6.3

.22

.19

.16

.14

.12

100

125

100

Add .02 for every 1000uF above 1000uF

2 Minutes

.01CV or 3uA, Whichever is greater

WVDC

-25°C to +20°C

-40°C to +20°C

6.3

100

Load Life

Shelf Life

5000 hours at 105°C with rated WVDC and ripple current applied

(4000 hrs for D=10, 3000 Hrs for D=8, 2000 Hrs for D<6.3)

Capacitance Change

<20% of initial measured value

Dissipation Factor

<200% of maximum specified value

Leakage Current

<100% of maximum specified value

1000 hours at 105°C with no voltage applied

Capacitance Change

<25% initial measured value

Dissipation Factor

<200% of maximum specified value

Leakage Current

<100% of maximum specified value

Frequency (Hz)

Ripple Current Multipliers

Capacitance

C<180

220<C<560

680<C<1800

2200<C<3900

C>4700

.75

.85

120

.75

.85

.75

.85

.87

.95

10k

.94

.95

.98

100k

1.0

6.3

2.0

2.5

3.5

5.0

0.5

0.6

=L+1.5 mm Max. (L<20mm)

=L+2.0 mm Max. (L>20mm)

=D+0.5 mm Max.

=S+0.5 mm

12.5

5.0

0.6

7.5

0.8

7.5

0.8

Feb-17
