0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP)
.050 Series I, HD, and FH Connectors
AMP
Active
Active
2-557100-1
-- 1 of 3 products
(Tyco Electronics P/N: 2-557100-1)
Next
Sales
Information
Related CAD
Geometry
AMP ACES
Related Documents
Pricing
Step Search
Screen
General
Information
Product Availability
Please use the customer drawing for all design activity.
s

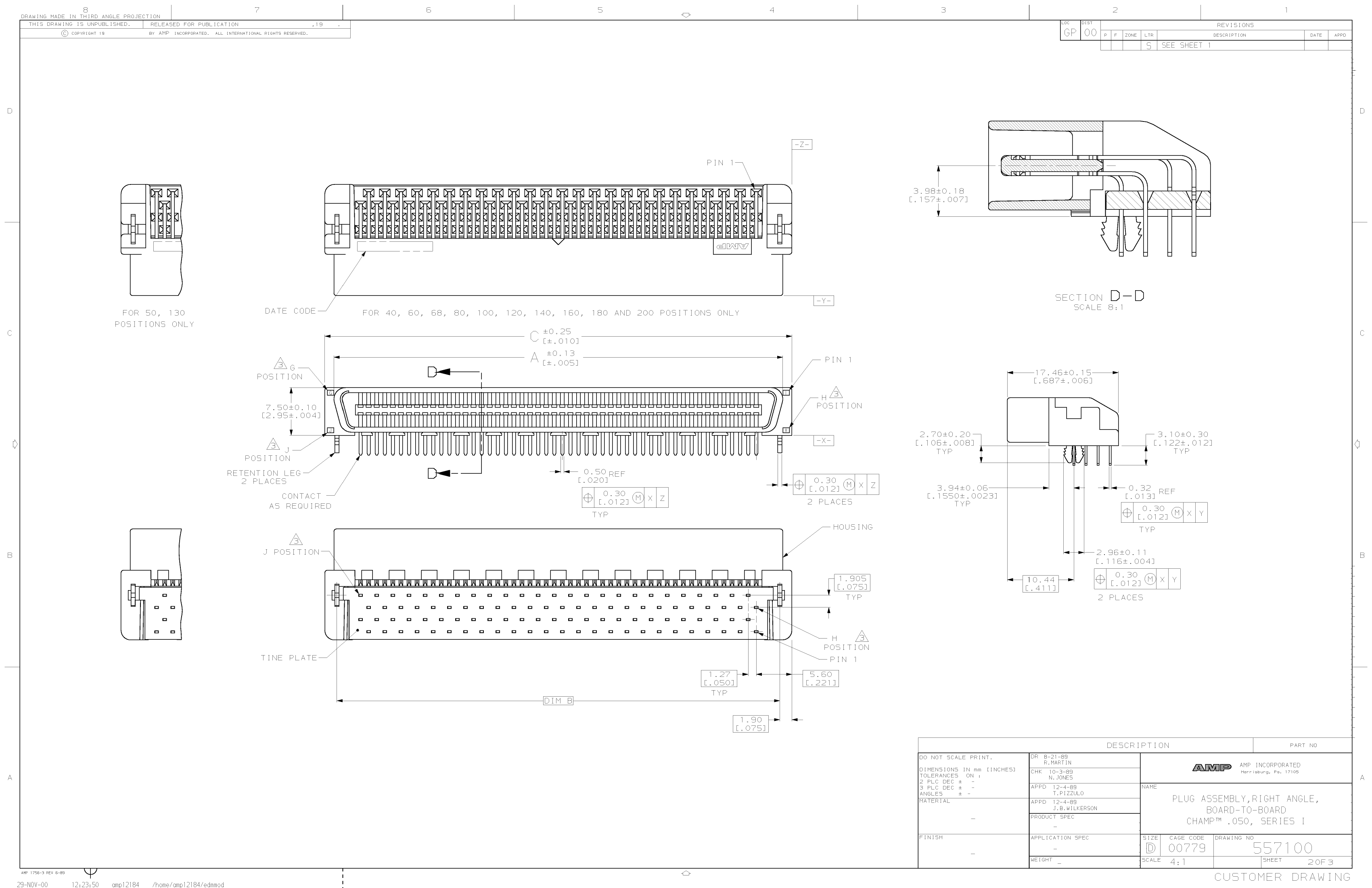

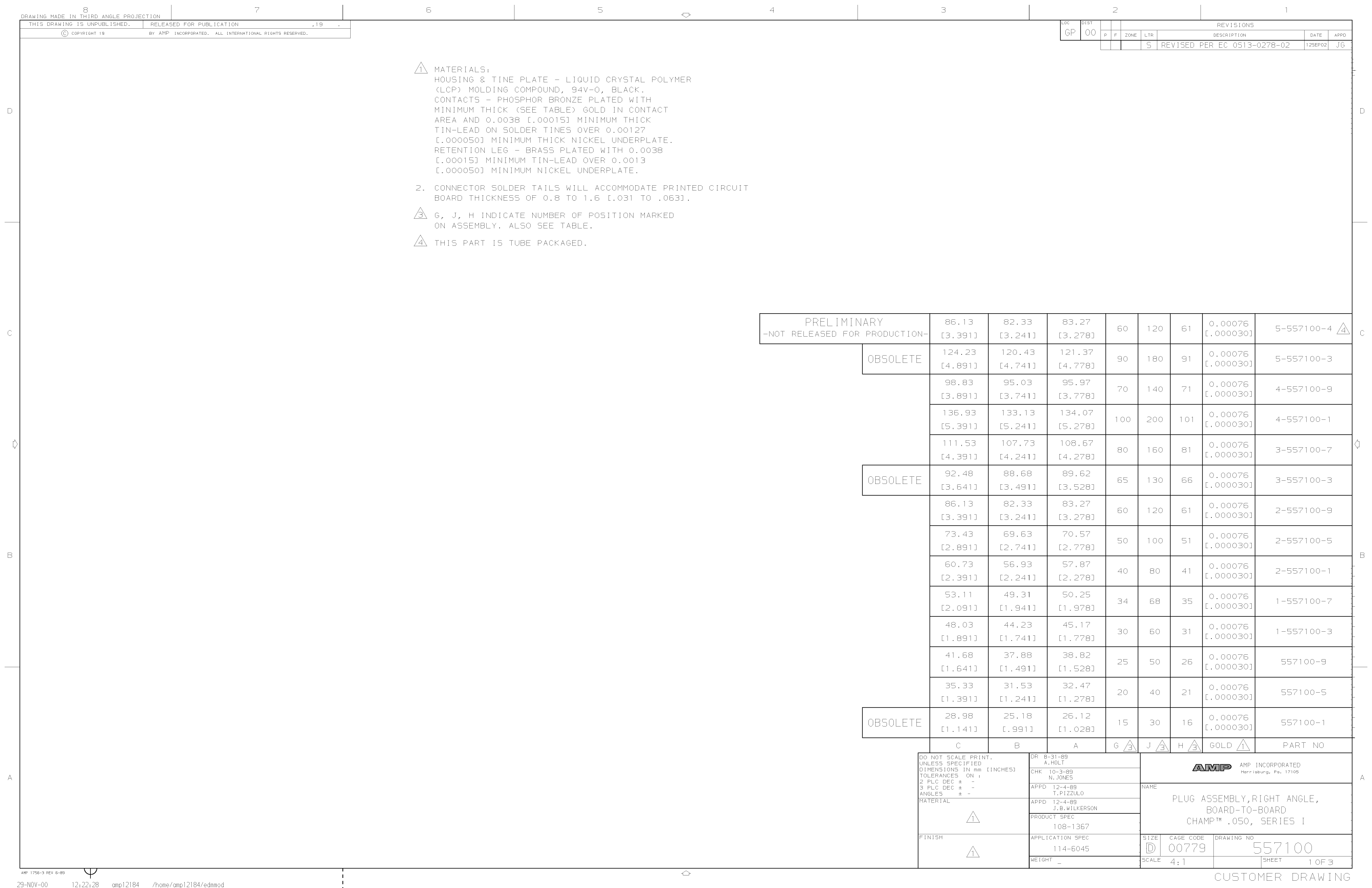

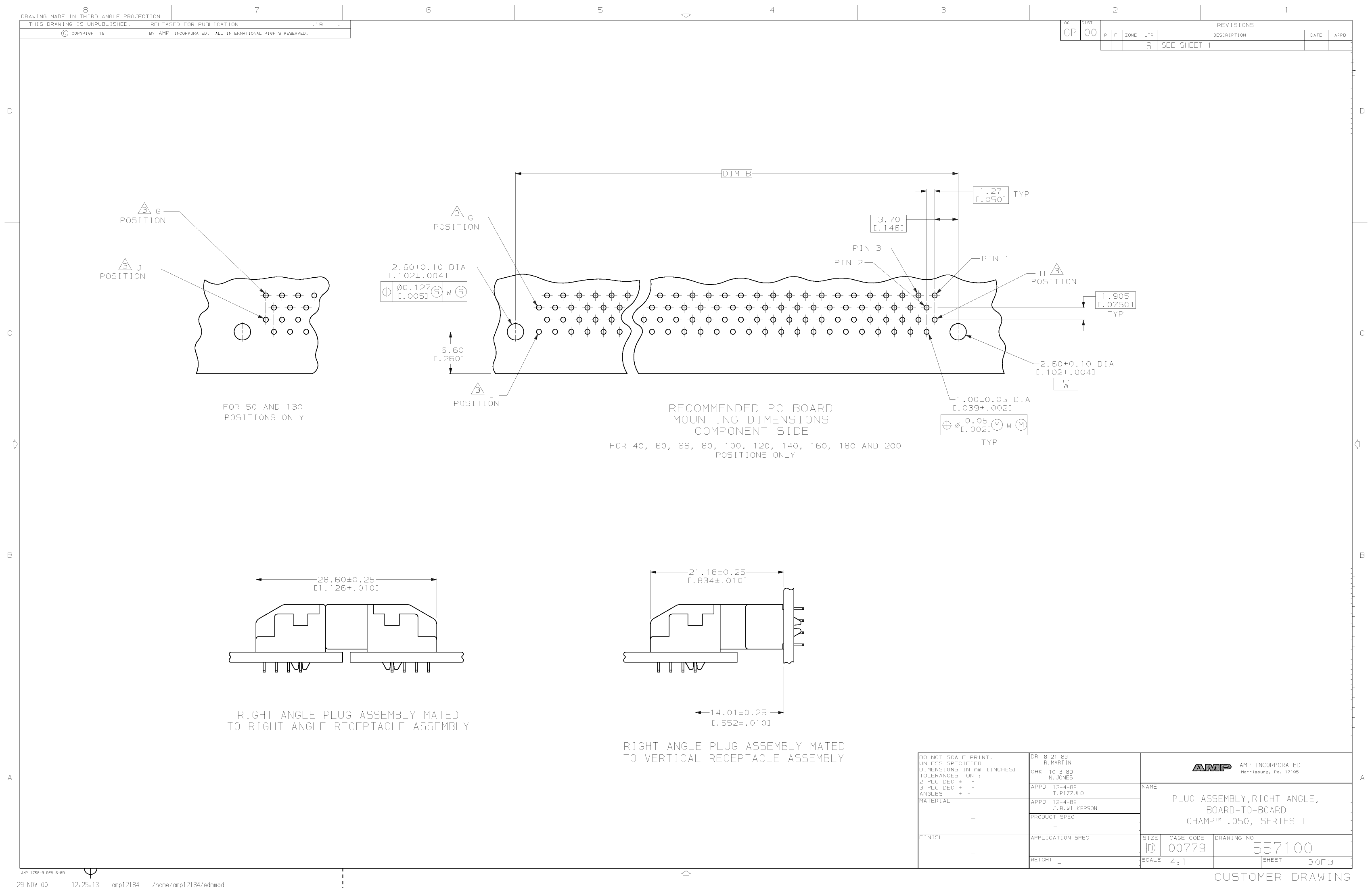

Customer Drawing: 557100,
Rev. S
Document Title: PLUG ASSEMBLY,RIGHT ANGLE, BOARD-TO-
BOARD TM CHAMP .050, SERIES I
213779.pdf
213779.pdf
(201K)
The photographs and/or line drawings below are representative images of a
product for viewing purposes only.
Product Photo
Searchable Features:
Brand:
Product Type:
Gender:
PCB Thickness (mm
[in]):
No. of Positions:
Profile:
PCB Mount Angle:
PCB Mount Style:
Application:
Connector Type:
PCB Polarization:
Special PCB Retention
Method:
AMP
Connector
Plug
0.80 – 1.60 [0.031 –
0.063]
80
Standard
Right Angle
Thru Hole
VAFC (VESA
Advanced Feature
Connector)
Series I
Without
Boardlock
Other Properties:
Contact Centerline
Spacing (mm [in]):
Special PCB Retention:
Boardlock Material:
Boardlock Plating:
Contact Material:
Contact Mating Area
Plating:
Solder Tail Plating:
Housing Material:
Housing Flammability
Rating:
Color:
Used For:
1.27 [0.050]
Yes
Brass
Tin-lead
Phosphor Bronze
Gold (30)
Tin-Lead
Liquid Crystal Polymer
(LCP)
UL 94V-0
Black
Board To Board
Applications
