38FLT-SM2-TB: DescriptionCard Edge Connector, 38 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal; CategoryThe connector The connector; File Size110KB，2 Pages; ManufacturerJST

Download Datasheet Parametric Compare View All

38FLT-SM2-TB Overview

Card Edge Connector, 38 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal

38FLT-SM2-TB Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	JST
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN OVER COPPER
Contact completed and terminated	TIN OVER COPPER
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	38
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

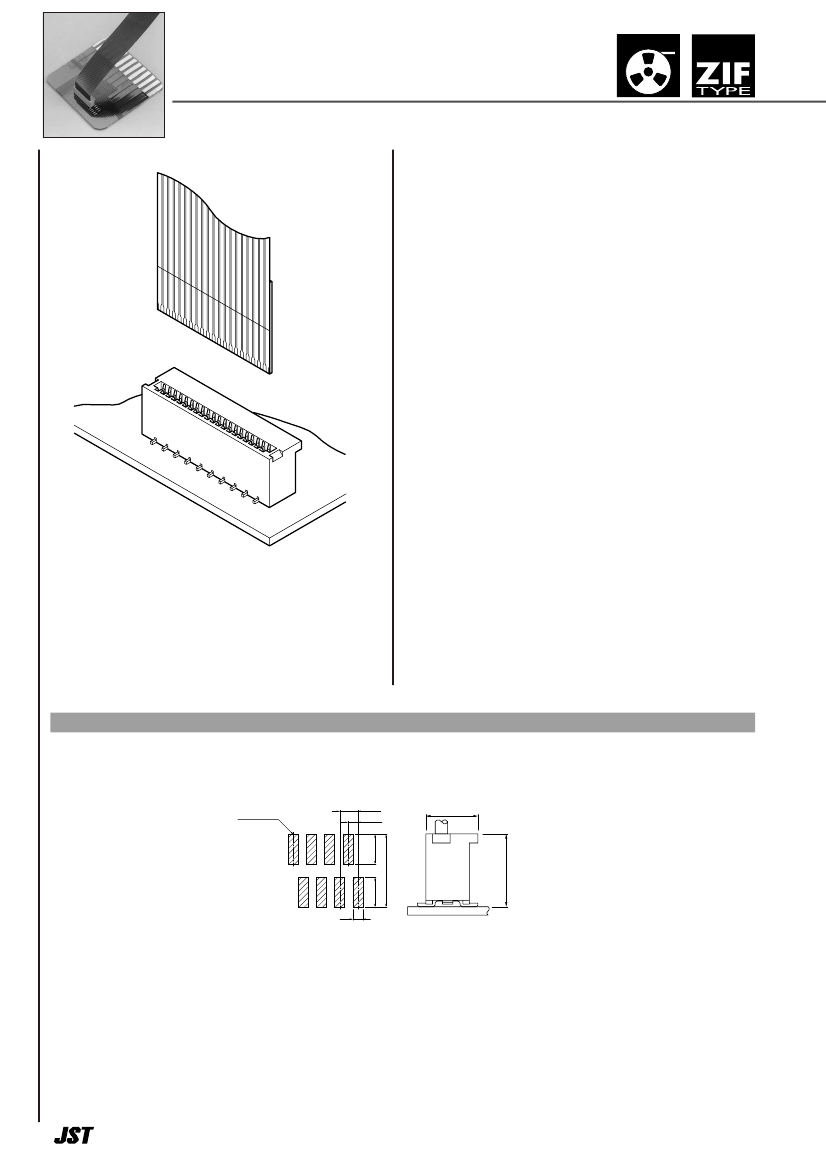

0.5mmピッチ

0.5mm pitch/Connectors for FPC

FLT

CONNECTOR

Emboss Tape

NON-

Specifications –––––––––––––––––––

• Current rating: 0.5A AC, DC

• Voltage rating: 50V AC, DC

• Temperature range: -25˚C to +85˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/50m

Ω

max.

After environmental testing/20m

Ω

max.

(variation from initial value)

• Insulation resistance:

500M

Ω

min.

• Withstanding voltage: 200V AC/minute

• Applicable FPC: Conductor pitch/0.5mm

Conductor width/0.35mm

Mating part thickness/0.3±0.05mm

Note

:

FPC to be actually used should be checked for applicability.

• Heat resisting design suitable for surface

mounting

• Staggered surface mount tails

• Embossed tape for automatic mounting

• FPC insertion is easy

• Compact design

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

Standards ––––––––––––––––––––––

1

Certified LR20812

0

Recognized E60389

PC board layout (viewed from component side) and Assembly layout

Circuit No.1

1.0

±0.05

0.5

±0.05

2.95

1.6

0.5

Note: 1. Tolerances are non-cumulative:

±

0.05mm for all centers.

2. The dimensions above should serve as a guide line. Contact JST for details.

1

1.6

4.15

4.0

38FLT-SM2-TB Related Products

	38FLT-SM2-TB	34FLT-SM2-TB(LF)(SN)	34FLT-SM2-TB	38FLT-SM2-TB(LF)(SN)	40FLT-SM2-TB(LF)(SN)	40FLT-SM2-TB	8FLT-SM2-TB(LF)(SN)	8FLT-SM2-TB
Description	Card Edge Connector, 38 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal	34 CONTACT(S), FEMALE, STRAIGHT FFC/FPC CONNECTOR, SURFACE MOUNT, ROHS COMPLIANT	34 CONTACT(S), FEMALE, STRAIGHT FFC/FPC CONNECTOR, SURFACE MOUNT	Card Edge Connector, 38 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, ROHS COMPLIANT	Card Edge Connector, 40 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, ROHS COMPLIANT	Card Edge Connector, 40 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal	8 CONTACT(S), FEMALE, STRAIGHT FFC/FPC CONNECTOR, SURFACE MOUNT, ROHS COMPLIANT	8 CONTACT(S), FEMALE, STRAIGHT FFC/FPC CONNECTOR, SURFACE MOUNT
Is it lead-free?	Contains lead	Lead free	Contains lead	Lead free	Lead free	Contains lead	Lead free	Contains lead
Is it Rohs certified?	incompatible	conform to	incompatible	conform to	conform to	incompatible	conform to	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Connector type	FFC/FPC CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN	TIN OVER COPPER	TIN OVER COPPER
Contact completed and terminated	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	38	34	34	38	40	40	8	8
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1	1
Maker	JST	JST	JST	JST	JST	JST	-	-
