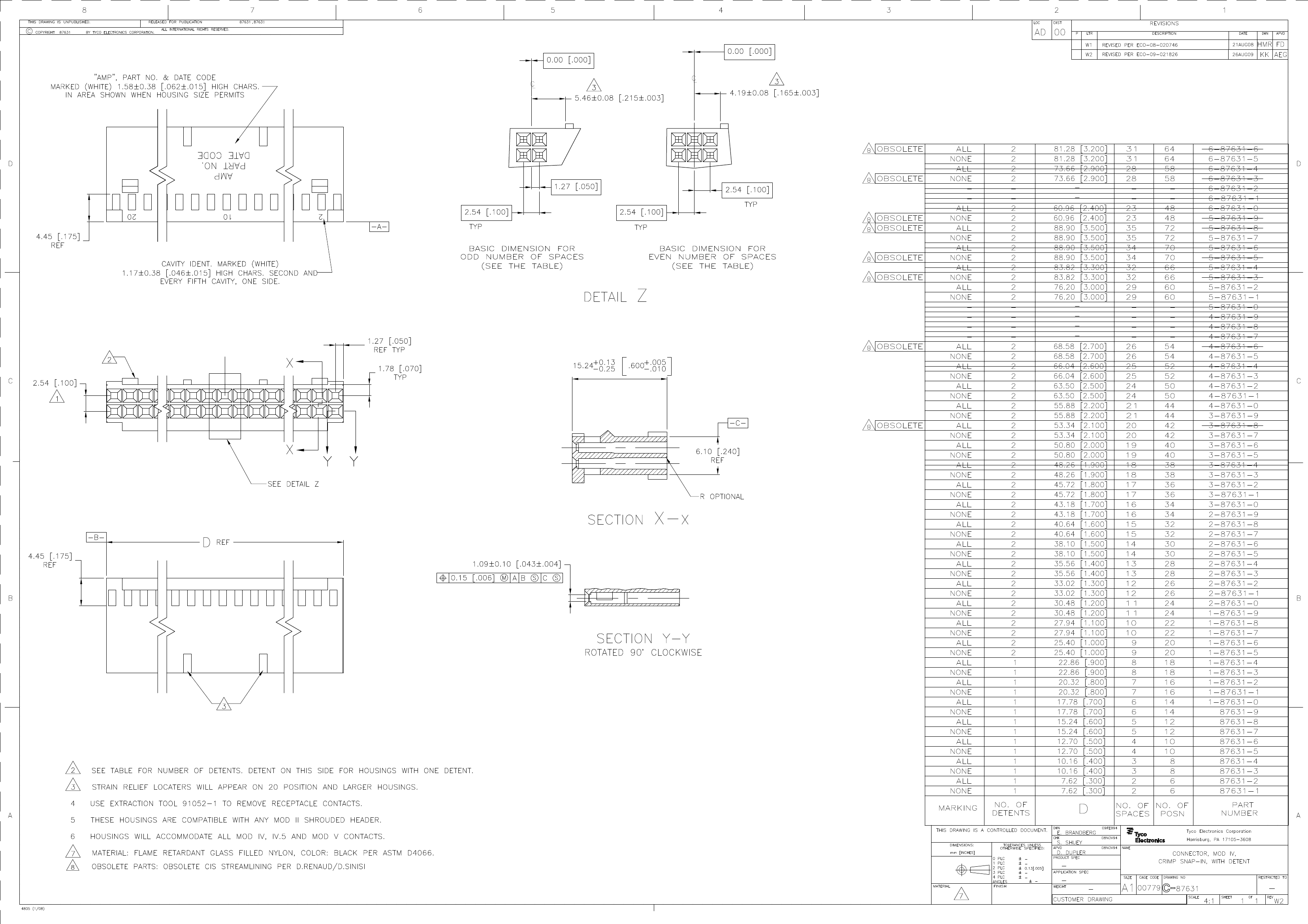

Preview

5-87631-8: Description72 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, CRIMP; CategoryThe connector The connector; File Size192KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5-87631-8 Overview

72 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, CRIMP

5-87631-8 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ID STAMPED ON PART
body width	0.24 inch
subject depth	0.6 inch
body length	3.6 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	THERMOPLASTIC
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LATCH
Installation type	CABLE
Number of rows loaded	2
Options	GENERAL PURPOSE
Rated current (signal)	3 A
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	72
Maximum wire diameter	20 AWG
Minimum wire diameter	32 AWG
Base Number Matches	1
