SDR625CTC: Description40A 35nsec 300-600 V Hyper Fast Centertap Rectifier; CategoryDiscrete semiconductor diode; File Size50KB，2 Pages; ManufacturerSSDI; Websitehttp://www.ssdi-power.com/

Download Datasheet Parametric Compare View All

SDR625CTC Overview

40A 35nsec 300-600 V Hyper Fast Centertap Rectifier

SDR625CTC Parametric

Parameter Name	Attribute value
Maker	SSDI
Parts packaging code	TO-254AA
package instruction	HERMETIC SEALED, CERAMIC PACKAGE-3
Contacts	3
Reach Compliance Code	compli
ECCN code	EAR99
application	HYPER FAST RECOVERY
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.86 V
JEDEC-95 code	TO-254AA
JESD-30 code	S-CSFM-T3
Maximum non-repetitive peak forward current	200 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	200 °C
Maximum output current	40 A
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	500 V
Maximum reverse recovery time	0.035 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

Preview

Download Datasheet

View All

`

Solid State Devices, Inc.

14701 Firestone Blvd * La Mirada, CA 90638

Phone: (562) 404-7855 * Fax: (562) 404-1773

ssdi@ssdi-power.com * www.ssdi-power.com

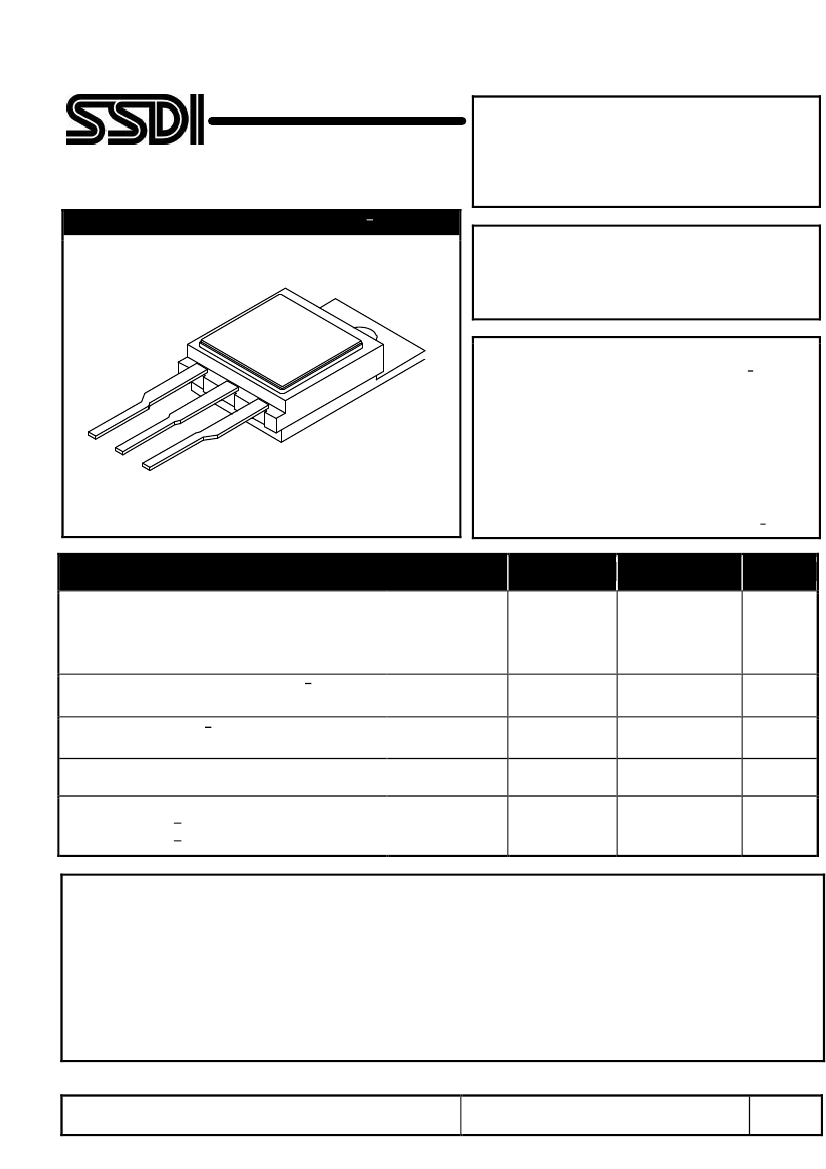

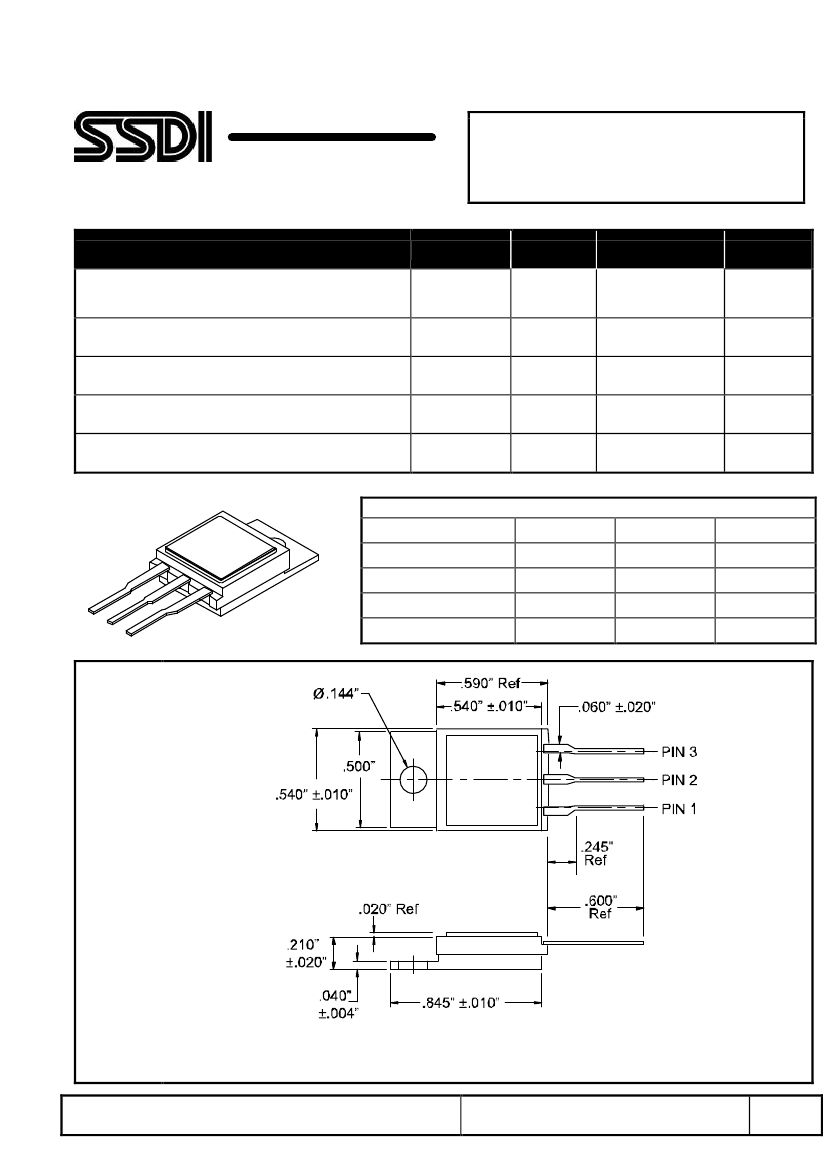

SDR623CTC

Thru

SDR626CTC

1/

DESIGNER’S DATA SHEET

CERAMIC TO-254

40A 35nsec 300-600 V

Hyper Fast Centertap Rectifier

Features

:

•

Hyper Fast Recovery: 35nsec Maximum

3/

High Surge Rating

Low Reverse Leakage Current

Low Junction Capacitance

Hermetically Sealed Package

Gold Eutectic Die Attach

Ultrasonic Aluminum Wire Bonds

Common Anode and Doubler Versions Available

Flat Leads for Low Inductance

TX, TXV, and S-Level Screening Available

2/

Maximum Ratings

SDR623CTC

SDR624CTC

SDR625CTC

SDR626CTC

Symbol

V

RRM

V

RWM

V

R

Io

I

FSM

T

OP

& T

STG

R

θ

JC

Value

300

400

500

600

40

200

-65 to +200

1.0

2.1

Units

Peak Repetitive Reverse Voltage

Average Rectified Forward Current

4/

(Resistive Load, 60 Hz Sine Wave, T

A

= 25 °C)

Peak Surge Current

5/

(8.3 ms Pulse, Half Sine Wave, T

A

= 25 °C)

Operating & Storage Temperature

Maximum Total Thermal Resistance

Junction to Case

4/

Junction to Case

5/

Volts

Amps

ºC

ºC/W

Notes:

1/ For ordering information, Price, Operating Curves, and Availability- Contact Factory.

2/ Screened to MIL-PRF-19500.

3/ Recovery Conditions: I

F

= 0.5 Amp, I

R

= 1.0 Amp, rec. to .25 Amp.

4/ Both Legs Tied Together.

5/ Each Leg.

NOTE:

All specifications are subject to change without notification.

SCD's for these devices should be reviewed by SSDI prior to release.

DATA SHEET #: RH0125B

DOC

SDR625CTC Related Products

	SDR625CTC	SDR623CTC	SDR624CTC	SDR626CTC
Description	40A 35nsec 300-600 V Hyper Fast Centertap Rectifier	40A 35nsec 300-600 V Hyper Fast Centertap Rectifier	40A 35nsec 300-600 V Hyper Fast Centertap Rectifier	40A 35nsec 300-600 V Hyper Fast Centertap Rectifier
Maker	SSDI	SSDI	SSDI	-
Parts packaging code	TO-254AA	TO-254AA	TO-254AA	-
package instruction	HERMETIC SEALED, CERAMIC PACKAGE-3	S-CSFM-T3	HERMETIC SEALED, CERAMIC PACKAGE-3	-
Contacts	3	3	3	-
Reach Compliance Code	compli	compliant	compli	-
ECCN code	EAR99	EAR99	EAR99	-
application	HYPER FAST RECOVERY	HYPER FAST RECOVERY	HYPER FAST RECOVERY	-
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	-
Diode component materials	SILICON	SILICON	SILICON	-
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	-
Maximum forward voltage (VF)	1.86 V	1.3 V	1.3 V	-
JEDEC-95 code	TO-254AA	TO-254AA	TO-254AA	-
JESD-30 code	S-CSFM-T3	S-CSFM-T3	S-CSFM-T3	-
Maximum non-repetitive peak forward current	200 A	200 A	200 A	-
Number of components	2	2	2	-
Phase	1	1	1	-
Number of terminals	3	3	3	-
Maximum operating temperature	200 °C	200 °C	200 °C	-
Maximum output current	40 A	40 A	40 A	-
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	-
Package shape	SQUARE	SQUARE	SQUARE	-
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	-
Certification status	Not Qualified	Not Qualified	Not Qualified	-
Maximum repetitive peak reverse voltage	500 V	300 V	400 V	-
Maximum reverse recovery time	0.035 µs	0.035 µs	0.035 µs	-
surface mount	NO	NO	NO	-
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-
Terminal location	SINGLE	SINGLE	SINGLE	-
