5962-01-252-4841 datasheet, PDF

Datasheet> All Categories > logic> logic> 5962-01-252-4841

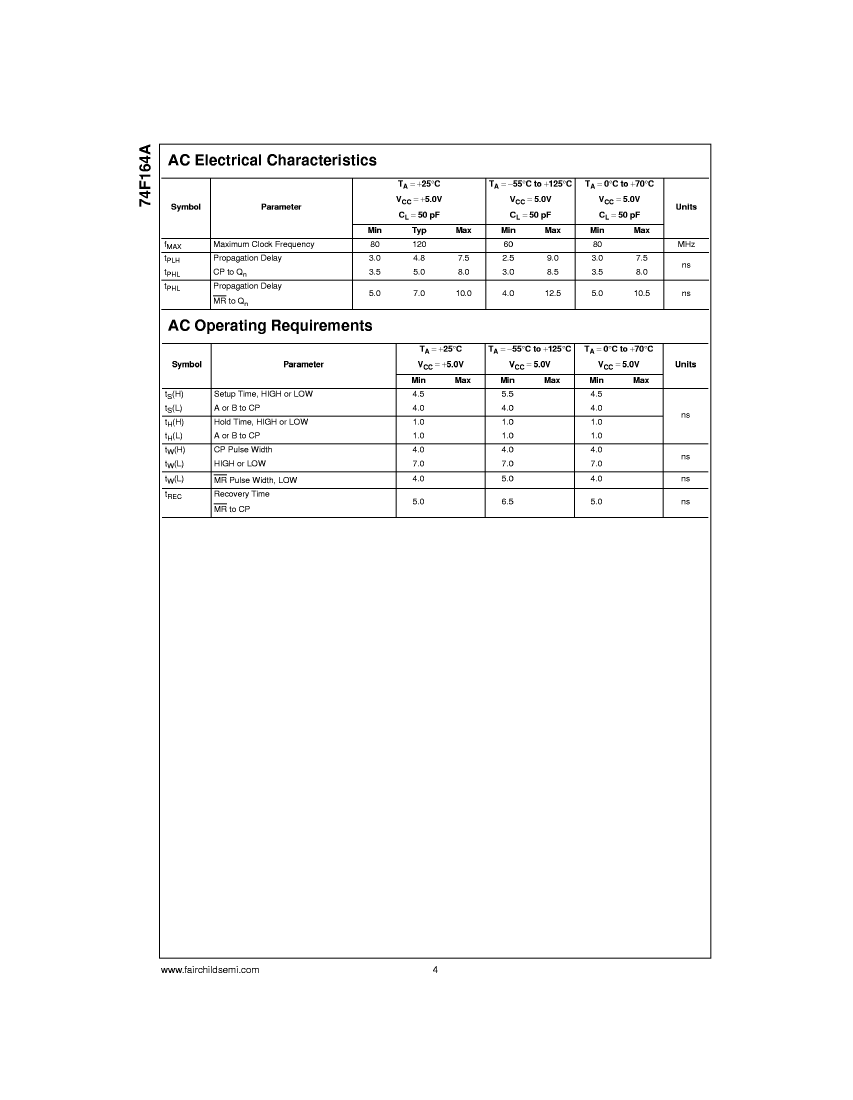

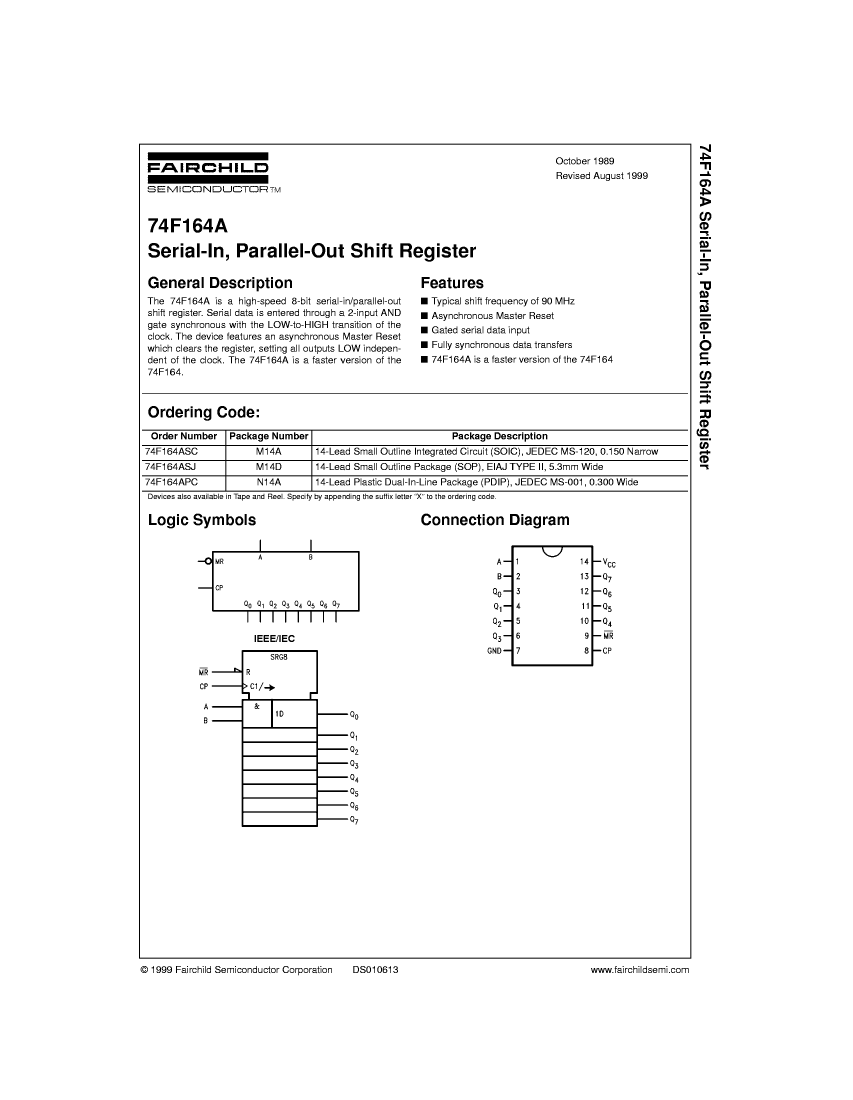

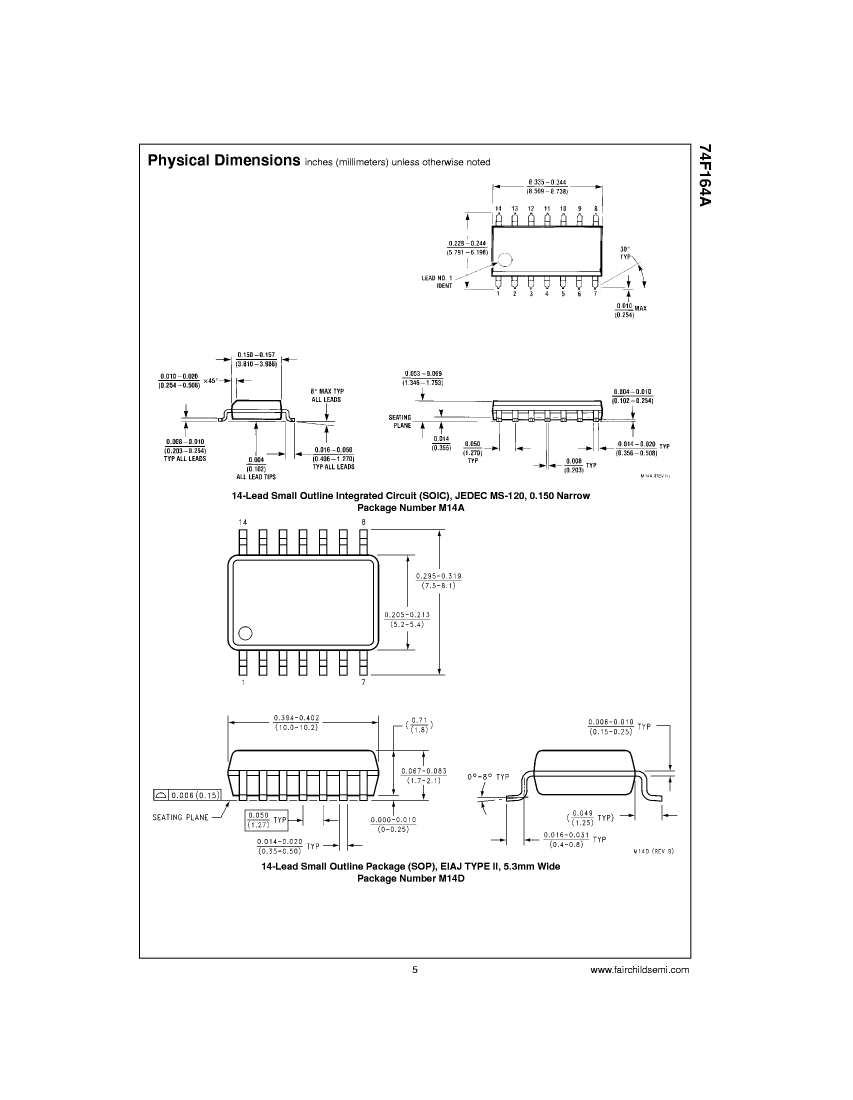

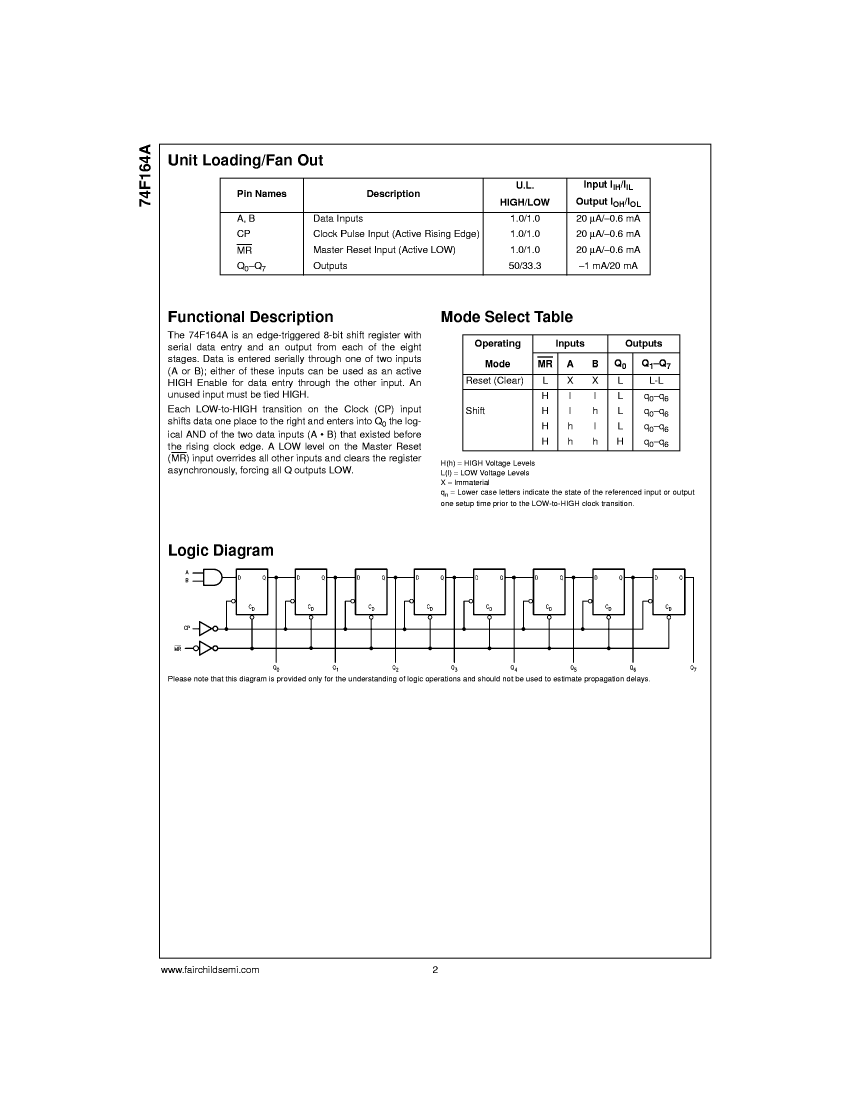

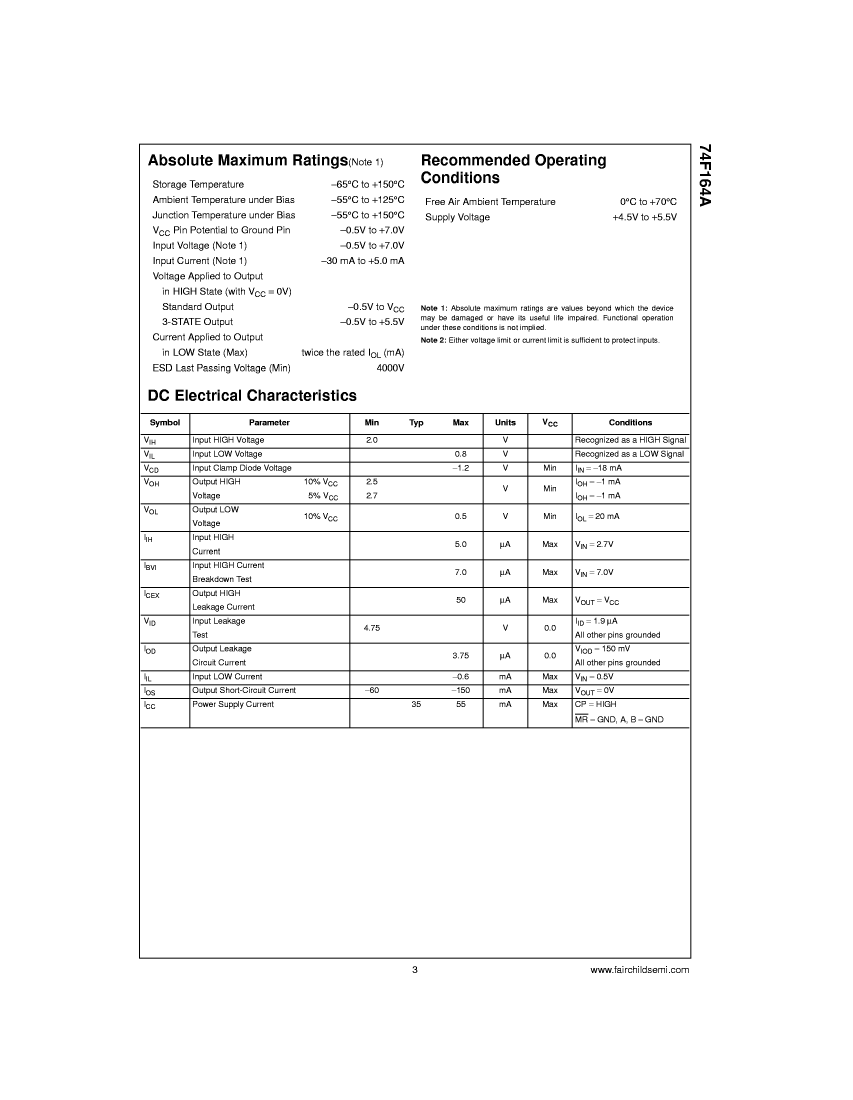

5962-01-252-4841: DescriptionShift Register, 8-Bit, TTL, CDIP14,; Categorylogic logic; File Size231KB，6 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

5962-01-252-4841 Overview

Shift Register, 8-Bit, TTL, CDIP14,

5962-01-252-4841 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	DIP, DIP14,.3
Reach Compliance Code	compliant
JESD-30 code	R-XDIP-T14
Humidity sensitivity level	2A
Number of digits	8
Number of functions	1
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	250
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Base Number Matches	1

Preview

Download Datasheet

View All

5962-01-252-4841 Related Products

	5962-01-252-4841	5962-01-257-7548	54F164FM	5962-01-323-7467	74F164DCQM	74F164PCQM	5962-01-210-1824
Description	Shift Register, 8-Bit, TTL, CDIP14,	Shift Register, 8-Bit, TTL, PDIP14,	Shift Register, 8-Bit, Right Direction, TTL, CDFP14,	Shift Register, 8-Bit, TTL, CDIP14,	Shift Register, 8-Bit, TTL, CDIP14,	Shift Register, 8-Bit, TTL, PDIP14,	Shift Register, 8-Bit, TTL, PDIP14,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	compli	compliant	compliant	compliant	compliant	compli
JESD-30 code	R-XDIP-T14	R-PDIP-T14	R-XDFP-F14	R-XDIP-T14	R-XDIP-T14	R-PDIP-T14	R-PDIP-T14
Number of digits	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1
Number of terminals	14	14	14	14	14	14	14
Maximum operating temperature	70 °C	70 °C	125 °C	125 °C	70 °C	70 °C	70 °C
Package body material	CERAMIC	PLASTIC/EPOXY	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DFP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP14,.3	DIP14,.3	FL14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	FLATPACK	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	NO	NO	NO	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Is it lead-free?	Contains lead	Contains lead	-	Contains lead	Contains lead	Contains lead	Contains lead
Maker	Fairchild	-	Fairchild	-	Fairchild	Fairchild	Fairchild
package instruction	DIP, DIP14,.3	DIP, DIP14,.3	-	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3
Humidity sensitivity level	2A	2A	-	2A	2A	2A	2A
Peak Reflow Temperature (Celsius)	250	250	-	250	250	250	250
Maximum time at peak reflow temperature	30	30	-	30	30	30	30
Base Number Matches	1	1	1	1	1	-	-
