Multilayer ceramic capacitor
HighCV, X7R 0805 50 V
Series/Type:
Chip
Ordering code: B37941K5***K0**
Date:
Version:
25.10.2005
2
Content of inside pages of data sheet. Data will be automatically entered into headers and
footers. Please fill in the table and then change the colour to “White”. This ensures that the
table disappears for the customer pdf.
Identification/Classification 1: (header 1)
Identification/Classification 2: (header 2)
Ordering code:
Series/Type:
Preliminary data (optional): (if necessary)
Department:
Date:
Prepared by:
Release signed PE:
Release signed QS:
Modifications/Remarks:
KB VS PE
25.10.2005
Mr. Huainig
Dr. Engel
Dr. Slakhorst
xx
xx
xx
Multilayer ceramic capacitor
HighCV, X7R 0805 50 V
B37941K5***K0**
Chip
©
EPCOS AG 2005. Reproduction, publication and dissemination of this data sheet, enclosures hereto and the information
contained therein without EPCOS' prior express consent is prohibited.

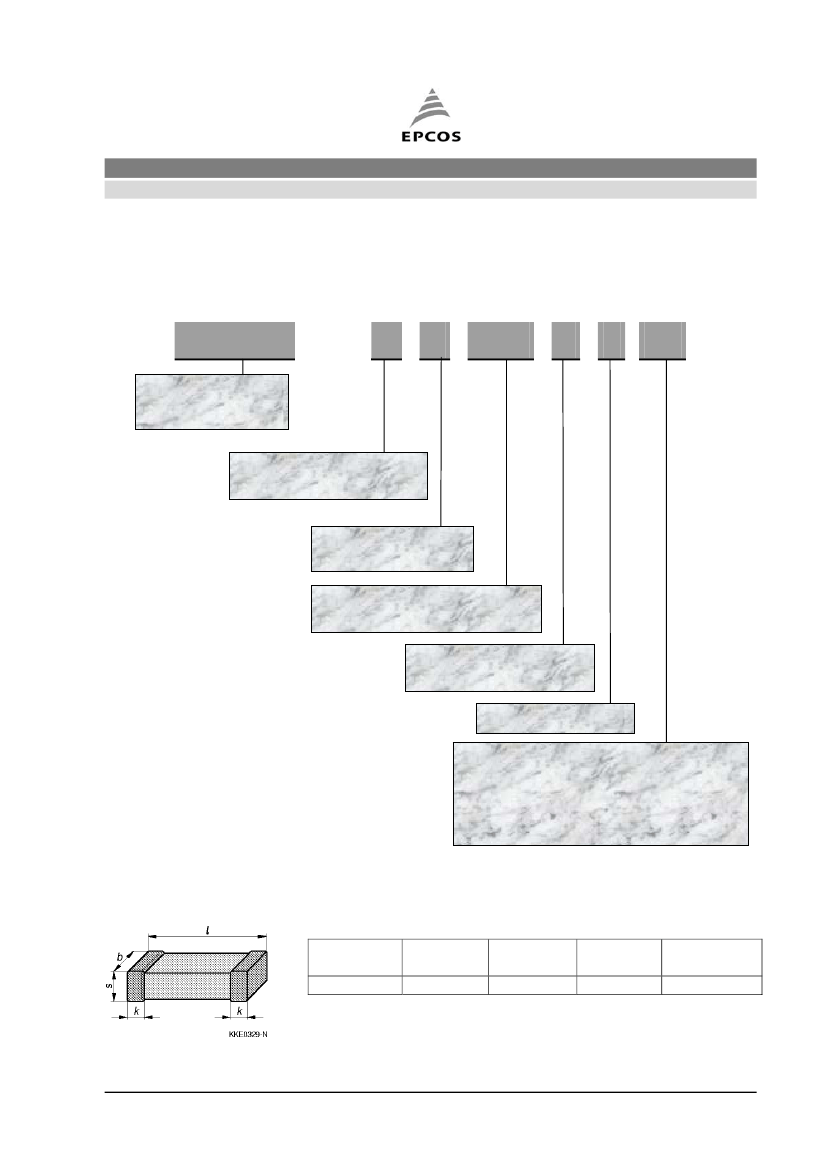

Multilayer ceramic capacitor
HighCV, X7R 0805 50 V
B37941K5***K0**
Chip
Electrical data
Temperature characteristic:
Climatic category (IEC 60068-1):
Standard:
Dielectric:
Rated voltage:
Capacitance
1)
test conditions
Test frequency:
Test voltage:
Max. relative capacitance change:
Dissipation factor tanδ (limit value):
Time constant
τ
at +25 °C:
Operating temperature range:
Capacitance value:
1)
X7R
55/125/56
EIA
Class 2
50 V
(1.0 ±0.2) kHz
(1.0 ±0.2) V
RMS
±15%
< 25 · 10
-3
> 500 s
–55 °C ... +125 °C
220 … 470 nF
Subject to aging, please see “General Technical Information” at
www.epcos.com/ceramic_capacitors
or the databook “Multilayer Ceramic Capacitors”.
Ordering codes and chip thickness
Size
[inch]
0805
C
R
[nF]
220
470
Ordering code
Thickness
[mm]
Packing quantity
∅
180-mm reel
[pcs]
4000
3000
±10%
Cardboard, 180-mm reel
±10%
Blister tape, 180-mm reel
B37941K5224K060*
B37941K5474K062**
0.80 ±0.1
1.25 ±0.1
∅
330-mm reel
[pcs]
16000
12000
* Ordering code example
** Ordering code example
Standard tolerance:
Standard packaging:
Standard tolerance:
Standard packaging:
KB VS PE
Please read
Cautions and Warnings
and
Important notes
at the end of this document.
Page 3 of 5
25.10.2005
Multilayer ceramic capacitor
HighCV, X7R 0805 50 V
B37941K5***K0**
Chip
Further information
Please see General Technical Information at
www.epcos.com/ceramic_capacitors
or the data book
“Multilayer Ceramic Capacitors” for further information on:
Soldering directions
Taping and packing
Surface mounting instructions
Effects of mechanical stress
Cautions and warnings
Derating: A “state of the art” application design is essential to achieve failures rates at ppb level.
Do not use designs based on 100% of specified rated values.
AC applications may damage MLCC on a much lower level than DC voltage due to power
dissipation losses.
Mechanical stress - Please note EPCOS “General Technical Information”, “Surface mounting
instructions” and information about the effect of mechanical stress.
ESD - EPCOS recommends the use of varistors.
Further processing - care must be taken using moulding processes.
Combined stresses - the total stress (e.g. DC voltage, AC ripple, pulses and temperature) has to
be taken into account to estimate reliability of MLCC.
KB VS PE
Please read
Cautions and Warnings
and
Important notes
at the end of this document.
Page 4 of 5
25.10.2005
Important notes
The following applies to all products named in this publication:
1. Some parts of this publication contain
statements about the suitability of our products for
certain areas of application.
These statements are based on our knowledge of typical
requirements that are often placed on our products in the areas of application concerned. We
nevertheless expressly point out
that such statements cannot be regarded as binding
statements about the suitability of our products for a particular customer application.
As a
rule, EPCOS is either unfamiliar with individual customer applications or less familiar with them
than the customers themselves. For these reasons, it is always ultimately incumbent on the
customer to check and decide whether an EPCOS product with the properties described in the
product specification is suitable for use in a particular customer application.
2. We also point out that
in individual cases, a malfunction of passive electronic components
or failure before the end of their usual service life cannot be completely ruled out in the
current state of the art, even if they are operated as specified.
In customer applications
requiring a very high level of operational safety and especially in customer applications in which
the malfunction or failure of a passive electronic component could endanger human life or health
(e.g. in accident prevention or life-saving systems), it must therefore be ensured by means of
suitable design of the customer application or other action taken by the customer (e.g. installation
of protective circuitry or redundancy) that no injury or damage is sustained by third parties in the
event of malfunction or failure of a passive electronic component.
3.
The warnings, cautions and product-specific notes must be observed.
4. In order to satisfy certain technical requirements,
some of the products described in this
publication may contain substances subject to restrictions in certain jurisdictions (e.g.
because they are classed as “hazardous”).
Useful information on this will be found in our
Material Data Sheets on the Internet (www.epcos.com/material). Should you have any more
detailed questions, please contact our sales offices.
5. We constantly strive to improve our products. Consequently,
the products described in this
publication may change from time to time.
The same is true of the corresponding product
specifications. Please check therefore to what extent product descriptions and specifications
contained in this publication are still applicable before or when you place an order.
We also
reserve the right to discontinue production and delivery of products.
Consequently,
we cannot guarantee that all products named in this publication will always be available.
6.
Unless otherwise agreed in individual contracts,
all orders are subject to the current version of
the “General Terms of Delivery for Products and Services in the Electrical Industry”
published by the German Electrical and Electronics Industry Association (ZVEI).
7. The trade names EPCOS, CeraDiode, CSSP, PhaseCap, PhaseMod, SIFI, SIKOREL, SilverCap,
SIMID, SIOV, SIP5D, SIP5K, TOPcap, UltraCap, WindCap are
trademarks registered or
pending
in Europe and in other countries. Further information will be found on the Internet at
www.epcos.com/trademarks.
Page 5 of 5
